Bayesian electron density determination from sparse and noisy single-molecule X-ray scattering images

Steffen Schultze , Helmut Grubm\"uller This is my paper

Pith reviewed 2026-05-24 03:41 UTC · model grok-4.3

classification ⚛️ physics.comp-ph
keywords single-molecule X-ray scatteringBayesian reconstructionelectron densityPoisson noiseunknown orientationsfree-electron laserprotein structuresparse photon data
0
0 comments X

The pith

A Bayesian method recovers electron densities of small proteins from single noisy X-ray images even when orientations are unknown.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Single-molecule X-ray scattering produces too few photons for small proteins to determine each image's orientation, blocking standard reconstruction. The paper introduces a Bayesian framework that models Poisson photon statistics together with intensity fluctuations, polarization, detector shape, incoherent scattering and background while integrating over all possible orientations. Synthetic tests recover protein densities in this regime; experimental data from coliphage PR772 yield the detector limit of 9 nm using only 0.01 percent of available photons per image. A sympathetic reader would care because the approach opens structural work on biomolecules that scatter too weakly for per-image orientation methods.

Core claim

The central claim is that a rigorous Bayesian posterior over electron density, with a Poisson likelihood that incorporates intensity fluctuations, beam polarization, irregular detector shapes, incoherent scattering and background scattering, permits reliable recovery of molecular electron densities from sparse single-molecule images even when each image's orientation is random and unknown; this is shown by successful reconstruction on synthetic protein data and by reaching 9 nm resolution on published PR772 experimental images while using only 0.01 percent of the photons per image.

What carries the argument

Bayesian posterior estimation of electron density that marginalizes over unknown molecular orientations under a Poisson likelihood including experimental nuisance parameters.

If this is right

  • Electron densities become accessible for proteins too small for orientation determination per image.
  • Structural information can be extracted at detector-limited resolution using far fewer photons than required by orientation-based methods.
  • The same posterior framework handles intensity fluctuations and background scattering without separate preprocessing steps.
  • Analysis of structural ensembles is possible because orientations are treated probabilistically rather than fixed per image.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same marginalization strategy could be tested on other sparse imaging modalities that also lack per-image pose information.
  • Adding a prior that encodes known secondary-structure constraints would be a direct extension that might raise resolution without new data.
  • Time-series versions of the same images could be processed to extract ensemble dynamics rather than a single static density.

Load-bearing premise

The likelihood model correctly captures every relevant experimental effect and the prior on electron density is sufficient to recover the map when orientations remain unknown.

What would settle it

Apply the method to synthetic scattering images generated from a known ground-truth density but with one additional unmodeled noise source; the recovered density deviates substantially from truth if the assumption fails.

Figures

Figures reproduced from arXiv: 2403.18391 by Helmut Grubm\"uller, Steffen Schultze.

Figure 1
Figure 1. Figure 1: a Single molecule scattering experiment (image reproduced from von Ardenne et al. (17 )). b Irregular detector shape used for our simulated scattering experiments, modelled after the detector used at the European XFEL (18 ). Note that the apparent ‘curvature’ does not reflect the actual detector geometry, but is instead an artifact of the projection onto the Ewald sphere. The third challenge is posed by se… view at source ↗
Figure 2
Figure 2. Figure 2: Electron density determination from noise-free images. a Sample synthetic noise-free images, containing only coherent signal photons (red dots). b Hierarchical stages of retrieved electron densities. c Fourier shell correlation between reconstructed and reference density. d Reconstructed electron density. e Reference electron density. 5 [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Electron density determination from noisy images, for a-d a noise level of 60 % and e-h of 90%. a,e Sample synthetic noisy images, showing coherent signal photons (red) and noise photons (black). b,f Radial distribution of photons from coherent scattering, background and incoherent (uniform) noise (stacked histogram). c,g Fourier shell correlations show the achieved resolutions of 8 ˚A and 10.4 ˚A. d,h Rec… view at source ↗
Figure 4
Figure 4. Figure 4: Electron density determination of the coliphage PR772. a Sample downsampled images (red dots) and corresponding original experimental images (blue, log-scaled). b Average density obtained from MCMC-sampling. Perfect icosahedron with side length 30 nm for reference. c Fourier shell correlations between 100 randomly selected sampled electron densities and the average density. d Slices through the average ele… view at source ↗

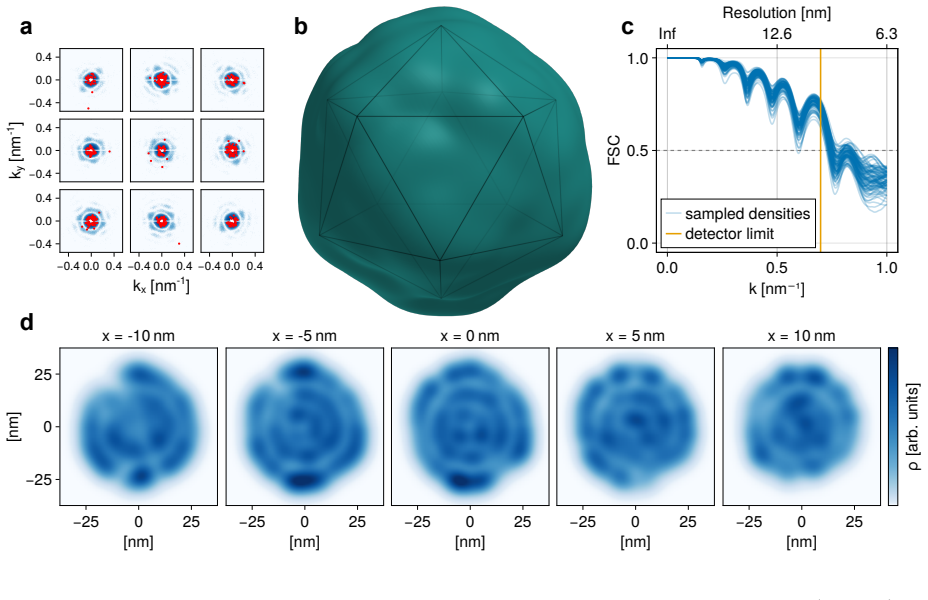

read the original abstract

Single molecule X-ray scattering experiments using free electron lasers hold the potential to resolve both single structures and structural ensembles of biomolecules. However, molecular electron density determination has so far not been achieved due to low photon counts, high noise levels and low hit rates. Most analysis approaches therefore focus on large specimen like entire viruses, which scatter substantially more photons per image, such that it becomes possible to determine the molecular orientation for each image. In contrast, for small specimen like proteins, the molecular orientation cannot be determined for each image, and must be considered random and unknown. Here we developed and tested a rigorous Bayesian approach to overcome these limitations, and also taking into account intensity fluctuations, beam polarization, irregular detector shapes, incoherent scattering and background scattering. We demonstrate using synthetic scattering images that it is possible to determine electron densities of small proteins in this extreme high noise Poisson regime. Tests on published experimental data from the coliphage PR772 achieved the detector-limited resolution of $9\,\mathrm{nm}$, using only $0.01\,\%$ of the available photons per image.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a Bayesian framework for recovering molecular electron densities from single-molecule XFEL scattering images in the sparse-photon, high-noise Poisson regime. The method marginalizes over unknown orientations via a physics-informed Poisson likelihood that incorporates intensity fluctuations, beam polarization, irregular detector shapes, incoherent scattering, and background scattering. Validation consists of recovery tests on synthetic data for small proteins and on previously published experimental images of coliphage PR772, where detector-limited 9 nm resolution is reported using only 0.01 % of available photons per image.

Significance. If the recovery is robust, the work would enable structure determination for small biomolecules where per-image orientation assignment is impossible, extending single-particle imaging to a regime previously inaccessible with conventional methods.

major comments (2)
  1. [Abstract] The central claim of reliable density recovery rests on the correctness of the Poisson likelihood and chosen prior; however, the manuscript provides no quantitative assessment (e.g., pixel-wise error maps or Fourier-shell correlation curves against ground truth) that would confirm the likelihood model captures all relevant experimental effects listed in the abstract.
  2. [Validation section (implied by abstract)] No sampling details (MCMC chain length, convergence diagnostics, or effective sample size) or hyper-parameter sensitivity analysis are supplied, leaving open whether the reported 9 nm resolution on PR772 data is stable under reasonable variations in the prior or noise model.
minor comments (2)
  1. Clarify the precise definition of the electron-density prior and any regularization terms used in the marginalization.
  2. Add a table or figure quantifying photon counts per image for both synthetic and experimental cases to support the 0.01 % claim.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments. We address each point below and will revise the manuscript to incorporate the requested quantitative assessments and sampling details.

read point-by-point responses

  1. Referee: [Abstract] The central claim of reliable density recovery rests on the correctness of the Poisson likelihood and chosen prior; however, the manuscript provides no quantitative assessment (e.g., pixel-wise error maps or Fourier-shell correlation curves against ground truth) that would confirm the likelihood model captures all relevant experimental effects listed in the abstract.

    Authors: We agree that additional quantitative validation would strengthen the claims. In the revised manuscript we will add Fourier-shell correlation curves against ground truth for the synthetic protein test cases and pixel-wise error maps where feasible. For the experimental PR772 data, where no ground truth exists, we will explicitly discuss the validation approach used and its limitations while confirming that the listed experimental effects are incorporated in the likelihood. revision: yes

  2. Referee: [Validation section (implied by abstract)] No sampling details (MCMC chain length, convergence diagnostics, or effective sample size) or hyper-parameter sensitivity analysis are supplied, leaving open whether the reported 9 nm resolution on PR772 data is stable under reasonable variations in the prior or noise model.

    Authors: We agree these details are necessary for reproducibility and robustness assessment. The revised manuscript will report MCMC chain lengths, convergence diagnostics (e.g., Gelman-Rubin statistics or trace plots), and effective sample sizes. We will also add a hyper-parameter sensitivity analysis demonstrating stability of the reported 9 nm resolution under reasonable variations in the prior and noise model. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper develops a Bayesian framework for recovering electron densities from sparse, noisy single-molecule X-ray images by marginalizing over unknown orientations with a Poisson likelihood that incorporates intensity fluctuations, polarization, detector geometry, incoherent and background scattering. All load-bearing steps are physics-based and the central claims are tested directly on independent synthetic data for small proteins plus previously published experimental PR772 images, reaching detector-limited 9 nm resolution with 0.01% photon usage. No derivation reduces by construction to a fitted parameter, self-citation chain, or renamed input; the reported results are externally falsifiable via the described validation strategy.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities are identifiable from the provided text.

pith-pipeline@v0.9.0 · 5716 in / 1109 out tokens · 38265 ms · 2026-05-24T03:41:30.332619+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

64 extracted references · 64 canonical work pages

  1. [1]

    Hajdu, Single-Molecule X-ray Diffraction

    J. Hajdu, Single-Molecule X-ray Diffraction. Current Opinion Struct. Biol. 10, 569–573 (2000)

    work page 2000

  2. [2]

    Huldt, A

    G. Huldt, A. Sz˝ oke, J. Hajdu, Diffraction Imaging of Single Particles and Biomolecules. J. Struct. Biol. , Analytical Methods and Software Tools for Macromolecular Microscopy 144, 219–227 (2003)

    work page 2003

  3. [3]

    K. J. Gaffney, H. N. Chapman, Imaging Atomic Structure and Dynamics with Ultrafast X-ray Scattering. Science 316, 1444–1448 (2007)

    work page 2007

  4. [4]

    J. Miao, T. Ishikawa, I. K. Robinson, M. M. Murnane, Beyond Crystallography: Diffractive Imaging Using Coherent x-Ray Light Sources. Science 348, 530–535 (2015)

    work page 2015

  5. [5]

    H. N. Chapman, C. Caleman, N. Timneanu, Diffraction before Destruction. Philos. Trans. Royal Soc. B: Biol. Sci. 369, 20130313 (2014)

    work page 2014

  6. [6]

    Neutze, R

    R. Neutze, R. Wouts, D. vander Spoel, E. Weckert, J. Hajdu, Potential for Biomolecular Imaging with Femtosecond X-ray Pulses. Nature 406, 752–757 (2000)

    work page 2000

  7. [7]

    Schlichting, Serial Femtosecond Crystallography: The First Five Years

    I. Schlichting, Serial Femtosecond Crystallography: The First Five Years. IUCrJ 2, 246–255 (2015)

    work page 2015

  8. [8]

    H. N. Chapman, Structure Determination Using X-Ray Free-Electron Laser Pulses. Methods Mol. Biol. (Clifton, N.J.) 1607, 295–324 (2017)

    work page 2017

  9. [9]

    K. Oda, T. Nomura, T. Nakane, K. Yamashita, K. Inoue, S. Ito, J. Vierock, K. Hirata, A. D. Maturana, K. Katayama, T. Ikuta, I. Ishigami, T. Izume, R. Umeda, R. Eguma, S. Oishi, G. Kasuya, T. Kato, T. Kusakizako, W. Shihoya, H. Shimada, T. Takatsuji, M. Takemoto, R. Taniguchi, A. Tomita, R. Nakamura, M. Fukuda, H. Miyauchi, Y. Lee, E. Nango, R. Tanaka, T. ...

    work page 2021

  10. [10]

    Tenboer, S

    J. Tenboer, S. Basu, N. Zatsepin, K. Pande, D. Milathianaki, M. Frank, M. Hunter, S. Boutet, G. J. Williams, J. E. Koglin, D. Oberthuer, M. Heymann, C. Kupitz, C. Conrad, J. Coe, S. Roy-Chowdhury, U. Weierstall, D. James, D. Wang, T. Grant, A. Barty, O. Yefanov, J. Scales, C. Gati, C. Seuring, V. Srajer, R. Henning, P. Schwander, R. Fromme, A. Ourmazd, K....

    work page 2014

  11. [11]

    T. R. M. Barends, B. Stauch, V. Cherezov, I. Schlichting, Serial Femtosecond Crystallography. Nat. Rev. Methods Primers 2, 1–24 (2022)

    work page 2022

  12. [12]

    Zastrau, K

    U. Zastrau, K. Appel, C. Baehtz, O. Baehr, L. Batchelor, A. Bergh¨ auser, M. Banjafar, E. Brambrink, V. Cerantola, T. E. Cowan, H. Damker, S. Dietrich, S. Di Dio Cafiso, J. Dreyer, H.-O. Engel, T. Feldmann, S. Findeisen, M. Foese, D. Fulla-Marsa, S. G¨ ode, M. Hassan, J. Hauser, T. Herrmannsd¨ orfer, H. H¨ oppner, J. Kaa, P. Kaever, K. Kn¨ ofel, Z. Konˆ o...

    work page 2021

  13. [13]

    Z. Sun, J. Fan, H. Li, H. Jiang, Current Status of Single Particle Imaging with X-ray Lasers. Appl. Sci. 8, 132 (2018)

    work page 2018

  14. [14]

    M. M. Seibert, T. Ekeberg, F. R. N. C. Maia, M. Svenda, J. Andreasson, O. J¨ onsson, D. Odi´ c, B. Iwan, A. Rocker, D. Westphal, M. Hantke, D. P. DePonte, A. Barty, J. Schulz, L. Gumprecht, N. Coppola, A. Aquila, M. Liang, T. A. White, A. Martin, C. Caleman, S. Stern, C. Abergel, V. Seltzer, J.-M. Claverie, C. Bostedt, J. D. Bozek, S. Boutet, A. A. Miahna...

    work page 2011

  15. [15]

    Ekeberg, M

    T. Ekeberg, M. Svenda, C. Abergel, F. R. N. C. Maia, V. Seltzer, J. -M. Claverie, M. Hantke, O. J¨ onsson, C. Nettelblad, G. vander Schot, M. Liang, D. P. DePonte, A. Barty, M. M. Seibert, B. Iwan, I. Andersson, N. D. Loh, A. V. Martin, H. Chapman, C. Bostedt, J. D. Bozek, K. R. Ferguson, J. Krzywinski, S. W. Epp, D. Rolles, A. Rudenko, R. Hartmann, N. Ki...

    work page 2015

  16. [16]

    Hosseinizadeh, P

    A. Hosseinizadeh, P. Schwander, A. Dashti, R. Fung, R. M. D’Souza, A. Ourmazd, High- Resolution Structure of Viruses from Random Diffraction Snapshots. Philos. Trans. Royal Soc. B: Biol. Sci. 369, 20130326 (2014)

    work page 2014

  17. [17]

    von Ardenne, M

    B. von Ardenne, M. Mechelke, H. Grubm¨ uller, Structure Determination from Single Molecule X-ray Scattering with Three Photons per Image. Nat. Commun. 9, 2375 (2018)

    work page 2018

  18. [18]

    Allahgholi, J

    A. Allahgholi, J. Becker, A. Delfs, R. Dinapoli, P. Goettlicher, D. Greiffenberg, B. Henrich, H. Hirsemann, M. Kuhn, R. Klanner, A. Klyuev, H. Krueger, S. Lange, T. Laurus, A. Marras, D. Mezza, A. Mozzanica, M. Niemann, J. Poehlsen, J. Schwandt, I. Sheviakov, X. Shi, S. Smoljanin, L. Steffen, J. Sztuk-Dambietz, U. Trunk, Q. Xia, M. Zeribi, J. Zhang, M. Zi...

    work page 2019

  19. [19]

    V. L. Shneerson, A. Ourmazd, D. K. Saldin, Crystallography without Crystals. I. The Common- Line Method for Assembling a Three-Dimensional Diffraction Volume from Single-Particle Scattering. Acta Crystallogr. Sect. A: Found. Crystallogr. 64, 303–315 (2008)

    work page 2008

  20. [20]

    N.-T. D. Loh, V. Elser, Reconstruction Algorithm for Single-Particle Diffraction Imaging Experiments. Phys. Review E 80, 026705 (2009). 16

    work page 2009

  21. [21]

    Walczak, H

    M. Walczak, H. Grubm¨ uller, Bayesian Orientation Estimate and Structure Information from Sparse Single-Molecule x-Ray Diffraction Images. Phys. Review E 90, 022714 (2014)

    work page 2014

  22. [22]

    Kassemeyer, A

    S. Kassemeyer, A. Jafarpour, L. Lomb, J. Steinbrener, A. V. Martin, I. Schlichting, Optimal Mapping of X-ray Laser Diffraction Patterns into Three Dimensions Using Routing Algorithms. Phys. Review E 88, 042710 (2013)

    work page 2013

  23. [23]

    Elser, Three-Dimensional Structure from Intensity Correlations

    V. Elser, Three-Dimensional Structure from Intensity Correlations. New J. Phys. 13, 123014 (2011)

    work page 2011

  24. [24]

    Tegze, G

    M. Tegze, G. Bortel, Atomic Structure of a Single Large Biomolecule from Diffraction Patterns of Random Orientations. J. Struct. Biol. 179, 41–45 (2012)

    work page 2012

  25. [25]

    Flamant, N

    J. Flamant, N. Le Bihan, A. V. Martin, J. H. Manton, Expansion-Maximization-Compression Algorithm with Spherical Harmonics for Single Particle Imaging with x-Ray Lasers. Phys. Review E 93, 053302 (2016)

    work page 2016

  26. [26]

    Ayyer, T

    K. Ayyer, T. -Y. Lan, V. Elser, N. D. Loh, Dragonfly: An Implementation of the Expand- Maximize-Compress Algorithm for Single-Particle Imaging. J. Appl. Crystallogr. 49, 1320– 1335 (2016)

    work page 2016

  27. [27]

    Elser, I

    V. Elser, I. Rankenburg, P. Thibault, Searching with Iterated Maps. Proc. National Acad. Sci. 104, 418–423 (2007)

    work page 2007

  28. [28]

    D. R. Luke, Relaxed Averaged Alternating Reflections for Diffraction Imaging. Inverse Probl. An Int. J. on Theory Pract. Inverse Probl. Inverse Methods Comput. Inversion Data 21, 37–50 (2004)

    work page 2004

  29. [29]
