pith. sign in

arxiv: 2404.16190 · v2 · submitted 2024-04-24 · ⚛️ physics.flu-dyn

Spanwise Control Authority of Synthetic Jets on a Stalled Airfoil

Adnan Machado , Kecheng Xu , Pierre E. Sullivan This is my paper

Pith reviewed 2026-05-24 02:43 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn
keywords synthetic jetsflow controlstalled airfoilhigh-frequency actuationvortex ringsspanwise authorityNACA 0025modal analysis
0
0 comments X

The pith

High-frequency synthetic jet actuation reattaches stalled airfoil flow more steadily than low-frequency actuation, with spanwise variations in effectiveness.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The study tests synthetic jet actuators on a NACA 0025 airfoil to control separated flow at stall. High-frequency forcing produces steadier reattachment of the shear layer and wake than low-frequency forcing, yielding better average aerodynamic forces. Vortex rings form under high-frequency actuation and appear to aid the reattachment process. Control effectiveness is not uniform along the span, dropping away from the midspan plane. Modal analysis of the flow fields reveals how the dominant structures evolve differently at each frequency and spanwise location.

Core claim

High-frequency synthetic jet actuation induces steadier flow reattachment and more favorable aerodynamic characteristics on the stalled NACA 0025 airfoil than low-frequency actuation; the high-frequency case generates identifiable vortex rings whose role in control is examined, while spanwise measurements show that aerodynamic stability declines away from the midspan.

What carries the argument

Frequency-dependent synthetic jet actuation that generates vortex rings and alters shear-layer and wake stability, with spanwise variation in the resulting control authority.

If this is right

  • High-frequency actuation yields steadier shear-layer and wake dynamics than low-frequency actuation.
  • Vortex rings formed by high-frequency jets contribute measurably to the reattachment process.
  • Aerodynamic performance gains are largest near the midspan and weaken at outboard spanwise stations.
  • Modal decomposition identifies distinct dominant flow structures at each forcing frequency.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Optimal actuator frequency may need to be chosen according to the desired balance between lift recovery and spanwise uniformity.
  • Multiple actuator rows could be required to maintain consistent control across an entire wing or blade.
  • The same frequency dependence might appear in other separated-flow geometries such as turbine blades or vehicle wakes.

Load-bearing premise

The visualizations, surface sensors, and modal analysis accurately capture the true three-dimensional flow response without major facility effects or measurement limits that would change the reported frequency or spanwise trends.

What would settle it

Repeated experiments in which low-frequency actuation produces steadier reattachment or in which spanwise aerodynamic forces remain uniform would contradict the central frequency and spanwise claims.

Figures

Figures reproduced from arXiv: 2404.16190 by Adnan Machado, Kecheng Xu, Pierre E. Sullivan.

Figure 1

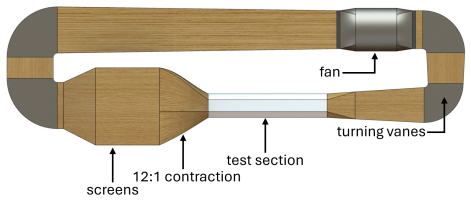

Figure 1. Figure 1: FIG. 1: Labelled schematic of the wind tunnel [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

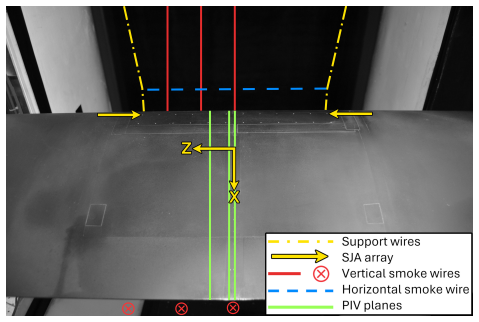

Figure 2. Figure 2: FIG. 2: Labelled overhead photo of the NACA 0025 airfoil in the test section [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

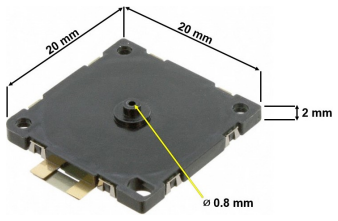

Figure 3. Figure 3: FIG. 3: Murata MZB1001T02 microblower [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

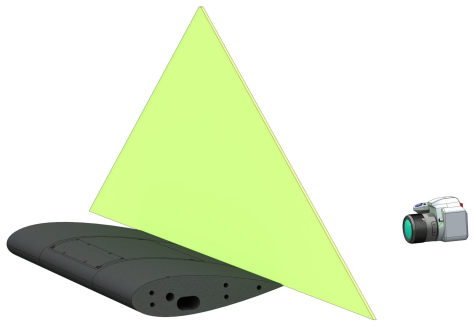

Figure 4. Figure 4: FIG. 4: Depiction of the laser sheet and camera orientation for the sectional smoke flow [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

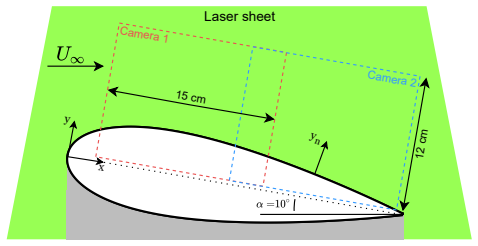

Figure 5. Figure 5: FIG. 5: Camera FOVs and laser sheet orientation for the PIV experiment [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6

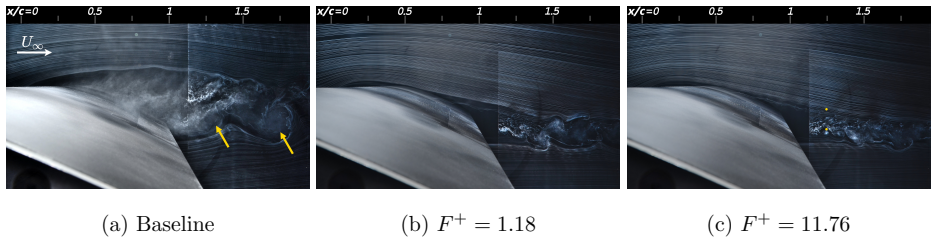

Figure 6. Figure 6: FIG. 6: Smoke flow visualization at the midspan; streamwise-transverse plane [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 7

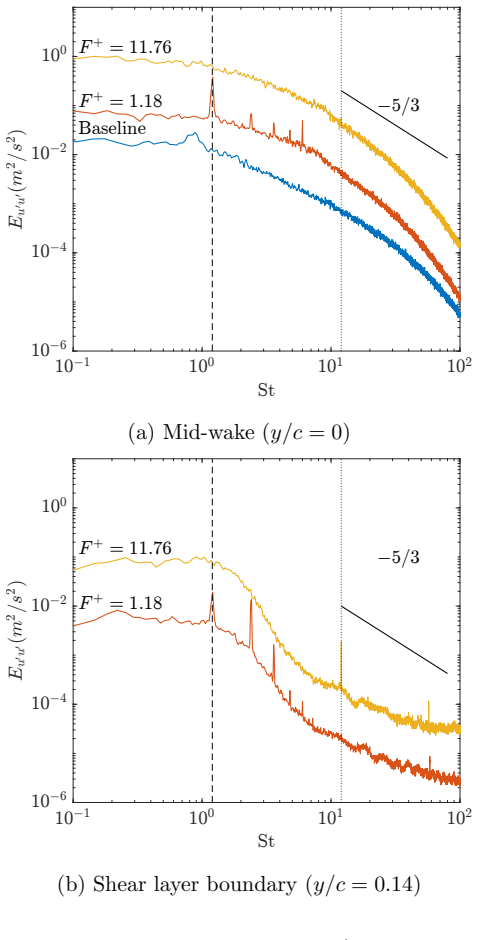

Figure 7. Figure 7: FIG. 7: Streamwise velocity spectra of the wake at [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗
Figure 8

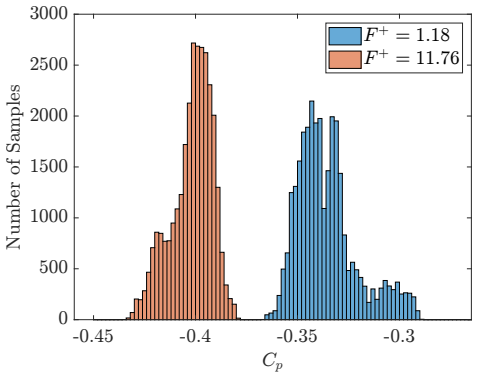

Figure 8. Figure 8: FIG. 8: Distribution of surface pressure coefficients at [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗
Figure 9

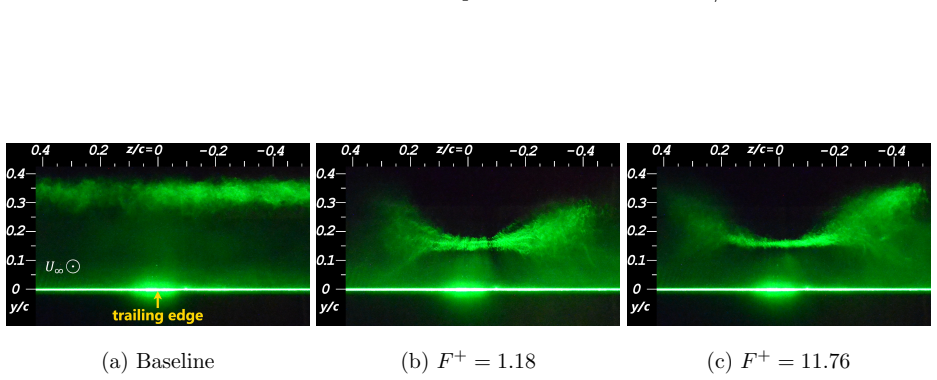

Figure 9. Figure 9: FIG. 9: Sectional smoke flow visualization at the trailing edge; spanwise-transverse plane [PITH_FULL_IMAGE:figures/full_fig_p013_9.png] view at source ↗
Figure 10

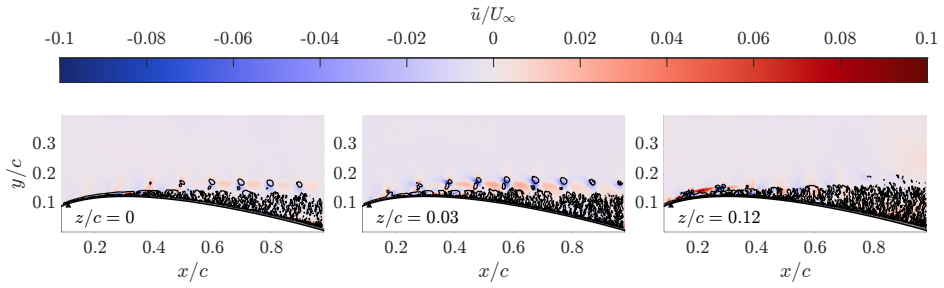

Figure 10. Figure 10: FIG. 10: Contours of coherent streamwise velocity with iso-contour of [PITH_FULL_IMAGE:figures/full_fig_p014_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11: Overhead smoke visualization of flow above the airfoil, [PITH_FULL_IMAGE:figures/full_fig_p015_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: FIG. 12: Mean velocity profiles at [PITH_FULL_IMAGE:figures/full_fig_p017_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: FIG. 13: Contours of turbulent kinetic energy, [PITH_FULL_IMAGE:figures/full_fig_p018_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: FIG. 14: Distributions of instantaneous boundary layer thickness at [PITH_FULL_IMAGE:figures/full_fig_p019_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: FIG. 15: Contours of streamwise velocity for two selected instantaneous frames at [PITH_FULL_IMAGE:figures/full_fig_p019_15.png] view at source ↗
Figure 16

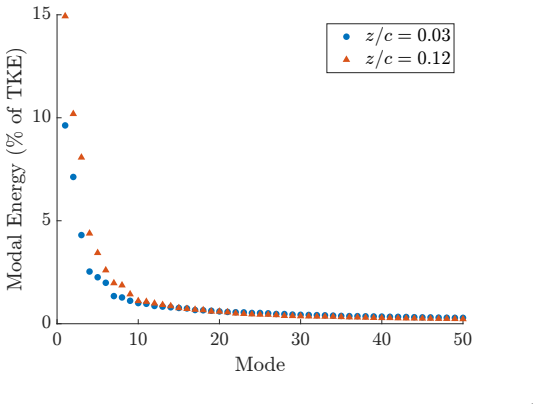

Figure 16. Figure 16: FIG. 16: Fractional energy distributions for the first 50 modes, [PITH_FULL_IMAGE:figures/full_fig_p021_16.png] view at source ↗
Figure 17

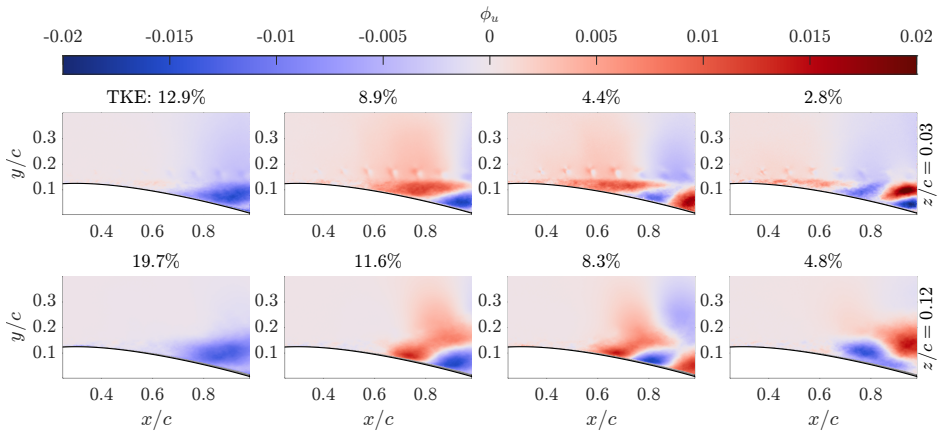

Figure 17. Figure 17: FIG. 17: First 4 POD modes of the fluctuating streamwise velocity field for [PITH_FULL_IMAGE:figures/full_fig_p024_17.png] view at source ↗
Figure 18

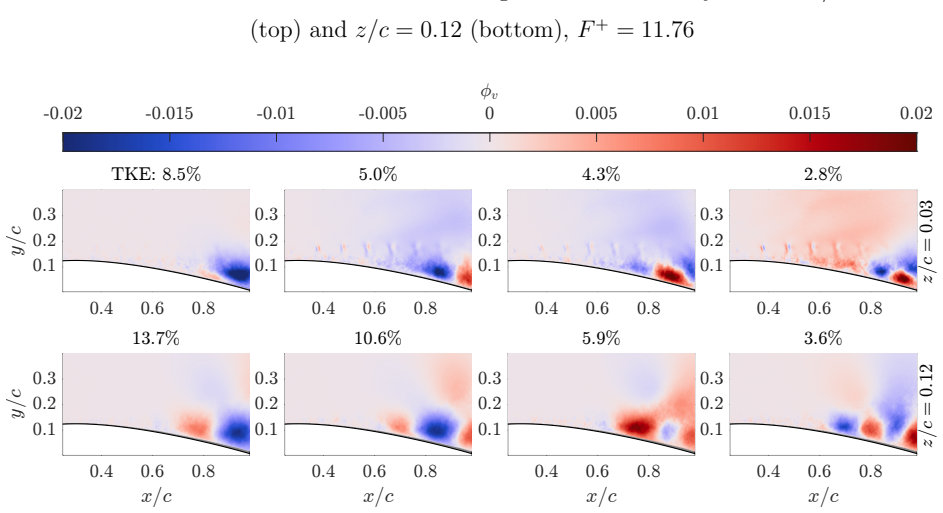

Figure 18. Figure 18: FIG. 18: First 4 POD modes of the fluctuating transverse velocity field for [PITH_FULL_IMAGE:figures/full_fig_p024_18.png] view at source ↗
read the original abstract

This study investigates the aerodynamic effects of low- and high-frequency synthetic jet control strategies on a National Advisory Committee for Aeronautics (NACA) 0025 airfoil. Visualizations and measurements are employed to assess the stability of the flow, focusing on the shear layer and wake dynamics under two forcing frequencies. High-frequency actuation is found to induce steadier flow reattachment and more favorable aerodynamic characteristics compared to low-frequency control. Flow structures resulting from high-frequency actuation, notably vortex rings, are identified and their significance in flow control is evaluated. Furthermore, the spanwise control authority is analyzed, revealing variations in aerodynamic stability away from the midspan. Insights from modal analysis provide additional understanding of flow structures and their evolution across different spanwise planes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper reports an experimental investigation into the use of synthetic jets for flow control on a stalled NACA 0025 airfoil at low and high frequencies. Visualizations, surface measurements, and modal analysis are used to assess flow stability, leading to the conclusion that high-frequency actuation achieves steadier reattachment and superior aerodynamic outcomes, with additional analysis of spanwise control authority and vortex ring structures.

Significance. This work contributes to the field of active flow control by comparing frequency effects and examining spanwise variations, which are important for practical implementation. The modal analysis provides useful insights into flow dynamics. The experimental methods are standard, but stronger quantitative support for the claims would enhance the significance.

major comments (1)
  1. [Abstract] Abstract: The abstract claims that high-frequency actuation induces 'steadier flow reattachment and more favorable aerodynamic characteristics' compared to low-frequency control but supplies no quantitative data (e.g., lift/drag changes, reattachment statistics, or uncertainty measures), error bars, baseline cases, or references to specific figures/tables. This directly affects evaluation of the central comparative claim.
minor comments (2)
  1. Add explicit numerical comparisons or statistical summaries of the steadiness and aerodynamic metrics in the abstract or early results section to support the frequency-dependence conclusion.
  2. Clarify the precise frequency values (including any nondimensionalization such as Strouhal number) and the criteria used to classify 'low' versus 'high' in the methods section.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive review and the recommendation for minor revision. We address the single major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The abstract claims that high-frequency actuation induces 'steadier flow reattachment and more favorable aerodynamic characteristics' compared to low-frequency control but supplies no quantitative data (e.g., lift/drag changes, reattachment statistics, or uncertainty measures), error bars, baseline cases, or references to specific figures/tables. This directly affects evaluation of the central comparative claim.

    Authors: We agree that the abstract would benefit from quantitative support for the central claim. In the revised version we will add concise numerical results (lift and drag coefficient changes relative to the baseline stalled case) together with a reference to the primary figure showing these quantities, while preserving the abstract length limit. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental observations only

full rationale

The manuscript is a purely experimental study reporting direct measurements and visualizations of flow reattachment, wake dynamics, and spanwise variations under synthetic-jet actuation at two frequencies. No equations, fitted parameters, predictions derived from inputs, or self-citation chains appear in the abstract or described methods. Modal analysis (POD/DMD) is used as a standard post-processing tool to identify structures, not as a derivation that reduces to its own assumptions. All central claims are observational comparisons, with no load-bearing steps that reduce by construction to the paper's own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no mathematical model, free parameters, or new physical entities are described. Standard fluid-mechanics assumptions (incompressible flow at the tested Reynolds number, negligible facility interference) are implicit but not stated.

pith-pipeline@v0.9.0 · 5653 in / 1182 out tokens · 20212 ms · 2026-05-24T02:43:58.658823+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

49 extracted references · 49 canonical work pages

  1. [1]

    merlin.mbs aapmrev4-1.bst 2010-07-25 4.21a (PWD, AO, DPC) hacked

    FUNCTION id.bst "merlin.mbs aapmrev4-1.bst 2010-07-25 4.21a (PWD, AO, DPC) hacked" ENTRY address archive archivePrefix author bookaddress booktitle chapter collaboration doi edition editor eid eprint howpublished institution isbn issn journal key language month note number organization pages primaryClass publisher school SLACcitation series title translat...

    work page 2010

  2. [2]

    merlin.mbs aipauth4-1.bst 2010-07-25 4.21a (PWD, AO, DPC) hacked

    FUNCTION id.bst "merlin.mbs aipauth4-1.bst 2010-07-25 4.21a (PWD, AO, DPC) hacked" ENTRY address archive archivePrefix author bookaddress booktitle chapter collaboration doi edition editor eid eprint howpublished institution isbn issn journal key language month note number organization pages primaryClass publisher school SLACcitation series title translat...

    work page 2010

  3. [3]

    merlin.mbs aipnum4-1.bst 2010-07-25 4.21a (PWD, AO, DPC) hacked

    FUNCTION id.bst "merlin.mbs aipnum4-1.bst 2010-07-25 4.21a (PWD, AO, DPC) hacked" ENTRY address archive archivePrefix author bookaddress booktitle chapter collaboration doi edition editor eid eprint howpublished institution isbn issn journal key language month note number organization pages primaryClass publisher school SLACcitation series title translati...

    work page 2010

  4. [4]

    merlin.mbs apsrev4-1.bst 2010-07-25 4.21a (PWD, AO, DPC) hacked

    FUNCTION id.bst "merlin.mbs apsrev4-1.bst 2010-07-25 4.21a (PWD, AO, DPC) hacked" ENTRY address archive archivePrefix author bookaddress booktitle chapter collaboration doi edition editor eid eprint howpublished institution isbn issn journal key language month note number organization pages primaryClass publisher school SLACcitation series title translati...

    work page 2010

  5. [5]

    merlin.mbs apsrmp4-1.bst 2010-07-25 4.21a (PWD, AO, DPC) hacked

    FUNCTION id.bst "merlin.mbs apsrmp4-1.bst 2010-07-25 4.21a (PWD, AO, DPC) hacked" ENTRY address archive archivePrefix author bookaddress booktitle chapter collaboration doi edition editor eid eprint howpublished institution isbn issn journal key language month note number organization pages primaryClass publisher school SLACcitation series title translati...

    work page 2010

  6. [6]

    Role of actuation frequency in controlled flow reattachment over a stalled airfoil

    Michael Amitay and Ari Glezer. Role of actuation frequency in controlled flow reattachment over a stalled airfoil. AIAA Journal , 40:209--216, 2 2002

    work page 2002

  7. [7]

    Smith, Valdis Kibens, David E

    Michael Amitay, Douglas R. Smith, Valdis Kibens, David E. Parekh, and Ari Glezer. Aerodynamic flow control over an unconventional airfoil using synthetic jet actuators. AIAA Journal , 39:361--370, 3 2001

    work page 2001

  8. [8]

    Michael S. H. Boutilier and Serhiy Yarusevych. Separated shear layer transition over an airfoil at a low reynolds number. Physics of Fluids , 24, 8 2012

    work page 2012

  9. [9]

    N. A. Buchmann, C. Atkinson, and J. Soria. Influence of znmf jet flow control on the spatio-temporal flow structure over a naca-0015 airfoil. Experiments in Fluids , 54:1485, 3 2013

    work page 2013

  10. [10]

    Burgmann, J

    S. Burgmann, J. Dannemann, and W. Schröder. Time-resolved and volumetric piv measurements of a transitional separation bubble on an sd7003 airfoil. Experiments in Fluids , 44:609--622, 4 2008

    work page 2008

  11. [11]

    An introduction to the proper orthogonal decomposition

    Anindya Chatterjee. An introduction to the proper orthogonal decomposition. Current Science, Vol. 78, No. 7 , 78, 2000

    work page 2000

  12. [12]

    Cheng, J

    M. Cheng, J. Lou, and T. T. Lim. Motion of a vortex ring in a simple shear flow. Physics of Fluids , 21, 8 2009

    work page 2009

  13. [13]

    Feero, Sebastian D

    Mark A. Feero, Sebastian D. Goodfellow, Philippe Lavoie, and Pierre E. Sullivan. Flow reattachment using synthetic jet actuation on a low-reynolds-number airfoil. AIAA Journal , 53:2005--2014, 7 2015

    work page 2005

  14. [14]

    Feero, Philippe Lavoie, and Pierre E

    Mark A. Feero, Philippe Lavoie, and Pierre E. Sullivan. Influence of synthetic jet location on active control of an airfoil at low reynolds number. Experiments in Fluids , 58, 2017

    work page 2017

  15. [15]

    Feero, Philippe Lavoie, and Pierre E

    Mark A. Feero, Philippe Lavoie, and Pierre E. Sullivan. Three-dimensional span effects of high-aspect ratio synthetic jet forcing for separation control on a low reynolds number airfoil. Journal of Visualization , 20, 2017

    work page 2017

  16. [16]

    Ari Glezer, Michael Amitay, and Andrew M. Honohan. Aspects of low- and high-frequency actuation for aerodynamic flow control. AIAA Journal , 43:1501--1511, 7 2005

    work page 2005

  17. [17]

    Goodfellow, Serhiy Yarusevych, and Pierre E

    Sebastian D. Goodfellow, Serhiy Yarusevych, and Pierre E. Sullivan. Momentum coefficient as a parameter for aerodynamic flow control with synthetic jets. AIAA Journal , 51:623--631, 3 2013

    work page 2013

  18. [18]

    Gordon and J

    M. Gordon and J. Soria. Piv measurements of a zero-net-mass-flux jet in cross flow. Experiments in Fluids , 33:863--872, 12 2002

    work page 2002

  19. [19]

    Wygnanski

    David Greenblatt and Israel J. Wygnanski. The control of flow separation by periodic excitation. Progress in Aerospace Sciences , 36:487--545, 10 2000

    work page 2000

  20. [20]

    H. H. Ho, E. E. Essel, and P. E. Sullivan. The interactions of a circular synthetic jet with a turbulent crossflow. Physics of Fluids , 34, 7 2022

    work page 2022

  21. [21]

    Hunt, A.A

    J.C.R. Hunt, A.A. Wray, and P. Moin. Eddies, streams, and convergence zones in turbulent flows. pages 193--208, 1998

    work page 1998

  22. [22]

    A. K. M. F. Hussain and W. C. Reynolds. The mechanics of an organized wave in turbulent shear flow. Journal of Fluid Mechanics , 41:241--258, 4 1970

    work page 1970

  23. [23]

    Measurements of Synthetic Jets in a Boundary Layer , volume 7, pages 119--125

    Mark Jabbal and Shan Zhong. Measurements of Synthetic Jets in a Boundary Layer , volume 7, pages 119--125. Springer, Dordrecht, 2008

    work page 2008

  24. [24]

    M. Kim, E. E. Essel, and P. E. Sullivan. Effect of varying frequency of a synthetic jet on flow separation over an airfoil. Physics of Fluids , 34, 1 2022

    work page 2022

  25. [25]

    Kirk and Serhiy Yarusevych

    Thomas M. Kirk and Serhiy Yarusevych. Vortex shedding within laminar separation bubbles forming over an airfoil. Experiments in Fluids , 58:43, 5 2017

    work page 2017

  26. [26]

    Good colour maps: How to design them

    Peter Kovesi. Good colour maps: How to design them. 9 2015

    work page 2015

  27. [27]

    M. Lang, U. Rist, and S. Wagner. Investigations on controlled transition development in a laminar separation bubble by means of lda and piv. Experiments in Fluids , 36:43--52, 1 2004

    work page 2004

  28. [28]

    Lefebvre and Gecheng Zha

    Alexis M. Lefebvre and Gecheng Zha. Design of high wing loading compact electric airplane utilizing co-flow jet flow control. American Institute of Aeronautics and Astronautics, 1 2015

    work page 2015

  29. [29]

    Sullivan

    Adnan Machado, Kecheng Xu, and Pierre E. Sullivan. Visualizing three-dimensional effects of synthetic jet flow control. 11 2023

    work page 2023

  30. [30]

    Dynamic stall of an experimental wind turbine blade

    Matthew Melius, Raúl Bayoán Cal, and Karen Mulleners. Dynamic stall of an experimental wind turbine blade. Physics of Fluids , 28, 3 2016

    work page 2016

  31. [31]

    Rice, Keith Taylor, and Michael Amitay

    Thomas T. Rice, Keith Taylor, and Michael Amitay. Quantification of the s817 airfoil aerodynamic properties and their control using synthetic jet actuators. Wind Energy , 21:823--836, 10 2018

    work page 2018

  32. [32]

    Rice, Keith Taylor, and Michael Amitay

    Thomas T. Rice, Keith Taylor, and Michael Amitay. Pulse modulation of synthetic jet actuators for control of separation. Physical Review Fluids , 6:093902, 9 2021

    work page 2021

  33. [33]

    Jansen, and Michael Amitay

    Onkar Sahni, Joshua Wood, Kenneth E. Jansen, and Michael Amitay. Three-dimensional interactions between a finite-span synthetic jet and a crossflow. Journal of Fluid Mechanics , 671:254--287, 3 2011

    work page 2011

  34. [34]

    Piv measurement of mildly controlled flow over a straight-wing model

    Pramod Salunkhe, Hui Tang, Yingying Zheng, and Yanhua Wu. Piv measurement of mildly controlled flow over a straight-wing model. International Journal of Heat and Fluid Flow , 62:552--559, 12 2016

    work page 2016

  35. [35]

    Smith and Ari Glezer

    Barton L. Smith and Ari Glezer. The formation and evolution of synthetic jets. Physics of Fluids , 10:2281--2297, 9 1998

    work page 1998

  36. [36]

    Brunton, Scott T

    Kunihiko Taira, Steven L. Brunton, Scott T. M. Dawson, Clarence W. Rowley, Tim Colonius, Beverley J. McKeon, Oliver T. Schmidt, Stanislav Gordeyev, Vassilios Theofilis, and Lawrence S. Ukeiley. Modal analysis of fluid flows: An overview. AIAA Journal , 55:4013--4041, 12 2017

    work page 2017

  37. [37]

    On the use of synthetic jet actuator arrays for active flow separation control

    Hui Tang, Pramod Salunkhe, Yingying Zheng, Jiaxing Du, and Yanhua Wu. On the use of synthetic jet actuator arrays for active flow separation control. Experimental Thermal and Fluid Science , 57:1--10, 9 2014

    work page 2014

  38. [38]

    Particle image velocimetry for matlab: Accuracy and enhanced algorithms in pivlab

    William Thielicke and René Sonntag. Particle image velocimetry for matlab: Accuracy and enhanced algorithms in pivlab. Journal of Open Research Software , 9:12, 5 2021

    work page 2021

  39. [39]

    Manipulation of vortex rings for flow control

    Kuniaki Toyoda and Riho Hiramoto. Manipulation of vortex rings for flow control. Fluid Dynamics Research , 41:051402, 10 2009

    work page 2009

  40. [40]

    Vasile and Michael Amitay

    Joseph D. Vasile and Michael Amitay. Interactions of an array of finite span synthetic jets and a crossflow. AIAA Journal , 51:2503--2512, 10 2013

    work page 2013

  41. [41]

    A tutorial on the proper orthogonal decomposition

    Julien Weiss. A tutorial on the proper orthogonal decomposition. American Institute of Aeronautics and Astronautics, 6 2019

    work page 2019

  42. [42]

    Denny, Meng Fan, and Jain-Ming Wu

    Jie-Zhi Wu, Xi-Yun Lu, Andrew G. Denny, Meng Fan, and Jain-Ming Wu. Post-stall flow control on an airfoil by local unsteady forcing. Journal of Fluid Mechanics , 371:21--58, 9 1998

    work page 1998

  43. [43]

    Vortex ring breakdown dominating the entrainment of a synthetic jet

    Congyi Xu and Jinjun Wang. Vortex ring breakdown dominating the entrainment of a synthetic jet. Journal of Fluid Mechanics , 980:A5, 2 2024

    work page 2024

  44. [44]

    Flow reattachment on a naca 0025 airfoil using an array of microblowers

    Kecheng Xu, Philippe Lavoie, and Pierre Sullivan. Flow reattachment on a naca 0025 airfoil using an array of microblowers. AIAA Journal , pages 1--10, 3 2023

    work page 2023

  45. [45]

    Sullivan

    Eric Yang, Alis Ekmekci, and Pierre E. Sullivan. Phase evolution of flow controlled by synthetic jets over naca 0025 airfoil. Journal of Visualization , 25:751--765, 8 2022

    work page 2022

  46. [46]

    Kawall, and Pierre E

    Serhiy Yarusevych, John G. Kawall, and Pierre E. Sullivan. Separated-shear-layer development on an airfoil at low reynolds numbers. AIAA Journal , 46:3060--3069, 2008

    work page 2008

  47. [47]

    Sullivan, and John G

    Serhiy Yarusevych, Pierre E. Sullivan, and John G. Kawall. Coherent structures in an airfoil boundary layer and wake at low reynolds numbers. Physics of Fluids , 18, 4 2006

    work page 2006

  48. [48]

    Zhong, F

    S. Zhong, F. Millet, and N. J. Wood. The behaviour of circular synthetic jets in a laminar boundary layer. The Aeronautical Journal , 109:461--470, 10 2005

    work page 2005

  49. [49]

    Feero, Philippe Lavoie, and Pierre E

    Paul Ziadé, Mark A. Feero, Philippe Lavoie, and Pierre E. Sullivan. Shear layer development, separation, and stability over a low-reynolds number airfoil. Journal of Fluids Engineering , 140, 7 2018

    work page 2018
