Predicting Fault-Ride-Through Probability of Inverter-Dominated Power Grids using Machine Learning

Christian Nauck , Anna B\"uttner , Sebastian Liemann , Frank Hellmann , Michael Lindner This is my paper

Pith reviewed 2026-05-24 00:25 UTC · model grok-4.3

classification 📡 eess.SY cs.LGcs.SY
keywords machine learningfault-ride-through probabilityinverter-dominated gridssynthetic power gridsdynamic stabilitygeneralizationIEEE-96 test systemprobabilistic analysis
0
0 comments X

The pith

Machine learning models accurately predict fault-ride-through probability in synthetic inverter-dominated power grids and generalize to the IEEE-96 test system.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper generates a dataset of synthetic power grid models with large inverter shares and runs dynamic simulations to calculate fault-ride-through probability, defined as the chance that a grid stays within its ride-through curve after a fault is cleared at a bus. Machine learning models are trained on grid features to predict this probability, sidestepping the computational limits of simulating every possible fault scenario. The models achieve accurate predictions on the synthetic grids. The same models also perform well when applied to the IEEE-96 Test System. This matters because rising inverter penetration makes exhaustive stability checks for many faults increasingly expensive, so an efficient predictor could support broader risk assessments.

Core claim

By constructing synthetic power grid models, performing dynamical simulations, and defining fault-ride-through probability as the probability of remaining inside a ride-through curve after fault clearance, the authors train machine learning models that accurately predict this quantity on the synthetic data and show that the models generalize when tested on an IEEE-96 Test System.

What carries the argument

Machine learning regression models that learn a mapping from synthetic power grid configurations to the fault-ride-through probability computed from dynamic simulations.

If this is right

  • Machine learning can replace exhaustive dynamic simulations when many fault scenarios must be evaluated for stability risk.
  • The same trained models can be applied directly to standardized test systems without retraining.
  • Probabilistic stability analysis becomes feasible at scale for grids that contain high shares of inverter-based resources.
  • Risk assessments can examine far more configurations than direct simulation budgets allow.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If synthetic data prove representative, operators could train similar models on historical or measured grid data for day-ahead stability forecasting.
  • The approach could be tested on other stability metrics such as frequency nadir or voltage recovery times using the same synthetic-grid pipeline.
  • Extending the input features to include time-varying renewable output patterns would reveal whether the current models remain reliable under realistic operating conditions not present in the training set.

Load-bearing premise

The synthetic power grid models and chosen fault scenarios capture the essential dynamical features of real inverter-dominated grids well enough that the learned mapping stays useful on other systems such as the IEEE-96 test case.

What would settle it

Full dynamic simulations on the IEEE-96 system for a held-out set of faults that produce large, systematic mismatches between the machine-learning predictions and the simulated outcomes would falsify the generalization result.

Figures

Figures reproduced from arXiv: 2406.08917 by Anna B\"uttner, Christian Nauck, Frank Hellmann, Michael Lindner, Sebastian Liemann.

Figure 1
Figure 1. Figure 1: The structure of the power system generation algorithm shows the [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Training setup: The GNN gets the full power grid as input (bus [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Example transients of the dynamical simulations, visualized by the [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: The active and reactive power deviations [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

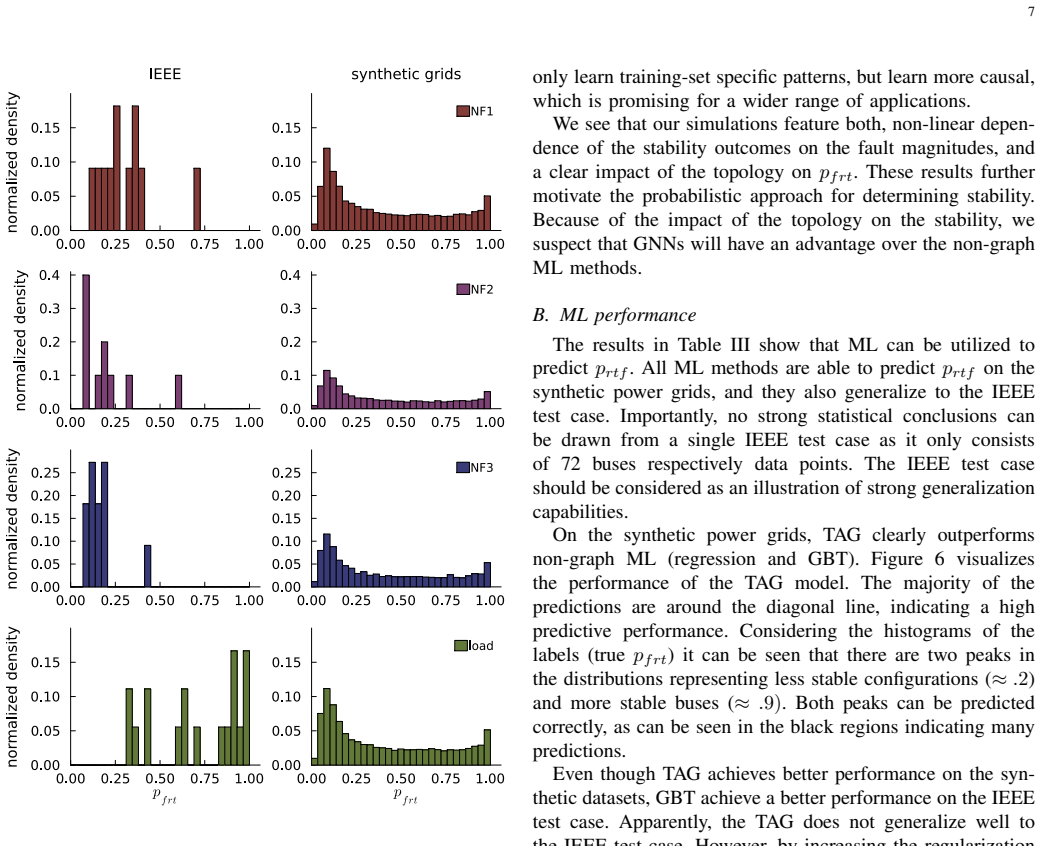

Figure 5. Figure 5: The histograms of the pfrt for the IEEE test case are on the left and for the 1 000 synthetic grids on the right. The rows depict the four different bus types. NF1-3 denotes the different normal form parameterizations. For the loads, a different scaling of the vertical axis is used. grids, we see that different virtual inertia constants lead to different fault-ride-through behaviors. As expected, the buses… view at source ↗
Figure 6

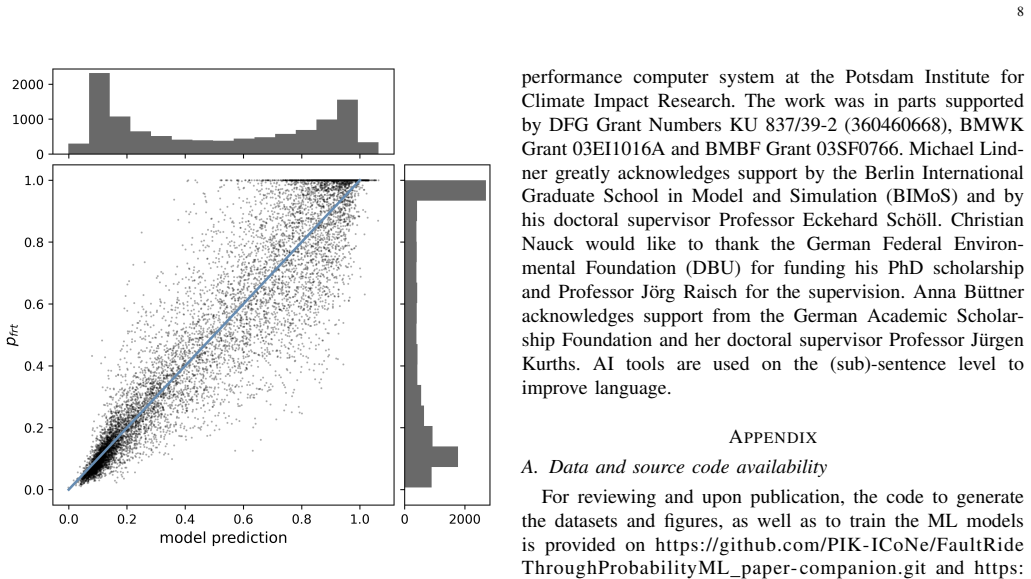

Figure 6. Figure 6: Visualization of the performance of TAG. A perfect model would be [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
read the original abstract

Due to the increasing share of renewables, the analysis of the dynamical behavior of power grids gains importance. Effective risk assessments necessitate the analysis of large number of fault scenarios. The computational costs inherent in dynamic simulations impose constraints on the number of configurations that can be analyzed. Machine Learning (ML) has proven to efficiently predict complex power grid properties. Hence, we analyze the potential of ML for predicting dynamic stability of future power grids with large shares of inverters. For this purpose, we generate a new dataset consisting of synthetic power grid models and perform dynamical simulations. As targets for the ML training, we calculate the fault-ride-through probability, which we define as the probability of staying within a ride-through curve after a fault at a bus has been cleared. Importantly, we demonstrate that ML models accurately predict the fault-ride-through probability of synthetic power grids. Finally, we also show that the ML models generalize to an IEEE-96 Test System, which emphasizes the potential of deploying ML methods to study probabilistic stability of power grids.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript generates a dataset of synthetic power grid models with high inverter shares, performs dynamic simulations to compute fault-ride-through (FRT) probabilities, and trains ML models to predict these probabilities from grid features. It claims that the models accurately predict FRT probabilities on synthetic grids and generalize to the IEEE-96 test system.

Significance. If the generalization holds, the approach could enable efficient probabilistic stability assessments for large inverter-dominated grids, reducing the need for exhaustive dynamic simulations across many fault scenarios. The creation of a new synthetic dataset adds value for future benchmarking in the field.

major comments (2)
  1. [Generalization experiments (results on IEEE-96)] The central claim of generalization to the IEEE-96 Test System requires evidence that the synthetic ensemble and IEEE-96 represent meaningfully different regimes. The manuscript provides no statistical comparison (e.g., distributions or summary statistics) of parameters such as short-circuit ratios, line impedances, or inverter penetration levels between the synthetic training data and the IEEE-96 case. This leaves open whether reported performance reflects robust transfer or in-distribution interpolation.
  2. [Abstract and results section] The abstract asserts that the ML models 'accurately predict' FRT probability and 'generalize' but supplies no quantitative metrics (MAE, R², etc.), error bars, baseline comparisons, or details on architecture/training. The results section must report these explicitly with validation procedures to substantiate the accuracy claim.
minor comments (2)
  1. [Methods (FRT probability definition)] Add explicit statements of the ride-through curve parameters and any assumptions used when computing the FRT probability target from simulation outputs.
  2. [Figures] Figure captions should state the exact performance metric plotted and whether results are averaged over multiple random seeds or data splits.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive comments. We address each major point below and will revise the manuscript accordingly to strengthen the presentation of results and the generalization claim.

read point-by-point responses

  1. Referee: [Generalization experiments (results on IEEE-96)] The central claim of generalization to the IEEE-96 Test System requires evidence that the synthetic ensemble and IEEE-96 represent meaningfully different regimes. The manuscript provides no statistical comparison (e.g., distributions or summary statistics) of parameters such as short-circuit ratios, line impedances, or inverter penetration levels between the synthetic training data and the IEEE-96 case. This leaves open whether reported performance reflects robust transfer or in-distribution interpolation.

    Authors: We agree that a statistical comparison is necessary to support the generalization claim. In the revised manuscript we will add summary statistics and distribution plots comparing key parameters (short-circuit ratios, line impedances, inverter penetration levels, and related quantities) between the synthetic ensemble and the IEEE-96 system. These additions will clarify the degree of distributional shift and allow readers to assess whether the reported performance constitutes out-of-distribution transfer. revision: yes

  2. Referee: [Abstract and results section] The abstract asserts that the ML models 'accurately predict' FRT probability and 'generalize' but supplies no quantitative metrics (MAE, R², etc.), error bars, baseline comparisons, or details on architecture/training. The results section must report these explicitly with validation procedures to substantiate the accuracy claim.

    Authors: We accept that the abstract and results section should contain explicit quantitative metrics. In the revision we will update the abstract to report concrete performance figures (e.g., MAE, R²) together with error bars where appropriate. The results section will be expanded to include baseline comparisons, model architecture and training details, and a clear description of the validation procedure (train/validation/test splits, cross-validation, etc.). revision: yes

Circularity Check

0 steps flagged

No circularity: empirical ML trained on independent simulations

full rationale

The paper generates synthetic power grids, performs dynamical simulations to obtain fault-ride-through probabilities as targets, trains ML models on the resulting feature-target pairs, and evaluates generalization on held-out synthetic cases plus the external IEEE-96 system. No equations, definitions, or self-citations reduce any reported prediction to a fitted input by construction, nor invoke uniqueness theorems or ansatzes from prior author work. The derivation chain is a standard supervised learning pipeline whose outputs are falsifiable against new simulations.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim depends on the representativeness of the generated synthetic grids and on the assumption that the chosen ride-through curves and fault-clearing model are adequate proxies for real inverter behavior. No new physical entities are postulated; the work is data-driven.

axioms (1)
  • domain assumption Synthetic power grid models with prescribed inverter shares reproduce the relevant dynamical stability properties of real grids for the purpose of ML training.
    The entire training pipeline rests on this modeling choice; the abstract does not provide independent validation against measured grid data.
