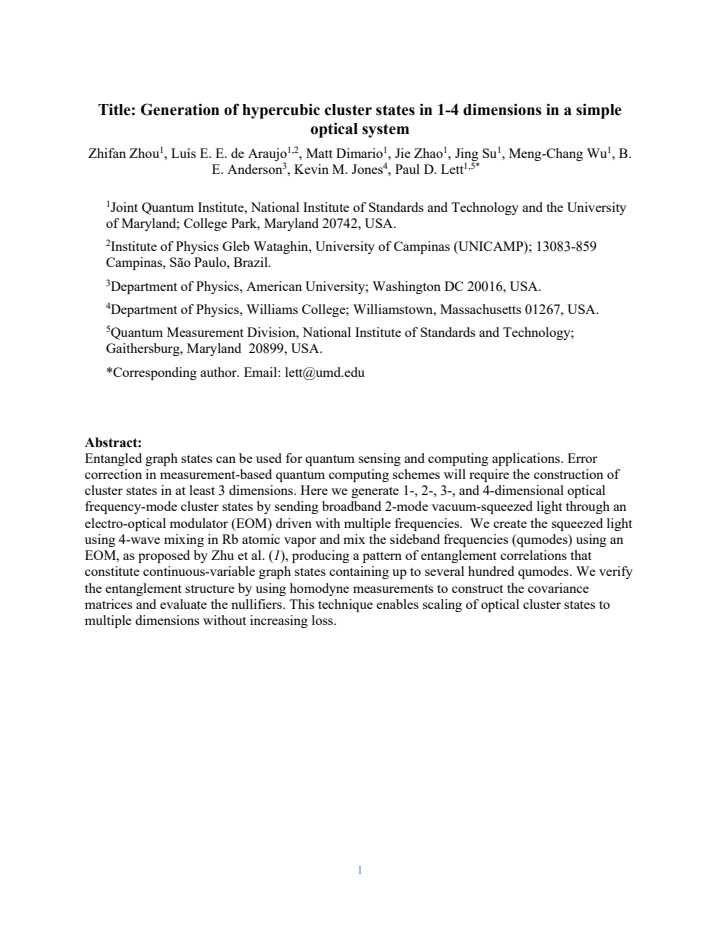

Generation of hypercubic cluster states in 1-4 dimensions in a simple optical system

Zhifan Zhou , Lu\'is E. E. de Araujo , Matt Dimario , Jie Zhao , Jing Su , Meng-Chang Wu , B. E. Anderson , Kevin M. Jones
show 1 more author
Paul D. Lett
This is my paper

Pith reviewed 2026-05-23 21:53 UTC · model grok-4.3

classification 🪐 quant-ph
keywords cluster statescontinuous-variable entanglementhypercubic graphselectro-optical modulatorfrequency modessqueezed lightnullifiersquantum sensing
0
0 comments X

The pith

Broadband squeezed light passed through a multi-frequency electro-optic modulator produces continuous-variable cluster states in one to four dimensions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that 1D, 2D, 3D, and 4D hypercubic cluster states can be made in optical frequency modes by a straightforward setup. Two-mode vacuum-squeezed light is first created in rubidium vapor via four-wave mixing, then the sideband frequencies are mixed by sending the light through an electro-optical modulator driven at several frequencies simultaneously. This mixing creates the specific pattern of entanglement correlations needed for continuous-variable graph states that contain up to several hundred qumodes. The authors confirm the structure by recording homodyne data, building covariance matrices, and checking that the nullifiers fall below the classical limit. The method reaches higher dimensions while keeping optical loss fixed, which matters for building the large entangled resources required in measurement-based quantum computing and quantum sensing.

Core claim

Sending broadband 2-mode vacuum-squeezed light through an electro-optical modulator driven with multiple frequencies produces a pattern of entanglement correlations that constitute continuous-variable graph states in one, two, three, and four dimensions containing up to several hundred qumodes, as verified by constructing covariance matrices and evaluating nullifiers from homodyne measurements.

What carries the argument

The multi-frequency drive applied to the electro-optical modulator, which mixes sideband frequencies from the squeezed light to realize the desired hypercubic entanglement graph.

If this is right

  • Cluster states in higher dimensions can be produced in a single optical path without adding loss from extra components.
  • The generated states contain up to several hundred frequency qumodes.
  • The entanglement graph matches the hypercubic structure needed for error-corrected measurement-based quantum computing.
  • Verification relies only on standard homodyne detection and covariance analysis rather than more complex tomography.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the method scales cleanly, it could reduce the hardware overhead for building three-dimensional cluster states required for topological error correction in continuous-variable systems.
  • The same frequency-mixing approach might be adapted to generate other graph states or to entangle modes across different wavelength bands.
  • Direct comparison of nullifier values across dimensions could reveal how noise accumulates with increasing drive frequencies.

Load-bearing premise

The specific frequencies chosen for the EOM drive create exactly the proposed hypercubic entanglement pattern with no significant extra correlations or excess noise.

What would settle it

If homodyne measurements yield nullifier variances above the quantum limit or show strong unwanted correlations outside the expected graph edges in the covariance matrix, the generated states do not match the claimed hypercubic structure.

Figures

Figures reproduced from arXiv: 2408.06317 by B. E. Anderson, Jie Zhao, Jing Su, Kevin M. Jones, Lu\'is E. E. de Araujo, Matt Dimario, Meng-Chang Wu, Paul D. Lett, Zhifan Zhou.

Figure 2

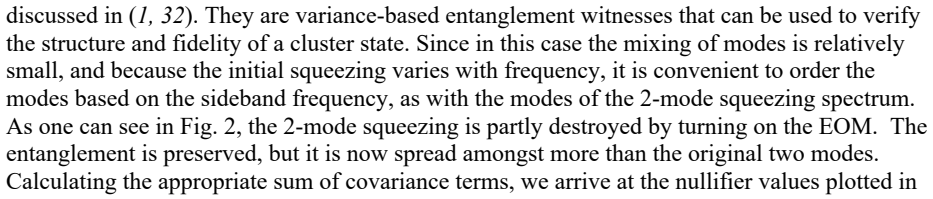

Figure 2. Figure 2: There are two calculations of the nullifiers displayed ( [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

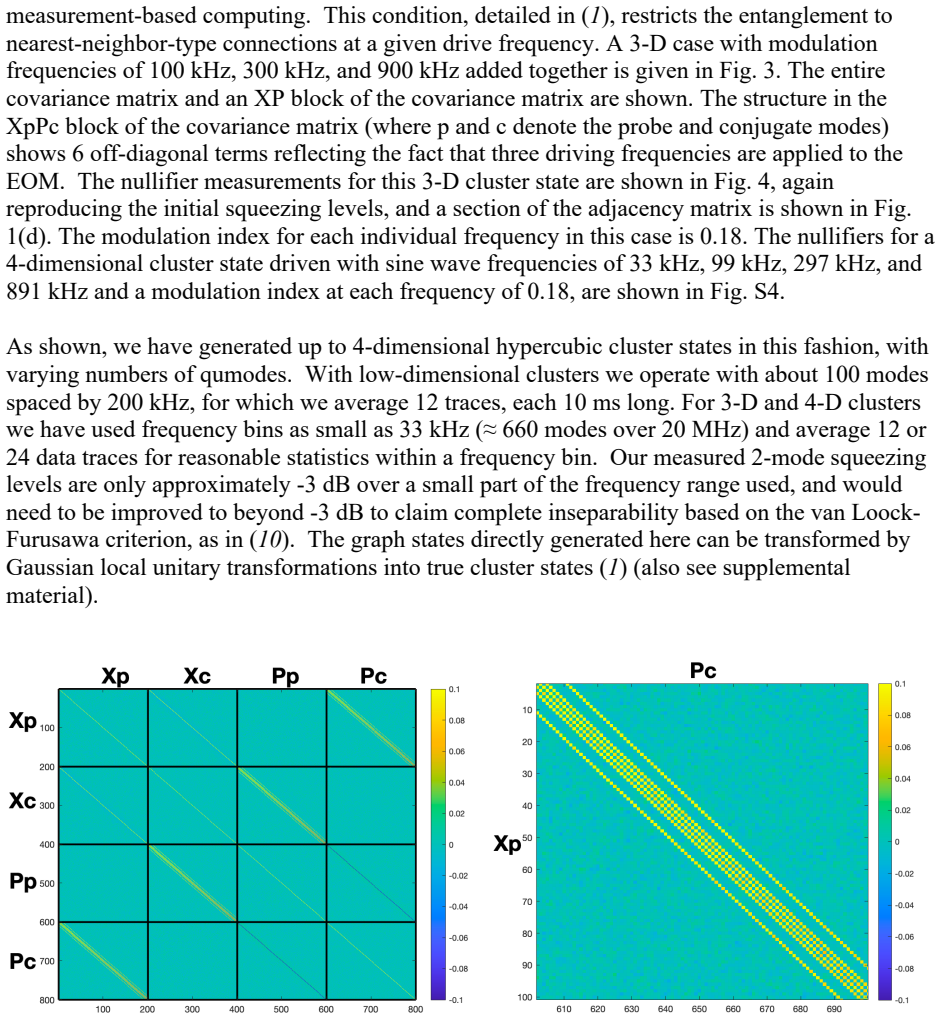

Figure 3. Figure 3: Covariance matrix for the 3-D cluster state in [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
