arxiv: 2409.07705 · v1 · submitted 2024-09-12 · ❄️ cond-mat.str-el · cond-mat.mtrl-sci

Orbital inversion and emergent lattice dynamics in infinite layer CaCoO₂

Daniel Jost , Eder G. Lomeli , Woo Jin Kim , Emily M. Been , Matteo Rossi , Stefano Agrestini , Kejin Zhou , Chunjing Jia
show 5 more authors
Brian Moritz Zhi-Xun Shen Harold Y. Hwang Thomas P. Devereaux Wei-Sheng Lee
This is my paper

Pith reviewed 2026-05-23 21:09 UTC · model grok-4.3

classification ❄️ cond-mat.str-el cond-mat.mtrl-sci
keywords CaCoO2infinite layer cobaltateRIXSorbital inversionherringbone structureinter-plane hybridizationelectronic ordering
0
0 comments X

The pith

Inter-plane hybridization between Ca 4s and Co 3d orbitals inverts the expected square-planar orbital occupation in CaCoO2.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that the herringbone structure of infinite-layer CaCoO2 enables strong hybridization across planes between calcium 4s states and cobalt 3d states. This hybridization inverts the standard orbital filling sequence that textbooks predict for square-planar coordination. X-ray absorption spectroscopy confirms the altered orbital occupation while resonant inelastic X-ray scattering detects a prominent low-energy excitation whose intensity modulates anomalously with momentum transfer. A reader would care because the findings position the herringbone lattice as a setting where electronic, orbital, and lattice degrees of freedom become strongly coupled.

Core claim

Significant inter-plane hybridization between the Ca 4s- and Co 3d-orbitals leads to an inversion of the textbook orbital occupation of a square planar geometry. RIXS data reveal a strong low energy mode with anomalous intensity modulations as a function of momentum transfer close to a quasi-static response suggestive of electronic and/or orbital ordering. These results indicate that the herringbone structure in CaCoO2 can serve as a laboratory for materials with strong electronic, orbital and lattice correlations.

What carries the argument

Inter-plane hybridization between Ca 4s- and Co 3d-orbitals that inverts the usual orbital sequence in the square-planar CoO2 layers.

If this is right

  • The herringbone pattern supplies a new structural motif for stabilizing orbital inversions in infinite-layer transition-metal oxides.
  • Low-energy modes near quasi-static response become accessible in compounds where inter-plane hybridization is strong.
  • Electronic or orbital ordering can emerge as a direct consequence of the lattice geometry in such materials.
  • The combination of XAS and RIXS can map how hybridization alters orbital filling away from textbook expectations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Doping or strain that preserves the herringbone motif could be used to tune the inverted orbital configuration toward different ground states.
  • Similar inter-plane hybridization effects may appear in other infinite-layer compounds once the appropriate cation layers are introduced.
  • Quantitative modeling of the RIXS cross-section would be needed to distinguish between orbital ordering and competing explanations for the intensity modulations.

Load-bearing premise

The anomalous momentum-dependent intensity variations in the low-energy RIXS mode arise from electronic or orbital ordering rather than from other scattering channels or experimental effects.

What would settle it

A momentum-resolved calculation or additional scattering measurement that reproduces the low-energy mode intensity modulations without requiring any static or quasi-static order parameter.

Figures

Figures reproduced from arXiv: 2409.07705 by Brian Moritz, Chunjing Jia, Daniel Jost, Eder G. Lomeli, Emily M. Been, Harold Y. Hwang, Kejin Zhou, Matteo Rossi, Stefano Agrestini, Thomas P. Devereaux, Wei-Sheng Lee, Woo Jin Kim, Zhi-Xun Shen.

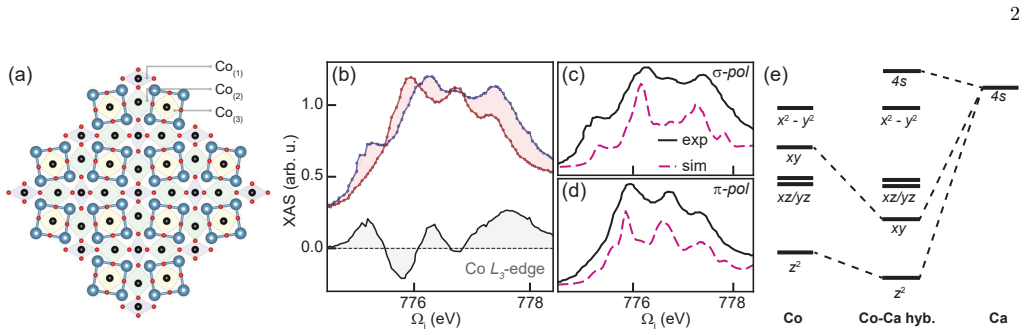

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

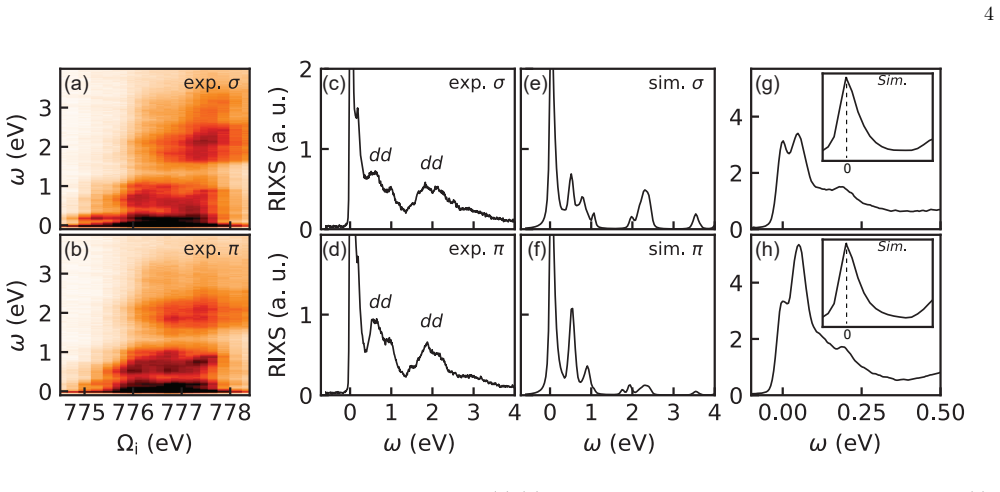

Figure 2
Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

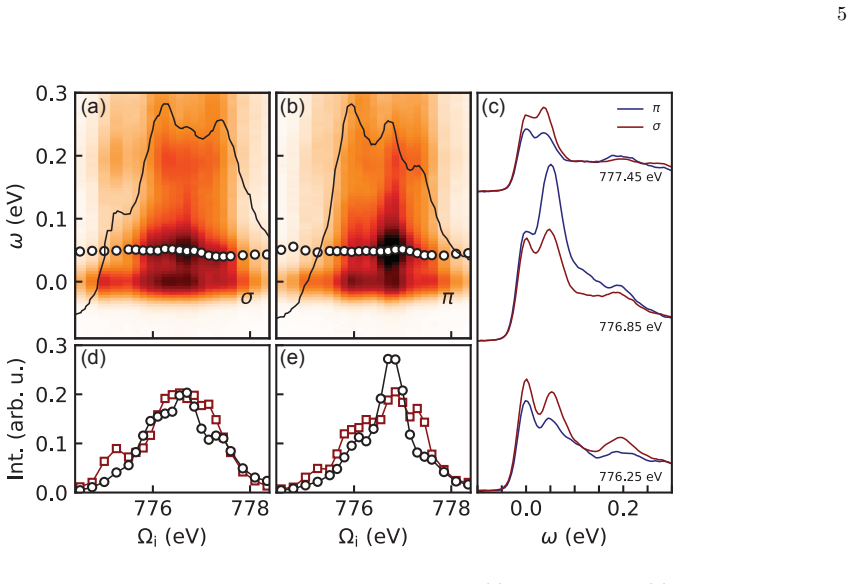

Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

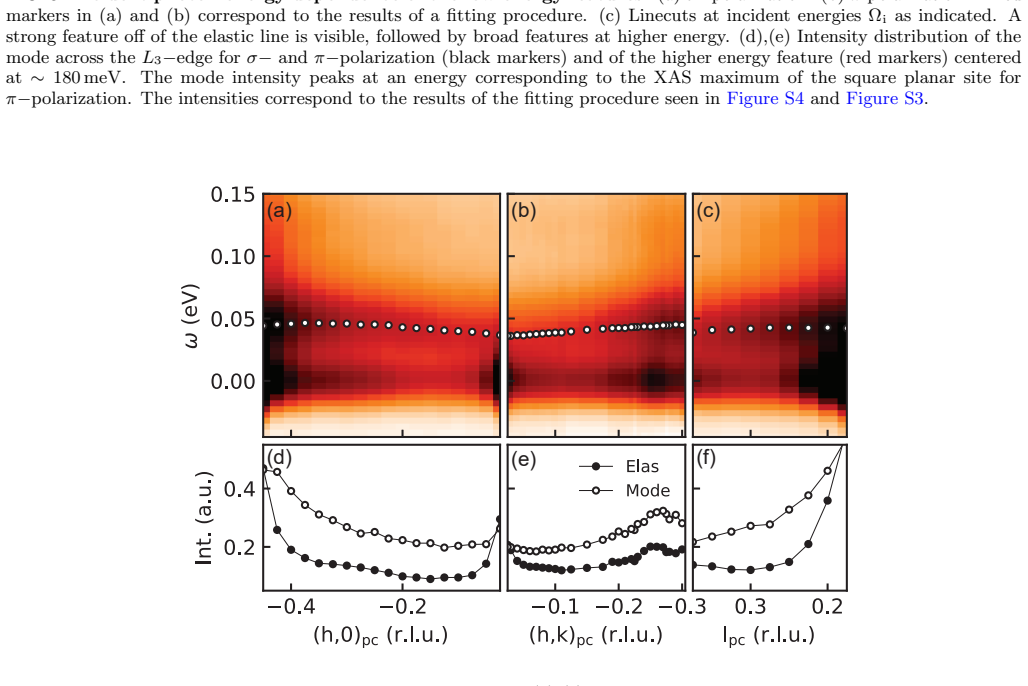

Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
read the original abstract

The layered cobaltate CaCoO$_2$ exhibits a unique herringbone-like structure. Serving as a potential prototype for a new class of complex lattice patterns, we study the properties of CaCoO$_2$ using X-ray absorption spectroscopy (XAS) and resonant inelastic X-ray scattering (RIXS). Our results reveal a significant inter-plane hybridization between the Ca $4s-$ and Co $3d-$orbitals, leading to an inversion of the textbook orbital occupation of a square planar geometry. Further, our RIXS data reveal a strong low energy mode, with anomalous intensity modulations as a function of momentum transfer close to a quasi-static response suggestive of electronic and/or orbital ordering. These findings indicate that the newly discovered herringbone structure exhibited in CaCoO$_2$ may serve as a promising laboratory for the design of materials having strong electronic, orbital and lattice correlations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript reports XAS and RIXS measurements on infinite-layer CaCoO2 exhibiting a herringbone structure. It claims that inter-plane Ca 4s–Co 3d hybridization inverts the textbook orbital occupation expected for square-planar geometry, and that RIXS reveals a strong low-energy mode whose momentum-dependent intensity modulations are suggestive of electronic and/or orbital ordering.

Significance. If substantiated, the orbital-inversion result would establish CaCoO2 as a prototype platform for studying emergent correlations in non-standard lattice geometries, with potential implications for designing materials that combine strong electronic, orbital, and lattice degrees of freedom. The experimental combination of XAS for orbital character and RIXS for collective excitations is well-chosen for the claims.

major comments (2)
  1. [Abstract and RIXS results section] Abstract (final paragraph) and RIXS discussion: the central claim that the observed low-energy RIXS mode and its anomalous intensity modulations indicate electronic/orbital ordering is presented without quantitative modeling (e.g., orbital-order form factor, resonant cross-section calculation, or explicit comparison to phonon/magnetic scattering channels). This interpretation is load-bearing for the headline conclusion yet remains qualitative.
  2. [XAS results section] XAS analysis section: while the orbital-inversion claim is more directly tied to spectral features, the manuscript does not report error bars, fitting details, or raw spectra, preventing assessment of whether background subtraction or momentum-resolution choices affect the hybridization conclusion.
minor comments (1)
  1. [Abstract] The abstract could more explicitly separate the XAS-supported orbital inversion (firm) from the RIXS ordering suggestion (tentative).

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive report and positive view of the work's significance. We address each major comment below and indicate planned revisions.

read point-by-point responses

  1. Referee: [Abstract and RIXS results section] Abstract (final paragraph) and RIXS discussion: the central claim that the observed low-energy RIXS mode and its anomalous intensity modulations indicate electronic/orbital ordering is presented without quantitative modeling (e.g., orbital-order form factor, resonant cross-section calculation, or explicit comparison to phonon/magnetic scattering channels). This interpretation is load-bearing for the headline conclusion yet remains qualitative.

    Authors: We agree the interpretation remains qualitative. The manuscript relies on the observed momentum-dependent intensity modulations near a quasi-static response, together with the mode's energy scale and resonance behavior, to suggest electronic/orbital ordering rather than phonons or magnons. In revision we will expand the RIXS discussion with an explicit comparison of the measured intensity pattern to the expected q-dependence of an orbital-order form factor and clarify the experimental distinctions from other channels. A full resonant cross-section calculation lies outside the present experimental scope and would require dedicated theoretical modeling not available here. revision: partial

  2. Referee: [XAS results section] XAS analysis section: while the orbital-inversion claim is more directly tied to spectral features, the manuscript does not report error bars, fitting details, or raw spectra, preventing assessment of whether background subtraction or momentum-resolution choices affect the hybridization conclusion.

    Authors: We acknowledge the omission. The revised manuscript will add error bars to the extracted XAS intensities, include a description of the background subtraction and fitting procedure (in the main text or SI), and provide the raw XAS spectra to allow independent evaluation of the Ca 4s–Co 3d hybridization and orbital-inversion conclusion. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental report with no derivation chain

full rationale

The manuscript presents XAS and RIXS data on CaCoO2 without any claimed derivations, fitted parameters renamed as predictions, or self-citation chains that reduce the central claims to inputs. Orbital inversion is inferred directly from spectral features; the RIXS low-energy mode is described as suggestive of ordering without quantitative modeling or self-referential fitting. No load-bearing steps match the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are extractable from the abstract; the work is observational and relies on standard X-ray spectroscopy interpretations.

pith-pipeline@v0.9.0 · 5737 in / 1106 out tokens · 16189 ms · 2026-05-23T21:09:29.455586+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

24 extracted references · 24 canonical work pages

  1. [1]

    Takada , author H

    author author K. Takada , author H. Sakurai , author E. Takayama-Muromachi , author F. Izumi , author R. A. \ Dilanian , \ and\ author T. Sasaki ,\ 10.1038/nature01450 journal journal Nature \ volume 422 ,\ pages 53 ( year 2003 ) NoStop

    work page doi:10.1038/nature01450 2003

  2. [2]

    Roger , author D

    author author M. Roger , author D. J. P. \ Morris , author D. A. \ Tennant , author M. J. \ Gutmann , author J. P. \ Goff , author J.-U. \ Hoffmann , author R. Feyerherm , author E. Dudzik , author D. Prabhakaran , author A. T. \ Boothroyd , author N. Shannon , author B. Lake , \ and\ author P. P. \ Deen ,\ 10.1038/nature05531 journal journal Nature \ vol...

    work page doi:10.1038/nature05531 2007

  3. [3]

    author author M. S. \ Senn , author J. P. \ Wright , \ and\ author J. P. \ Attfield ,\ 10.1038/nature10704 journal journal Nature \ volume 481 ,\ pages 173 ( year 2012 ) NoStop

    work page doi:10.1038/nature10704 2012

  4. [4]

    author author M. A. \ Green , author A. Ho-Baillie , \ and\ author H. J. \ Snaith ,\ 10.1038/nphoton.2014.134 journal journal Nature Photonics \ volume 8 ,\ pages 506 ( year 2014 ) NoStop

    work page doi:10.1038/nphoton.2014.134 2014

  5. [5]

    author author K. A. \ Stoerzinger , author W. S. \ Choi , author H. Jeen , author H. N. \ Lee , \ and\ author Y. Shao-Horn ,\ 10.1021/jz502692a journal journal The Journal of Physical Chemistry Letters \ volume 6 ,\ pages 487 ( year 2015 ) NoStop

    work page doi:10.1021/jz502692a 2015

  6. [6]

    Yu , author H

    author author X. Yu , author H. Cheng , author M. Zhang , author Y. Zhao , author L. Qu , \ and\ author G. Shi ,\ 10.1038/natrevmats.2017.46 journal journal Nature Reviews Materials \ volume 2 ,\ pages 17046 ( year 2017 ) NoStop

    work page doi:10.1038/natrevmats.2017.46 2017

  7. [7]

    author author K. S. \ Burch , author D. Mandrus , \ and\ author J.-G. \ Park ,\ 10.1038/s41586-018-0631-z journal journal Nature \ volume 563 ,\ pages 47 ( year 2018 ) NoStop

    work page doi:10.1038/s41586-018-0631-z 2018

  8. [8]

    Li , author K

    author author D. Li , author K. Lee , author B. Y. \ Wang , author M. Osada , author S. Crossley , author H. R. \ Lee , author Y. Cui , author Y. Hikita , \ and\ author H. Y. \ Hwang ,\ 10.1038/s41586-019-1496-5 journal journal Nature \ volume 572 ,\ pages 624 ( year 2019 ) NoStop

    work page doi:10.1038/s41586-019-1496-5 2019

  9. [9]

    Xu , author J

    author author R. Xu , author J. Huang , author E. S. \ Barnard , author S. S. \ Hong , author P. Singh , author E. K. \ Wong , author T. Jansen , author V. Harbola , author J. Xiao , author B. Y. \ Wang , author S. Crossley , author D. Lu , author S. Liu , \ and\ author H. Y. \ Hwang ,\ 10.1038/s41467-020-16912-3 journal journal Nature Communications \ vo...

    work page doi:10.1038/s41467-020-16912-3 2020

  10. [10]

    Wang , author H

    author author Y. Wang , author H. Wu , author G. T. \ McCandless , author J. Y. \ Chan , \ and\ author M. N. \ Ali ,\ 10.1038/s42254-023-00635-7 journal journal Nature Reviews Physics \ volume 5 ,\ pages 635 ( year 2023 ) NoStop

    work page doi:10.1038/s42254-023-00635-7 2023

  11. [11]

    author author W. J. \ Kim , author M. A. \ Smeaton , author C. Jia , author B. H. \ Goodge , author B.-G. \ Cho , author K. Lee , author M. Osada , author D. Jost , author A. V. \ Ievlev , author B. Moritz , author L. F. \ Kourkoutis , author T. P. \ Devereaux , \ and\ author H. Y. \ Hwang ,\ 10.1038/s41586-022-05681-2 journal journal Nature \ volume 615 ...

    work page doi:10.1038/s41586-022-05681-2 2023

  12. [12]

    author author L. J. P. \ Ament , author M. van Veenendaal , author T. P. \ Devereaux , author J. P. \ Hill , \ and\ author J. van den Brink ,\ 10.1103/RevModPhys.83.705 journal journal Rev. Mod. Phys. \ volume 83 ,\ pages 705 ( year 2011 a ) NoStop

    work page doi:10.1103/revmodphys.83.705 2011

  13. [13]

    Siegrist , author S

    author author T. Siegrist , author S. M. \ Zahurak , author D. W. \ Murphy , \ and\ author R. S. \ Roth ,\ 10.1038/334231a0 journal journal Nature \ volume 334 ,\ pages 231 ( year 1988 ) NoStop

    work page doi:10.1038/334231a0 1988

  14. [14]

    Tsujimoto , author N

    author author Y. Tsujimoto , author N. Hayashi , author Y. Matsushita , \ and\ author E. Takayama-Muromachi ,\ 10.1038/nature06382 journal journal Nature \ volume 450 ,\ pages 1062 ( year 2007 ) NoStop

    work page doi:10.1038/nature06382 2007

  15. [15]

    Kawakami , author Y

    author author T. Kawakami , author Y. Tsujimoto , author H. Kageyama , author X.-Q. \ Chen , author C. L. \ Fu , author C. Tassel , author A. Kitada , author S. Suto , author K. Hirama , author Y. Sekiya , author Y. Makino , author T. Okada , author T. Yagi , author N. Hayashi , author K. Yoshimura , author S. Nasu , author R. Podloucky , \ and\ author M....

    work page doi:10.1038/nchem.289 2009

  16. [16]

    uning , author J. St\

    author author T. J. \ Regan , author H. Ohldag , author C. Stamm , author F. Nolting , author J. L\"uning , author J. St\"ohr , \ and\ author R. L. \ White ,\ 10.1103/PhysRevB.64.214422 journal journal Phys. Rev. B \ volume 64 ,\ pages 214422 ( year 2001 ) NoStop

    work page doi:10.1103/physrevb.64.214422 2001

  17. [17]

    author author S. Y. \ Istomin , author O. A. \ Tyablikov , author S. M. \ Kazakov , author E. V. \ Antipov , author A. I. \ Kurbakov , author A. A. \ Tsirlin , author N. Hollmann , author Y. Y. \ Chin , author H.-J. \ Lin , author C. T. \ Chen , author A. Tanaka , author L. H. \ Tjeng , \ and\ author Z. Hu ,\ 10.1039/C4DT03670K journal journal Dalton Tran...

    work page doi:10.1039/c4dt03670k 2015

  18. [18]

    Kang , author K

    author author S. Kang , author K. Kim , author B. H. \ Kim , author J. Kim , author K. I. \ Sim , author J.-U. \ Lee , author S. Lee , author K. Park , author S. Yun , author T. Kim , author A. Nag , author A. Walters , author M. Garcia-Fernandez , author J. Li , author L. Chapon , author K.-J. \ Zhou , author Y.-W. \ Son , author J. H. \ Kim , author H. ...

    work page doi:10.1038/s41586-020-2520-5 2020

  19. [19]

    Jost , author H.-Y

    author author D. Jost , author H.-Y. \ Huang , author M. Rossi , author A. Singh , author D.-J. \ Huang , author Y. Lee , author H. Zheng , author J. F. \ Mitchell , author B. Moritz , author Z.-X. \ Shen , author T. P. \ Devereaux , \ and\ author W.-S. \ Lee ,\ 10.1103/PhysRevLett.132.186502 journal journal Phys. Rev. Lett. \ volume 132 ,\ pages 186502 (...

    work page doi:10.1103/physrevlett.132.186502 2024

  20. [20]

    author author W. S. \ Lee , author K.-J. \ Zhou , author M. Hepting , author J. Li , author A. Nag , author A. C. \ Walters , author M. Garcia-Fernandez , author H. C. \ Robarts , author M. Hashimoto , author H. Lu , author B. Nosarzewski , author D. Song , author H. Eisaki , author Z. X. \ Shen , author B. Moritz , author J. Zaanen , \ and\ author T. P. ...

    work page doi:10.1038/s41567-020-0993-7 2021

  21. [21]

    Arpaia , author L

    author author R. Arpaia , author L. Martinelli , author M. M. \ Sala , author S. Caprara , author A. Nag , author N. B. \ Brookes , author P. Camisa , author Q. Li , author Q. Gao , author X. Zhou , author M. Garcia-Fernandez , author K.-J. \ Zhou , author E. Schierle , author T. Bauch , author Y. Y. \ Peng , author C. Di Castro , author M. Grilli , autho...

    work page doi:10.1038/s41467-023-42961-5 2023

  22. [22]

    author author L. J. P. \ Ament , author M. van Veenendaal , \ and\ author J. van den Brink ,\ 10.1209/0295-5075/95/27008 journal journal Europhysics Letters \ volume 95 ,\ pages 27008 ( year 2011 b ) NoStop

    work page doi:10.1209/0295-5075/95/27008 2011

  23. [23]

    author author T. P. \ Devereaux , author A. M. \ Shvaika , author K. Wu , author K. Wohlfeld , author C. J. \ Jia , author Y. Wang , author B. Moritz , author L. Chaix , author W.-S. \ Lee , author Z.-X. \ Shen , author G. Ghiringhelli , \ and\ author L. Braicovich ,\ 10.1103/PhysRevX.6.041019 journal journal Phys. Rev. X \ volume 6 ,\ pages 041019 ( year...

    work page doi:10.1103/physrevx.6.041019 2016

  24. [24]

    Braicovich , author M

    author author L. Braicovich , author M. Rossi , author R. Fumagalli , author Y. Peng , author Y. Wang , author R. Arpaia , author D. Betto , author G. M. \ De Luca , author D. Di Castro , author K. Kummer , author M. Moretti Sala , author M. Pagetti , author G. Balestrino , author N. B. \ Brookes , author M. Salluzzo , author S. Johnston , author J. van d...

    work page doi:10.1103/physrevresearch.2.023231 2020
