Optomechanical vector sensing of new forces at 6 micron separation

Gautam Venugopalan , Clarke A. Hardy , Kenneth Kohn , Yuqi Zhu , Charles P. Blakemore , Alexander Fieguth , Jacqueline Huang , Chengjie Jia
show 5 more authors
Meimei Liu Lorenzo Magrini Nadav Priel Zhengruilong Wang Giorgio Gratta
This is my paper

Pith reviewed 2026-05-23 06:23 UTC · model grok-4.3

classification ✦ hep-ex gr-qcphysics.ins-detphysics.optics
keywords Yukawa interactionsoptomechanical sensinglevitated microspheresnew fundamental forcesvector force measurementsub-millimeter gravity testsCasimir force subtraction
0
0 comments X

The pith

Optically levitated microspheres set new upper limits of 10^7 on Yukawa forces at 5 micron range via vector sensing.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper uses optically levitated dielectric microspheres to search for hypothetical new gravity-like interactions at the 10 micrometer scale by measuring multiple components of the force vector for the first time. Sensitivity improves by a factor of about 100 compared to earlier work with the same approach. The resulting bounds reach 10^7 on interaction strength at a Yukawa range of roughly 5 micrometers and approach 10^6 for ranges of 10 micrometers or longer. These limits advance the broader goal of detecting gravitational effects between micrometer-scale objects.

Core claim

Sensing multiple spatial components of the force vector with optically levitated dielectric microspheres at 6 micron separation establishes an upper limit of 10^7 on the strength of a hypothetical new Yukawa-type force at λ ≃ 5 μm and close to 10^6 for λ ≳ 10 μm, with sensitivity improved by a factor of ∼100 relative to previous measurements using the same technique.

What carries the argument

Optically levitated dielectric microspheres as test masses performing multi-component vector force sensing at 6 micron separation to constrain Yukawa interactions.

Load-bearing premise

All known electromagnetic, Casimir, and other background forces have been accurately modeled and subtracted at the 6-micron separation with no remaining unaccounted systematic effects in the measurements or microsphere properties.

What would settle it

Detection of a residual force vector component at 6 microns that exceeds the modeled backgrounds and surpasses the reported upper limits after all known subtractions would invalidate the constraints.

Figures

Figures reproduced from arXiv: 2412.13167 by Alexander Fieguth, Charles P. Blakemore, Chengjie Jia, Clarke A. Hardy, Gautam Venugopalan, Giorgio Gratta, Jacqueline Huang, Kenneth Kohn, Lorenzo Magrini, Meimei Liu, Nadav Priel, Yuqi Zhu, Zhengruilong Wang.

Figure 1
Figure 1. Figure 1: FIG. 1. Top: diagram of the experimental setup also defining [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

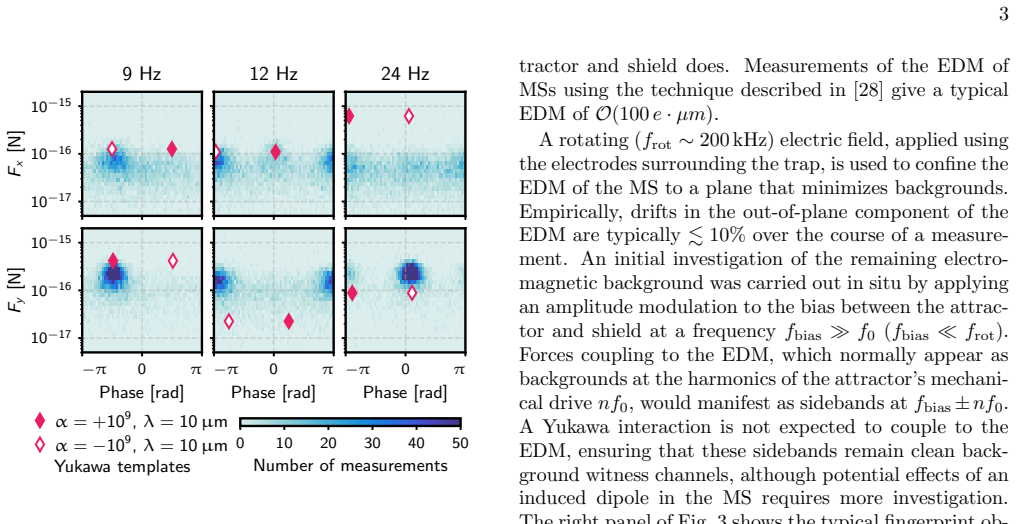

Figure 2. Figure 2: FIG. 2. Measurements of the [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

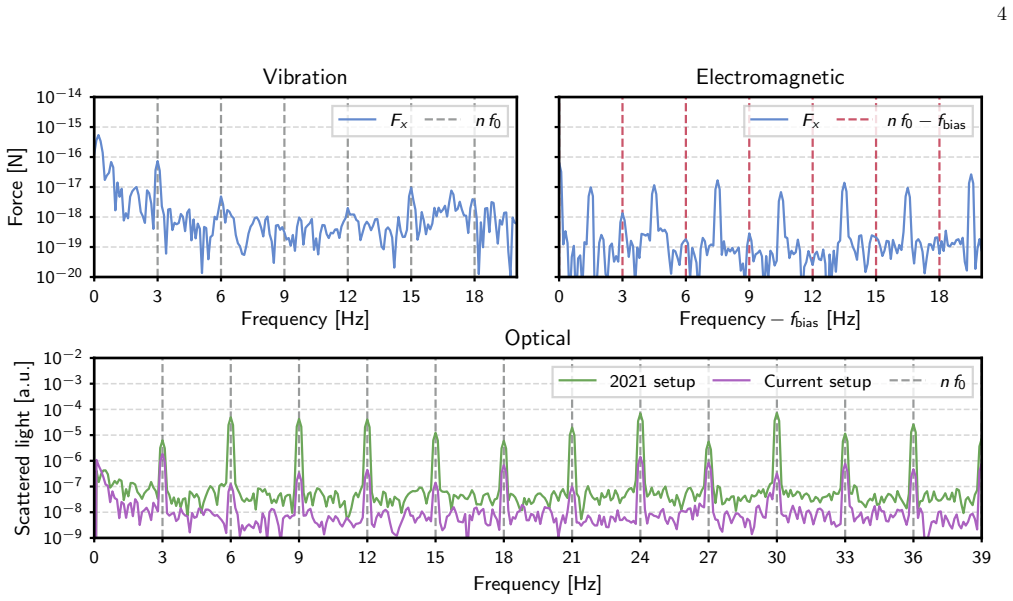

Figure 3. Figure 3: FIG. 3. Force spectra showing the measured backgrounds from three sources (from three different MSs). Top left: vibration [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

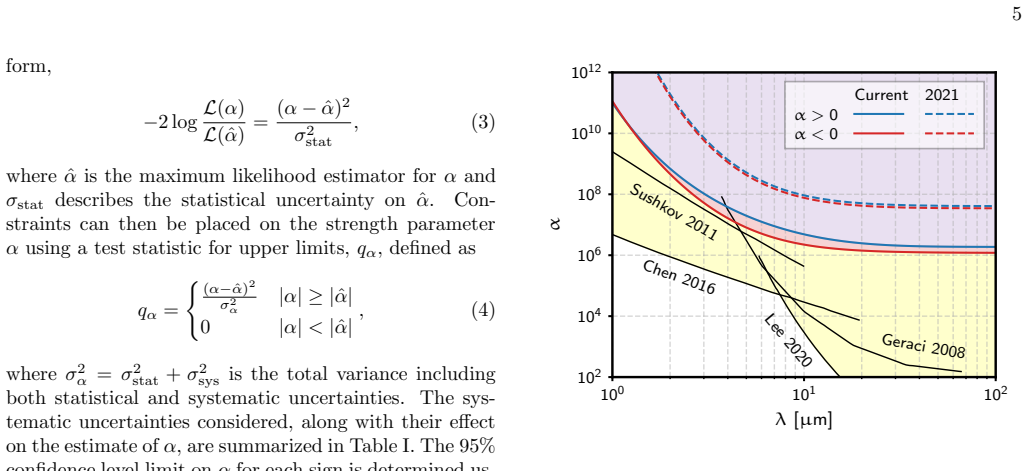

Figure 4. Figure 4: FIG. 4. Constraints on the [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
read the original abstract

The search for new gravity-like interactions at the sub-millimeter scale is a compelling area of research, with important implications for the understanding of classical gravity and its connections with quantum physics. We report improved constraints on Yukawa-type interactions in the $10\,\mathrm{\mu m}$ regime using optically levitated dielectric microspheres as test masses. The search is performed, for the first time, sensing multiple spatial components of the force vector, and with sensitivity improved by a factor of $\sim 100$ with respect to previous measurements using the same technique. The resulting upper limit on the strength of a hypothetical new force is $10^7$ at a Yukawa range $\lambda\simeq 5\;\mu$m and close to $10^6$ for $\lambda \gtrsim 10\;\mu$m. This result also advances our efforts to measure gravitational effects using micrometer-size objects, with important implications for embryonic ideas to investigate the quantum nature of gravity.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript reports an experimental search for new Yukawa-type forces at ~6 μm separation using optically levitated dielectric microspheres. It claims the first implementation of vector (multi-component) force sensing with this technique and a factor of ~100 improvement in sensitivity relative to prior work, yielding upper limits on the new-force strength of 10^7 at λ ≃ 5 μm and ~10^6 for λ ≳ 10 μm.

Significance. If the background modeling and subtraction are shown to be accurate to the claimed residual level, the result tightens existing constraints in the 5–10 μm regime and demonstrates a new experimental capability (vector sensing) that may help discriminate signals from backgrounds. The work also contributes to the longer-term goal of probing gravitational effects with micrometer-scale objects.

major comments (1)
  1. [Abstract and Results section] The headline limits (10^7 at λ ≃ 5 μm, ~10^6 for λ ≳ 10 μm) are obtained only after subtracting electromagnetic, Casimir, and patch-potential backgrounds that exceed the target sensitivity by many orders of magnitude at 6 μm separation. The manuscript provides no quantitative validation (e.g., residual systematic budget, cross-checks with known forces, or microsphere charge/dielectric characterization) that these subtractions are accurate to better than the reported residual; this subtraction is load-bearing for the central claim.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thoughtful review and positive assessment of the work's significance. We address the major comment on background subtraction validation below, and will incorporate additional quantitative details in the revised manuscript.

read point-by-point responses

  1. Referee: [Abstract and Results section] The headline limits (10^7 at λ ≃ 5 μm, ~10^6 for λ ≳ 10 μm) are obtained only after subtracting electromagnetic, Casimir, and patch-potential backgrounds that exceed the target sensitivity by many orders of magnitude at 6 μm separation. The manuscript provides no quantitative validation (e.g., residual systematic budget, cross-checks with known forces, or microsphere charge/dielectric characterization) that these subtractions are accurate to better than the reported residual; this subtraction is load-bearing for the central claim.

    Authors: We agree that the reported limits depend on accurate modeling and subtraction of the dominant electromagnetic, Casimir, and patch-potential backgrounds. The manuscript outlines the force models and subtraction procedure in the Results and Methods sections and notes that the new vector-sensing capability provides an internal consistency check across force components that is not available in prior scalar measurements. However, the manuscript does not include a consolidated residual systematic uncertainty budget or explicit cross-checks with known forces at the claimed precision. To address this, the revised manuscript will add a dedicated subsection presenting (i) a quantitative residual systematic error table, (ii) additional cross-check measurements with applied known forces, and (iii) microsphere charge and dielectric characterization data. These additions will be placed in the Results section and will directly support the headline limits. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental upper limits from direct force measurements

full rationale

The paper reports experimental constraints on Yukawa-type forces obtained from vector force measurements on optically levitated microspheres at 6 μm separation. The central result is an upper limit derived from subtracting modeled electromagnetic, Casimir, and other backgrounds from measured data, with no mathematical derivation chain, fitted parameters renamed as predictions, or self-citation load-bearing steps that reduce the claimed result to its inputs by construction. The analysis is self-contained against external benchmarks of the measurement technique.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are introduced in the abstract; the work reports experimental constraints on an existing class of Yukawa interactions without postulating new entities or fitting additional constants.
