arxiv: 2502.18799 · v1 · submitted 2025-02-26 · ❄️ cond-mat.mtrl-sci

Phonon dynamics of a bulk WSe₂ crystal excited by ultrashort near-infrared pulses

Itsuki Kasai , Itsuki Takagi , Kazutaka G. Nakamura This is my paper

Pith reviewed 2026-05-23 02:56 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords coherent phononsWSe2pump-probe reflectivitynear-infrared excitationTHz oscillationsphonon dynamicstransition metal dichalcogenide
0
0 comments X

The pith

Reflectivity oscillations in bulk WSe2 after near-infrared pulses are reproduced by three coherent phonon modes at 7.45, 7.49 and 7.7 THz.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Pump-probe reflectivity measurements on a single crystal of WSe2 use ultrashort near-infrared pulses to excite the material and track the resulting changes in reflectivity over time. The measured oscillations are reproduced by adding together three simple harmonic oscillations at frequencies 7.45 THz, 7.49 THz and 7.7 THz, each assigned its own starting phase. Fourier transformation of the time trace yields intense peaks near 7.5 THz together with smaller peaks at 4.0 THz and 11.5 THz. The close match between data and the three-oscillator model indicates that the observed signal arises from coherent lattice vibrations. This provides a direct way to identify the dominant phonon frequencies that respond to the optical excitation.

Core claim

The time-dependent reflectivity of bulk WSe2 excited by ultrashort near-infrared pulses is well reproduced in simulations by superimposing three oscillations at 7.45, 7.49 and 7.7 THz with different phases. The Fourier transform spectrum features small peaks at 4.0 and 11.5 THz along with intense peaks at around 7.5 THz.

What carries the argument

Linear superposition of three coherent phonon oscillations at 7.45, 7.49 and 7.7 THz with distinct phases

If this is right

  • The dominant signal comes from coherent phonons clustered near 7.5 THz.
  • Different phases for each mode indicate they are launched with specific relative timing by the pump pulse.
  • Weaker modes at 4.0 and 11.5 THz contribute but remain secondary.
  • No damping, nonlinear coupling or electronic background terms are required to fit the observed dynamics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The phase offsets may encode information about the specific electron-phonon coupling pathway triggered by the near-infrared pulse.
  • The same superposition approach could be used on other transition-metal dichalcogenides to extract their coherent-phonon spectra under comparable excitation.
  • If the three-mode description holds across a range of pump intensities, it would imply that the phonon response remains linear in this regime.

Load-bearing premise

Reflectivity oscillations arise exclusively from coherent phonons whose dynamics are captured by a linear superposition of three undamped harmonic oscillators.

What would settle it

A pump-probe trace that deviates from the three-oscillator simulation at longer delays or requires extra frequency components or damping terms would falsify the model.

Figures

Figures reproduced from arXiv: 2502.18799 by Itsuki Kasai, Itsuki Takagi, Kazutaka G. Nakamura.

Figure 1
Figure 1. Figure 1: Transient reflectivity measurement of WSe [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3

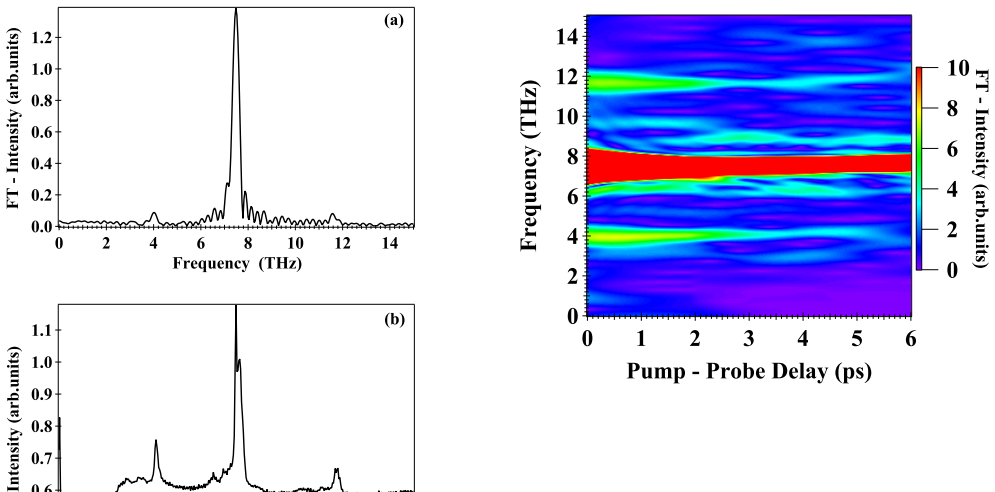

Figure 3. Figure 3: Short-time Fourier transform (STFT) spectrum of t [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Simulation of oscillations of coherent phonons in [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
read the original abstract

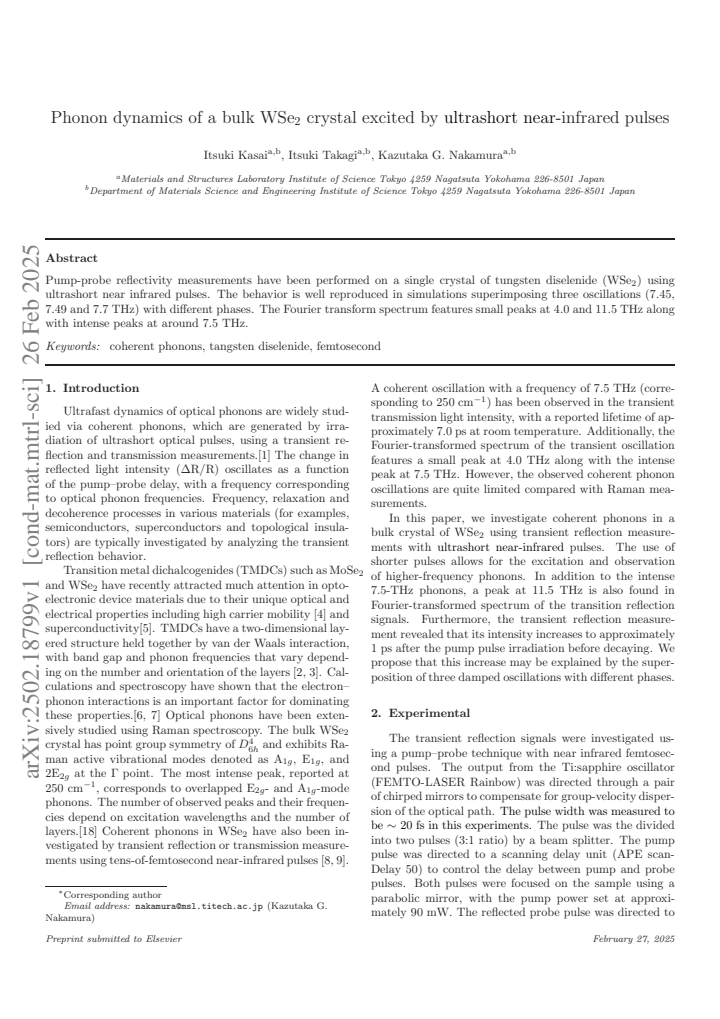

Pump-probe reflectivity measurements have been performed on a single crystal of tungsten diselenide (WSe$_2$) using ultrashort near-infrared pulses. The behavior is well reproduced in simulations superimposing three oscillations (7.45, 7.49 and 7.7 THz) with different phases. The Fourier transform spectrum features small peaks at 4.0 and 11.5 THz along with intense peaks at around 7.5 THz.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper reports pump-probe reflectivity measurements on a bulk WSe₂ crystal using ultrashort near-infrared pulses. The observed oscillations are claimed to be reproduced by simulations superimposing three undamped harmonic oscillators at 7.45, 7.49, and 7.7 THz with different phases. The Fourier transform shows intense peaks near 7.5 THz along with smaller peaks at 4.0 and 11.5 THz.

Significance. If substantiated quantitatively, the result would demonstrate multi-mode coherent phonon excitation in bulk WSe₂ under NIR pumping and the phase relationships among the modes, adding to the literature on ultrafast lattice dynamics in TMDs.

major comments (1)
  1. [Abstract and simulation description] Abstract and simulation description: the central claim that the reflectivity oscillations 'are well reproduced' by the linear superposition of three undamped oscillators lacks any quantitative support (fit residuals, reduced χ², R², error bars on frequencies/phases, or number of free parameters). No comparison to single-oscillator, damped, or alternative models is provided, rendering the assertion unevaluated and load-bearing for the paper's main result.
minor comments (1)
  1. [Fourier transform description] The FT spectrum description refers to 'small peaks' and 'intense peaks' without reporting amplitudes, widths, or signal-to-noise ratios, which would clarify the relative strengths of the 4.0/11.5 THz features versus the 7.5 THz modes.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their detailed review and constructive criticism. We address the single major comment below and agree that quantitative support is needed to substantiate the central claim.

read point-by-point responses

  1. Referee: [Abstract and simulation description] Abstract and simulation description: the central claim that the reflectivity oscillations 'are well reproduced' by the linear superposition of three undamped oscillators lacks any quantitative support (fit residuals, reduced χ², R², error bars on frequencies/phases, or number of free parameters). No comparison to single-oscillator, damped, or alternative models is provided, rendering the assertion unevaluated and load-bearing for the paper's main result.

    Authors: We agree with the referee that the manuscript currently lacks quantitative metrics to support the claim that the oscillations are well reproduced by the three-oscillator model. The provided abstract and simulation description rely on a qualitative statement without reporting fit quality measures, parameter uncertainties, or model comparisons. In the revised manuscript we will add: (i) the fitting procedure details including the number of free parameters, (ii) error bars on the extracted frequencies and phases, (iii) reduced χ² and residual plots, (iv) R² or equivalent goodness-of-fit values, and (v) explicit comparisons to single-oscillator and damped-oscillator alternatives. These additions will allow readers to evaluate the model rigorously. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The manuscript reports pump-probe reflectivity data on bulk WSe2 and states that the time-domain oscillations are reproduced by a linear superposition of three undamped oscillators whose frequencies (7.45, 7.49, 7.7 THz) are taken directly from the Fourier transform peaks of the measured trace. No first-principles derivation, self-citation chain, or uniqueness theorem is invoked; the reproduction is an empirical fit to the same dataset. This matches the default expectation of a non-circular experimental report and triggers none of the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

2 free parameters · 0 axioms · 0 invented entities

The reproduction of the reflectivity trace depends on fitting three frequencies and their relative phases to the measured signal; these values are not predicted from first principles or external benchmarks but are adjusted to match the data.

free parameters (2)
  • oscillation frequencies = 7.45 THz, 7.49 THz, 7.7 THz
    Three values (7.45, 7.49, 7.7 THz) chosen to match the observed time-domain oscillations.
  • relative phases = different phases
    Phases adjusted independently for each oscillator to reproduce the measured waveform.

pith-pipeline@v0.9.0 · 5611 in / 1221 out tokens · 32314 ms · 2026-05-23T02:56:41.834223+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

19 extracted references · 19 canonical work pages

  1. [1]

    F¨ orst, and T

    M. F¨ orst, and T. Dekorsy, Coherent Phonons in Bulk and Low- Dimensional Semiconductors, in Coherent Vibrational Dynam- 3 12 10 8 6 4 2 0 /s32R/R (arb.units) 6543210 Pump - Probe Delay (ps) (a) (b) (c) (d) Figure 4: Simulation of oscillations of coherent phonons in WSe2. The red curve is the experimentally obtained transient refle ctivity. The blue, yello...

    work page 2008

  2. [2]

    W. Zhao, Z. Ghorannevis, K. K. Amara, J. R. Pang, M. Toh, X. Zhang, C. Kloc, P. H.Tane and G. Eda, Lattice dynamics in mono- and few-layer sheets of WS 2 and WSe 2, Nanoscale, 5, 9677-9683, (2013)

    work page 2013

  3. [3]

    Y. Pan, S. Li, M. Rahaman, I. Milekhin, and D. R. T. Zahn,Signature of lattice dynamics in twisted 2D homo/hetero- bilayers, 2D Materials, 9, 045018, (2022)

    work page 2022

  4. [4]

    D. Qiu, C. Gong, S. S. W ang, M. Zhang, C. Yang, X. W ang, and J. Xiong, RecentAdvances in 2D Superconductors , Advanced Materials, 33, 2006124 (2021)

    work page 2021

  5. [5]

    Ahmed, and J

    S. Ahmed, and J. Yi, “Two-Dimensional Transition Metal Dichalcogenides and Their Charge Carrier Mobilities in Fie ld- Effect Transistors, Nano-Micro Lett. 9, 50, (2017)

    work page 2017

  6. [6]

    P. Chen, J. Pan, W. Gao, B. W an, X. Kong, Y. Cheng, K. Liu, S. Du, W. Ji, C. Pan, and Z. L. W ang,Anisotropic Carrier Mobility from 2H WSe 2, Advanced Materials, 34, 2108615, (2021)

    work page 2021

  7. [7]

    Bawden, S.P

    L. Bawden, S.P. Cooil, F. Mazzola, J.M. Riley, L.J. C. McI n- tyre, V. Sunko, K. W. B. Hunvik, M. Leandersson, C.M. Pol- ley, T. Balasubramanian, T.K. Kim, M. Hoesch, J.W. W ells, G. Balakrishnan, M.S. Bahramy, and P.D.C. King, Spin-valley locking in the normal state of a transition-metal dichalcog enide superconductor, Nature Communications, 7, 11711, (2016)

    work page 2016

  8. [8]

    T. Y. Jeong, B. M. Jin, S. H. Rhim, L. Debbichi, J. Park, Y. D . Jang, H. R. Lee, D. H.Chae, D. Lee, Y. H. Kim, S. Jung, and K. J. Yee, Coherent Lattice Vibrations in Mono- and Few Layer WSe2, ACS Nano 10, 5560 - 5566, (2016)

    work page 2016

  9. [9]

    Jeong, S

    T.Y. Jeong, S. Bae, S. Y. Lee, S. Jung, Y. H. Kim, and K. J. Yee, Valley depolarization inmonolayer transition metal dichalcogenides with zone-corner acoustic phonons , Nanoscale, 12, 22487, (2020)

    work page 2020

  10. [10]

    T. Y. Jeong, B. M. Jin, S. H. Rhim, L. Debbichi, J. Park, Y. D. Jang, H. R. Lee, D.-H. Che, D. Lee, Y.-H. Kim, S. Jung, and K. J. Yee, Coherent lattice vibrations in mono- and few- layer WSe2, ACS Nano 10, 5560 (2016)

    work page 2016

  11. [11]

    J. Zou, R. Zhu, J. W ang, M. Z. W ang, H. Chen, and Y.- W. W eng, Coherent phonon-mediated many-body interaction in monolayer WSe 2, J. Phys. Chem. Lett., 14, 4657 (2023)

    work page 2023

  12. [12]

    M. Jin, W. Zheng, Y. Ding, Y. Zhu, W. W ang, and F. Huang, Raman Tensor of WSe 2 via angle-resolved polarized Raman spectroscopy, J. Phys. Chem. C 123, 29337 (2019)

    work page 2019

  13. [13]

    K. G. Nakamura, K. Ohya, H. Takahashi, T. Tsuruta, H. Sas aki, S. Uozumi, K. Norimatsu, M. Kitajima, Y. Shikano, and Y. Kayanuma, Spectrally resolved detection in transient-reflectivity measurements of coherent optical phonons in diamond , Phys. Rev. B 94, 024303 (2016)

    work page 2016

  14. [14]

    K. G. Nakamura, Y. Shikano, and Y. Kayanuma, Influence of pulse width and detuning on coherent phonon generation , Phys. Rev. B 92, 144304 (2015)

    work page 2015

  15. [15]

    Kamaraju, S

    N. Kamaraju, S. Kumar, and A. K. Sood, Temperature- dependent chirped coherent phonon dynamics in Bi 2Te3 using high-intensity femtosecond laser pulses , EPL 92, 47007 (2010)

    work page 2010

  16. [16]

    Takagi, Y

    I. Takagi, Y. Kayanuma, and K. G. Nakamura, Theory for co- herent control of longitudinal optical phonons in GaAs usin g polarized optical pulses with relative phase locking , Phys. Rev. B 104, 134301 (2021)

    work page 2021

  17. [17]

    Terrones, E

    H. Terrones, E. Del Corro, S. Feng, J. M. Poumirol, D. Rho des, D. Smirnov, N. R. Pradhan, Z. Lin, M. A. Nguyen, A. L. El ¨ ıas, T. E. Malouk, L. Balicas, M. A. Pimenta, and M. Terrones., New first order Raman-active modes in few layered transition meal dichalcogebudes, Sci. Rep. 4, 4215 (2014)

    work page 2014

  18. [18]

    Blaga, A

    C. Blaga, A. L. Alvarez, A. Balgarkashi, M. Banerjee, A. F. Morral, and M. Dimitrievska, Unveiling the complex phonon nature and phonon cascades in 1L to 5L WSe 2 using mul- tiwavelength excitation Raman scattering , Nanoscale Adv. 6, 4591 (2024)

    work page 2024

  19. [19]

    M. D. Luca, X. Cartoix` a, J. Martin-S´ anchez, M. L´ opez-Su´ arez, R. Trotta, R. Rutali, and I. Zardo New insights in the lattice dynamics of monolayers, bilayers, and trilayers of WSe 2, and unambiguous determination of few-layer-flakes’ thickness , 2D Mater 7, 025004 (2020). 4

    work page 2020
