arxiv: 2503.09506 · v2 · submitted 2025-03-12 · ❄️ cond-mat.mes-hall

Ratchet motion of magnetic skyrmions driven by surface acoustic sawtooth waves

Philipp Schwenke , Ephraim Spindler , Vitaliy I. Vasyuchka , Alexandre Abbass Hamadeh , Philipp Pirro , Mathias Weiler This is my paper

Pith reviewed 2026-05-22 23:56 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords magnetic skyrmionssurface acoustic wavesratchet motionpinning centersmicromagnetic simulationsspintronicsstrain gradients
0
0 comments X

The pith

Sawtooth surface acoustic waves produce net perpendicular ratchet motion of pinned magnetic skyrmions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that continuously applied sawtooth-shaped surface acoustic waves can drive a directional ratchet motion of magnetic skyrmions when pinning centers are present. This produces a net displacement of the skyrmions orthogonal to the wave propagation direction. The mechanism depends on pinning centers imposing a minimum strain gradient needed to initiate motion, which the asymmetric sawtooth waveform exploits to create bias. A sympathetic reader would care because the approach allows continuous control without pulsed drives or electric currents.

Core claim

Sawtooth surface acoustic waves drive a ratchet motion of magnetic skyrmions in the presence of pinning centers, resulting in net motion orthogonal to the continuously applied SAW. The ratchet effect is caused by non-vanishing pinning that requires a certain strain gradient magnitude to overcome before skyrmion motion begins. Feasibility is shown through micromagnetic simulations and analytical model calculations.

What carries the argument

The asymmetric strain gradient of sawtooth surface acoustic waves interacting with pinning centers that impose a motion threshold on skyrmions.

If this is right

  • Net skyrmion displacement occurs perpendicular to the propagation direction of the continuous SAW.
  • The ratchet motion requires pinning centers and vanishes without them.
  • A minimum strain gradient magnitude set by pinning must be exceeded for motion to start.
  • Micromagnetic simulations and analytical models both confirm the directional bias.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could allow steady-state positioning of skyrmions in devices without interrupting the drive signal.
  • Similar threshold-based ratchet schemes might extend to other magnetic textures such as domain walls under acoustic drive.
  • Energy cost per skyrmion displacement could be compared to current-driven or field-pulse methods in future calculations.

Load-bearing premise

Pinning centers create a well-defined strain-gradient threshold that the sawtooth waveform overcomes asymmetrically to produce net motion.

What would settle it

No net orthogonal displacement occurs in micromagnetic simulations when pinning is removed or when a symmetric sinusoidal SAW replaces the sawtooth waveform.

Figures

Figures reproduced from arXiv: 2503.09506 by Alexandre Abbass Hamadeh, Ephraim Spindler, Mathias Weiler, Philipp Pirro, Philipp Schwenke, Vitaliy I. Vasyuchka.

Figure 1
Figure 1. Figure 1: FIG. 1. a) Schematic of the proposed experiment. An interdigital transducer (IDT) launches a sawtooth-shaped surface acoustic [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Anisotropy landscape used for simulating the re [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. a) Shape of the resulting strain [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

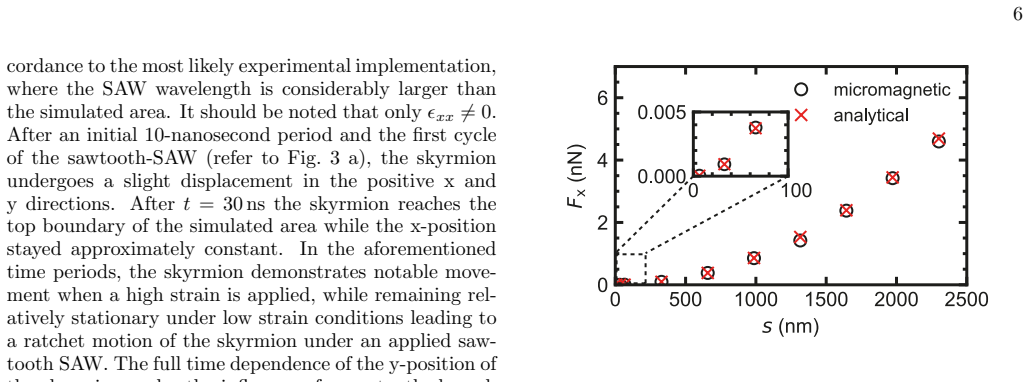

Figure 4. Figure 4: FIG. 4. Force on the skyrmion in dependence of the skyrmion [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

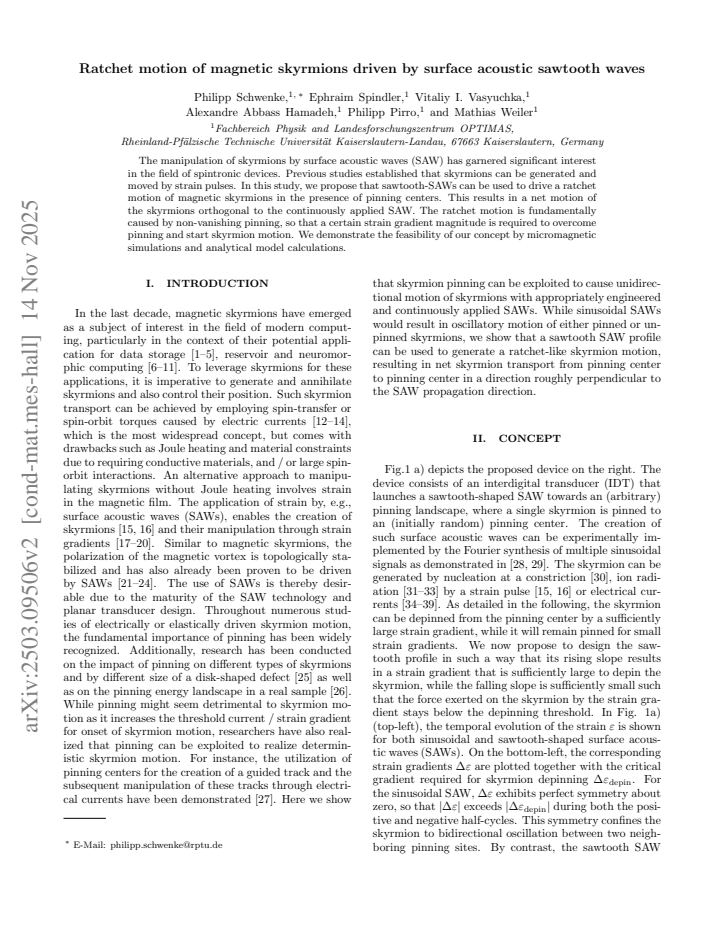

read the original abstract

The manipulation of skyrmions by surface acoustic waves (SAW) has garnered significant interest in the field of spintronic devices. Previous studies established that skyrmions can be generated and moved by strain pulses. In this study, we propose that sawtooth-SAWs can be used to drive a ratchet motion of magnetic skyrmions in the presence of pinning centers. This results in a net motion of the skyrmions orthogonal to the continuously applied SAW. The ratchet motion is fundamentally caused by non-vanishing pinning, so that a certain strain gradient magnitude is required to overcome pinning and start skyrmion motion. We demonstrate the feasibility of our concept by micromagnetic simulations and analytical model calculations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes that continuously applied sawtooth-shaped surface acoustic waves (SAWs) can induce ratchet motion of magnetic skyrmions when pinning centers are present. This produces a net skyrmion displacement orthogonal to the SAW propagation direction. The effect originates from the requirement that a finite strain-gradient threshold must be exceeded to overcome pinning; the asymmetric sawtooth waveform then yields unidirectional net motion. Feasibility is asserted via micromagnetic simulations and an analytical model.

Significance. If quantitatively validated, the result would supply a route to continuous, low-power SAW-based skyrmion transport that does not rely on pulsed strain. The explicit identification of pinning as the origin of the required threshold distinguishes the mechanism from prior strain-pulse work and could be relevant for skyrmion-based spintronic devices.

major comments (2)
  1. [Abstract / Results] Abstract and § Methods/Results: the central claim rests on the statement that micromagnetic simulations and an analytical model were performed, yet no quantitative outputs (skyrmion velocities, strain-gradient thresholds, error bars, or parameter sets) are supplied. Without these data it is impossible to judge whether the ratchet displacement is robust or merely an artifact of chosen pinning strengths.
  2. [Analytical model] Analytical model section: the derivation of the strain-gradient threshold and its interaction with the sawtooth waveform is not shown; the manuscript therefore provides no explicit check that the net orthogonal velocity vanishes when pinning is removed, which is required to substantiate the claim that pinning is the fundamental cause.
minor comments (2)
  1. [Abstract] The abstract refers to 'non-vanishing pinning' without specifying the pinning potential form or density used in the simulations.
  2. [Figures] Figure captions and axis labels should explicitly state the SAW amplitude, frequency, and pinning parameters so that the reported motion can be reproduced.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We appreciate the referee's insightful comments on our manuscript. We agree that additional quantitative details and explicit derivations are necessary to strengthen the presentation of our results. We will revise the manuscript to address these points.

read point-by-point responses

  1. Referee: [Abstract / Results] Abstract and § Methods/Results: the central claim rests on the statement that micromagnetic simulations and an analytical model were performed, yet no quantitative outputs (skyrmion velocities, strain-gradient thresholds, error bars, or parameter sets) are supplied. Without these data it is impossible to judge whether the ratchet displacement is robust or merely an artifact of chosen pinning strengths.

    Authors: We thank the referee for highlighting this issue. The original manuscript emphasized the conceptual demonstration via simulations and the analytical model without including specific numerical values. In the revised manuscript, we will incorporate quantitative outputs including skyrmion velocities, strain-gradient thresholds, relevant parameter sets, and error bars from the simulations. This will enable a proper evaluation of the robustness of the ratchet displacement. revision: yes

  2. Referee: [Analytical model] Analytical model section: the derivation of the strain-gradient threshold and its interaction with the sawtooth waveform is not shown; the manuscript therefore provides no explicit check that the net orthogonal velocity vanishes when pinning is removed, which is required to substantiate the claim that pinning is the fundamental cause.

    Authors: We agree that the explicit derivation and the check for vanishing velocity without pinning are important for substantiating the mechanism. We will add the detailed derivation of the strain-gradient threshold and its interaction with the sawtooth waveform in the revised manuscript. Furthermore, we will include simulation results demonstrating that the net orthogonal velocity is zero when pinning is absent, thereby confirming the central role of pinning. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation self-contained

full rationale

The abstract and description indicate the ratchet motion is demonstrated via micromagnetic simulations and an analytical model, with pinning centers explicitly identified as the origin of the strain-gradient threshold. No equations, fitted parameters, or self-citation chains are referenced that reduce the claimed net orthogonal motion to a self-defined input or prior result by construction. The proposal is presented as a new concept independent of load-bearing self-references, consistent with a normal non-circular finding.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities are stated. The work implicitly rests on standard micromagnetic assumptions (Landau-Lifshitz-Gilbert dynamics, strain-magnetization coupling) and the existence of pinning centers, but these are not quantified or justified here.
