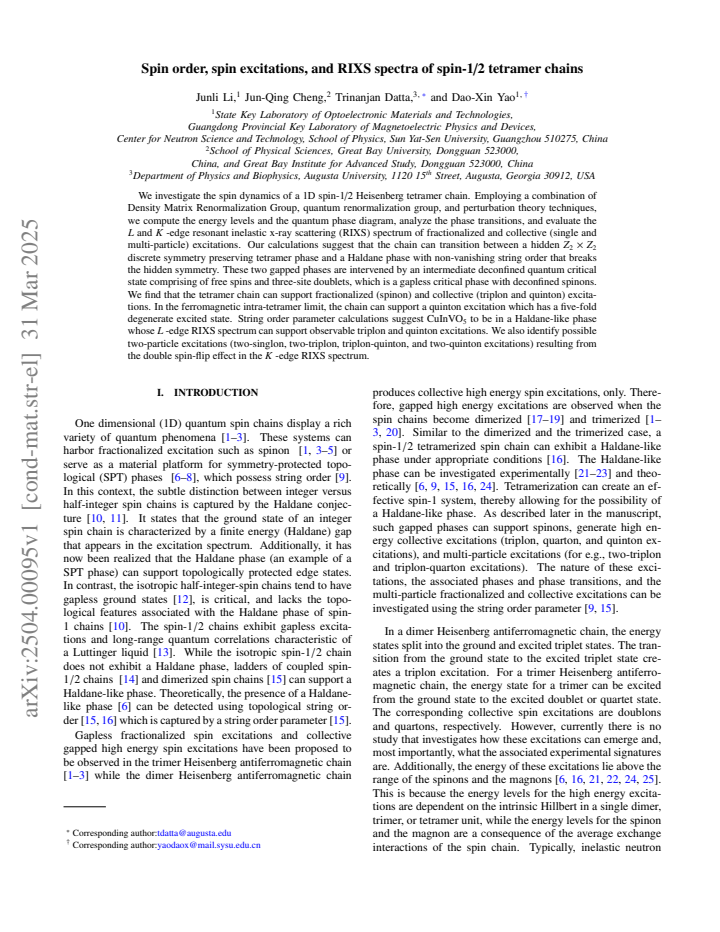

arxiv: 2504.00095 · v2 · submitted 2025-03-31 · ❄️ cond-mat.str-el · cond-mat.mtrl-sci

Spin order, spin excitations, and RIXS spectra of spin-1/2 tetramer chains

Junli Li , Jun-Qing Cheng , Trinanjan Datta , Dao-Xin Yao This is my paper

Pith reviewed 2026-05-22 21:43 UTC · model grok-4.3

classification ❄️ cond-mat.str-el cond-mat.mtrl-sci
keywords tetramer chainHaldane phasestring orderdeconfined quantum critical pointRIXStriplonquintonspinon
0
0 comments X

The pith

The spin-1/2 tetramer chain transitions between a hidden Z2×Z2 symmetry-preserving tetramer phase and a Haldane phase with non-vanishing string order, separated by a deconfined quantum critical state.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper examines the spin dynamics of a one-dimensional spin-1/2 Heisenberg tetramer chain. It uses numerical and perturbative methods to map the quantum phase diagram and identify two gapped phases separated by a gapless critical regime containing deconfined spinons. The calculations also produce resonant inelastic x-ray scattering spectra that reveal both fractionalized spinons and collective triplon and quinton excitations. For the compound CuInVO5 the results place the material in the Haldane-like phase, where triplon and quinton features should appear in L-edge spectra. These findings clarify how discrete symmetry, string order, and multi-particle excitations manifest in tetramerized spin chains.

Core claim

The tetramer chain supports a transition between a hidden Z2×Z2 discrete symmetry preserving tetramer phase and a Haldane phase with non-vanishing string order that breaks the hidden symmetry. These two gapped phases are separated by an intermediate deconfined quantum critical state comprising free spins and three-site doublets. The chain supports fractionalized spinon excitations as well as collective triplon and quinton excitations; in the ferromagnetic intra-tetramer limit the quinton is five-fold degenerate. String order parameter calculations indicate that CuInVO5 lies in a Haldane-like phase whose L-edge RIXS spectrum can display observable triplon and quinton features, while K-edge R2

What carries the argument

The 1D spin-1/2 Heisenberg tetramer chain Hamiltonian with variable intra-tetramer and inter-tetramer couplings, together with string-order and RIXS spectral calculations performed via DMRG, quantum renormalization group, and perturbation theory.

If this is right

  • If the phase boundaries are correct, the deconfined critical state should host gapless spinons and three-site doublet states observable in thermodynamic or scattering experiments.
  • Two-particle excitations including two-singlon, two-triplon, triplon-quinton, and two-quinton pairs should appear in the K-edge RIXS spectrum through double spin-flip processes.
  • In the ferromagnetic intra-tetramer limit the five-fold degenerate quinton excitation remains a distinct spectral feature.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same tetramer construction may be used to interpret excitation spectra in other quasi-one-dimensional vanadates or cuprates once their coupling ratios are determined.
  • Direct experimental probes of the string order parameter in CuInVO5 would provide an independent test of the Haldane-like identification.
  • Adding weak next-nearest-neighbor couplings to the model would test whether the deconfined critical point survives or is replaced by a first-order transition.

Load-bearing premise

The specific ratios chosen for intra- and inter-tetramer couplings and the direct mapping of the model Hamiltonian onto CuInVO5 capture the dominant interactions without significant additional terms or disorder that would shift phase boundaries or spectral weights.

What would settle it

High-resolution L-edge RIXS data on CuInVO5 that lack the predicted triplon and quinton peaks at the calculated energies and momentum transfers, or direct measurements showing vanishing string order, would falsify the Haldane-like assignment.

Figures

Figures reproduced from arXiv: 2504.00095 by Dao-Xin Yao, Junli Li, Jun-Qing Cheng, Trinanjan Datta.

Figure 1
Figure 1. Figure 1: FIG. 1. Tetramer spin chain with its interaction definitions and energy level diagrams of a tetramer unit computed using exact diagonalization. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

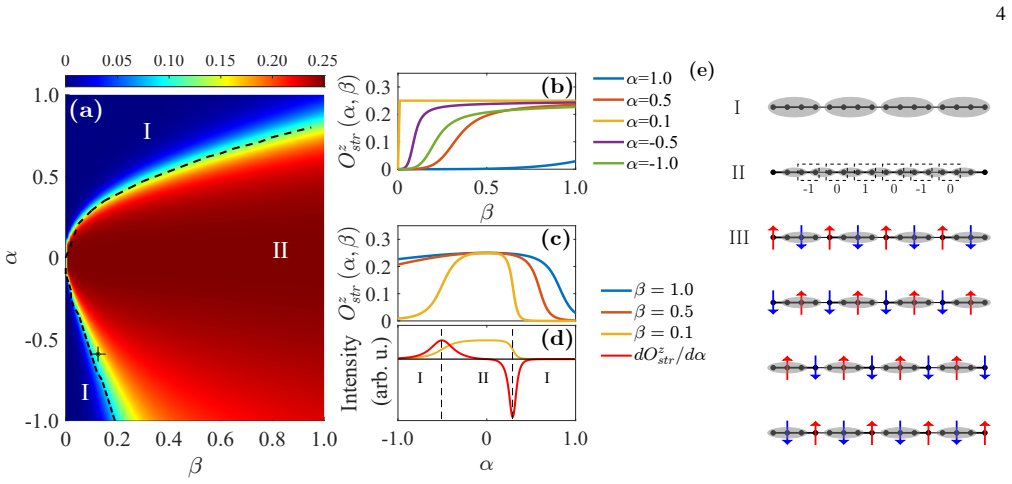

Figure 2. Figure 2: FIG. 2. String order parameter and three di [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

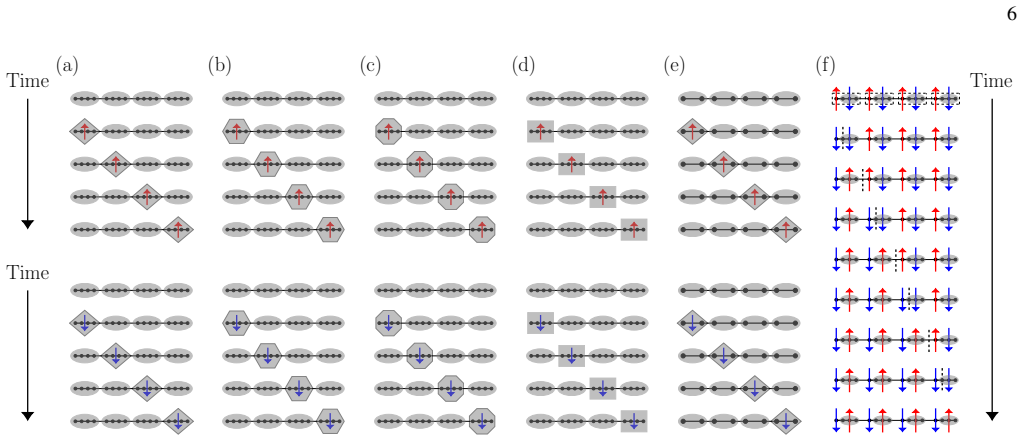

Figure 3. Figure 3: FIG. 3. Possible spin excitations of a tetramer spin chain. The red up spins are free spins while the shaded ellipses with blue down spins are [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Dynamical structure factor calculated using Eq. ( [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Dynamical structure factor for the spin-1 [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. String order parameter, RIXS spectra, and a schematic picture of double spin-flip excitations for CuInVO [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. First-order derivative ( [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
read the original abstract

We investigate the spin dynamics of a 1D spin-1/2 Heisenberg tetramer chain. Employing a combination of Density Matrix Renormalization Group, quantum renormalization group, and perturbation theory techniques, we compute the energy levels and the quantum phase diagram, analyze the phase transitions, and evaluate the $L$ and $K$ -edge resonant inelastic x-ray scattering (RIXS) spectrum of fractionalized and collective (single and multi-particle) excitations. Our calculations suggest that the chain can transition between a hidden $Z_2\times Z_2$ discrete symmetry preserving tetramer phase and a Haldane phase with non-vanishing string order that breaks the hidden symmetry. These two gapped phases are intervened by an intermediate deconfined quantum critical state comprising of free spins and three-site doublets, which is a gapless critical phase with deconfined spinons. We find that the tetramer chain can support fractionalized (spinon) and collective (triplon and quinton) excitations. In the ferromagnetic intra-tetramer limit, the chain can support a quinton excitation which has a five-fold degenerate excited state. String order parameter calculations suggest CuInVO$_5$ to be in a Haldane-like phase whose $L$ -edge RIXS spectrum can support observable triplon and quinton excitations. We also identify possible two-particle excitations (two-singlon, two-triplon, triplon-quinton, and two-quinton excitations) resulting from the double spin-flip effect in the $K$ -edge RIXS spectrum.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript studies the 1D spin-1/2 Heisenberg tetramer chain with DMRG, quantum renormalization group, and perturbation theory. It reports a quantum phase diagram containing a hidden Z₂×Z₂ tetramer phase, an intervening deconfined quantum critical phase (gapless with free spins and three-site doublets), and a Haldane phase with non-vanishing string order. The work computes energy levels, analyzes transitions, and evaluates L- and K-edge RIXS spectra for spinon, triplon, and quinton excitations (including two-particle processes). It concludes that CuInVO₅ realizes a Haldane-like phase whose L-edge RIXS spectrum should show observable triplon and quinton features.

Significance. If the central phase diagram and spectral claims hold after proper scaling analysis, the results would furnish a new microscopic example of deconfined quantum criticality in a tetramer geometry, together with concrete predictions for multi-particle excitations accessible to RIXS. The combination of three complementary methods and the direct material application to CuInVO₅ constitute clear strengths.

major comments (1)
  1. [Phase diagram / numerical results sections] The identification of an intervening gapless DQCP (with deconfined spinons) between the tetramer and Haldane phases is load-bearing for the central claim. While DMRG/QRG data are invoked to locate a window in which the spin gap closes and string order vanishes, the manuscript does not present explicit finite-size scaling of the gap (extrapolation to L→∞) or correlation-length scaling across the putative critical region. Without this, the data cannot yet distinguish a true gapless DQCP from a narrow gapped regime or finite-size crossover. This directly affects the subsequent RIXS predictions and the assignment of CuInVO₅.
minor comments (2)
  1. [Model Hamiltonian] Notation for the intra- and inter-tetramer coupling ratios should be defined explicitly at first use (e.g., J_intra/J_inter) and kept consistent between the Hamiltonian, phase diagram, and material mapping paragraphs.
  2. [RIXS spectra] The abstract states that the K-edge spectrum supports two-particle excitations, but the corresponding figure or table should include a clear legend distinguishing single- versus double-spin-flip channels.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thorough review and insightful comments on our manuscript. We address the major concern regarding finite-size scaling below and will incorporate additional analysis in the revised version to strengthen the identification of the deconfined quantum critical point.

read point-by-point responses

  1. Referee: [Phase diagram / numerical results sections] The identification of an intervening gapless DQCP (with deconfined spinons) between the tetramer and Haldane phases is load-bearing for the central claim. While DMRG/QRG data are invoked to locate a window in which the spin gap closes and string order vanishes, the manuscript does not present explicit finite-size scaling of the gap (extrapolation to L→∞) or correlation-length scaling across the putative critical region. Without this, the data cannot yet distinguish a true gapless DQCP from a narrow gapped regime or finite-size crossover. This directly affects the subsequent RIXS predictions and the assignment of CuInVO₅.

    Authors: We agree that explicit finite-size scaling is essential to rigorously confirm the gapless DQCP character. Our DMRG and QRG data show a parameter window where the spin gap closes and string order vanishes, consistent with an intervening critical phase separating the tetramer and Haldane phases. To address this point directly, the revised manuscript will include finite-size extrapolations of the spin gap to the thermodynamic limit (L→∞) at multiple points across the critical window, along with correlation-length scaling analysis. These additions will help rule out a narrow gapped regime or pure finite-size crossover. The RIXS spectra and material assignment for CuInVO₅ are computed within the gapped Haldane-like phase (supported by the string order parameter), so the transition mechanism via DQCP does not alter those specific predictions; the DQCP primarily explains the phase boundary. revision: yes

Circularity Check

0 steps flagged

No circularity: phases and spectra derived from independent numerical methods on explicit Hamiltonian

full rationale

The derivation proceeds from the explicit 1D spin-1/2 Heisenberg tetramer Hamiltonian via DMRG, QRG, and perturbation theory to obtain energy levels, string order, gap closing, and RIXS intensities. Phase boundaries and excitation spectra are computed outputs, not inputs redefined as predictions. The assignment of CuInVO5 to the Haldane-like phase follows from direct string-order evaluation on the model; no self-definitional loops, fitted parameters renamed as predictions, or load-bearing self-citations appear in the provided text. The central claims remain externally falsifiable against the numerical data.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

Abstract-only review yields limited visibility into parameters; the model is defined by unspecified intra- and inter-tetramer couplings whose ratios control the phases.

free parameters (2)
  • intra-tetramer coupling ratio
    Relative strength of interactions inside each tetramer unit is a tunable parameter that selects between ferromagnetic and antiferromagnetic limits.
  • inter-tetramer coupling ratio
    Coupling between adjacent tetramers determines the overall phase diagram and is adjusted to locate the critical point.
axioms (1)
  • domain assumption The Heisenberg Hamiltonian with nearest-neighbor tetramer interactions fully captures the low-energy physics of the chain.
    Invoked implicitly when mapping the model to CuInVO5 and computing its spectrum.
