Convergence Analysis of an Adaptive Nonconforming FEM for Phase-Field Dependent Topology Optimization in Stokes Flow

Bangti Jin , Jing Li , Yifeng Xu , Shengfeng Zhu This is my paper

Pith reviewed 2026-05-22 13:32 UTC · model grok-4.3

classification 🧮 math.NA cs.NAmath.OC
keywords adaptive finite element methodnonconforming elementstopology optimizationStokes equationsphase-field modelconvergence analysisCrouzeix-Raviart elements
0
0 comments X

The pith

An adaptive nonconforming finite element method converges to optimality conditions for phase-field topology optimization in Stokes flow.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces an adaptive algorithm that combines phase-field parameterization with nonconforming finite elements to solve topology optimization problems for Stokes flow. Conforming linear elements approximate the phase field, while Crouzeix-Raviart elements handle the velocity and piecewise constants the pressure. The central achievement is a convergence proof showing that minimizers from successive adaptive meshes have a subsequence converging to a solution of the first-order optimality system, with the discrete pressures also converging. This matters for ensuring that numerical designs in fluid optimization are mathematically justified rather than artifacts of discretization.

Core claim

The sequence of minimizers of the discrete problems contains a subsequence that converges to a solution of the first-order optimality system of the continuous problem, and the associated subsequence of discrete pressure fields converges as well. The proof hinges on a new discrete compactness result for nonconforming linear finite elements on adaptively generated meshes.

What carries the argument

The new discrete compactness result for nonconforming linear finite elements over a sequence of adaptively generated meshes, which allows passing to the limit in the variational inequalities and equations defining the optimality system.

If this is right

  • The adaptive algorithm can be applied with confidence that its outputs approximate true optimal configurations.
  • Local mesh refinement is justified without compromising convergence properties.
  • The pressure approximation converges along with the design and velocity fields.
  • Numerical tests confirm faster convergence or better accuracy than uniform mesh refinement for example problems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This compactness technique may apply to adaptive methods for other nonconforming discretizations in optimization or fluid problems.
  • Similar analysis could be developed for different phase-field models or time-dependent flows.
  • Extensions to three-dimensional domains would test the method's scalability in practical engineering settings.

Load-bearing premise

The analysis requires a discrete compactness property to hold for the nonconforming elements on the particular adaptive mesh sequences produced by the refinement strategy.

What would settle it

Finding an adaptive mesh refinement sequence where the discrete minimizers fail to have any convergent subsequence satisfying the continuous optimality system would disprove the convergence claim.

Figures

Figures reproduced from arXiv: 2505.13776 by Bangti Jin, Jing Li, Shengfeng Zhu, Yifeng Xu.

Figure 1
Figure 1. Figure 1: Initial phase-field functions for Examples [PITH_FULL_IMAGE:figures/full_fig_p021_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Numerical results for Example (a) from top to bottom: mesh, optimized design ϕ ∗ k , estimators ηk,1 and ηk,2. The number of vertices on each mesh is 1441, 2954, 6946 and 17354. More precisely, the first adaptive iteration (k = 0) yields a rough shape of the design, and with subsequent adaptive refinements, the algorithm produces improved boundary interfaces of the fluid region (in yellow), due to the high… view at source ↗
Figure 3
Figure 3. Figure 3: The convergence history of the total energy (top) and the volume constraint error (bottom) versus the [PITH_FULL_IMAGE:figures/full_fig_p022_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Numerical results for Example (b) from top to bottom: mesh, optimized designs ϕ ∗ k , and the estimators ηk,1 and ηk,2. The number of vertices on each mesh is 1441, 3070, 7442 and 19364. 22 [PITH_FULL_IMAGE:figures/full_fig_p022_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Numerical results for Example (c) from top to bottom: mesh, optimized designs ϕ ∗ k , and the estimators ηk,1 and ηk,2. The number of vertices on each mesh is 2174, 4973, 11669 and 28468. and uniform refinements, where the refinement steps and iteration numbers of the augmented Lagrangian method for adaptive and uniform refinements are (K, N) = (4, 50) and (K, N) = (3, 50), respectively. For both strategie… view at source ↗
Figure 6
Figure 6. Figure 6: Comparison of optimal designs ϕ ∗ K−1 by adaptive (left within each pair) and uniform (right within each pair) refinements with optimal shapes indicated in yellow for Examples (a)-(c). 23 [PITH_FULL_IMAGE:figures/full_fig_p023_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Numerical results for Example (d) from top to bottom: mesh, optimized designs ϕ ∗ k , and the estimators ηk,1 and ηk,2. The number of vertices on each mesh is 5631, 6929, 9631, 16052 and 24371 [PITH_FULL_IMAGE:figures/full_fig_p025_7.png] view at source ↗

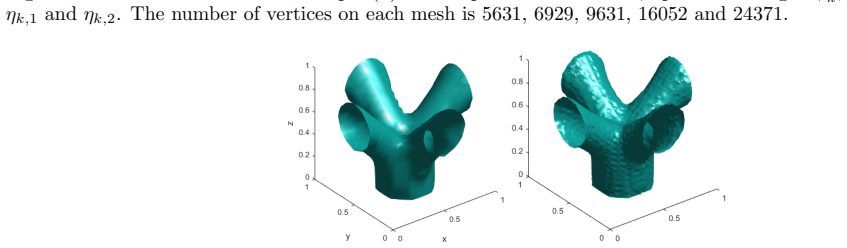

Figure 8
Figure 8. Figure 8: Comparison of optimal iso-surfaces with a value of 0 [PITH_FULL_IMAGE:figures/full_fig_p025_8.png] view at source ↗
read the original abstract

In this work, we develop an adaptive nonconforming finite element algorithm for the numerical approximation of phase-field parameterized topology optimization governed by the Stokes system. We employ the conforming linear finite element space to approximate the phase field, and the nonconforming linear finite elements (Crouzeix-Raviart elements) and piecewise constants to approximate the velocity field and the pressure field, respectively. We establish the convergence of the adaptive method, i.e., the sequence of minimizers contains a subsequence that converges to a solution of the first-order optimality system, and the associated subsequence of discrete pressure fields also converges. The analysis relies crucially on a new discrete compactness result of nonconforming linear finite elements over a sequence of adaptively generated meshes. We present numerical results for several examples to illustrate the performance of the algorithm, including a comparison with the uniform refinement strategy.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript develops an adaptive nonconforming finite-element algorithm for phase-field topology optimization of Stokes flow. Conforming linears approximate the phase field, Crouzeix-Raviart elements approximate the velocity, and piecewise constants approximate the pressure. The central claim is that the sequence of discrete minimizers admits a subsequence converging to a solution of the continuous first-order optimality system, with the associated discrete pressures also converging; the proof rests on a new discrete compactness result for the nonconforming elements on the adaptively generated mesh sequence. Numerical examples compare the adaptive strategy with uniform refinement.

Significance. If the convergence result is established, the work supplies the first rigorous justification for adaptive mesh refinement in this class of phase-field Stokes topology optimization problems, which is practically important for resolving fine-scale features without excessive degrees of freedom. The new discrete compactness statement for Crouzeix-Raviart elements on adaptively refined meshes constitutes an independent technical contribution that could be reused in other nonconforming discretizations of incompressible flow.

major comments (1)
  1. [Analysis section (compactness result)] The discrete compactness result (stated in the analysis section and invoked to pass to the limit in the weak form of the Stokes equations and the variational inequality) is load-bearing for the central convergence claim. The proof must explicitly confirm that the sequence of adaptively generated meshes produced by the marking and bisection algorithm satisfies the mesh-regularity hypotheses (bounded aspect ratios, controlled hanging-node configurations) required for strong L² convergence of the velocity and uniform control of the jumps; these properties are not automatically inherited from standard adaptive strategies and are not verified in the provided sketch.
minor comments (2)
  1. [Section 2] Notation for the discrete spaces and the discrete optimality system should be introduced with explicit reference to the mesh sequence index to avoid ambiguity when passing to the limit.
  2. [Numerical results] The numerical examples would benefit from a table reporting the number of degrees of freedom and the objective value at each adaptive step to quantify the efficiency gain over uniform refinement.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful review and for recognizing the significance of the discrete compactness result for Crouzeix-Raviart elements on adaptive meshes. We address the single major comment below and will incorporate the requested verification into the revised manuscript.

read point-by-point responses

  1. Referee: [Analysis section (compactness result)] The discrete compactness result (stated in the analysis section and invoked to pass to the limit in the weak form of the Stokes equations and the variational inequality) is load-bearing for the central convergence claim. The proof must explicitly confirm that the sequence of adaptively generated meshes produced by the marking and bisection algorithm satisfies the mesh-regularity hypotheses (bounded aspect ratios, controlled hanging-node configurations) required for strong L² convergence of the velocity and uniform control of the jumps; these properties are not automatically inherited from standard adaptive strategies and are not verified in the provided sketch.

    Authors: We agree that an explicit verification of the mesh-regularity hypotheses is necessary for the compactness argument to be complete. In the revised version we will insert a new auxiliary result (Lemma 4.3) immediately preceding the discrete compactness statement. The lemma establishes that the sequence of meshes generated by the standard Dörfler marking strategy combined with newest-vertex bisection, starting from a shape-regular initial triangulation, satisfies (i) a uniform bound on the aspect ratios of all elements and (ii) a controlled number of hanging-node configurations per edge. The proof follows the standard arguments of Carstensen et al. (2014) adapted to the nonconforming setting and will be referenced explicitly when the compactness result is invoked to pass to the limit in the Stokes weak form and the variational inequality. This addition removes the gap identified by the referee without altering the overall structure of the convergence proof. revision: yes

Circularity Check

0 steps flagged

No significant circularity; convergence proof relies on newly introduced discrete compactness result

full rationale

The paper's central claim is the convergence of the adaptive nonconforming FEM sequence to a solution of the first-order optimality system for the phase-field Stokes topology optimization problem. This is achieved by establishing a new discrete compactness result for nonconforming linear (Crouzeix-Raviart) elements on adaptively generated meshes, which is presented as an independent contribution within the analysis. No steps reduce by construction to fitted parameters, self-citations, or prior ansatzes; the compactness result supplies the necessary strong convergence and jump control to pass to the limit in the weak form, objective, and variational inequality without circular reduction. The derivation is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard finite-element theory for the Stokes system and phase-field models plus the newly stated discrete compactness result; no free parameters or invented entities appear in the abstract.

axioms (2)
  • domain assumption Existence of a solution to the first-order optimality system for the continuous phase-field topology optimization problem.
    The discrete minimizers are shown to converge to such a solution.
  • standard math The adaptive mesh sequence satisfies the conditions needed for the new discrete compactness property of the nonconforming elements.
    This is explicitly identified as the crucial technical ingredient.
