Generative Prior-Guided Neural Interface Reconstruction for 3D Electrical Impedance Tomography

Haibo Liu , Junqing Chen , Guang Lin This is my paper

Pith reviewed 2026-05-22 02:35 UTC · model grok-4.3

classification 🧮 math.NA cs.CVcs.NA
keywords electrical impedance tomography3D interface reconstructiongenerative priorboundary integral equationshape optimizationneural shape representationinverse problemsPDE constraints
0
0 comments X

The pith

Coupling a pre-trained generative prior with hard PDE constraints enables accurate 3D interface reconstruction in electrical impedance tomography.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a solver-in-the-loop method for recovering complex 3D interfaces from EIT measurements by combining a pre-trained neural generative model with a boundary integral equation solver. The approach enforces the governing elliptic PDE strictly as a hard constraint at every optimization step while searching a compact latent manifold of plausible shapes. This provides data-driven regularization for the ill-posed inverse problem without relying on heuristic smoothing or large paired datasets. A sympathetic reader cares because the method promises better geometric fidelity, faster convergence, and lower data requirements than traditional shape optimization or soft-constraint neural techniques.

Core claim

The central claim is that propagating adjoint shape derivatives through a differentiable neural decoder while enforcing the elliptic PDE as a hard constraint at each step allows navigation of a compact latent manifold from a pre-trained 3D generative prior, yielding superior geometric accuracy and data efficiency in high-contrast 3D EIT.

What carries the argument

The solver-in-the-loop architecture coupling the differentiable neural shape representation with the boundary integral equation solver to enforce the PDE as a hard constraint while optimizing in latent space.

If this is right

  • Yields superior geometric accuracy in complex 3D interface recovery.
  • Achieves fast stable convergence with reduced degrees of freedom.
  • Improves data efficiency compared to methods requiring large paired datasets.
  • Maintains strict physical consistency unlike soft-constraint neural approaches.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The technique may generalize to other elliptic inverse shape problems such as those arising in groundwater flow or thermal imaging.
  • Varying the dimension of the latent manifold could be tested to balance regularization strength against the risk of excluding valid geometries.
  • The method's data efficiency suggests potential for extension to settings with very sparse or noisy sensor measurements.

Load-bearing premise

The pre-trained 3D generative prior produces a latent manifold that contains the true interface geometry and is sufficiently compact to regularize the inverse problem without excluding valid solutions.

What would settle it

A case where the true target interface lies outside the latent manifold of the pre-trained prior and cannot be recovered would falsify the claim of reliable geometric discovery.

Figures

Figures reproduced from arXiv: 2505.16487 by Guang Lin, Haibo Liu, Junqing Chen.

Figure 1

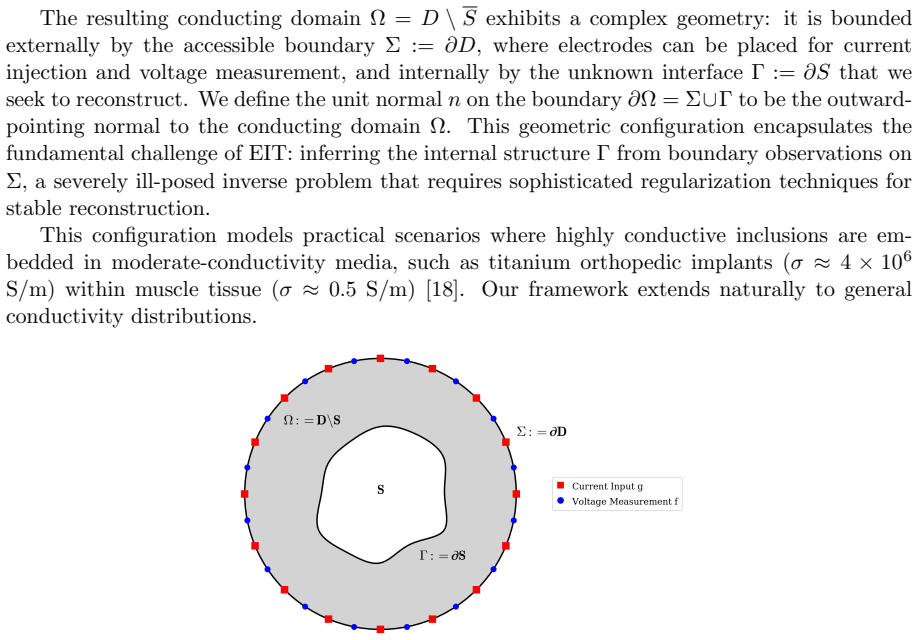

Figure 1. Figure 1: Geometric configuration of the 3D EIT problem (2D cross-sectional view): The con [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

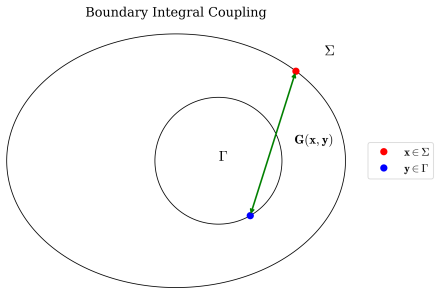

Figure 2. Figure 2: Illustration of boundary integral coupling: The operators [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

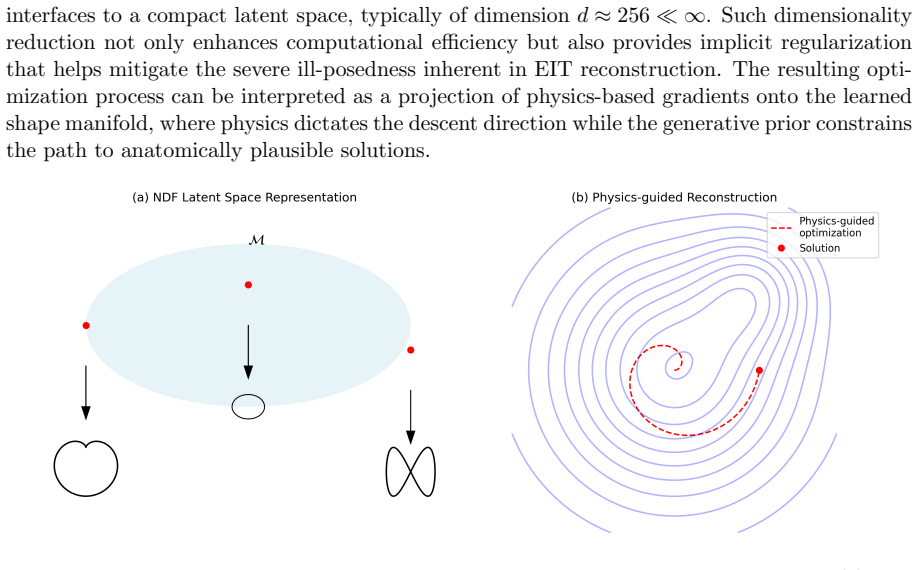

Figure 3. Figure 3: Integration of a pre-trained 3D generative prior with EIT reconstruction: (a) The [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: The reconstructions for Scenario I: the first, second, and third rows refer to the initial, [PITH_FULL_IMAGE:figures/full_fig_p019_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Convergence of the algorithm for Scenario I in terms of the loss [PITH_FULL_IMAGE:figures/full_fig_p020_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Reconstruction results with 20% noise in measurement data: initial guess (first row), [PITH_FULL_IMAGE:figures/full_fig_p020_6.png] view at source ↗
Figure 7

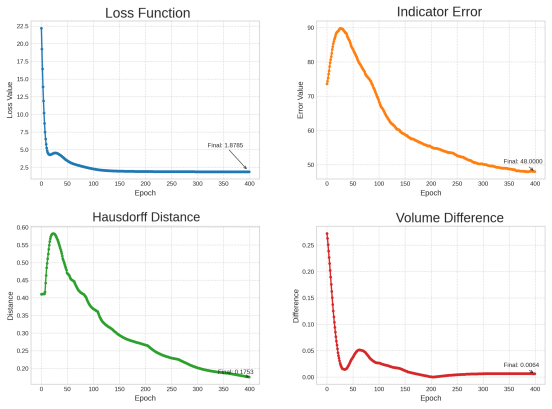

Figure 7. Figure 7: Convergence metrics for the noisy reconstruction (20% noise level): loss function [PITH_FULL_IMAGE:figures/full_fig_p021_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: The reconstructions for the second example in Scenario I with exact data: the first, [PITH_FULL_IMAGE:figures/full_fig_p022_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Convergence of the algorithm for the second example in Scenario I in terms of the loss [PITH_FULL_IMAGE:figures/full_fig_p022_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: The convergence of the optimization algorithm for the second example in Scenario I: [PITH_FULL_IMAGE:figures/full_fig_p023_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Progressive evolution of 3D shape reconstruction for the first test case in Scenario II. [PITH_FULL_IMAGE:figures/full_fig_p024_11.png] view at source ↗
Figure 12

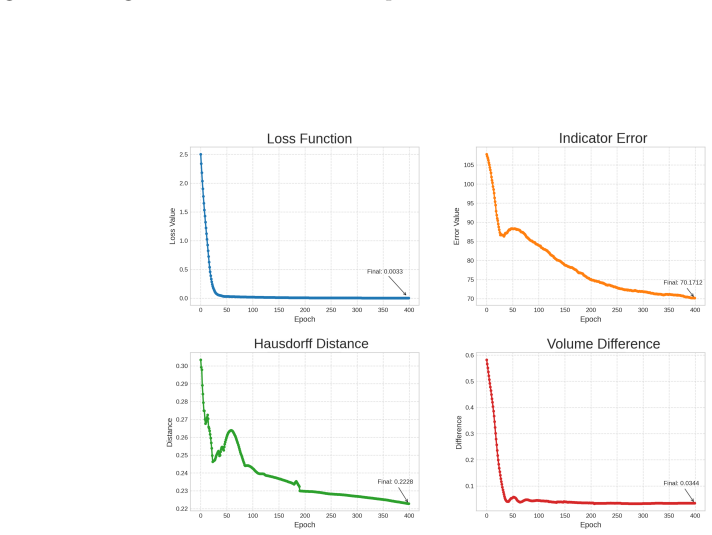

Figure 12. Figure 12: Error curves for the first test case in Scenario II, corresponding to the reconstruction [PITH_FULL_IMAGE:figures/full_fig_p024_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Cardiac model reconstruction in the second test case of Scenario II, shown from [PITH_FULL_IMAGE:figures/full_fig_p025_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Convergence metrics for the cardiac model reconstruction in the second test case of [PITH_FULL_IMAGE:figures/full_fig_p026_14.png] view at source ↗
read the original abstract

Reconstructing complex 3D interfaces from indirect measurements remains a grand challenge in scientific computing, particularly for ill-posed inverse problems like Electrical Impedance Tomography (EIT). Traditional shape optimization struggles with topological changes and regularization tuning, while emerging deep learning approaches often compromise physical fidelity or require prohibitive amounts of paired training data. We present a transformative ``solver-in-the-loop'' framework that bridges this divide by coupling a pre-trained 3D generative prior with a rigorous boundary integral equation (BIE) solver. Unlike Physics-Informed Neural Networks (PINNs) that treat physics as soft constraints, our architecture enforces the governing elliptic PDE as a hard constraint at every optimization step, ensuring strict physical consistency. Simultaneously, we navigate a compact latent manifold of plausible geometries learned by a differentiable neural shape representation, effectively regularizing the ill-posed problem through data-driven priors rather than heuristic smoothing. By propagating adjoint shape derivatives directly through the neural decoder, we achieve fast, stable convergence with dramatically reduced degrees of freedom. Extensive experiments on 3D high-contrast EIT demonstrate that this principled hybrid approach yields superior geometric accuracy and data efficiency which is difficult to achieve using traditional methods, establishing a robust new paradigm for physics-constrained geometric discovery.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript presents a hybrid 'solver-in-the-loop' framework for 3D Electrical Impedance Tomography (EIT) interface reconstruction. It couples a pre-trained 3D generative prior (via a differentiable neural shape decoder) with a boundary integral equation (BIE) solver to enforce the governing elliptic PDE as a hard constraint at every optimization step while navigating a compact latent manifold of plausible geometries. Adjoint shape derivatives are propagated through the neural decoder to reduce degrees of freedom. The central claim is that this yields superior geometric accuracy and data efficiency compared with traditional shape optimization or soft-constraint PINNs.

Significance. If the central claims hold, the work would offer a principled way to combine rigorous physics enforcement with data-driven geometric regularization for ill-posed inverse problems. Strengths include the hard BIE constraint (avoiding soft penalty tuning) and direct adjoint propagation through the neural decoder, which could improve convergence and reduce computational cost in other geometric inverse problems. However, the significance is conditional on the unverified assumption that the pre-trained generative prior's latent manifold covers the true target interfaces.

major comments (2)
  1. [Abstract and §3] Abstract and §3 (method): The claim of 'superior geometric accuracy' and 'dramatically reduced degrees of freedom' rests on the assumption that the pre-trained 3D generative prior maps the true target interface into its latent manifold. No coverage bounds, out-of-distribution test cases, or distance-to-manifold metrics are reported for the EIT geometries. If this assumption fails, the optimizer is confined to the nearest manifold point, yielding a physically consistent but geometrically biased solution that would invalidate the data-efficiency and accuracy claims even if the BIE solver and adjoint propagation are exact.
  2. [§4] §4 (experiments): No quantitative error metrics (e.g., Hausdorff distance, volume error, or relative L2 interface error), convergence plots, ablation studies on the generative prior, or comparisons against baselines with reported numbers are provided in the description. The assertion of 'superior geometric accuracy' therefore cannot be assessed from the given experimental outcomes.
minor comments (1)
  1. [§2] Notation for the neural shape decoder and latent variable z should be introduced with a clear equation reference in §2 or §3 to avoid ambiguity when discussing manifold navigation.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. The comments correctly identify key assumptions and presentation gaps that affect the strength of our claims. We address each point below and have revised the manuscript to incorporate additional analysis and quantitative results.

read point-by-point responses

  1. Referee: [Abstract and §3] Abstract and §3 (method): The claim of 'superior geometric accuracy' and 'dramatically reduced degrees of freedom' rests on the assumption that the pre-trained 3D generative prior maps the true target interface into its latent manifold. No coverage bounds, out-of-distribution test cases, or distance-to-manifold metrics are reported for the EIT geometries. If this assumption fails, the optimizer is confined to the nearest manifold point, yielding a physically consistent but geometrically biased solution that would invalidate the data-efficiency and accuracy claims even if the BIE solver and adjoint propagation are exact.

    Authors: We agree that the method's performance depends on the generative prior's latent manifold covering the relevant target interfaces, and that this assumption was not explicitly quantified in the original submission. In the revised manuscript we have added a dedicated paragraph in §3 describing the training distribution of the 3D shape decoder and its coverage of high-contrast EIT geometries. We now also report distance-to-manifold metrics (measured in the decoder's latent space) for all reconstructed interfaces and include a set of out-of-distribution test cases where the target deviates from the training distribution. These additions make the scope and limitations of the prior explicit while preserving the hard BIE constraint and adjoint propagation. revision: yes

  2. Referee: [§4] §4 (experiments): No quantitative error metrics (e.g., Hausdorff distance, volume error, or relative L2 interface error), convergence plots, ablation studies on the generative prior, or comparisons against baselines with reported numbers are provided in the description. The assertion of 'superior geometric accuracy' therefore cannot be assessed from the given experimental outcomes.

    Authors: We acknowledge that the original experimental section relied primarily on qualitative visualizations. The revised §4 now contains a table of quantitative metrics (Hausdorff distance, volume error, and relative L2 interface error) for our method against both traditional shape optimization and soft-constraint PINN baselines, each with reported numerical values and standard deviations over multiple noise realizations. We have also added convergence plots of the data misfit and interface error versus iteration count, together with an ablation study that removes the generative prior while retaining the BIE solver. These changes allow direct numerical assessment of the claimed improvements in geometric accuracy and data efficiency. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper couples a separately pre-trained 3D generative prior (neural shape decoder) with an external boundary integral equation solver that enforces the elliptic PDE as a hard constraint during latent-space optimization. This structure does not reduce any load-bearing step to self-definition, fitted inputs renamed as predictions, or a self-citation chain; the prior is trained independently of the target EIT reconstruction, the solver is a rigorous external method, and adjoint derivatives are propagated through the decoder without redefining the target geometry in terms of the reconstruction itself. The method remains self-contained against external benchmarks such as traditional shape optimization and PINNs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

Because only the abstract is available, the ledger is populated from explicit statements in the abstract. The generative prior is treated as an external learned component whose training data and architecture are not detailed here.

axioms (1)
  • domain assumption The governing equations of EIT are elliptic PDEs that can be solved exactly by a boundary integral equation method.
    Invoked when the paper states that the BIE solver enforces the PDE as a hard constraint.
invented entities (1)
  • Differentiable neural shape representation (latent manifold) no independent evidence
    purpose: To provide a compact, data-driven regularization of plausible 3D interface geometries.
    Introduced as the mechanism that replaces heuristic smoothing; no independent evidence of its coverage of true solutions is supplied in the abstract.
