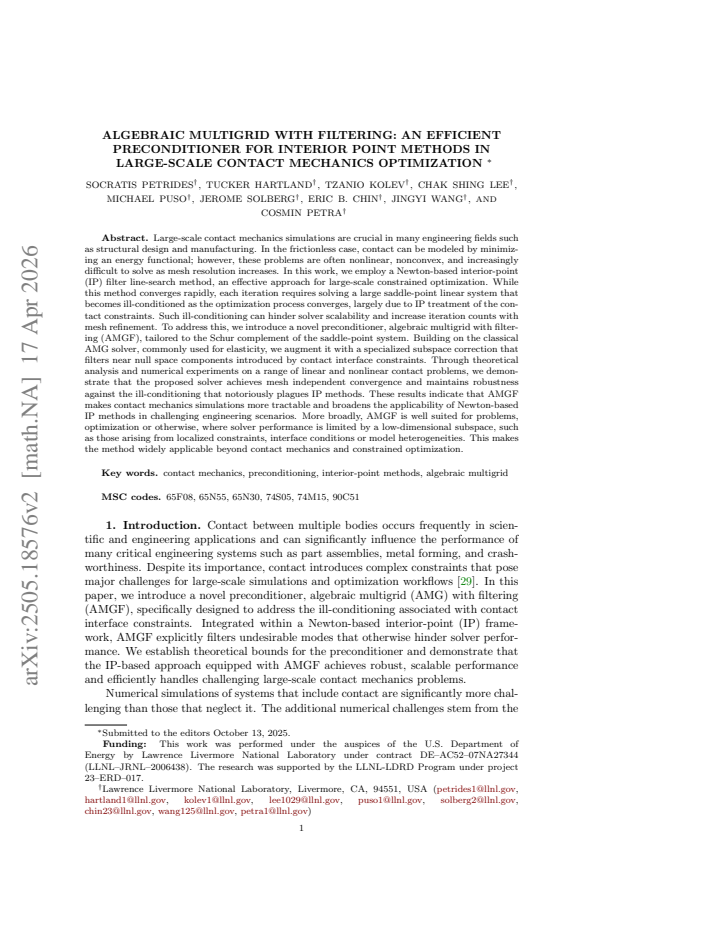

Algebraic Multigrid with Filtering: An Efficient Preconditioner for Interior Point Methods in Large-Scale Contact Mechanics Optimization
Pith reviewed 2026-05-19 13:33 UTC · model grok-4.3
The pith
Algebraic multigrid with filtering overcomes ill-conditioning from contact constraints in interior-point optimization.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
AMGF augments classical algebraic multigrid with a specialized subspace correction that filters near-null-space components introduced by contact interface constraints, yielding mesh-independent convergence rates and robustness to the severe ill-conditioning that appears in the saddle-point systems of Newton-based interior-point methods for large-scale contact mechanics.
What carries the argument
Algebraic multigrid with filtering (AMGF), which augments standard AMG for elasticity problems by a subspace correction that removes near-null-space modes generated by the contact constraints in the Schur complement.
Load-bearing premise
The specialized subspace correction successfully filters the near-null-space components introduced by the contact interface constraints without introducing new instabilities or requiring problem-specific tuning beyond the classical AMG setup.
What would settle it
On a sequence of successively refined meshes for a standard frictionless contact benchmark, the number of preconditioned Krylov iterations increases steadily with mesh size instead of remaining bounded.
read the original abstract
Large-scale contact mechanics simulations are crucial in many engineering fields such as structural design and manufacturing. In the frictionless case, contact can be modeled by minimizing an energy functional; however, these problems are often nonlinear, nonconvex, and increasingly difficult to solve as mesh resolution increases. In this work, we employ a Newton-based interior-point (IP) filter line-search method, an effective approach for large-scale constrained optimization. While this method converges rapidly, each iteration requires solving a large saddle-point linear system that becomes ill-conditioned as the optimization process converges, largely due to IP treatment of the contact constraints. Such ill-conditioning can hinder solver scalability and increase iteration counts with mesh refinement. To address this, we introduce a novel preconditioner, AMG with filtering (AMGF), tailored to the Schur complement of the saddle-point system. Building on the classical AMG solver, commonly used for elasticity, we augment it with a specialized subspace correction that filters near null space components introduced by contact interface constraints. Through theoretical analysis and numerical experiments on a range of linear and nonlinear contact problems, we demonstrate that AMGF achieves mesh independent convergence and maintains robustness against the ill-conditioning that notoriously plagues IP methods. These results indicate that AMGF makes contact mechanics simulations more tractable and broadens the applicability of Newton-based IP methods in challenging engineering scenarios. More broadly, AMGF is well suited for problems where solver performance is limited by a low-dimensional subspace, such as those arising from localized constraints, interface conditions or model heterogeneities, making it applicable beyond contact mechanics and constrained optimization.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript introduces Algebraic Multigrid with Filtering (AMGF), an augmentation of classical AMG applied to the Schur complement of saddle-point systems that arise inside a Newton-based interior-point filter line-search method for frictionless contact mechanics. The central claim is that a specialized subspace correction removes the near-null-space components induced by contact constraints, yielding mesh-independent convergence and robustness to the ill-conditioning that typically appears as the IP barrier parameter approaches zero. Theoretical analysis and numerical results on both linear and nonlinear contact problems are presented to support the claim.
Significance. If the central claim is substantiated, the work would provide a practical route to scalable solvers for large-scale contact problems that currently limit the use of interior-point methods in engineering. The generalization to other low-dimensional constraint or interface subspaces is noted as a potential broader contribution. The combination of theoretical analysis with numerical experiments on a range of problems is a positive feature.
major comments (2)
- [§4] §4 (theoretical analysis of the filtered subspace): the spectral-equivalence argument appears to treat the contact constraint subspace as fixed, yet the active set evolves across outer Newton/IP iterations; it is not shown that the filter subspace remains spectrally equivalent when new constraints activate or deactivate, which is load-bearing for the mesh-independent convergence claim.
- [§5.2–5.3] §5.2–5.3 (nonlinear contact experiments): iteration counts are reported to remain bounded under mesh refinement, but the description does not indicate whether the filtering subspace is rebuilt at each Newton step or only once per IP iteration; without this detail the robustness result cannot be assessed against the changing active-set concern.
minor comments (2)
- [§3] Notation for the filter operator and its relation to the classical AMG hierarchy should be introduced earlier and used consistently.
- [Figure 4] Figure captions for the convergence plots should explicitly state the mesh sizes, number of Newton steps, and whether the filter was updated dynamically.
Simulated Author's Rebuttal
We thank the referee for their careful reading and constructive comments, which help clarify important aspects of the presentation. We address the major comments point by point below and will revise the manuscript to incorporate the requested clarifications.
read point-by-point responses
-
Referee: [§4] §4 (theoretical analysis of the filtered subspace): the spectral-equivalence argument appears to treat the contact constraint subspace as fixed, yet the active set evolves across outer Newton/IP iterations; it is not shown that the filter subspace remains spectrally equivalent when new constraints activate or deactivate, which is load-bearing for the mesh-independent convergence claim.
Authors: We appreciate this observation. The spectral-equivalence result in §4 is established for any fixed contact-constraint subspace that corresponds to the active set at a given outer iteration. In the algorithm the filter is constructed from the current active constraints, so the analysis applies directly to each saddle-point system that arises. As the active set changes between Newton steps the filter subspace is updated accordingly. We will revise §4 to state this adaptive construction explicitly and to note that the equivalence therefore holds at every stage of the optimization process. revision: yes
-
Referee: [§5.2–5.3] §5.2–5.3 (nonlinear contact experiments): iteration counts are reported to remain bounded under mesh refinement, but the description does not indicate whether the filtering subspace is rebuilt at each Newton step or only once per IP iteration; without this detail the robustness result cannot be assessed against the changing active-set concern.
Authors: We thank the referee for noting this omission. In the reported nonlinear experiments the filtering subspace is rebuilt at each Newton step using the active set identified from the current iterate. This update is performed before every linear solve so that the preconditioner tracks the evolving contact constraints. We will add an explicit statement in §5.2–5.3 describing this per-Newton-step reconstruction, which should allow the robustness claim to be evaluated against the active-set dynamics. revision: yes
Circularity Check
No circularity: AMGF derived from classical AMG plus explicit subspace augmentation, validated externally
full rationale
The paper constructs AMGF by starting from standard algebraic multigrid for elasticity and adding a specialized subspace correction to filter contact-induced near-null-space components on the Schur complement. This construction is presented as an augmentation rather than a self-referential definition, and the claims of mesh-independent convergence and robustness are supported by separate theoretical analysis plus numerical experiments on multiple linear and nonlinear contact problems. No step reduces a prediction or uniqueness result to a fitted parameter or prior self-citation by construction; the filtering mechanism is described as an independent addition whose performance is tested against the ill-conditioning of interior-point methods.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Classical AMG provides a good base solver for the elasticity part of the problem.
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/AbsoluteFloorClosure.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
We introduce a novel preconditioner, algebraic multigrid with filtering (AMGF), tailored to the Schur complement... augment it with a specialized subspace correction that filters near null space components introduced by contact interface constraints.
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
κ(MA) ≤ 2(β + 2 + ω)/(2 − ω)
