The pith

Recirculating multipass alkali cells improve beam coverage and enhance spin correlations while suppressing diffusion noise through long-focal-length concave mirrors and spread-out paths.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a recirculating multipass design for alkali vapor cells that recirculates the laser beam to fill more of the cell volume with less repeated overlap than traditional cylindrical cells allow. This matters for quantum magnetometry because higher effective optical depth can reduce photon shot noise and support quantum non-demolition measurements in smaller packages. The authors build an ABCD-matrix model to forecast beam trajectories, sizes, and astigmatism, then derive a spin-noise time-correlation function that shows how intensity profiles shape diffusion noise. They conclude that concave mirrors with long focal lengths give the best coverage and correlation, and that steering clear of tightly focused spots cuts spin diffusion noise. A reader would care if the result holds because it points toward more sensitive compact atomic sensors without scaling up the hardware.

Core claim

Recirculating multipass alkali cells overcome the incomplete mirror coverage and repeated revisits of Lissajous trajectories in conventional cylindrical cells by raising the active-to-cell volume ratio and minimizing spot overlap; this yields enhanced spin correlations, especially with concave mirrors of long focal lengths, while avoiding tightly focused regions suppresses spin diffusion noise, as predicted by an ABCD-matrix model of trajectories and astigmatism together with a general analytical spin-noise time-correlation function that includes spatial intensity distributions.

What carries the argument

Recirculating multipass geometry with concave mirrors, modeled by an ABCD-matrix approach for beam paths and a spin-noise time-correlation function that incorporates astigmatism and intensity profiles.

If this is right

  • Increased optical depth in compact cells reduces photon shot noise and improves magnetometer sensitivity.
  • Higher active-to-cell volume ratio allows more efficient use of the vapor for quantum non-demolition measurements.
  • Reduced spin diffusion noise from design choices in mirror focal length and beam spread extends coherence times.
  • The same geometry provides a practical platform for other multipass-cavity quantum devices such as optical memories.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The mirror-curvature and focus-avoidance rules could guide redesign of existing vapor cells for lower noise without changing cell size.
  • The analytical noise framework might be reused to compare alternative multipass patterns such as Herriott cells on equal footing.
  • If the model holds, it opens the possibility of parameter-free optimization loops that predict optimal cell dimensions before fabrication.

Load-bearing premise

The analytical ABCD-matrix model and derived spin-noise time-correlation function accurately represent real beam trajectories, astigmatism, and spatial intensity effects in the physical cell without needing experimental validation or extra fitting parameters.

What would settle it

Fabricate a physical recirculating multipass alkali cell, measure actual beam spot positions, sizes, and overlaps along the trajectory, and compare those measurements directly to the ABCD-matrix predictions to see whether they match within expected tolerances.

Figures

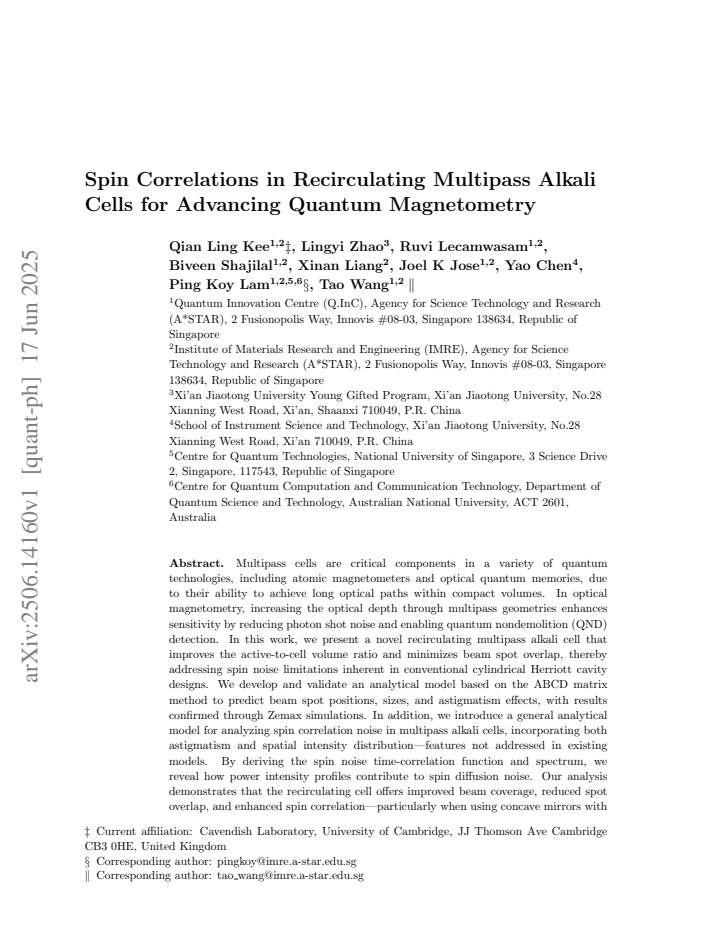

Figures reproduced from arXiv: 2506.14160 by Biveen Shajilal, Joel K Jose, Lingyi Zhao, Ping Koy Lam, Qian Ling Kee, Ruvi Lecamwasam, Tao Wang, Xinan Liang, Yao Chen.

Figure 1
Figure 1. Figure 1: Illustration of the recirculating multipass alkali cell (top) with an incident [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2

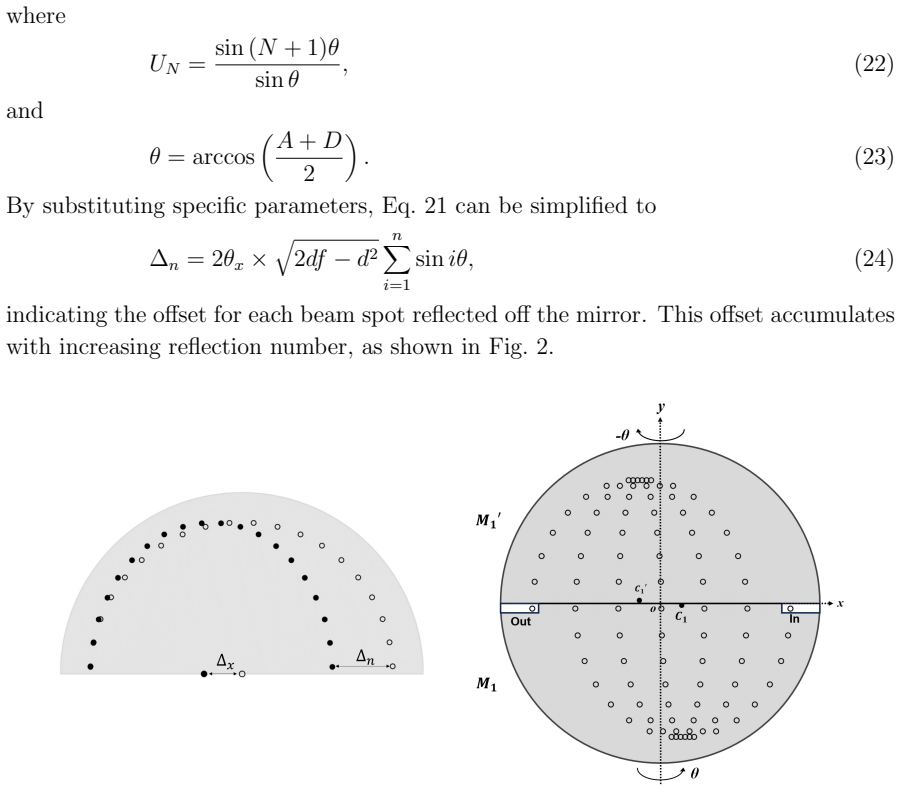

Figure 2. Figure 2: Recirculating Multipass Cell. Left: The beam spots positions on [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
