Blueprint, Bootstrap, and Bridge: A Security Look at NVIDIA GPU Confidential Computing

arxiv: 2507.02770 · v2 · submitted 2025-07-03 · 💻 cs.CR

Blueprint, Bootstrap, and Bridge: A Security Look at NVIDIA GPU Confidential Computing

Zhongshu Gu , Enriquillo Valdez , Salman Ahmed , Julian James Stephen , Michael Le , Hani Jamjoom , Shixuan Zhao , Zhiqiang Lin This is my paper

Pith reviewed 2026-05-19 06:04 UTC · model grok-4.3

classification 💻 cs.CR

keywords GPU Confidential ComputingNVIDIA GPUSecurity AnalysisConfidential ComputingData ProtectionSystem ArchitectureBootstrap ProcessAI Workload Security

0 comments p. Extension

The pith

NVIDIA GPU confidential computing keeps data transfers protected across the CPU-GPU bridge under its threat model.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reconstructs a view of NVIDIA's proprietary GPU Confidential Computing system to examine its security architecture and verify that data stays protected during transfers. It breaks down the specialized hardware engines that enforce isolation, the bootstrap sequence that activates those protections, and targeted checks on data movement between the trusted CPU domain and the GPU. A reader would care because GPU-CC lets existing AI applications run securely with no code changes, yet its closed design leaves open questions about whether those protections actually hold for all transfer paths.

Core claim

By mapping the system's blueprint, bootstrap process, and bridge mechanisms, the authors establish that under the GPU-CC threat model data transfers along different paths remain protected when crossing between the trusted CPU and GPU domains.

What carries the argument

The GPU-CC bridge that coordinates hardware engines and software components to maintain isolation and protection for data moving between CPU and GPU domains.

If this is right

Existing AI workloads can continue to use GPU-CC without code changes while retaining the claimed protections.
Data movement between CPU and GPU domains stays isolated even across multiple transfer paths.
The bootstrap sequence successfully coordinates hardware and software to activate those protections before workloads run.
Security researchers gain a usable model for further inspection of the closed GPU-CC implementation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Similar reconstruction techniques could be applied to other proprietary confidential-computing stacks to check cross-domain data protection.
If the protections hold, GPU-CC could serve as a template for hardware vendors seeking to add secure acceleration to AI pipelines without requiring application rewrites.
The findings open the door to automated tools that monitor the bridge for deviations from the expected protected behavior in production clusters.

Load-bearing premise

The reconstruction of a coherent system view from proprietary components is accurate enough to support the security experiments and conclusions.

What would settle it

An experiment that demonstrates a data leak or exposure along any transfer path when running under the documented GPU-CC threat model and configuration.

Figures

Figures reproduced from arXiv: 2507.02770 by Enriquillo Valdez, Hani Jamjoom, Julian James Stephen, Michael Le, Salman Ahmed, Shixuan Zhao, Zhiqiang Lin, Zhongshu Gu.

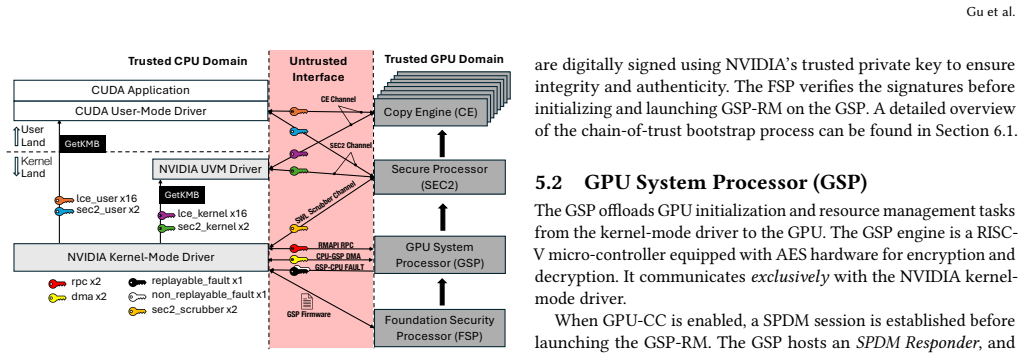

**Figure 2.** Figure 2: The Software/Hardware Elements in GPU-CC [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

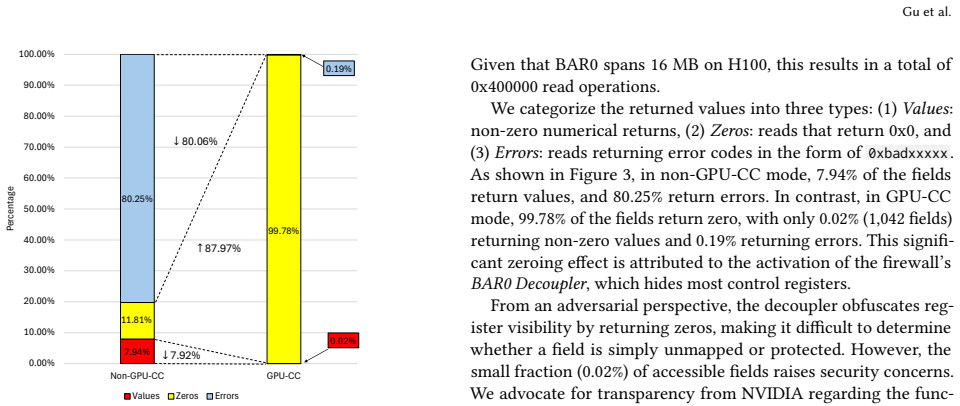

**Figure 3.** Figure 3: Classification of Data Read via GPU’s BAR0 [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

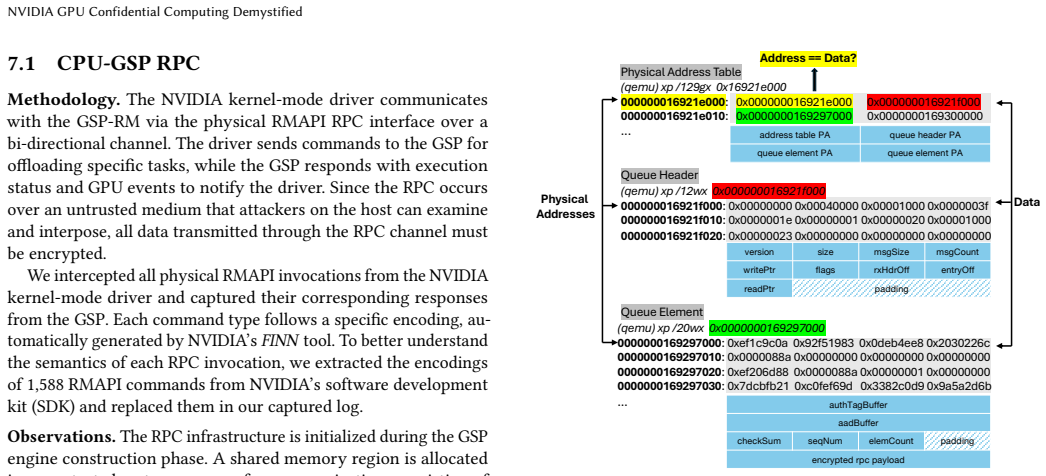

**Figure 4.** Figure 4: Information Leakage in GSP-RM RPC queue elements, one entry for the RX queue’s header, and 63 entries for RX queue elements. If an attacker gains access to the physical address table, they can easily locate all elements in the TX/RX queues. For example, the second entry ( 0x000000016921f000) points to the TX/RX queue’s header, where the readPtr and writePtr fields indicate the next elements to read and wri… view at source ↗

**Figure 5.** Figure 5: Timing Channels in CPU-GSP Memory Transfers [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

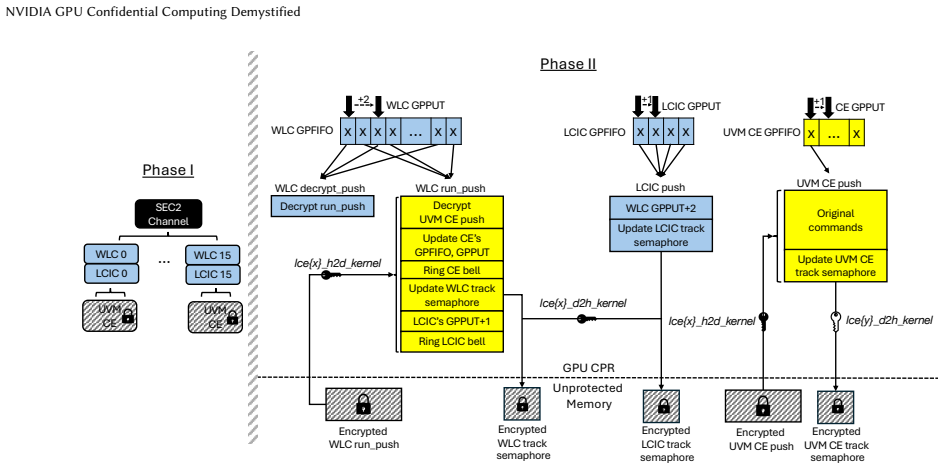

**Figure 6.** Figure 6: The Interactions among SEC2, WLC, and LCIC [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗

**Figure 7.** Figure 7: GPU’s Device and RIM File Certificate Chains [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗

read the original abstract

NVIDIA GPU Confidential Computing (GPU-CC) aims to provide secure execution for AI workloads. For end users, enabling GPU-CC is seamless and requires no modifications to existing applications. However, this ease of adoption relies on a proprietary and highly complex system that is difficult to inspect, creating challenges for researchers seeking to understand its architecture and security landscape. In this work, we provide a security look at GPU-CC by reconstructing a coherent view of the system. We first examine the system's blueprint, focusing on the specialized architectural engines that support its security mechanisms. We then analyze the bootstrap process, which coordinates hardware and software components to establish these protections. Finally, we conduct targeted experiments to assess whether, under the GPU-CC threat model, data transfers along different paths remain protected across the bridge between trusted CPU and GPU domains. We responsibly disclosed all security findings presented in this paper to the NVIDIA Product Security Incident Response Team (PSIRT).

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper reconstructs NVIDIA GPU-CC architecture and bootstrap then runs targeted checks on protected data transfers across the CPU-GPU bridge, but everything rests on an unverified proprietary mapping.

read the letter

The main thing to know is that this is the first public attempt to map out the actual hardware engines, bootstrap sequence, and data paths in NVIDIA's GPU confidential computing. They describe specialized architectural components that enforce the protections and then test whether transfers stay safe under the GPU-CC threat model when crossing the bridge between CPU and GPU domains. That reconstruction and the bridge-specific experiments are what is new here compared with prior vendor summaries. They also did the right thing by disclosing findings to NVIDIA PSIRT. The work gives a concrete picture that was not available before, which is useful for anyone who needs to reason about real deployments rather than just high-level specs. The experiments are presented as targeted probes rather than exhaustive testing, which fits the closed nature of the platform. The central limitation is that the entire assessment depends on the accuracy and completeness of the authors' own reconstruction. Because the system is proprietary, an omitted engine or mis-mapped trust boundary could mean some transfer paths were not actually covered. The abstract gives only a high-level description of the tests, so it is hard to judge the exact methodology, coverage, or whether edge cases were considered. No formal model or external confirmation is provided to back the blueprint. This paper is for security researchers and practitioners who work with confidential AI workloads on GPUs in data centers or clouds. A reader who wants a practical view of how these protections are actually built would get value from the architectural breakdown and the experimental approach. I would send it to peer review. The topic is timely for deployed confidential computing, the reconstruction fills a real gap, and the experiments are a reasonable starting point even if they need more detail and independent checks in revision.

Referee Report

1 major / 2 minor

Summary. The paper reconstructs a coherent architectural view of NVIDIA GPU Confidential Computing (GPU-CC) by first detailing the blueprint of specialized hardware engines supporting its security mechanisms, then analyzing the bootstrap process that coordinates hardware and software to establish trusted domains, and finally reporting targeted experiments assessing whether data transfers along different paths remain protected across the CPU-GPU bridge under the stated GPU-CC threat model. All security findings were responsibly disclosed to NVIDIA PSIRT.

Significance. If the reconstruction accurately captures the closed-source system and the experiments comprehensively cover relevant paths, the work would provide a valuable public analysis of protections for AI workloads on widely deployed NVIDIA hardware. The responsible disclosure and focus on a practical threat model are strengths; however, the absence of independent corroboration (such as a machine-checked model or vendor diagram) limits the strength of the security conclusions.

major comments (1)

[Bridge / targeted experiments] The central claim that data transfers remain protected across the bridge depends on the completeness of the proprietary reconstruction described in the blueprint and bootstrap sections. Without additional validation (e.g., cross-checks against public documentation, a formal model, or explicit discussion of how omitted mechanisms were ruled out), it is difficult to confirm that all relevant data paths were examined in the targeted experiments.

minor comments (2)

[Abstract] The abstract describes the methodology but does not summarize the concrete outcomes of the targeted experiments (e.g., which paths were tested and what the results showed).
Notation for trust domains and data paths could be introduced earlier with a diagram to improve readability when discussing the bridge experiments.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive review and for recognizing the strengths of our responsible disclosure and practical threat model focus. We address the major comment below, revising the manuscript to improve transparency around our reconstruction methodology while remaining honest about inherent limitations of analyzing a closed-source system.

read point-by-point responses

Referee: [Bridge / targeted experiments] The central claim that data transfers remain protected across the bridge depends on the completeness of the proprietary reconstruction described in the blueprint and bootstrap sections. Without additional validation (e.g., cross-checks against public documentation, a formal model, or explicit discussion of how omitted mechanisms were ruled out), it is difficult to confirm that all relevant data paths were examined in the targeted experiments.

Authors: We agree that the strength of our claims on protected data transfers rests on the accuracy and completeness of the blueprint and bootstrap reconstruction. Our analysis draws from public NVIDIA documentation on GPU-CC, hardware interface probing, and empirical experiments across multiple transfer paths under the stated threat model. In the revised manuscript, we have added an explicit subsection detailing our cross-checks against available public specifications, the criteria used to identify and rule out alternative mechanisms, and consistency verification across GPU configurations. These additions aim to make the coverage of relevant paths more transparent. A machine-checked formal model or internal vendor diagrams cannot be provided, as the system is proprietary and such artifacts are not accessible through public channels or the disclosure process. revision: partial

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The paper reconstructs a coherent view of the proprietary GPU-CC system by examining its blueprint and bootstrap process, then performs targeted experiments to assess data transfer protections under the stated threat model. This chain relies on empirical observation and analysis rather than any self-referential definitions, fitted parameters renamed as predictions, or load-bearing self-citations. No equations or derivations are presented that reduce the central claim to its own inputs by construction; the assessment is externally falsifiable via the experiments and responsible disclosure process. The reconstruction serves as an input step whose accuracy is a standard limitation for closed-source systems, not a circularity mechanism.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The analysis depends on the vendor-defined threat model and the feasibility of reconstructing internal behavior from observable interfaces without full source access.

axioms (1)

domain assumption The GPU-CC threat model accurately reflects the intended security boundaries.
All experiments and conclusions are conditioned on this model as stated by NVIDIA.

pith-pipeline@v0.9.0 · 5710 in / 1040 out tokens · 44148 ms · 2026-05-19T06:04:53.427952+00:00 · methodology
