A novel attention mechanism for noise-adaptive and robust segmentation of microtubules in microscopy images

Achraf Ait Laydi; H\'el\`ene Bouvrais; Louis Cueff; Mewen Crespo; Yousef El Mourabit

arxiv: 2507.07800 · v3 · submitted 2025-07-10 · 🧬 q-bio.QM · cs.CV

A novel attention mechanism for noise-adaptive and robust segmentation of microtubules in microscopy images

Achraf Ait Laydi , Louis Cueff , Mewen Crespo , Yousef El Mourabit , H\'el\`ene Bouvrais This is my paper

Pith reviewed 2026-05-19 05:35 UTC · model grok-4.3

classification 🧬 q-bio.QM cs.CV

keywords microtubule segmentationnoise-adaptive attentionU-Netsynthetic data generationmicroscopy image analysiscurvilinear structuresresidual blocksclass imbalance

0 comments

The pith

A noise-adaptive attention mechanism integrated into a residual U-Net segments microtubules accurately in noisy microscopy images.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents ASE_Res_UNet as a model that adds a new attention module to a U-Net with residual blocks. This module extends the standard squeeze-and-excitation approach so that it can change its behavior according to the amount of noise present in each image. The authors train the network on a synthetic dataset they created to supply exact labels for thin, dense filaments, then test it on both synthetic and real microscopy data. They show that the full model beats versions without the new attention, other attention designs, and different network architectures while using fewer parameters overall. The same network also works on blood vessels and nerves under varied imaging conditions.

Core claim

The authors introduce ASE_Res_UNet, which places a noise-adaptive attention mechanism that extends the Squeeze-and-Excitation module into the decoder of a U-Net equipped with residual encoder blocks. This mechanism allows the network to adjust feature emphasis dynamically as noise levels change across images. A separate synthetic data generation pipeline supplies precise annotations for fine filaments despite noise and class imbalance. Systematic tests establish that ASE_Res_UNet outperforms its ablated variants, alternative attention modules, and other architectures on both synthetic and real microtubule datasets while remaining parameter-efficient and transferring to other curvilinear bio-

What carries the argument

The noise-adaptive attention mechanism, an extension of the Squeeze-and-Excitation module that dynamically scales channel responses according to estimated noise levels in the input image.

If this is right

The model segments microtubules more accurately than ablated versions or competing attention mechanisms while using fewer parameters.
It maintains competitive performance on newly curated real microscopy datasets without requiring large amounts of manual annotation.
The same architecture transfers to segmentation of blood vessels and nerves across different imaging modalities.
The approach reduces the impact of class imbalance and annotation difficulty for curvilinear structures in general.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the synthetic data strategy proves robust across microscope types, labs could train high-performing filament models without collecting thousands of manually labeled real images.
The lightweight design opens the possibility of running the segmentation live during time-lapse experiments on standard laboratory computers.
The noise-adaptive idea could be tested on electron-microscopy images of other thin biological filaments where similar noise and density problems occur.

Load-bearing premise

The synthetic images generated for training match the noise statistics and filament geometry of real microscopy data closely enough that a model trained on them will generalize to real images without major performance loss.

What would settle it

A head-to-head test on a new set of real microscopy images in which ASE_Res_UNet shows clearly lower segmentation accuracy or higher error than a standard U-Net or an alternative attention model when both are trained only on the synthetic data.

Figures

Figures reproduced from arXiv: 2507.07800 by Achraf Ait Laydi, H\'el\`ene Bouvrais, Louis Cueff, Mewen Crespo, Yousef El Mourabit.

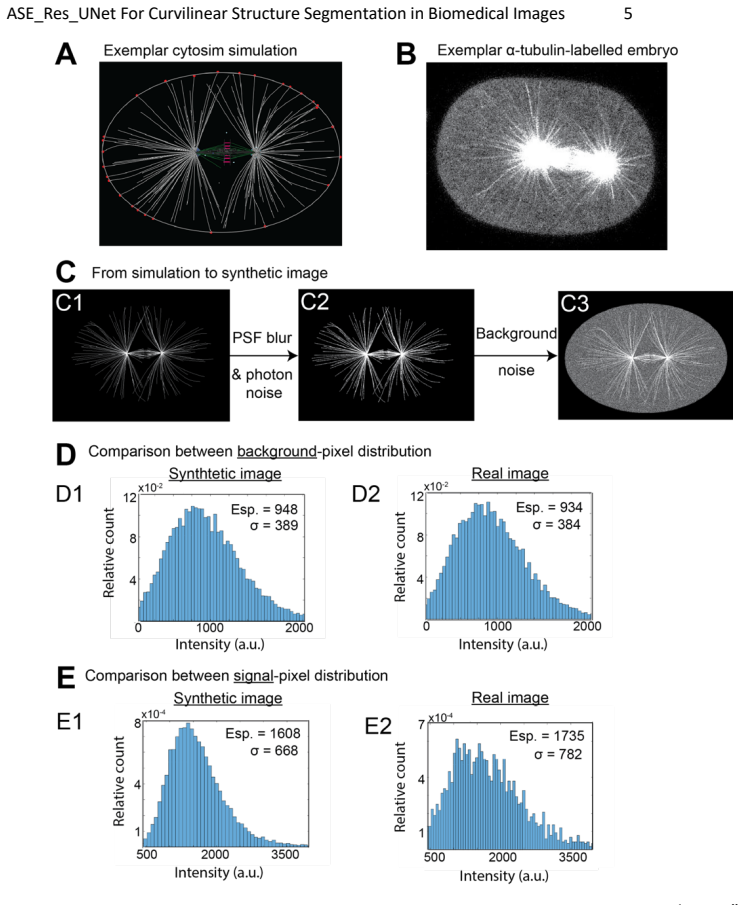

**Figure 1.** Figure 1: Generating synthetic fluorescent images of microtubules to build the dataset “MicSim_FluoMT”: (A) exemplar cytosim simulation with the white lines depicting the astral microtubules, (B) exemplar image of fluorescently labelled microtubules by YFP::a-tubulin, (C) ConfocalGN two-stage formation of synthetic image, (D) comparison of background pixel intensity distribution between (D1) synthetic and (D2) real … view at source ↗

**Figure 5.** Figure 5: Microtubule segmentation results obtained using ASE_Res_UNet on a test image from the MicSim_FluoMT datasets: (A) ground truth; (B1, C1) easy and complex images; (B2, C2) corresponding predicted images; (B3, C3) composite images used to visualize segmentation accuracy: true positives are shown in yellow, false negatives in green, false positives in red, and true negatives in black; (B4, C4) zoomed-in regio… view at source ↗

**Figure 6.** Figure 6: Microtubule segmentation results obtained using ASE_Res_UNet and its variants on a sample test image from the MicSim_FluoMT simple dataset. (A) Input image; (B) corresponding ground truth; (C-F) predicted segmentations from (C) UNet, (D) Res_UNet, (E) ASE_UNet, and (F) ASE_Res_UNet models. (A1-F1): whole simulated embryo; (A2-F2): zoomed-in regions of interest (ROI) to better highlight differences between… view at source ↗

**Figure 7.** Figure 7: Microtubule segmentation results obtained using ASE_Res_UNet and its variants on a sample test image from the MicSim_FluoMT complex dataset. (A) Input image; (B) corresponding ground truth; (C-F) predicted segmentations from (C) U-Net, (D) Res_UNet, (E) ASE_UNet, and (F) ASE_Res_UNet models. (A1-F1): whole simulated embryo; (A2-F2): zoomed-in regions of interest (ROI) to better highlight differences betwee… view at source ↗

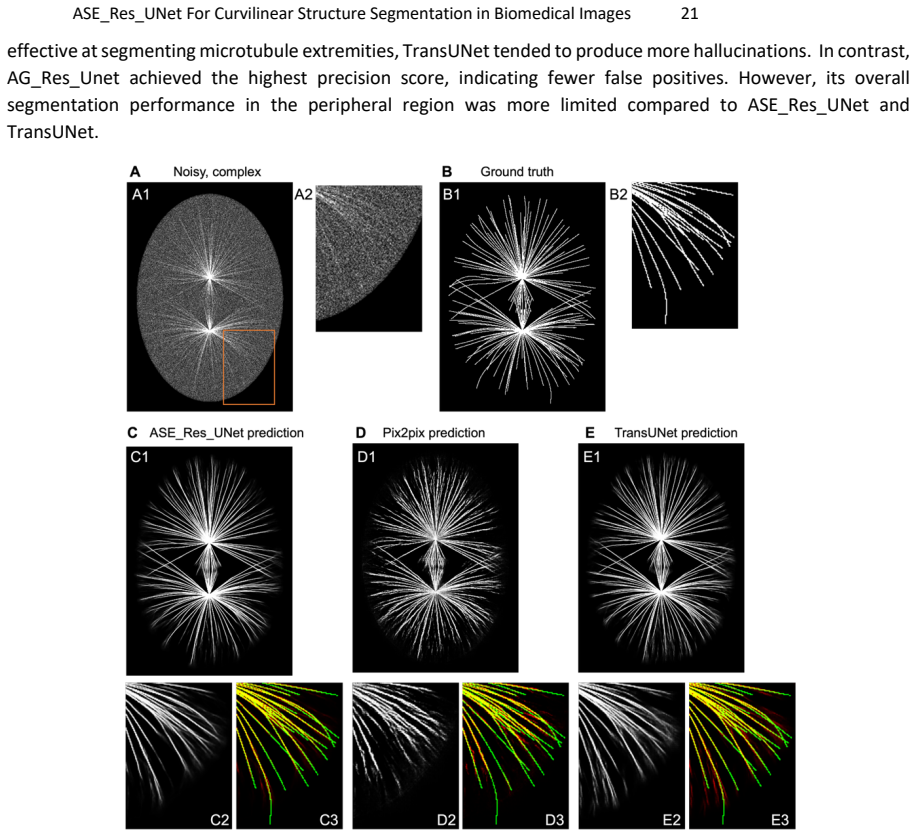

**Figure 9.** Figure 9: Microtubule segmentation results obtained using ASE_Res_UNet and two architectures differing in their core components on a sample test image from the MicSim_FluoMT complex dataset. (A) Input image; (B) corresponding ground truth; (C-E) predicted segmentations from (C) ASE_Res_UNet, (D) Pix2pix, and (E) TransUNet models. (A1-E1): whole simulated embryo; (A2-E2): zoomed-in regions of interest (ROI) to better… view at source ↗

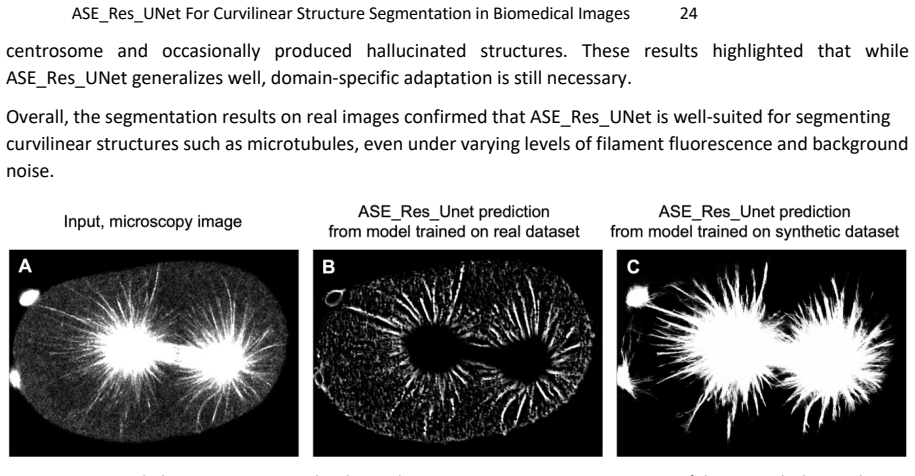

**Figure 11.** Figure 11: Microtubule segmentation results obtained using ASE_Res_UNet on a test image of the MicReal_FluoMT dataset 3.5 ASE_Res_UNet demonstratesstrong generalization forsegmenting curvilinear structures in biomedical images To evaluate the applicability of our ASE_Res_UNet architecture for segmenting other curvilinear structures, we first used the DRIVE (Digital Retinal Images for Vessel Extraction) dataset, whic… view at source ↗

read the original abstract

Segmenting cytoskeletal filaments in microscopy images is essential for studying their roles in cellular processes. However, this task is highly challenging due to the fine, densely packed, and intertwined nature of these structures. Imaging limitations further complicate analysis. While deep learning has advanced segmentation of large, well-defined biological structures, its performance often degrades under such adverse conditions. Additional challenges include obtaining precise annotations for curvilinear structures and managing severe class imbalance during training. We introduce a novel noise-adaptive attention mechanism that extends the Squeeze-and-Excitation (SE) module to dynamically adjust to varying noise levels. Integrated into a U-Net decoder with residual encoder blocks, this yields ASE_Res_UNet, a lightweight yet high-performance model. We also developed a synthetic dataset generation strategy that ensures accurate annotations of fine filaments in noisy images. We systematically evaluated loss functions and metrics to mitigate class imbalance, ensuring robust performance assessment. ASE_Res_UNet effectively segmented microtubules in noisy synthetic images, outperforming its ablated variants. It also demonstrated superior segmentation compared to models with alternative attention mechanisms or distinct architectures, while requiring fewer parameters, making it efficient for resource-constrained environments. Evaluation on a newly curated real microscopy dataset and a recently reannotated dataset highlighted ASE_Res_UNet's effectiveness in segmenting microtubules beyond synthetic images. For these datasets, ASE_Res_UNet was competitive with a recent synthetic data-driven approach that shares two cytoskeleton pretrained models. Importantly, ASE_Res_UNet showed strong transferability to other curvilinear structures (blood vessels and nerves) across diverse imaging conditions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper adds a noise-adaptive tweak to the SE attention block inside a residual U-Net for microtubule segmentation, paired with a synthetic data generator, and it shows solid efficiency gains on their tests, though the real-image transfer rests on an unverified match between synthetic and actual noise statistics.

read the letter

The main takeaway is a targeted, efficient change to attention that helps a U-Net handle varying noise when segmenting fine, dense microtubules. They extend the squeeze-and-excitation module so it adjusts based on noise level, drop it into a residual encoder U-Net, and train mostly on images from their own synthetic generator that produces labeled noisy filaments. The model uses fewer parameters than several alternatives and beats ablated versions plus other attention setups on the synthetic data. It stays competitive on a new real microscopy set and a reannotated one, and it transfers reasonably to blood vessels and nerves under different conditions. That combination of lightness and cross-structure performance is the practical win here. They also run a systematic check across loss functions and metrics to deal with the severe class imbalance that comes with thin structures. Those steps are straightforward and useful for anyone facing the same labeling and imbalance issues. The soft spot is the synthetic-to-real step. Nothing in the summary shows a direct comparison of noise spectra, background variation, or filament curvature distributions between the generated images and the real test sets. Without that, or at least some distance metric like MMD, it is difficult to tell whether the noise-adaptive module is really driving the real-data results or whether the test images simply happen to be close enough to the synthetic distribution. The absence of error bars, exact sample sizes, or statistical tests on the reported gains adds to the same uncertainty, though it does not invalidate the overall direction. This work is aimed at cell biologists and imaging groups who need a lightweight tool for curvilinear structures in noisy conditions and who already work with synthetic data augmentation. A reader who wants to adapt attention for domain-specific noise would pick up usable ideas from the ablations. It is coherent on its own terms and engages the relevant literature without obvious internal contradictions, so it deserves a serious referee who can ask for the missing distributional checks and more rigorous real-data statistics.

Referee Report

2 major / 2 minor

Summary. The paper proposes ASE_Res_UNet, a residual U-Net augmented with a novel noise-adaptive attention mechanism that extends the Squeeze-and-Excitation module to handle varying noise levels in microscopy images. It introduces a synthetic dataset generator for precise filament annotations under noise and class imbalance, systematically compares loss functions and metrics, and reports superior segmentation performance on noisy synthetic data versus ablated and baseline models, competitive results on curated real microtubule datasets, and transfer to blood vessels and nerves, all while using fewer parameters than alternatives.

Significance. If the empirical claims hold, the work provides a lightweight, noise-adaptive architecture that addresses practical challenges in segmenting fine curvilinear structures under realistic imaging conditions. The parameter efficiency and demonstrated cross-structure transferability are notable strengths for resource-limited settings in quantitative cell biology. Systematic loss-function and metric evaluations add value for handling severe class imbalance in filament segmentation tasks.

major comments (2)

[Real data evaluation] Real microscopy dataset evaluation (abstract and corresponding results): No quantitative distributional comparison (e.g., MMD, Wasserstein distance on intensity histograms, curvature, or noise power spectra) is provided between the synthetic generator outputs and the real test images. This assumption is load-bearing for the generalization claim, since all architecture and loss ablations were performed only in the synthetic regime; without it, competitive real-data performance could reflect test-set characteristics rather than the noise-adaptive features.
[Performance comparisons] Performance comparison results: The abstract and results report outperformance over ablated variants and alternative attention mechanisms without error bars, exact training/test split sizes, or statistical significance tests (e.g., paired t-tests or Wilcoxon tests on Dice/IoU). This weakens the robustness of the central empirical claims, particularly given the moderate soundness noted in the absence of these details.

minor comments (2)

[Methods] The mathematical formulation of the noise-adaptive attention extension could be presented with an explicit equation or pseudocode in the methods to improve reproducibility of the dynamic adjustment to noise levels.
[Figures] Figure captions for qualitative segmentation results should explicitly state the noise level or SNR range for each example to allow direct visual assessment of the claimed noise-adaptivity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their insightful comments, which help improve the clarity and robustness of our empirical evaluations. We address each major comment below and will incorporate the suggested revisions in the updated manuscript.

read point-by-point responses

Referee: [Real data evaluation] Real microscopy dataset evaluation (abstract and corresponding results): No quantitative distributional comparison (e.g., MMD, Wasserstein distance on intensity histograms, curvature, or noise power spectra) is provided between the synthetic generator outputs and the real test images. This assumption is load-bearing for the generalization claim, since all architecture and loss ablations were performed only in the synthetic regime; without it, competitive real-data performance could reflect test-set characteristics rather than the noise-adaptive features.

Authors: We recognize that providing quantitative measures of distributional similarity between the synthetic and real datasets would bolster the claims regarding the noise-adaptive attention mechanism's generalization. While the manuscript includes visual examples and reports competitive performance on real microtubule datasets, we did not perform metrics such as MMD or Wasserstein distances. We will add such analyses, for instance by comparing intensity distributions and noise characteristics, to the revised paper to more rigorously support the transferability. revision: yes
Referee: [Performance comparisons] Performance comparison results: The abstract and results report outperformance over ablated variants and alternative attention mechanisms without error bars, exact training/test split sizes, or statistical significance tests (e.g., paired t-tests or Wilcoxon tests on Dice/IoU). This weakens the robustness of the central empirical claims, particularly given the moderate soundness noted in the absence of these details.

Authors: We agree that the absence of error bars, precise split information, and statistical tests limits the strength of the performance claims. The manuscript reports average metrics from our experiments, but to enhance robustness, we will revise the results section to include standard deviations across repeated experiments, detail the training and test split sizes, and perform statistical significance testing (e.g., Wilcoxon signed-rank test) on key metrics like Dice and IoU, including the results in the updated version. revision: yes

Circularity Check

0 steps flagged

No circularity in empirical model evaluation and dataset strategy

full rationale

The paper presents an applied ML architecture (ASE_Res_UNet) and a synthetic data generator, with all central claims resting on direct empirical comparisons of segmentation metrics against ablated variants, alternative attention modules, and other architectures on both synthetic and real test sets. These measurements are independent of any fitted parameter being renamed as a prediction, and no derivation chain reduces by the paper's own equations or self-citations to a tautological input. The synthetic generation strategy is described as a practical means to obtain accurate annotations rather than a self-referential loop that forces the reported transfer results.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The work rests on the domain assumption that synthetic noise and filament statistics match real microscopy sufficiently for transfer, plus standard deep-learning training assumptions. No new physical entities or ad-hoc constants are introduced beyond typical network hyperparameters.

free parameters (1)

Network hyperparameters and loss weighting coefficients
Chosen during architecture design and training to balance the attention module and class imbalance.

axioms (1)

domain assumption Synthetic images generated by the described strategy have noise and geometry statistics close enough to real data for the trained model to generalize.
Invoked when claiming effectiveness on real microscopy datasets after synthetic training.
