LL3M: Large Language 3D Modelers

T0 review · 4 major / 5 minor · reviewed 2026-08-05 · deepseek-v4-flash

Pith's one-line read This paper claims that a crew of pretrained language-model agents can generate complete, editable 3D assets by writing Blender code, without any training, finetuning, or specialized 3D dataset.

desk verdict A credible multi-agent Blender-code system with an honest limitations section; the headline 5x/26% numbers are self-measured and shouldn't be used as evidence until there's an external metric or human eval. read the letter →

arxiv 2508.08228 v1 pith:DFYQAFTN submitted 2025-08-11 cs.GR cs.AI

classification cs.GRcs.AI MSC 68T4268U05
keywords 3Dassetgenerationlargelanguagemodelsmulti-agentsystemsBlendercoderetrieval-augmentedinterpretableshapeprogramstext-to-3Diterativeediting
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

LL3M tries to establish that text-to-3D generation can be recast as a code-writing task solved by orchestrating several off-the-shelf LLM agents, each with a narrow role, rather than by training a new generative model on 3D data. The paper argues that representing a shape as modular, commented Python code inside Blender gives three properties at once: open-vocabulary geometry with appearance, native editability by users or by agents, and a mechanism for iterative refinement through visual critique. The central design bets are a shared code context across all agents and a retrieval-augmented knowledge base of Blender documentation (BlenderRAG), which the paper claims increases the use of advanced Blender operations fivefold and reduces code errors by 26 percent. A sympathetic reader would care because if this works, it points to a cheap, training-free path to artist-usable 3D assets that can be tweaked by changing a parameter or a few lines of code, in contrast to one-shot neural generation.

What carries the argument

The central object is the shared code context: a single, cumulative, human-readable Blender Python script that every agent reads and that is updated by localized edits rather than rewritten. The second load-bearing component is BlenderRAG, a retrieval-augmented generation database built from 1,729 official Blender 4.4 documentation pages, which gives the coding agent examples, function signatures, and version-specific error fixes. The multi-agent loop itself—plan, retrieve, code, execute, render, critique, verify—is the mechanism that turns a single-shot code generator into an iterative design process.

What would settle it

Replace the LLM-based evaluation with human raters: render a matched set of prompts' outputs from LL3M and from the no-RAG ablation and the single-LLM baseline, then have raters blind-score geometric completeness, part connectivity, and prompt fidelity. If human scores do not track the reported 5x complex-operation increase or the 26% error reduction, the quantitative claim fails. Also, programmatically checking mesh connectivity after auto-refinement, e.g., counting connected components of the watering-can handle in Fig. 18, would directly test whether spatial errors are actually fixed.

Watch

Extended reading notes

Core claim

LL3M is a multi-agent system that generates complete 3D assets from text by having a planner decompose the prompt into subtasks, a retrieval agent pull Blender API documentation from BlenderRAG, a coding agent write and execute bpy scripts, a critic agent render the result and use a vision-language model to propose visual fixes, and a verification agent check that the fixes were applied. The paper's central claim is that this coordination produces complex, editable, open-vocabulary 3D assets without any training or finetuning, and that the code-based representation is itself a generative medium that enables user-driven iterative editing through follow-up prompts or direct parameter changes.

Load-bearing premise

The headline comparisons rest on the assumption that an LLM's judgment of code complexity and an LLM's visual judgments of rendered shapes are faithful proxies for real 3D asset quality and spatial correctness.

Editorial extensions

If this is right

  • If LL3M's central claim holds, text-to-3D generation no longer requires collecting or training on 3D shape datasets; the geometry and appearance emerge from an LLM's world knowledge plus Blender documentation.
  • Generated assets become editable artifacts: users can change a variable, tweak a shader node, add a line of code, or issue a natural-language follow-up prompt without regenerating the whole object.
  • The same pipeline can maintain identity across successive edits—adding a wig, glasses, ice cream, and a pose change to one character—because the code context preserves what was already built.
  • Because the representation is standard Blender Python, outputs can drop directly into artist workflows, version-control, and existing graphics pipelines without format conversion.
  • BlenderRAG's design implies the system can track Blender version changes: updating the documentation database lets the agents use the latest API regardless of the LLM's training cutoff.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A testable extension the paper leaves implicit: the code itself could be scored by executors and human raters, or by rendering both LL3M and baseline outputs to images and running a blind comparison, to check whether the 5x complexity and 26% error reduction actually translate into perceived geometric quality.
  • If the code representation is as reusable as the paper claims, an obvious next step is to mine the shared code context across prompts to build a library of parametric part generators, letting users compose new assets by recombining previously generated legs, handles, materials, or scene graphs.
  • Because the critic and verification agents use a VLM (Gemini) to judge spatial correctness, and the paper reports that spatial edits sometimes need 3–4 follow-up prompts, a natural improvement would be adding geometric verification tools—e.g., checking mesh connectivity or bounding-box intersections algorithmically—rather than relying on visual semantics alone.
  • The paper's own numbers suggest a ceiling: with complex operations rising 5x but errors only falling modestly, the error-prone frontier is where RAG helps least; future work might focus on automated repair of spatial errors rather than documentation retrieval.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper presents LL3M, a multi-agent system that generates 3D assets by writing and executing Blender Python code from text prompts. Six specialized agents (planner, retrieval, coding, critic, verification, user) are coordinated by an external orchestrator, with a BlenderRAG knowledge base built from 1,729 Blender 4.4 documentation files. Generation proceeds in three phases: initial creation, automatic visual refinement, and user-guided refinement. The paper claims that this design enables open-vocabulary, editable, and interpretable 3D asset generation without training or finetuning, and that BlenderRAG yields about 5x more complex Blender operations and a 26% reduction in cumulative errors relative to the same pipeline without retrieval, and higher-fidelity output than the single-LLM baseline BlenderMCP.

Significance. If the system performs as demonstrated in the gallery, this is a useful contribution to code-based 3D content creation: it shows that a coordinated team of pretrained LLMs, augmented with Blender documentation, can produce complete, executable, editable 3D assets without learning from 3D collections. The emphasis on interpretable, parameterized code as a generative medium is genuinely valuable, and the paper provides a detailed pipeline description and several convincing qualitative demonstrations (e.g., Fig. 4, Fig. 13, Fig. 12). However, the quantitative claims in Sec. 4.4 are not yet established. The main evaluation uses LLM-based counting of hand-defined operation categories and LLM-assigned error counts, with no human ground truth, no significance tests, and unresolved inconsistencies in the reported number of objects and scripts. The comparison to BlenderMCP is supported by only a single qualitative figure. These issues do not invalidate the existence claim that LL3M can generate editable code-based assets, but they do mean that the specific design-choice claims (5x complexity, 26% error reduction, superiority over BlenderMCP) should be treated as unverified.

major comments (4)
  1. [Sec. 4.4 / Tab. 1 / Tab. 2 / Appendix C] The quantitative claims that BlenderRAG increases complex operations by ~5x and reduces errors by ~26% rest on an evaluation whose validity is not established. The complexity counts are generated by GPT-4o using a hand-written taxonomy (Appendix C), with no human-annotated ground truth, no inter-annotator agreement, no variance estimates, and no paired significance test. Error counts are also LLM-assessed from scripts rather than instrumented execution logs, although the text says the code is executed in Blender. Moreover, the manuscript is internally inconsistent: Sec. 4.4 says 17 objects, Appendix C says 34 scripts, and Tab. 2's caption says 30 scripts, while Tab. 2 actually lists 16 object rows. The average 'Complex w/o RAG' also differs between Tab. 1 (1.20) and Tab. 2 (1.21). These inconsistencies must be resolved, and the evaluation should be supplemented with human annotation, pai
  2. [Sec. 4.4 / Fig. 14 / Sec. 2] The claim that LL3M produces 'superior quality assets' relative to BlenderMCP is supported only by a single qualitative comparison (Fig. 14). There is no fixed prompt list, no control for number of iterations or compute budget, no human preference study, and no objective mesh-quality metric. Since BlenderMCP is identified as the most relevant baseline, this comparison needs to be made systematic before the paper can claim higher-fidelity output than the baseline. At minimum, report the prompts, the execution settings, and independent human ratings, or explicitly scope the claim to the illustrated examples.
  3. [Sec. 3.2 / Sec. 3.3 / Fig. 18 / Appendix E] The paper's own limitations and appendix weaken the fidelity/refinement claims. Fig. 18 shows that the auto-refinement phase leaves the watering-can side handle disconnected and the top handle in an incorrect pose, and Appendix E shows a long chain of user follow-up prompts (17 instructions after the initial prompt in the listed sequence) for the humanoid example. The main text states that 59% of user-edit examples were obtained with a single edit instruction, but no denominator or selection protocol is given, and the spatial-edit examples in Appendix E require many corrections. Since the authors explicitly identify VLM spatial-awareness errors, the claims of 'closely aligns with the user's initial input' and 'accurate' automatic refinement need to be supported by a systematic human evaluation or by clearly distinguishing which examples succeed automatically and which require user interv
  4. [Sec. 4.4 / Tab. 1 / Appendix D] The 'error rate' metric is actually a cumulative count of errors per generation, not a rate, so comparing 2.43 vs 3.29 as a 26% reduction is not meaningful without normalizing by script length or number of operations. The paper also notes in Appendix D that without BlenderRAG the coding agent often deletes buggy lines, which reduces error counts at the cost of quality. This makes the raw error-count comparison especially difficult to interpret. The authors should report normalized error rates, distinguish execution errors from logical errors, and provide the actual execution logs so that a reader can verify that errors are corrected rather than avoided by simplifying the code.
minor comments (5)
  1. [Sec. 4.1 / Appendix A.2.4 / A.2.5] The model assignments are inconsistent. Sec. 4.1 says Gemini 2.0 flash powers the critic and verification agents, while Appendix A.2.4 and A.2.5 say the critic and verification agents use gpt-4o and only call a VLM (Gemini) through a tool. Please clarify which component is the agent LLM and which is the VLM.
  2. [Appendix C / Tab. 2] Please fix the sample-size statements: the main text says 17 objects, Appendix C says 34 scripts, Tab. 2's caption says 30 scripts, and Tab. 2 lists 16 rows. A reader cannot reconstruct the actual dataset from these conflicting numbers.
  3. [Sec. 4.4] The evaluation section does not state whether the prompts, generated scripts, and renders are released. The project page is mentioned, but the paper should explicitly state what artifacts will be available for reproducibility.
  4. [Sec. 4.4 / Fig. 16] The agent ablation is presented only as a qualitative figure. If the contribution of each agent is a central design claim, please add a quantitative measure or at least specify the prompts and criteria used for the illustrated examples.
  5. [Sec. 3.1 / BlenderRAG] The BlenderRAG construction is described only briefly (1,729 HTML files converted to PDFs, injected into RAGFlow). Since retrieval quality likely affects the results, please provide details on chunk size, embedding model, retriever settings, and the query formulation used by the retrieval agent.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: LL3M's central generation claims rest on executable Blender code and direct rendering; the LLM-judged metrics are validity concerns rather than circular reductions.

full rationale

Walking the derivation chain, the system's central claim is a constructive existence claim: given a text prompt, a multi-agent LLM pipeline emits Blender Python code that executes and produces 3D assets. This is supported by the pipeline description (Sec. 3), real Blender execution, and the render/gallery figures; it does not reduce to its inputs by any equation. The quantitative evaluation of BlenderRAG (Sec. 4.4, Appendix C) is the only place where a circularity objection could attach: the paper says 'All scripts were then submitted to an LLM to assess the type and frequency of the operations performed, along with the error rates,' and the complex/simple taxonomy is hand-written by the authors. However, this is an evaluation-validity issue, not a formal circular step: 'complex operation' is defined independently of the RAG condition, the counts are not fitted parameters, and no claim is derived from the metric by construction. The critic/verification loop uses Gemini for both critique and verification, which is self-referential, but the paper itself concedes the VLM misses spatial artifacts (Fig. 18 and Appendix E), so the limitation is disclosed rather than hidden. There is no load-bearing self-citation: the authors' own prior work appears only in related work. Internal inconsistencies (e.g., 34 vs. 30 scripts, 17 vs. 16 objects) are rigor concerns, not circularity. Accordingly, no circular step meeting the required bar is present; the weaknesses are about metric validity, statistical support, and baseline comparability, not circularity.

Assumptions & free parameters 0 free parameters · 5 assumptions · 2 invented entities

The paper introduces no fitted scalar parameters or physical postulates. Its assumptions are pragmatic engineering premises about LLM code-writing ability, VLM visual judgment, RAG retrieval quality, and the validity of an LLM-counted complexity metric. The most fragile premises are the VLM's spatial reasoning and the self-assessed metric, both of which the paper itself partially refutes.

assumptions (5)
  • domain assumption Pretrained LLMs (GPT-4o, Claude 3.7 Sonnet) can write valid Blender 4.4 bpy code when guided by RAG snippets and execution error feedback.
    Central to the method; if LLMs cannot bridge natural language to Blender API calls, the pipeline fails. The retrieval error loop is designed to mitigate this, but it remains an empirical premise. Sections 3.1-3.2.
  • domain assumption Rendered Eevee images (5 views) provide sufficient signal for the VLM critic to identify geometric and appearance errors.
    The critic and verification agents depend on this. The paper concedes in Fig. 18 and Appendix E that VLMs miss spatial artifacts (disconnected handles, ice-cream-in-hand), so the assumption is only partially met.
  • ad hoc to paper The frequency of 'complex' Blender operations, counted by GPT-4o using a hand-authored taxonomy, is a valid proxy for asset quality.
    The quantitative table rests entirely on this. Appendix C shows the counting is delegated to an LLM with no human verification or correlation with human-rated quality.
  • domain assumption BlenderRAG retrieval returns relevant, version-correct documentation snippets in enough context for the coding agent.
    Built from 1,729 Blender HTML docs injected into RAGFlow; retrieval quality is assumed, no retrieval accuracy evaluation is reported. Section 4.1.
  • domain assumption The AutoGen orchestrator order and shared context preserve asset intent across phases.
    Requires that shared context does not degrade with length and that agent ordering is sufficient. No robustness analysis is given. Section 3 and Appendix A.
invented entities (2)
  • Multi-agent framework (planner, retrieval, coding, critic, verification, user agents)
    purpose: Decompose prompts, retrieve Blender docs, write and debug code, visually critique, verify fixes, and ingest user edits.
    Software architecture whose benefit is evidenced only by the paper's own qualitative and self-assessed quantitative results. No external benchmark or third-party replication yet.
  • BlenderRAG knowledge base
    purpose: Injects Blender 4.4 API documentation and error solutions into LLM context via RAGFlow.
    The database is not released; no retrieval quality metrics or ablation on document selection are given. Its contribution is measured through the same LLM-based complexity counts.

how reviews work

0 comments
Cite this review

Pith. "Pith review of LL3M: Large Language 3D Modelers." pith.science (2026). https://pith.science/paper/DFYQAFTN

@misc{pith2026250808228,
  author       = {Pith},
  title        = {Pith review of: LL3M: Large Language 3D Modelers},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/DFYQAFTN}},
  note         = {Machine review of arXiv:2508.08228}
}
read the original abstract

We present LL3M, a multi-agent system that leverages pretrained large language models (LLMs) to generate 3D assets by writing interpretable Python code in Blender. We break away from the typical generative approach that learns from a collection of 3D data. Instead, we reformulate shape generation as a code-writing task, enabling greater modularity, editability, and integration with artist workflows. Given a text prompt, LL3M coordinates a team of specialized LLM agents to plan, retrieve, write, debug, and refine Blender scripts that generate and edit geometry and appearance. The generated code works as a high-level, interpretable, human-readable, well-documented representation of scenes and objects, making full use of sophisticated Blender constructs (e.g. B-meshes, geometry modifiers, shader nodes) for diverse, unconstrained shapes, materials, and scenes. This code presents many avenues for further agent and human editing and experimentation via code tweaks or procedural parameters. This medium naturally enables a co-creative loop in our system: agents can automatically self-critique using code and visuals, while iterative user instructions provide an intuitive way to refine assets. A shared code context across agents enables awareness of previous attempts, and a retrieval-augmented generation knowledge base built from Blender API documentation, BlenderRAG, equips agents with examples, types, and functions empowering advanced modeling operations and code correctness. We demonstrate the effectiveness of LL3M across diverse shape categories, style and material edits, and user-driven refinements. Our experiments showcase the power of code as a generative and interpretable medium for 3D asset creation. Our project page is at https://threedle.github.io/ll3m.

Figures

Figures reproduced from arXiv: 2508.08228 by the authors.

Figure 1
Figure 1. LL3M leverages a team of large language models to write Python code that creates and edits 3D assets in Blender. The agents [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 3
Figure 3. Iterative creation. LL3M enables multiple successive edits of the same 3D asset. The modifications are faithful to the user’s instructions, editing only the specified element while pre￾serving the character’s identity. A notable feature of our system is that it enables user￾driven, iterative, co-creative 3D modeling. Instead of gen￾erating a 3D shape in a single step, our system optionally enables users to iterative… view at source ↗
Figure 4
Figure 4. Gallery of results. LL3M is capable of diverse shape generation. The results showcase detailed parts (e.g. tassels on the bottom of the lantern, architectural features of the windmill) in intricate arrangements (e.g. grouping and spacing of keys on the piano), and rich appearance (e.g. gradient color on the skateboard) and material properties (e.g. the glossy lamp base). A notable feature of our approach is that eac… view at source ↗
Figures from the paper (17 more)
Figure 6
Figure 6. Figure 6: Intermediate results for each phase in LL3M. Our system enables generating and refining the mesh iteratively. First, the initial creation phase produces a preliminary version of the mesh from the input text (left). Second, the mesh is automati￾cally improved and enhanc…
Figure 5
Figure 5. Figure 5: Method overview. Our system uses a team of LLM￾powered agents to write Blender code that generates a 3D asset according to a text prompt and additional user instructions. Our method includes three phases: initial creation, automatic refine￾ment, and user-guided refinem…
Figure 7
Figure 7. Figure 7: Variations. Due to the inherent stochasticity of language model sampling during inference, identical inputs may yield diverse outputs. This variability also reflects different plausible interpretations of the prompt, often resulting in distinct yet high-quality mesh ge…
Figure 9
Figure 9. Figure 9 [PITH_FULL_IMAGE:figures/full_fig_p005_9.png]
Figure 10
Figure 10. Figure 10: Interpretable edit parameters. By generating shapes through Blender code, LL3M enables intuitive user edits via in￾terpretable parameters, such as those exposed by geometry and shader nodes. For example, when generating a material, our sys￾tem creates a full set of Bl…
Figure 11
Figure 11. Figure 11: Material editing. Given an initial mesh produced by our system, our system is capable of editing the materials on a specific part of the mesh (the blade of the knife), by creating com￾prehensive procedural materials via shader nodes. If the 3D model is not approved by…
Figure 12
Figure 12. Figure 12: Consistent stylization. Starting from different initial meshes produced by LL3M and the same refinement prompt “change the style to steampunk,” LL3M successfully interprets and applies the same style concept to each hat. Each stylized mesh produces distinct variations…
Figure 13
Figure 13. Figure 13: Interpretable code. Our method generates Blender code that is easy to understand and follow. The code is well￾documented with descriptive comments, clear variable names, and structured logic. This interpretable code makes it easy to poten￾tially change variables (e.g.…
Figure 14
Figure 14. Figure 14: Baseline comparison. We compare the Blender MCP module (left) with our method (right) [1]. Our method produces higher-quality meshes with more detailed geometry and closer alignment to the input text prompt compared to the baseline. We attribute the improved quality o…
Figure 15
Figure 15. Figure 15: The importance of BlenderRAG. By incorporating a database of Blender API documentation, we enable the coding agent to use more complex functions that improve mesh quality (right) when compared against the lack of such a database (left). For example, the rocket generat…
Figure 17
Figure 17. Figure 17: Without the shared context, the coding agent is still able to create the required asset, such as the UFO and the glasses. While the asset is of high quality, it is substantially different than the initial one. In contrast, the shared context enables the coding agent t…

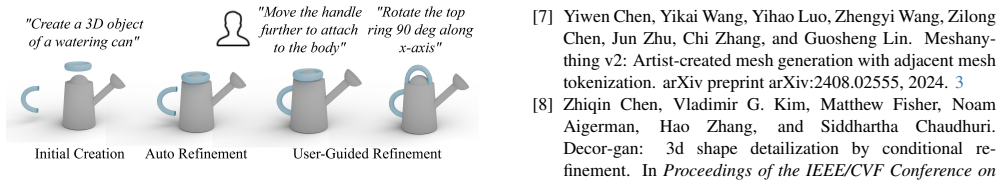

Figure 18
Figure 18. Figure 18: Limitations. LL3M relies on the accuracy of VLMs to provide automatic visual feedback on the generated shape. How￾ever, VLMs may still struggle to accurately identify spatial arti￾facts, leading to imperfect results after the auto-refinement phase (second column). Our…
Figure 19
Figure 19. Figure 19: Workflow logic. This diagram is a high-level representation of the agent order logic. The inputs, outputs, and execution conditions are labeled as described in Sec. 3. The white diamond and green box below the coding agent of the second and third columns represent the…
Figure 20
Figure 20. Figure 20: Geometry Refinement. Given a an initial mesh produced by our system, LL3M may additionally modify the geometry based on user instructions in the form of text prompts. Our method applies flexible geometric edits, like changing the shape’s outline (“Midcentury”, “Scandi…
Figure 21
Figure 21. Figure 21: Hierarchical scene graph. The coding agent estab￾lishes logical parenting relationship when the input prompt ex￾plicitly asks for such a relationship. Doing so generates shapes with a human-readable hierarchical structure by creating parent￾child relationships between…

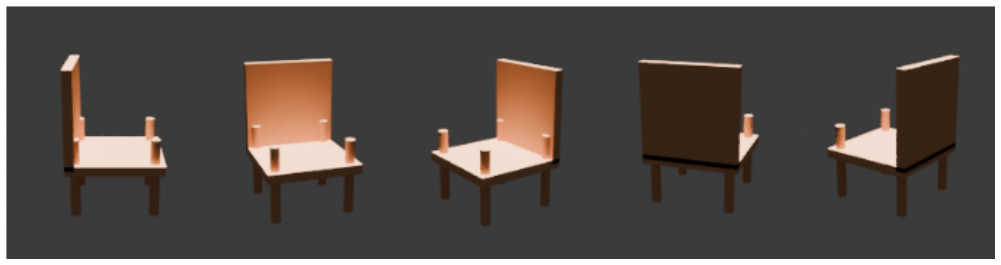

Figure 22
Figure 22. Figure 22: Render function example. A chair from the initial creation phase is rendered from five angles that together capture a holistic overview of the object. These renders are then passed into an external VLM by the critic agent for evaluation. We use the eevee rendering mod…
Figure 23
