Self-organization mechanism in Bridgman-grown MnBi2Te4/(Bi2Te3)n: influence on layer sequence and magnetic properties
T0 review · 3 major / 4 minor · reviewed 2026-08-15 · deepseek-v4-flash
Pith's one-line read Septuple layer spacing in MnBi2Te4/(Bi2Te3)n is set by diffusion-limited MnTe incorporation and controls whether the crystal is antiferromagnetic or ferromagnetic.
desk verdict A careful experimental study with a plausible but under-validated growth model; the central claim rests on a proxy that is geometrically tied to the measured spacing. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The argument is carried by Eq. (1), derived from a solution-growth model in which MnTe is the rate-limiting species at MnBi2Te4 layer edges. Each MnBi2Te4 edge acts as a linear sink for MnTe molecules diffusing across an unstirred boundary layer of thickness $\delta_{\mathrm{MnTe}}$, and the spacing $d_{\mathrm{SL}}$ adjusts so that the MnTe flux balances the advance of the surrounding Bi2Te3 quintuple layers; the derivation explicitly equates the septuple and quintuple advance velocities and neglects a logarithmic factor whose contribution the paper estimates as below 1% over the observed spacings. The same machinery links macroscopic flow to nanostructure: turbulent flow thins the boundary layer and favors pure MnBi2Te4, stationary laminar flow produces ordered QL/SL stacks, and flow cessation thickens the diffusion layer and drives Mn depletion and defect formation. An elastic-energy estimate of roughly 5 eV to insert a MnBi2Te4 unit into a perfect Bi2Te3 front explains why new septuple layers need defect sites to nucleate, while the much smaller enthalpy gain keeps spontaneous substitution unfavorable.
What would settle it
Cool a growing crystal quickly during the stationary regime, slice the frozen melt-crystal interface, and map the MnTe concentration profile next to the growth front; if the measured supersaturation does not correlate inversely with the TEM-observed septuple spacing, Eq. (1) is falsified.
Extended reading notes
Core claim
Crystal sections formed in the stationary-flow regime contain MnBi2Te4 septuple layers whose mean separation depends on how starved the melt is for MnTe. Treating each MnBi2Te4 edge as a linear sink for MnTe molecules diffusing through an unstirred boundary layer, and equating the advance velocity of septuple and quintuple layers, yields Eq. (1), which expresses $d_{\mathrm{SL}}$ in terms of the quintuple-layer velocity $V_{\mathrm{QL}}$, the septuple-layer width $a_{\mathrm{SL}}$, the boundary-layer thickness $\delta_{\mathrm{MnTe}}$, the MnTe diffusion constant $D_{\mathrm{MnTe}}$, the equilibrium MnTe concentration $C_{\mathrm{eq,MnTe}}$, the melt-edge exchange length $\lambda_{\mathrm{MnTe}}$, and the supersaturation $\sigma_{\mathrm{MnTe}}$. The formula makes $d_{\mathrm{SL}}$ grow as the boundary layer thickens or supersaturation falls, and shrink as MnTe diffusivity or equilibrium concentration rises. Experimentally, Sample C, with only 1.14 at.% average Mn, shows SLs spaced by 7 ± 2 QLs, while earlier, Mn-richer material packs SLs one or two QLs apart. The magnetic consequences follow: closely spaced, compositionally complete SLs order antiferromagnetically at $T_{\mathrm{N}}$ = 26 K and 13.5 K in Sample A and 13.5 K in Sample B, while widely spaced, Mn-depleted SLs give ferromagnetic order near 9–11 K, consistent with the earlier result that interlayer exchange becomes negligible beyond two QLs.
Load-bearing premise
The load-bearing premise is that MnTe incorporation at MnBi2Te4 layer edges is rate-limited by diffusion through an unstirred boundary layer, and that the melt supersaturation can be inferred from the crystal's average Mn content; if either assumption fails, the inverse spacing-supersaturation relation is not established, and only two stationary-regime samples (B and C) carry the trend.
Editorial extensions
If this is right
- Septuple-layer spacing, and therefore the magnetic ground state, can in principle be selected by controlling melt composition, convection, and growth velocity during the stationary regime.

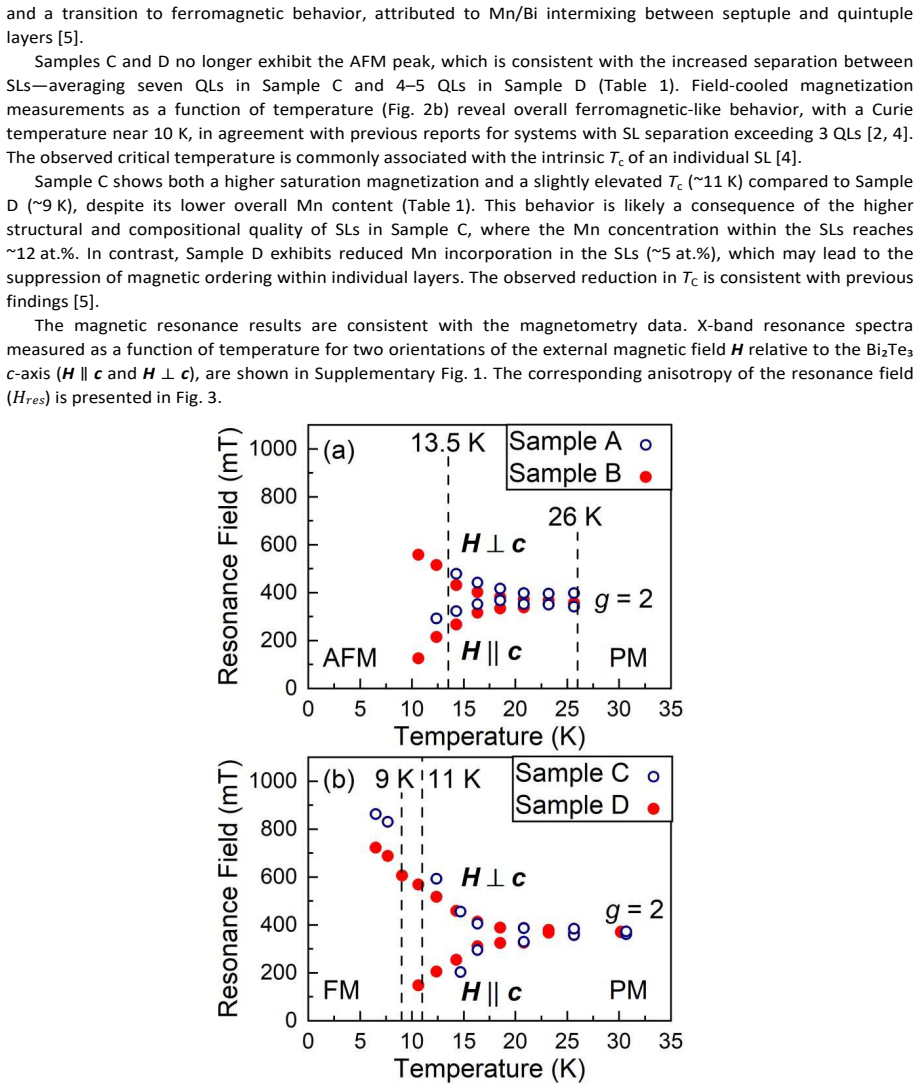

- Magnetic phase assignment becomes a structural diagnostic: antiferromagnetic transitions at 26 K and 13.5 K signal closely spaced SLs, while ferromagnetic order near 9–11 K signals spacing of roughly four or more QLs.
- The four-stage growth model explains why pure MnBi2Te4 appears only under turbulent mixing and why later growth sections develop increasingly Mn-poor, disorder-prone stacking.
- Maintaining constant MnTe supersaturation during growth should preserve a constant SL spacing, giving a route to long-range ordered superlattices over tens of micrometers.
- The inverse spacing-supersaturation relation offers a practical calibration rule for Bridgman synthesis of MnBi2Te4/(Bi2Te3)n with targeted layer sequences.
Reading between the lines
- Editorial inference: if Eq. (1) survives direct measurement of the melt supersaturation, stirring or ampoule rotation becomes a magnetic-property knob, because raising flow velocity shortens $\delta_{\mathrm{MnTe}}$ and should tighten SL spacing.
- Editorial inference: the same diffusion-limited competition picture should apply to other transition-metal tellurides grown from tellurium-rich melts, where the spacing of magnetic planes could be predicted from the balance of layer-advance velocities.
- Editorial inference: a direct quantitative test would be to grow a series of ingots with different starting MnTe fractions and map $d_{\mathrm{SL}}$ against the measured post-growth Mn profile; the model predicts a monotone curve that a single deviating point would break.
- Editorial inference: the paper's four-stage picture implies that the pure MnBi2Te4 phase is a transient, turbulence-assisted product, so scaling up crystal size will require actively maintaining convective mixing rather than only adjusting the nominal composition.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper reports a study of Bridgman-grown MnBi2Te4/(Bi2Te3)n crystals, identifying four growth stages (turbulent flow, rapid MnTe precipitation, stationary flow, and flow cessation) and relating these to the observed layer sequences and magnetic properties. The central claim is that the septuple layer spacing d_SL is inversely correlated with MnTe supersaturation sigma_MnTe in the melt, as described by Eq. (1), which combines Chernov's solution-growth model and van der Eerden's step-advance analysis with diffusion-limited MnTe incorporation at layer edges. Structural data from TEM/EDX and magnetic data from SQUID and FMR are used to correlate layer spacing with magnetic ordering: closely spaced SLs give antiferromagnetism, widely spaced SLs give ferromagnetism.
Significance. If the proposed mechanism is correct, it offers a concrete route to tune the layer sequence of a magnetic topological insulator by controlling growth parameters such as melt composition and convection, which is of practical value for bulk synthesis. The paper contains a substantial set of internally consistent experimental data (TEM, EDX, SQUID, FMR) and provides a clear structural typology of the four growth regimes. The identification of a stationary flow regime that supports ordered stacking and the correlation between SL spacing and magnetic phase are useful contributions, even independently of the quantitative model. However, the central quantitative claim linking d_SL to sigma_MnTe is currently supported only indirectly, and the paper's own text marks the key melt-composition inferences as conjectural.
major comments (3)
- [Table 1 and Discussion of growth, Eq. (1)] The central claim that d_SL is inversely correlated with sigma_MnTe is not independently verified by the data, because the proxy used for sigma_MnTe—the average Mn concentration in Table 1—is a geometric function of d_SL. For a layered structure with approximately constant Mn content per septuple layer, the volume-averaged Mn concentration scales roughly as t_SL/d_SL (plus a small background from quintuple layers), so any increase in d_SL automatically lowers the average Mn concentration regardless of the transport mechanism. The comparison of Sample B (7.2 at.%, d_SL=1–2 QLs) with Sample C (1.14 at.%, d_SL=7±2 QLs) therefore restates the spacing difference rather than providing an independent measure of sigma_MnTe. To validate Eq. (1), an independent measurement of the MnTe supersaturation at the crystallization front, or a controlled series in which initial MnTe content is varied while flow conditions are fixed, is needed.
- [Discussion of growth, Samples B and C] The empirical support for the inverse relationship rests on only two samples grown in the stationary flow regime, B and C, and the estimated spacing for Sample C has a large uncertainty (7±2 QLs). No intermediate points along the ingot are presented for the stationary regime, so the functional form of the d_SL versus sigma_MnTe relation is not constrained. The model should be tested against additional samples grown with systematically varied melt compositions, or against a spatially resolved map of the superlattice period along the crystal that traces a continuous trend, before a quantitative inverse correlation is asserted.
- [Supplementary Information, Eq. (4) to Eq. (5)] The derivation of Eq. (1) in the main text neglects the factor ln(d_SL/a_SL) from van der Eerden's expression, with the statement that preliminary order-of-magnitude estimates give an error below 1% within the observed range. This justification is not shown. Since d_SL varies by roughly sevenfold across the observed range and a_SL is a molecular width, the logarithmic factor is not obviously negligible; the approximation should be quantified with the actual estimates, or the full expression should be retained in Eq. (1), because this approximation is load-bearing for the simple inverse relation.
minor comments (4)
- [Eq. (1)] The typeset version of Eq. (1) is garbled in the manuscript, rendering the formula unreadable; it should be corrected.
- [Fig. 1 caption] The caption refers to a 'MnBi₂Te₄/Bi₂Te phase'; this should presumably be 'MnBi₂Te₄/Bi₂Te₃'.
- [Results, magnetic anisotropy] The word 'respectevely' is a typo for 'respectively'.
- [Discussion of growth] The manuscript uses phrases such as 'We infer that the distribution of manganese in the melt is not uniform' and 'we propose the following' when discussing impurity ejection and Sample D; these statements are hypotheses and should be explicitly labeled as such in the main text rather than appearing as established conclusions.
Circularity Check
Average Mn concentration is geometrically tied to d_SL, so the Table 1 comparison cannot independently validate the inverse sigma_MnTe-d_SL relation; the model derivation itself is independent.
-
self definitional
[Results and discussion, 'Structural properties' (Table 1) and 'Discussion of growth' (after Eq. (1)).]
"The average Mn concentration varies along the crystal, following changes in Mn content in the melt during growth. ... This phenomenon is clearly observed in Sample C, where a reduced Mn concentration to 1.14 at.% leads to an increase in the distance between SLs to 7 ± 2 QLs."
The paper never measures the melt supersaturation sigma_MnTe. Instead, it uses the spatially averaged Mn concentration of the crystal (Table 1) as the indicator of Mn content in the melt. But for a MnBi2Te4/(Bi2Te3)n superlattice with roughly fixed Mn content per septuple layer, the volume-averaged Mn concentration is approximately c_SL * t_SL / d_SL plus a small QL background. Hence a larger d_SL automatically lowers the average Mn concentration, independent of the Chernov/van der Eerden transport model. Comparing Sample B (7.2 at.%, d_SL = 1-2 QLs) with Sample C (1.14 at.%, d_SL = 7 +/- 2 QLs) therefore restates the spacing difference rather than providing an independent test of Eq. (1)'s inverse dependence on sigma_MnTe.
full rationale
The derivation of Eq. (1) in the Supplementary Information is self-contained: it combines Chernov's solution-growth model with van der Eerden's step-velocity expression, imposes V_SL = V_QL, and solves for d_SL. No parameter is fitted to the data, and no prediction is a renamed fit. Self-citations such as Ref. [5] are used for magnetic interpretation and for Mn depletion effects, but they are not load-bearing for the growth model. The central weakness is empirical: the paper claims an inverse correlation between d_SL and sigma_MnTe, yet sigma_MnTe is not measured. The proxy actually used, the spatially averaged Mn concentration, is a geometric function of d_SL itself in a layered superlattice, so the observed trend in Samples B and C is partly self-referential. This does not invalidate the model derivation, but it means the paper's strongest empirical demonstration does not independently confirm the model's central prediction. The score reflects this partial circularity in the evidence chain, not in the theoretical derivation.
Assumptions & free parameters
free parameters (1)
- deformation length l =
~1 nm
assumptions (5)
- domain assumption MnTe molecules are the growth units for MnBi2Te4 septuple layer formation and diffuse through an unstirred boundary layer to layer edges.
- domain assumption The advance velocities of quintuple and septuple layers are equal at the crystallization front, V_SL = V_QL.
- ad hoc to paper The logarithmic factor ln(d_SL/a_SL) in van der Eerden's expression can be neglected with less than 1 percent error.
- domain assumption MnTe supersaturation sigma_MnTe decreases monotonically with average Mn concentration in the crystal.
- domain assumption Bi2Te3 and MnBi2Te4 layers grow with c-axis parallel to the crystallization front.
Cite this review
Pith. "Pith review of Self-organization mechanism in Bridgman-grown MnBi2Te4/(Bi2Te3)n: influence on layer sequence and magnetic properties." pith.science (2026). https://pith.science/paper/TL25F5KW
@misc{pith2026250922303,
author = {Pith},
title = {Pith review of: Self-organization mechanism in Bridgman-grown MnBi2Te4/(Bi2Te3)n: influence on layer sequence and magnetic properties},
year = {2026},
howpublished = {\url{https://pith.science/paper/TL25F5KW}},
note = {Machine review of arXiv:2509.22303}
}
read the original abstract
The growth of high-quality magnetic topological insulator crystals by the Bridgman method remains challenging due to thermodynamic limitations inherent to this technique. Nevertheless, this approach continues to provide bulk materials with significantly reduced free carrier concentrations compared to epitaxial methods. Here, we investigate the Inverted Vertical Bridgman growth of MnBi2Te4/(Bi2Te3)n crystals, with particular emphasis on the structural ordering of MnBi2Te4 septuple layers within the Bi2Te3 quintuple-layer matrix and its influence on magnetic properties. Through a detailed analysis of growth dynamics, we identify four distinct stages, including a turbulent flow regime promoting pure MnBi2Te4 phase, rapid MnTe precipitation reducing Mn content in the melt, a stationary growth phase supporting ordered stacking of septuple and quintuple layers, and a final stage marked by flow cessation and defect formation. We demonstrate that septuple layer spacing is inversely correlated with MnTe supersaturation due to the diffusion-limited incorporation in stationary growth phase. Magnetic characterization reveals antiferromagnetic ordering in pure MnBi2Te4 phase and in MnBi2Te4/(Bi2Te3)n heterostructure, with ferromagnetism emerging for wider septuple layer spacing. We determine critical temperatures for observed antiferromagnetic and ferromagnetic phase transitions and magnetic anisotropy constants for ferromagnetic samples. Our findings highlight key growth parameters governing magnetic and structural quality, offering a pathway to scalable synthesis of layered topological insulators with tunable magnetic properties.
