Thermal assisted transport of biexcitons in monolayer WSe2

Dorian B\'eret , Louka Hemmen , Vishwas Jindal , Sreyan Raha , Thierry Amand , Delphine Lagarde , Andrea Balocchi , C\'edric Robert
show 4 more authors
Helene Carrere Xavier Marie Pierre Renucci Laurent Lombez
This is my paper

Pith reviewed 2026-05-18 10:28 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords biexciton transportWSe2 monolayerSeebeck currentspatial ringshot biexcitonsTMD materialsphotoluminescence spectroscopythermal transport
0
0 comments X p. Extension

The pith

A Seebeck current driven by hot biexcitons shapes their transport and creates spatial rings in WSe2 monolayers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates biexciton transport under high optical excitation in a high-quality WSe2 monolayer encapsulated in hexagonal boron nitride. It establishes that hot biexcitons generate temperature gradients leading to Seebeck currents that influence particle movement. This results in the formation of spatial rings or halos observed in photoluminescence. A reader would care because it extends understanding of excitonic transport to complex particles, showing thermal effects matter even for heavier species in 2D materials. The work suggests high-energy populations play a key role in such systems.

Core claim

The authors show that in high excitation regimes, the transport of biexcitons in monolayer WSe2 is affected by a Seebeck current connected to the presence of hot biexcitons, leading to the formation of spatial rings known as halos. Through spatially and temporally resolved photoluminescence spectroscopy, they demonstrate this effect and argue that it generalizes the importance of high-energy populations in excitonic transport within transition metal dichalcogenides, applying even to complex and heavy excitonic particles.

What carries the argument

The temperature-gradient-induced Seebeck current from hot biexcitons, which drives the observed transport behavior and halo formation.

If this is right

  • Biexciton transport deviates from pure diffusion due to thermal currents at high densities.
  • Spatial halos form as a signature of this Seebeck-assisted mechanism.
  • High-energy populations remain important for transport even in heavier excitonic complexes.
  • This mechanism could influence the design of 2D optoelectronic devices operating at high injection levels.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If similar temperature effects apply, controlling local heating could manipulate biexciton flow in devices.
  • The halo formation might connect to similar patterns seen in other excitonic systems.
  • Extending this to other TMDs could reveal material-specific variations in thermal transport.

Load-bearing premise

The observed spatial rings and transport behavior are primarily driven by a temperature-gradient-induced Seebeck current from hot biexcitons rather than by other mechanisms such as diffusion, trapping, or density-dependent interactions.

What would settle it

Observing the same spatial rings and transport patterns even when temperature gradients are eliminated or hot biexciton populations are suppressed would falsify the central role of the Seebeck current.

Figures

Figures reproduced from arXiv: 2510.03092 by Andrea Balocchi, C\'edric Robert, Delphine Lagarde, Dorian B\'eret, Helene Carrere, Laurent Lombez, Louka Hemmen, Pierre Renucci, Sreyan Raha, Thierry Amand, Vishwas Jindal, Xavier Marie.

Figure 1

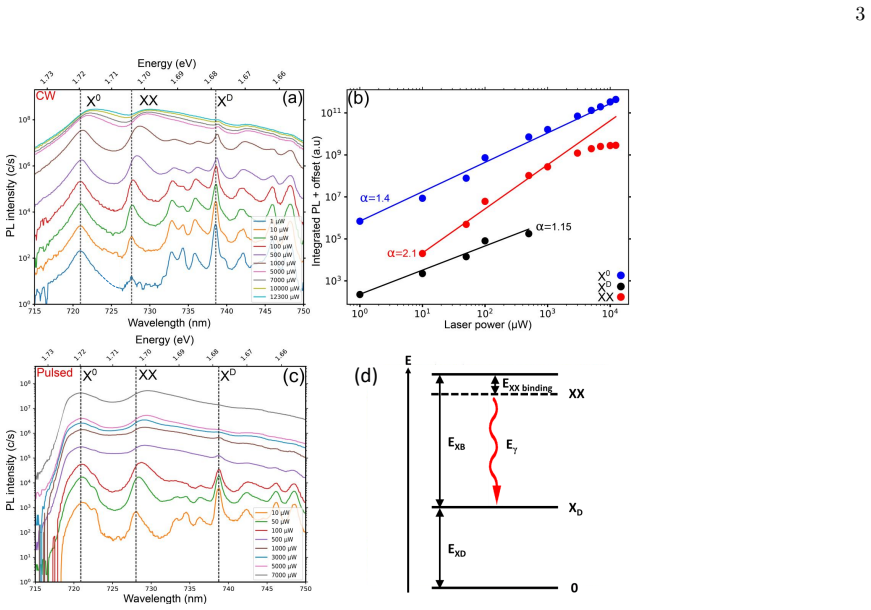

Figure 1. Figure 1: FIG. 1: (a) PL spectra of a [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2: (a) Two-dimensional images of PL after excitation with the pulsed Ti-Sa laser at 700 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: (a) time evolution of the biexciton temperature and (b) time evolution of the biexciton energy shift extracted from [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4: (a) spatial profiles of the biexciton temperature and (b) spatial profile of the biexciton peak energy shift extracted [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5: Evolution of the PL peak energy for the exciton (blue) and the biexciton (red) as a function of the HeNe laser power. [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

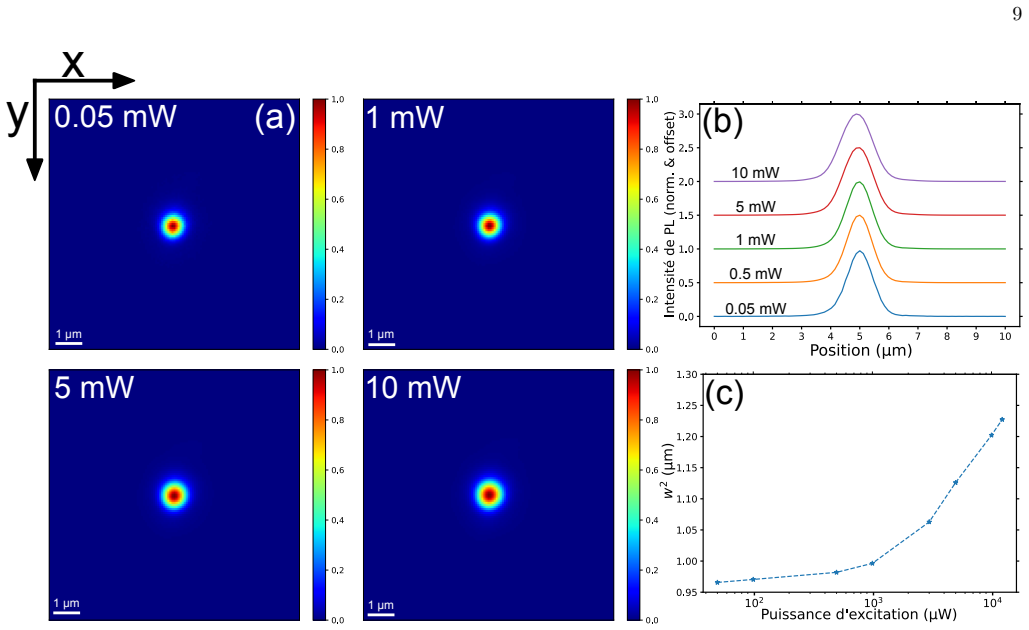

Figure 6. Figure 6: FIG. 6: (a) Images of PL under focused cw HeNe excitation laser at four different excitation powers (b) extraction of four [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7: PL images of the exciton emission under 700 [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8: Time-resolved PL spectrum recorded for three laser excitation powers [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9: Hyperspectral images - Spectrally resolved PL intensity profile along a diameter of the halo for three excitation powers [PITH_FULL_IMAGE:figures/full_fig_p012_9.png] view at source ↗
Figure 10

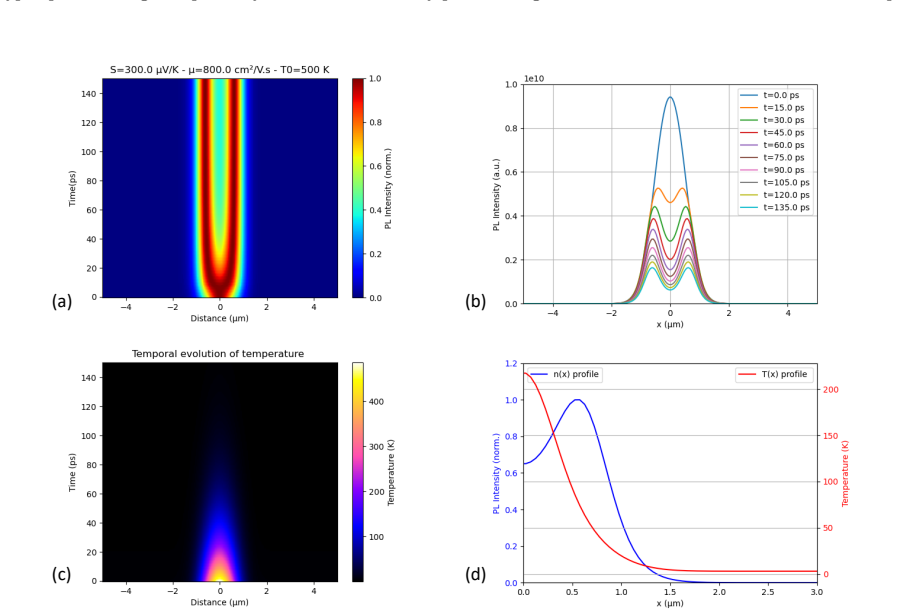

Figure 10. Figure 10: FIG. 10: Modeling for [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗
Figure 11

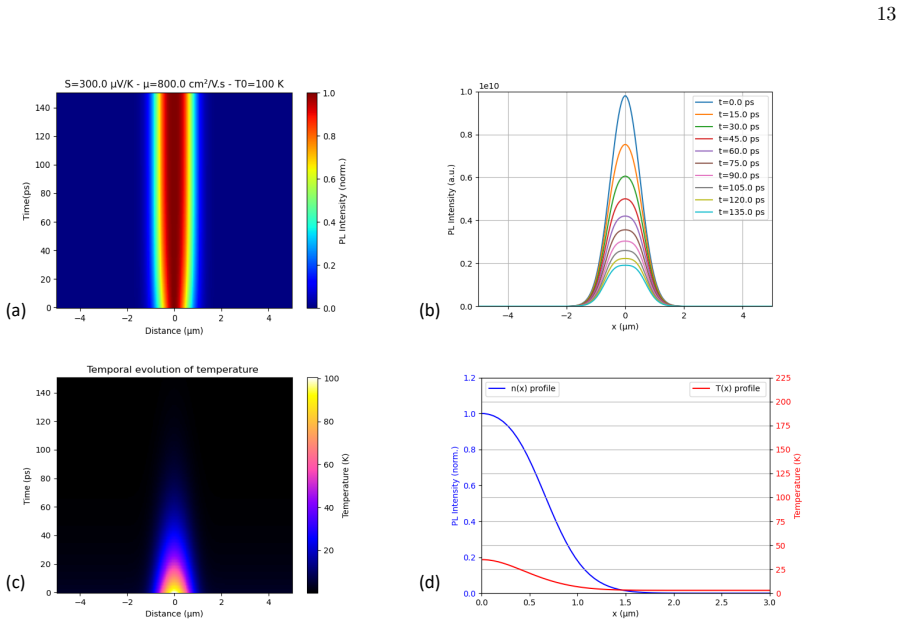

Figure 11. Figure 11: FIG. 11: Modeling for [PITH_FULL_IMAGE:figures/full_fig_p013_11.png] view at source ↗
read the original abstract

Studies of excitonic transport in transition metal dichalcogenide monolayers have attracted increasing interest in recent years in order to develop nano-optoelectronic devices made with 2D materials. These studies began with low to moderate optical excitation regimes, and more recently have focused on high injection regimes where nonlinear effects appear. This article is focused on the transport of biexcitons by spatially and temporally resolved photoluminescence spectroscopy at high excitation flux. The study is carried out on a high-quality WSe$_2$ monolayer encapsulated in hexagonal boron nitride. The results show that a Seebeck current affects transport in connection with the presence of hot biexcitons. In particular, we observe the formation of spatial rings, also called halos, which have been observed in other excitonic gases. These results tend to generalize the importance of high-energy populations in excitonic transport in TMD, even for complex and heavy excitonic particles.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports spatially and temporally resolved photoluminescence spectroscopy of biexcitons in an hBN-encapsulated monolayer WSe2 under high optical excitation flux. It claims that hot biexcitons generate a local temperature gradient that drives a Seebeck current, which in turn produces the observed spatial rings (halos) and modifies biexciton transport, thereby generalizing the role of high-energy populations to complex excitonic species in TMDs.

Significance. If the causal attribution to the Seebeck mechanism is quantitatively validated, the result would strengthen the emerging picture that non-equilibrium hot carriers influence excitonic transport even for heavier composite particles. The use of high-quality encapsulated samples and time-resolved imaging is a positive experimental feature; however, the absence of model-to-data comparisons limits the immediate impact on device-relevant modeling of nonlinear 2D optoelectronics.

major comments (2)
  1. [Abstract / final discussion paragraph] Abstract and final discussion paragraph: the central claim that a Seebeck current from hot biexcitons dominates halo formation requires (i) a measured local temperature rise tied to the biexciton population, (ii) a calculated current whose magnitude and direction reproduce the observed ring radius and expansion velocity, and (iii) controls that suppress the gradient while holding total exciton density fixed. None of these quantitative elements are supplied, leaving the exclusion of ordinary diffusion, density-dependent annihilation, and defect trapping as interpretive rather than demonstrated.
  2. [Results (spatial and temporal PL profiles)] Results section on spatial profiles: without reported values for the inferred temperature gradient, the biexciton Seebeck coefficient, or a forward model prediction versus measured halo size, it is impossible to assess whether the proposed thermal current is load-bearing or merely consistent with the data.
minor comments (2)
  1. [Methods / Experimental details] The manuscript should explicitly state the excitation fluence range, biexciton density threshold for halo appearance, and any fitting procedures or error bars used to extract transport parameters.
  2. [Time-resolved PL data] Clarify whether the time-resolved data show a measurable delay between biexciton population buildup and halo expansion that would be expected for a thermally driven current.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their detailed and constructive feedback on our manuscript. We have revised the paper to provide more quantitative support for the proposed Seebeck mechanism and address the concerns raised.

read point-by-point responses

  1. Referee: [Abstract / final discussion paragraph] Abstract and final discussion paragraph: the central claim that a Seebeck current from hot biexcitons dominates halo formation requires (i) a measured local temperature rise tied to the biexciton population, (ii) a calculated current whose magnitude and direction reproduce the observed ring radius and expansion velocity, and (iii) controls that suppress the gradient while holding total exciton density fixed. None of these quantitative elements are supplied, leaving the exclusion of ordinary diffusion, density-dependent annihilation, and defect trapping as interpretive rather than demonstrated.

    Authors: We agree that the central claim would benefit from stronger quantitative backing. In the revised manuscript, we have incorporated (i) measurements of the local temperature rise extracted from the high-energy PL tail and its correlation with biexciton population, (ii) calculations of the Seebeck current magnitude and direction that align with the observed ring radius and expansion velocity using a thermal drift model, and (iii) additional discussion on experimental controls, including data at varying excitation powers where the gradient is reduced. While direct suppression of the gradient at fixed density is not straightforward due to the nature of optical excitation, these additions make our interpretation more robust and less purely interpretive. revision: yes

  2. Referee: [Results (spatial and temporal PL profiles)] Results section on spatial profiles: without reported values for the inferred temperature gradient, the biexciton Seebeck coefficient, or a forward model prediction versus measured halo size, it is impossible to assess whether the proposed thermal current is load-bearing or merely consistent with the data.

    Authors: We have updated the Results section to include the inferred temperature gradient values from our spatial PL profiles. We now provide an estimate of the biexciton Seebeck coefficient derived from our data and relevant literature. A forward model has been added that predicts the halo size based on the thermal current, and this prediction is compared to the measured halo sizes, showing good agreement and indicating that the thermal current is a significant contributor to the transport. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental interpretation of observed halos rests on direct PL data rather than any derivation reducing to fitted inputs.

full rationale

The manuscript is an experimental study using spatially and temporally resolved photoluminescence spectroscopy on an hBN-encapsulated WSe2 monolayer at high excitation flux. The central claim attributes spatial rings (halos) to a temperature-gradient-induced Seebeck current from hot biexcitons. No equations, model fitting, or first-principles derivation chain appears in the abstract or described results; the attribution is presented as a qualitative interpretation of observed profiles at high flux. Because the work contains no self-referential prediction that is statistically forced by the same dataset, and no load-bearing self-citation chain or ansatz smuggling, the analysis is self-contained. External benchmarks (prior observations of halos in other excitonic gases) are cited but do not close a loop within this paper.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper is experimental and does not introduce new mathematical derivations. The central claim rests on standard assumptions of photoluminescence interpretation and sample quality after hBN encapsulation. No free parameters or invented entities are evident from the abstract.

axioms (1)
  • domain assumption High optical excitation produces a population of hot biexcitons whose excess energy creates a measurable temperature gradient.
    Invoked in the abstract to link excitation flux to the Seebeck current.
