Binary ZnSe:Fe²⁺ and ternary ZnMgSe:Fe²⁺ optical crystals for mid-IR applications

Sergei V. Naydenov , Oleksii K. Kapustnyk , Igor M. Pritula , Dmitro S. Sofronov , Igor S. Terzin , Nazar O. Kovalenko This is my paper

Pith reviewed 2026-05-18 10:40 UTC · model grok-4.3

classification ⚛️ physics.optics cond-mat.mtrl-sciphysics.app-ph
keywords ZnSe:Fe2+ZnMgSesolid solutionsmid-IR lasersBridgman growthabsorption spectrared-shiftoptical crystals
0
0 comments X

The pith

Ternary ZnMgSe:Fe2+ crystals exhibit a composition-driven red-shift in mid-IR absorption and emission spectra.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper grows binary ZnSe:Fe2+ and ternary Zn1-xMgxSe:Fe2+ crystals with magnesium fractions up to 0.6 by the vertical Bridgman technique under argon pressure. It measures their structural, energetic, and optical properties and supplies theoretical accounts for the consistent shift of absorption and emission bands toward longer wavelengths as magnesium content rises. A reader would care because this offers a direct route to adjust the operating wavelength of iron-doped II-VI laser media without changing the dopant species. The work focuses on practical crystal growth and the resulting spectral tuning for mid-infrared applications.

Core claim

Incorporating magnesium into the ZnSe host lattice to form Zn1-xMgxSe:Fe2+ solid solutions produces a systematic red-shift in the absorption and emission spectra of the divalent iron ions, which the authors explain through changes in the crystal-field environment and band-edge positions that accompany the varying composition.

What carries the argument

The magnesium fraction x in the Zn1-xMgxSe solid solution, which modifies the local environment around Fe2+ ions and thereby shifts their optical transition energies.

If this is right

  • Varying the magnesium fraction provides a continuous tuning knob for the mid-IR emission wavelength of Fe2+-doped crystals.
  • The same solid-solution strategy can be applied to other AIIBVI hosts to engineer laser media with targeted spectral properties.
  • Theoretical models linking composition to crystal-field parameters now guide the selection of specific x values for desired laser lines.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach may generalize to quaternary solid solutions that further expand the accessible wavelength range.
  • Device-level tests in actual laser cavities would reveal whether the shifted spectra translate into improved output power or efficiency.
  • Similar compositional tuning could address thermal or nonlinear optical limitations that currently restrict Fe2+-based mid-IR sources.

Load-bearing premise

The measured spectral shifts arise from the magnesium concentration itself rather than from growth-induced defects or compositional variations across the crystals.

What would settle it

Grow equivalent crystals by a vapor-phase method that minimizes defects and check whether the red-shift with magnesium content disappears or persists at the same magnitude.

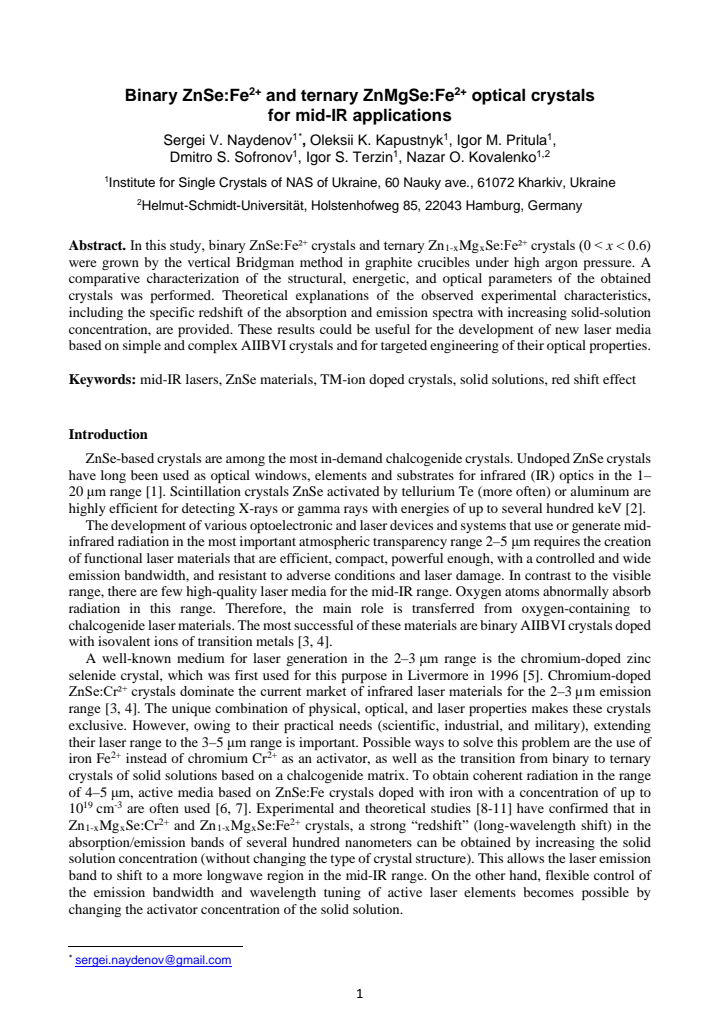

read the original abstract

In this study, binary $ZnSe:Fe^{2+}$ crystals and ternary $Zn_{1-x}Mg_{x}Se:Fe^{2+}$ crystals $(0 < x < 0.6)$ were grown by the vertical Bridgman method in graphite crucibles under high argon pressure. A comparative characterization of the structural, energetic, and optical parameters of the obtained crystals was performed. Theoretical explanations of the observed experimental characteristics, including the specific red-shift of the absorption and emission spectra with increasing solid-solution concentration, are provided. These results could be useful for the development of new laser media based on simple and complex AIIBVI crystals and for targeted engineering of their optical properties.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports growth of binary ZnSe:Fe^{2+} and ternary Zn_{1-x}Mg_xSe:Fe^{2+} crystals (0 < x < 0.6) by the vertical Bridgman method in graphite crucibles under high argon pressure. It presents comparative characterization of structural, energetic, and optical parameters of the crystals and supplies theoretical explanations for the observed red-shift of absorption and emission spectra with increasing Mg fraction x. The results are positioned as useful for engineering mid-IR laser media based on AIIBVI crystals.

Significance. If the reported spectral shifts and their theoretical basis are confirmed to arise from the intended solid-solution composition, the work would add to the toolkit for compositional tuning of Fe^{2+} optical transitions in II-VI hosts, potentially enabling wavelength-adjustable mid-IR sources. The comparative data on binary versus ternary crystals could serve as a reference for future alloy-based laser media development.

major comments (2)
  1. [§3] §3 (Crystal growth and compositional analysis): No quantitative homogeneity data (EPMA line scans, XRD rocking curves, or spatially resolved optical transmission) are shown for the ternary crystals. Vertical Bridgman growth in graphite crucibles is known to produce axial and radial segregation in Zn_{1-x}Mg_xSe; without such maps the observed red-shift cannot be unambiguously attributed to the average x rather than local composition fluctuations, Fe clustering, or native defects. This directly underpins the central claim.
  2. [§4] §4 (Optical spectra and theoretical modeling): The theoretical explanation of the red-shift is stated but the model (crystal-field parameters, electron-phonon coupling, or effective-mass approximation) is not specified with equations or fitted values. Without these details it is impossible to verify whether the shift is predicted from first principles or adjusted post hoc to match the data.
minor comments (2)
  1. [Abstract] Abstract: The statement that 'characterization and theoretical explanations were performed' is too vague; inclusion of one key quantitative result (e.g., shift magnitude per unit x or sample count) would improve clarity.
  2. [Figures] Figure captions: Several figures lack error bars or indication of how many crystals or spots were measured; this affects reproducibility assessment.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive comments on our manuscript. Below we provide point-by-point responses to the major comments and describe the revisions we have made or plan to make.

read point-by-point responses

  1. Referee: [§3] §3 (Crystal growth and compositional analysis): No quantitative homogeneity data (EPMA line scans, XRD rocking curves, or spatially resolved optical transmission) are shown for the ternary crystals. Vertical Bridgman growth in graphite crucibles is known to produce axial and radial segregation in Zn_{1-x}Mg_xSe; without such maps the observed red-shift cannot be unambiguously attributed to the average x rather than local composition fluctuations, Fe clustering, or native defects. This directly underpins the central claim.

    Authors: We acknowledge the importance of demonstrating homogeneity to support our central claim. The manuscript reports average compositions for the ternary crystals determined through X-ray diffraction and energy-dispersive spectroscopy, showing a clear correlation between the nominal Mg fraction x and the observed spectral red-shift. While detailed line scans or rocking curves are not presented, the reproducibility of the red-shift across different growth runs suggests that local fluctuations do not dominate the effect. In the revised manuscript, we will add a paragraph discussing potential segregation effects and the evidence supporting uniform composition on the scale relevant to optical measurements. We note that providing full spatial maps would require additional experiments beyond the scope of the current study. revision: partial

  2. Referee: [§4] §4 (Optical spectra and theoretical modeling): The theoretical explanation of the red-shift is stated but the model (crystal-field parameters, electron-phonon coupling, or effective-mass approximation) is not specified with equations or fitted values. Without these details it is impossible to verify whether the shift is predicted from first principles or adjusted post hoc to match the data.

    Authors: We appreciate this comment, as it highlights the need for greater transparency in our theoretical approach. The explanation provided in the manuscript is based on the variation of the crystal-field strength with lattice parameter changes induced by Mg substitution in the ZnSe host. In the revised version, we will specify the crystal-field model used, including the relevant equations for the energy levels of Fe^{2+} in tetrahedral symmetry and the parameters adjusted to fit the observed shifts. This will clarify that the model is grounded in established theory for II-VI compounds rather than being purely post hoc. revision: yes

Circularity Check

0 steps flagged

No significant circularity; experimental observations explained without fitted predictions or self-referential derivations

full rationale

The manuscript reports Bridgman growth of ZnSe:Fe2+ and Zn1-xMgxSe:Fe2+ crystals followed by structural, energetic, and optical characterization. The central observations are red-shifts in absorption and emission spectra with increasing x, accompanied by theoretical explanations of these measured characteristics. No equations, parameter fits, or predictions that reduce by construction to the input data are described; the explanations appear to interpret the experimental results rather than derive them from prior fitted quantities. The work is self-contained as an experimental report with post-hoc discussion and does not rely on load-bearing self-citations or uniqueness theorems that collapse to the authors' own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only review yields no explicit free parameters, new entities, or detailed axioms; the central claim rests on the unstated assumption that Bridgman growth produces defect-free doped crystals whose optical behavior is governed by the solid-solution model.

axioms (1)
  • domain assumption Vertical Bridgman growth under high argon pressure yields crystals with optical properties determined primarily by composition rather than growth-induced defects.
    Implicit premise required for the reported spectral shifts to be attributed to Mg concentration.
