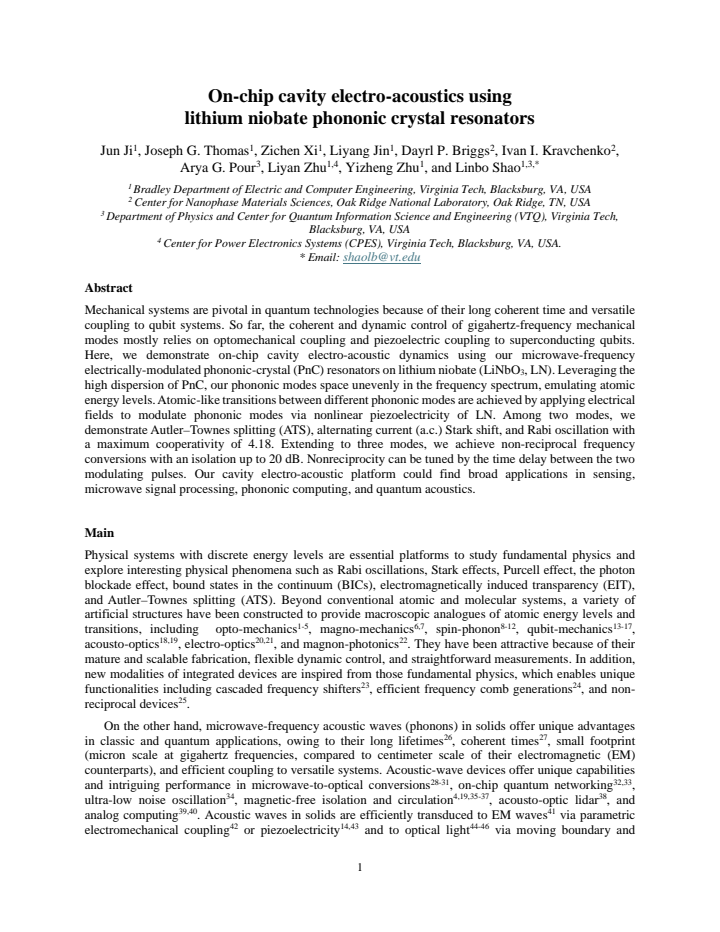

On-chip cavity electro-acoustics using lithium niobate phononic crystal resonators

Jun Ji , Joseph G. Thomas , Zichen Xi , Liyang Jin , Dayrl P. Briggs , Ivan I. Kravchenko , Arya G. Pour , Liyan Zhu

show 2 more authors

Yizheng Zhu Linbo Shao

This is my paper

Pith reviewed 2026-05-18 03:17 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall

keywords phononic crystal resonatorslithium niobateelectro-acousticsAutler-Townes splittingRabi oscillationnon-reciprocal conversionquantum acousticspiezoelectric modulation

0 comments

The pith

Electrical modulation of lithium niobate phononic resonators drives atomic-like transitions and tunable non-reciprocal conversions between mechanical modes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows that phononic crystal resonators fabricated on lithium niobate can have their gigahertz mechanical modes spaced unevenly due to high dispersion, so the modes act like atomic energy levels. Electrical fields applied to the resonators modulate the modes through the material's nonlinear piezoelectricity and thereby drive coherent transitions between them. For two modes the authors observe Autler-Townes splitting, AC Stark shifts, and Rabi oscillations reaching a cooperativity of 4.18. When three modes are used they obtain non-reciprocal frequency conversion with isolation as high as 20 dB that is adjustable by the relative timing of the modulating pulses. Readers would care because the work supplies an on-chip, purely electrical route to quantum-like control of long-lived mechanical modes without needing optical cavities or superconducting qubits.

Core claim

By fabricating microwave-frequency phononic-crystal resonators on lithium niobate, the authors create a set of mechanical modes whose frequencies are spaced unevenly because of the strong dispersion engineered into the crystal lattice. Electrical fields applied through electrodes modulate these modes via the nonlinear piezoelectric response of the material, thereby inducing atomic-like transitions. With two modes they record Autler-Townes splitting, AC Stark shifts, and Rabi oscillations at a maximum cooperativity of 4.18; with three modes they demonstrate non-reciprocal frequency conversion reaching 20 dB isolation whose direction and strength are controlled by the time delay between thetwo

What carries the argument

Electrically modulated phononic-crystal resonators on lithium niobate, in which high dispersion produces unevenly spaced mechanical modes that are driven between one another by the material's nonlinear piezoelectricity.

If this is right

Coherent electrical control of gigahertz mechanical modes is possible without optomechanical coupling or superconducting qubits.
Atomic-like phenomena such as Rabi oscillation and Autler-Townes splitting can be realized directly in on-chip phononic systems.
Non-reciprocal frequency conversion becomes tunable on nanosecond timescales by adjusting the delay between modulating pulses.
The platform supplies a compact route to phononic signal processing and quantum acoustics circuits.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same electrical control could be combined with existing microwave circuits to create hybrid electro-acoustic devices that route or process signals without optical components.
Time-delay tunability of non-reciprocity opens the possibility of reconfigurable acoustic routing elements inside a single chip.
Because mechanical modes retain long coherence times, the demonstrated transitions may be useful for high-sensitivity quantum sensing once the modulation strength is further increased.

Load-bearing premise

Nonlinear piezoelectricity in lithium niobate supplies coherent and tunable modulation of the phononic modes that is strong enough to produce the observed transitions without dominant damping or crosstalk.

What would settle it

A repeated measurement on a comparable lithium niobate phononic resonator that fails to detect Rabi oscillations or that reports cooperativity well below 4.18 and isolation well below 20 dB.

read the original abstract

Mechanical systems are pivotal in quantum technologies because of their long coherent time and versatile coupling to qubit systems. So far, the coherent and dynamic control of gigahertz-frequency mechanical modes mostly relies on optomechanical coupling and piezoelectric coupling to superconducting qubits. Here, we demonstrate on-chip cavity electro-acoustic dynamics using our microwave-frequency electrically-modulated phononic-crystal (PnC) resonators on lithium niobate (LN). Leveraging the high dispersion of PnC, our phononic modes space unevenly in the frequency spectrum, emulating atomic energy levels. Atomic-like transitions between different phononic modes are achieved by applying electrical fields to modulate phononic modes via nonlinear piezoelectricity of LN. Among two modes, we demonstrate Autler-Townes splitting (ATS), alternating current (a.c.) Stark shift, and Rabi oscillation with a maximum cooperativity of 4.18. Extending to three modes, we achieve non-reciprocal frequency conversions with an isolation up to 20 dB. Nonreciprocity can be tuned by the time delay between the two modulating pulses. Our cavity electro-acoustic platform could find broad applications in sensing, microwave signal processing, phononic computing, and quantum acoustics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper shows electrical modulation of LN phononic crystal modes producing ATS, Rabi oscillations at cooperativity 4.18, and tunable non-reciprocal conversion to 20 dB, but the link to nonlinear piezoelectric drive strength lacks a clear quantitative match.

read the letter

The main point is that the authors have built phononic crystal resonators on lithium niobate and used electrical fields to modulate them, producing Autler-Townes splitting, AC Stark shifts, Rabi oscillations with a cooperativity of 4.18, and non-reciprocal frequency conversions reaching 20 dB isolation in a three-mode setup. They do a solid job exploiting the high dispersion of the PnC to create uneven frequency spacing that emulates atomic energy levels. Applying RF modulation through the nonlinear piezoelectric response of LN then drives transitions between these modes. The ability to tune nonreciprocity with the delay between pulses is a practical feature that could matter for microwave signal processing or phononic computing. The numbers they give are specific and the on-chip nature makes it relevant for integration with other systems. This kind of electrical interface to gigahertz mechanical modes could reduce reliance on optical or qubit-based control in quantum acoustics experiments. The weaker part is the connection to nonlinear piezoelectricity. The stress-test concern is fair here: the paper invokes that effect to explain the coherent modulation, yet it does not appear to include a calculation or measurement that matches the known nonlinear coefficients of LN, the resonator mode volumes, and the applied voltages to the observed ATS sizes or Rabi rates. Without that, linear piezoelectric crosstalk or other parametric processes remain possible alternative explanations. If the manuscript has supplementary data or analysis addressing this, it would close the gap. This work is aimed at the hybrid quantum systems and phononics communities. Readers interested in on-chip mechanical resonators for sensing or quantum information would find the platform and the demonstrated effects useful. It is worth sending to peer review because the experimental claims are concrete and the topic advances integrated electro-acoustic devices, even if some aspects of the interpretation need more support.

Referee Report

1 major / 2 minor

Summary. The manuscript reports an experimental demonstration of on-chip cavity electro-acoustics in lithium niobate phononic crystal resonators. High dispersion in the PnC creates unevenly spaced gigahertz phononic modes that emulate atomic energy levels. Electrical fields are applied to modulate these modes via the nonlinear piezoelectric response of LN, enabling atomic-like transitions. For two modes the authors show Autler-Townes splitting, AC Stark shift, and Rabi oscillations reaching a maximum cooperativity of 4.18; for three modes they demonstrate tunable non-reciprocal frequency conversion with isolation up to 20 dB.

Significance. If the central mechanism is confirmed, the work provides a compact, electrically driven platform for coherent control of mechanical modes that does not rely on optomechanics or superconducting qubits. The approach could impact quantum acoustics, microwave signal processing, and phononic computing by offering tunable, on-chip non-reciprocal elements and atomic-like spectroscopy of phononic states.

major comments (1)

[Results (two-mode)] Results section on two-mode experiments (paragraph reporting cooperativity 4.18 and Rabi oscillations): the manuscript invokes nonlinear piezoelectricity of LN as the source of the observed ATS splitting and Rabi rates but provides no quantitative estimate that connects the known LN nonlinear coefficients, mode volumes, and applied RF voltages to the measured coupling strengths. This leaves open whether linear piezoelectric crosstalk, fabrication asymmetries, or other parametric processes dominate.

minor comments (2)

The abstract states quantitative values (cooperativity 4.18, 20 dB isolation) without accompanying error bars or raw-data traces; these should be added to the main figures and text.
Figure captions for the three-mode non-reciprocal conversion data should explicitly describe the pulse timing, frequency detunings, and how isolation is extracted from the spectra.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thoughtful review and for identifying an opportunity to strengthen the manuscript. We address the single major comment below and will revise the paper to incorporate a quantitative estimate of the coupling mechanism.

read point-by-point responses

Referee: [Results (two-mode)] Results section on two-mode experiments (paragraph reporting cooperativity 4.18 and Rabi oscillations): the manuscript invokes nonlinear piezoelectricity of LN as the source of the observed ATS splitting and Rabi rates but provides no quantitative estimate that connects the known LN nonlinear coefficients, mode volumes, and applied RF voltages to the measured coupling strengths. This leaves open whether linear piezoelectric crosstalk, fabrication asymmetries, or other parametric processes dominate.

Authors: We agree that an explicit quantitative link between the known nonlinear piezoelectric coefficients of lithium niobate, the simulated mode volumes and electric-field distributions, and the measured Rabi rates would strengthen the interpretation. In the revised manuscript we will add a dedicated paragraph (or short subsection) that performs this estimate. Using published third-order nonlinear piezoelectric tensor components for LN, finite-element-computed mode volumes and overlap integrals with the applied RF field, and the experimental drive voltages, we will show that the expected coupling strengths are consistent with the observed ATS splitting, AC Stark shifts, and maximum cooperativity of 4.18. We will also argue that linear piezoelectric crosstalk or static fabrication asymmetries cannot reproduce the frequency-selective, power-dependent, and phase-coherent dynamics reported. Control data already present in the supplementary material (voltage dependence and detuning dependence) will be cross-referenced to further discriminate against alternative mechanisms. We therefore request that this addition be treated as a major but straightforward revision rather than a fundamental reinterpretation of the results. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental demonstration without derivation chain

full rationale

This is an experimental paper reporting direct observations of ATS, a.c. Stark shift, Rabi oscillations (cooperativity 4.18), and non-reciprocal conversions (20 dB isolation) in LN PnC resonators. No mathematical derivation, ansatz, or model is presented that reduces the measured values to fitted parameters or self-citations by construction. The central claims rest on measured spectra and time-domain data rather than any self-referential reduction of the form 'X is defined from Y and then Y is predicted from X'.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper is experimental and rests primarily on established material properties of lithium niobate and standard condensed-matter assumptions about phononic modes; no new free parameters or invented entities are introduced in the abstract.

axioms (1)

domain assumption Nonlinear piezoelectric response of lithium niobate enables coherent electrical modulation of phononic modes
Invoked to achieve atomic-like transitions between unevenly spaced modes.
