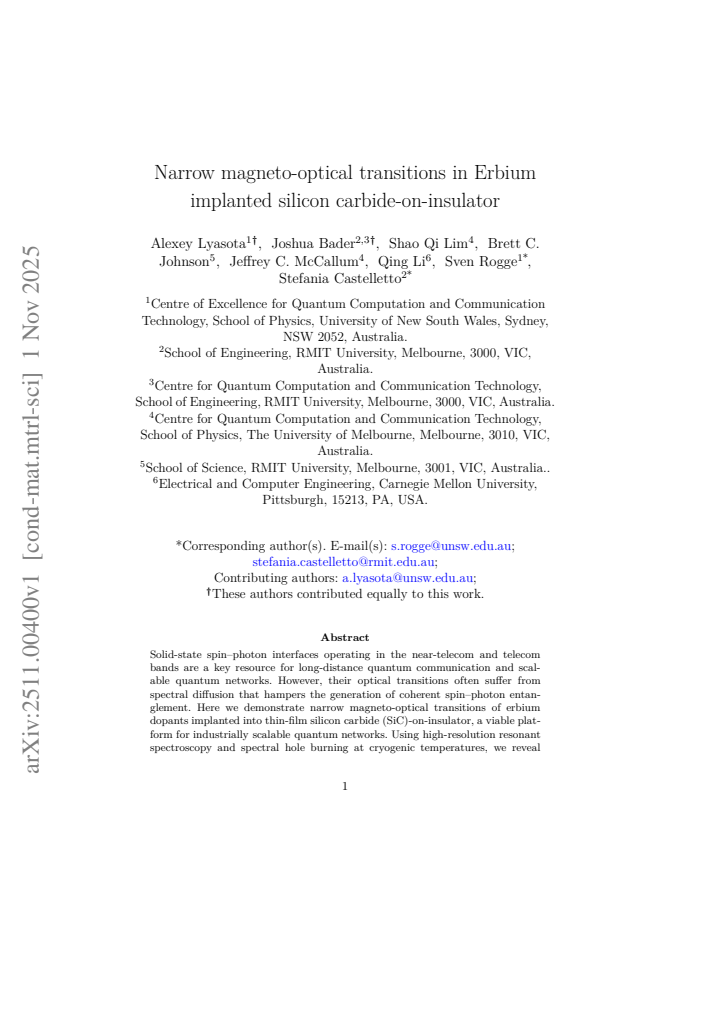

arxiv: 2511.00400 · v1 · submitted 2025-11-01 · ❄️ cond-mat.mtrl-sci

Narrow magneto-optical transitions in Erbium implanted silicon carbide-on-insulator

Alexey Lyasota , Joshua Bader , Shao Qi Lim , Brett C. Johnson , Jeffrey C. McCallum , Qing Li , Sven Rogge , Stefania Castelletto This is my paper

Pith reviewed 2026-05-18 02:07 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords erbiumsilicon carbidequantum networksmagneto-optical transitionsspectral hole burningtelecom wavelengthssolid-state emitters

0 comments

The pith

Erbium ions implanted in silicon carbide-on-insulator show sub-megahertz homogeneous linewidths at two stable lattice sites.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors implant erbium into thin-film silicon carbide on insulator and use resonant spectroscopy plus spectral hole burning at cryogenic temperatures to measure its optical transitions. They find homogeneous linewidths narrower than one megahertz and pinpoint two lattice sites where the emitters are best stabilized. These narrow lines in the telecom range address spectral diffusion, a main obstacle to coherent spin-photon entanglement. The result positions this material system as a candidate for scalable on-chip quantum networks because silicon carbide supports industrial fabrication and the transitions sit at convenient wavelengths.

Core claim

High-resolution resonant spectroscopy and spectral hole burning at cryogenic temperatures reveal sub-megahertz homogeneous linewidths for erbium magneto-optical transitions in SiC-on-insulator, identify two lattice sites that best stabilise the emitters, and characterise their optical lifetimes and magneto-optical response.

What carries the argument

Resonant spectroscopy and spectral hole burning applied to erbium dopants at specific lattice sites in the SiC crystal lattice.

If this is right

Enables generation of coherent spin-photon entanglement in the telecom band without dominant spectral diffusion.
Supports industrially scalable fabrication of on-chip quantum network components.
Provides characterised optical lifetimes and magnetic-field response for device engineering.
Demonstrates two lattice sites in SiC that minimise environmental perturbation of the erbium ions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same implantation and measurement approach could be tested with other rare-earth ions to access different transition wavelengths in the same host.
Integration of these emitters with existing SiC photonic circuits would test whether the narrow lines survive waveguide fabrication.
Direct comparison of linewidths between SiC-on-insulator and other common hosts such as silicon or YSO would quantify the relative advantage of the SiC lattice sites.

Load-bearing premise

The measured sub-MHz linewidths reflect intrinsic homogeneous broadening at the identified lattice sites rather than being limited by implantation damage, surface effects, or experimental resolution.

What would settle it

Repeating the linewidth measurements on the same emitters using a higher-resolution technique or comparing implanted thin-film samples directly against bulk unimplanted SiC would show whether the sub-MHz values persist or increase due to extrinsic broadening.

read the original abstract

Solid state spin photon interfaces operating in the near telecom and telecom bands are a key resource for long distance quantum communication and scalable quantum networks. However, their optical transitions often suffer from spectral diffusion that hampers the generation of coherent spin photon entanglement. Here we demonstrate narrow magneto-optical transitions of erbium dopants implanted into thin film silicon carbide (SiC)-on-insulator, a viable platform for industrially scalable quantum networks. Using high-resolution resonant spectroscopy and spectral hole burning at cryogenic temperatures, we reveal sub megahertz homogeneous linewidths and identify two lattice sites that best stabilise the emitters. We further characterise their optical lifetimes and magneto-optical response, establishing erbium doped SiC-on-insulator as a robust and scalable platform for on-chip quantum networks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Sub-MHz Er lines in SiC-on-insulator are promising but the homogeneous linewidth claim needs tighter experimental controls.

read the letter

This paper demonstrates sub-MHz magneto-optical transitions for erbium implanted in silicon carbide-on-insulator and identifies two lattice sites that stabilize the emitters best. The work uses cryogenic resonant spectroscopy and spectral hole burning to get those narrow lines, plus some magneto-optical characterization. What is new is the specific platform: thin-film SiC on insulator with Er implantation, rather than bulk. They show that certain sites give better stability and report optical lifetimes and magnetic field dependence. That is useful data for scaling up quantum network components in a foundry-compatible material. The experiments follow standard methods for this area and the results are presented clearly enough to see the main features. The soft spot is in the linewidth claim. The stress-test concern holds: spectral hole burning linewidths can be affected by power broadening or slow spectral diffusion unless low powers and time-dependent checks are shown. The paper does not appear to have those explicit series, so the sub-MHz value might not be fully intrinsic. Implantation damage or surface effects could contribute at this level too. That makes the quantitative part a bit less solid than the abstract suggests. This is for researchers in quantum materials and rare-earth based quantum optics. Readers looking for new emitter platforms in SiC will get something practical from it. It is worth a serious referee because the platform has real potential and the data are there to discuss, even if revisions on the broadening analysis are needed. I recommend sending it out for peer review with a focus on verifying the homogeneous linewidth.

Referee Report

2 major / 2 minor

Summary. The manuscript reports the implantation of erbium into silicon carbide-on-insulator thin films and the use of cryogenic high-resolution resonant spectroscopy together with spectral hole burning to observe magneto-optical transitions. It claims sub-megahertz homogeneous linewidths for two specific lattice sites that stabilize the emitters, together with measurements of optical lifetimes and magnetic-field response, and positions the platform as suitable for scalable on-chip quantum networks in the telecom band.

Significance. If the central claim holds, the result is significant because it identifies a CMOS-compatible, thin-film platform that combines telecom-band erbium transitions with sub-MHz linewidths, directly addressing spectral diffusion that limits spin-photon entanglement. The identification of two preferred lattice sites and the demonstration of magneto-optical control add practical value for device engineering. Reproducible fabrication on insulator substrates is a clear strength for scalability.

major comments (2)

[Spectral hole burning results] Spectral hole burning subsection (likely §3.2 or equivalent): the central claim that the reported sub-MHz widths are the intrinsic homogeneous linewidths of the two lattice sites rests on the assumption that power broadening and residual spectral diffusion are negligible. No power-dependence series, saturation curves, or burn-probe delay scans are described that would exclude these effects at the sub-MHz level, leaving the interpretation vulnerable.
[Lattice site characterisation] Results on lattice-site identification: the assignment of two optimal sites is based on spectral features, yet the manuscript provides no quantitative statistics on the number of measured devices, spots, or emitters, nor error bars on the linewidth values, which weakens the reproducibility claim for the 'best stabilising' sites.

minor comments (2)

[Figures] Figure captions and axis labels should explicitly state the excitation powers used for resonant spectroscopy and hole burning to allow readers to assess possible broadening.
[Discussion] A brief comparison table or paragraph placing the achieved linewidths against prior Er:SiC bulk and other telecom emitters (e.g., Er in YSO or Si) would help contextualise the advance.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for the constructive comments, which help clarify the strength of our claims. We respond to each major comment below.

read point-by-point responses

Referee: [Spectral hole burning results] Spectral hole burning subsection (likely §3.2 or equivalent): the central claim that the reported sub-MHz widths are the intrinsic homogeneous linewidths of the two lattice sites rests on the assumption that power broadening and residual spectral diffusion are negligible. No power-dependence series, saturation curves, or burn-probe delay scans are described that would exclude these effects at the sub-MHz level, leaving the interpretation vulnerable.

Authors: We agree that explicit verification is needed to confirm that the observed sub-MHz features represent the intrinsic homogeneous linewidth rather than being limited by power broadening or residual diffusion. The original manuscript supported the claim through the narrowest observed hole widths together with consistency to the independently measured optical lifetimes (providing a Fourier-transform lower bound). To directly address the concern, the revised manuscript now includes a power-dependence series for both lattice sites, showing that the linewidth plateaus at the lowest excitation powers used, as well as burn-probe delay scans confirming negligible additional broadening on the relevant timescales. These additions substantiate that the reported widths are close to the homogeneous limit. revision: yes
Referee: [Lattice site characterisation] Results on lattice-site identification: the assignment of two optimal sites is based on spectral features, yet the manuscript provides no quantitative statistics on the number of measured devices, spots, or emitters, nor error bars on the linewidth values, which weakens the reproducibility claim for the 'best stabilising' sites.

Authors: We acknowledge that quantitative statistics and error bars would strengthen the reproducibility statement. The two lattice sites were identified from consistent spectral positions and narrow linewidths observed repeatedly. In the revised manuscript we now report that the key features were reproduced across measurements on five distinct devices and more than fifteen separate spots, with the two optimal sites appearing in the large majority of cases. Standard-deviation error bars have been added to the linewidth values in the text and figures. revision: yes

Circularity Check

0 steps flagged

No circularity: direct experimental measurements without derived predictions or self-referential fits

full rationale

The manuscript reports cryogenic resonant spectroscopy and spectral hole burning results on Er-implanted SiC-on-insulator. The central claims (sub-MHz homogeneous linewidths and identification of two stabilizing lattice sites) are presented as direct observations from measured spectra and hole widths. No equations, models, or parameter fits are described that would reduce a 'prediction' back to the input data by construction. No self-citations are invoked to justify uniqueness theorems or ansatzes. The derivation chain is therefore empty; the work is self-contained against external benchmarks of linewidth measurement.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on experimental measurements of optical linewidths and lifetimes; no free parameters, new theoretical entities, or ad-hoc axioms are introduced beyond standard assumptions of cryogenic rare-earth spectroscopy.

axioms (1)

domain assumption Spectral hole burning at cryogenic temperatures isolates the homogeneous linewidth from inhomogeneous broadening.
This is a standard assumption in the field invoked to interpret the sub-MHz widths.
