arxiv: 2511.05860 · v2 · submitted 2025-11-08 · 💻 cs.IT · math.IT

CommUNext: Deep Learning-Based Cross-Band and Multi-Directional Signal Prediction

Chi-Jui Sung , Fan-Hao Lin , Tzu-Hao Huang , Chu-Hsiang Huang , Hui Chen , Chao-Kai Wen , Henk Wymeersch This is my paper

Pith reviewed 2026-05-18 00:26 UTC · model grok-4.3

classification 💻 cs.IT math.IT
keywords deep learningsignal strength predictioncross-band6G networksFR3ray tracingmeasurement gapsnetwork planning
0
0 comments X

The pith

CommUNext uses deep learning to predict high-frequency signal strength from low-frequency coverage data and partial measurements for 6G networks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a deep learning framework to infer signal characteristics in higher frequency ranges from observations at lower frequencies. Traditional physics-based simulations become too slow for large multi-band areas, and existing measurement techniques create throughput losses as more bands and beams are added. CommUNext combines low-frequency maps with limited crowd-sourced data at the target frequency to produce detailed high-frequency predictions. The work presents two variants, one for replacing offline simulations and one for filling gaps during operation. Experiments indicate the predictions stay accurate even when the amount of target-band data is kept small.

Core claim

CommUNext is a unified deep learning framework that generates high-fidelity Frequency Range 3 signal strength predictions by leveraging low-frequency coverage data together with crowd-aided partial measurements at the target band, thereby substituting for full ray-tracing simulations and reducing the frequency of inter-band measurements.

What carries the argument

CommUNext, a pair of complementary deep learning architectures (Full CommUNext for large-scale offline modeling and Partial CommUNext for real-time incomplete map reconstruction) that learn cross-band signal mappings from sparse supervision.

If this is right

  • Network planning can replace most ray-tracing runs with model inference, lowering computational cost for large areas.
  • Real-time systems can reduce inter-frequency measurement gaps, improving throughput and lowering latency during carrier aggregation and beam management.
  • Full-band cognition becomes more practical by allowing spectrum resources from FR1 through FR3 to be utilized jointly with lower overhead.
  • Sparse supervision at the target band is sufficient to maintain robust prediction accuracy across the tested scenarios.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same learned mapping could be tested for predicting secondary channel features such as angular spread or interference levels once the core signal-strength task is validated.
  • Field trials that feed live low-frequency reports into the Partial CommUNext variant would reveal whether the approach scales to dynamic user distributions.
  • Retraining or fine-tuning the model on data from one city and then testing zero-shot on another city would clarify the limits of cross-environment generalization.

Load-bearing premise

Low-frequency coverage data plus limited crowd-sourced measurements at the higher band contain enough information for a neural network to produce accurate high-frequency predictions without additional physics-based constraints or environment-specific validation.

What would settle it

Measure prediction error on a fresh set of high-frequency ground-truth data collected in an urban layout or frequency combination absent from the training environments; a sharp rise in error would indicate the model has not learned a general mapping.

Figures

Figures reproduced from arXiv: 2511.05860 by Chao-Kai Wen, Chi-Jui Sung, Chu-Hsiang Huang, Fan-Hao Lin, Henk Wymeersch, Hui Chen, Tzu-Hao Huang.

Figure 1
Figure 1. Figure 1: Automated data generation toolchain integrating OSM, Blender, [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

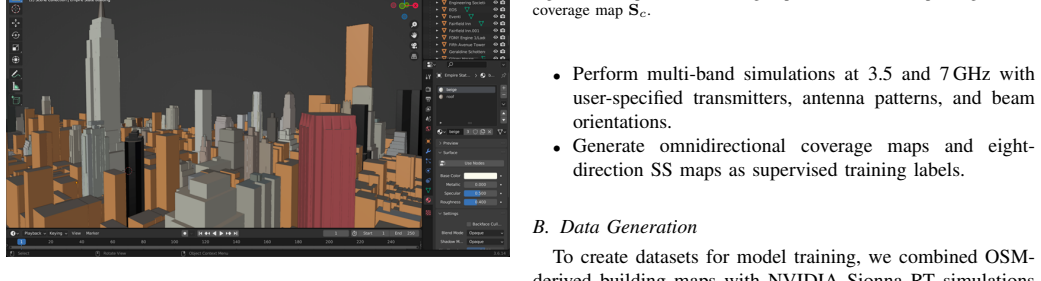

Figure 2. Figure 2: Example of importing OSM building data into Blender. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: Eight generated 7 GHz SS maps {Sd1, Sd2, . . . , Sd8}, showing beam concentration along pointing directions and variations caused by block￾ages. blocked; otherwise, it is classified as LoS. The NLoS mask MNLoS is defined as the complement of MLoS, with building interiors excluded. Hence, MLoS identifies pixels with unobstructed paths to the Tx, while MNLoS highlights free-space regions shadowed by building… view at source ↗
Figure 5

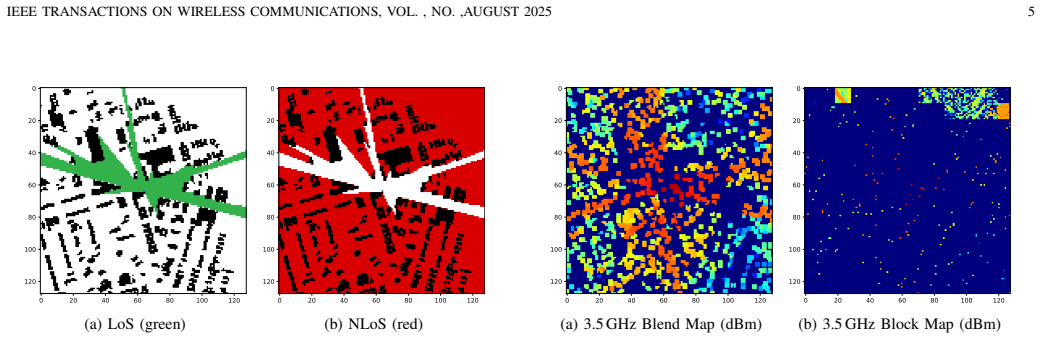

Figure 5. Figure 5: (a) LoS and (b) NLoS masks corresponding to the building map [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 7

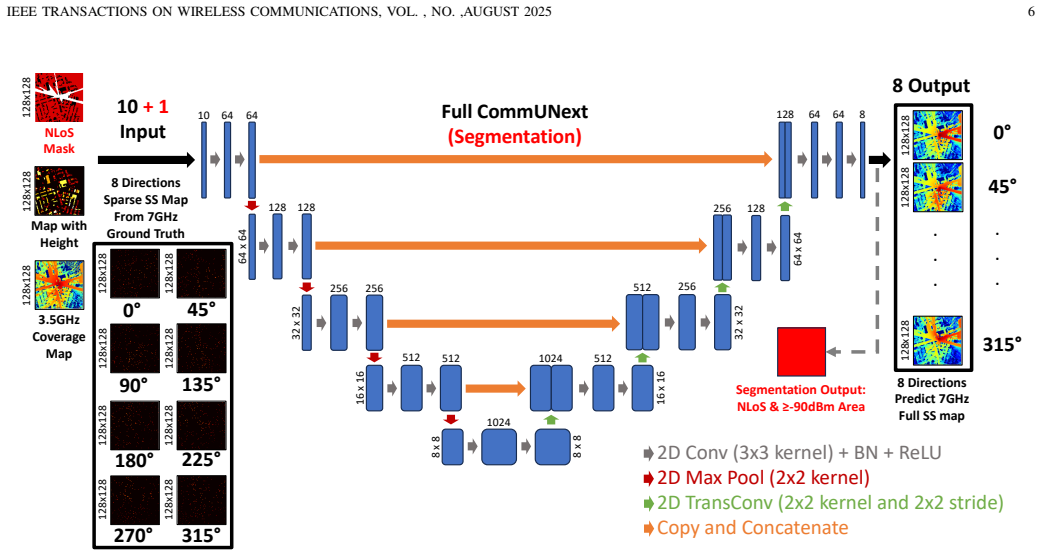

Figure 7. Figure 7: Full CommUNext and Seg architectures. multi-directional anchors that capture orientation-dependent attenuation. Corollary 1 (Incomplete Reference-Band Case): If Sc is unavailable and only Sec is observed, reconstructing Sbc ≈ E h Sc | B, Sec i (6) yields an MSE-optimal surrogate feature for the inner condi￾tional, thereby enabling transfer of cross-band knowledge to enhance prediction performance. Proof: W… view at source ↗
Figure 8
Figure 8. Figure 8: Partial CommUNext architecture. In summary, Full CommUNext realizes the Bayes predictor of Theorem 1 in practice by fusing complete low-frequency priors with sparse high-frequency directional anchors, while the Seg variant incorporates MNLoS as a structured prior to enhance robustness in NLoS regions. Remark 1 (Structured Prior via NLoS Mask): The NLoS mask MNLoS provides structured prior knowledge by expl… view at source ↗
Figure 9
Figure 9. Figure 9: Box plots of RMSE for Full CommUNext under different numbers of directional inputs. analyze how different sampling patterns affect the overall prediction accuracy and robustness of the model. A. Full CommUNext (With Complete 3.5 GHz Coverage Map) 1) Model Optimization Comparison: Full CommUNext is evaluated using two network variants introduced in Sec￾tion IV-B. The baseline U-Net employs only the regressi… view at source ↗
Figure 10
Figure 10. Figure 10: Comparison between ground truth and predictions under different conditions for three test maps (restricted to ground-truth regions with SS [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 11

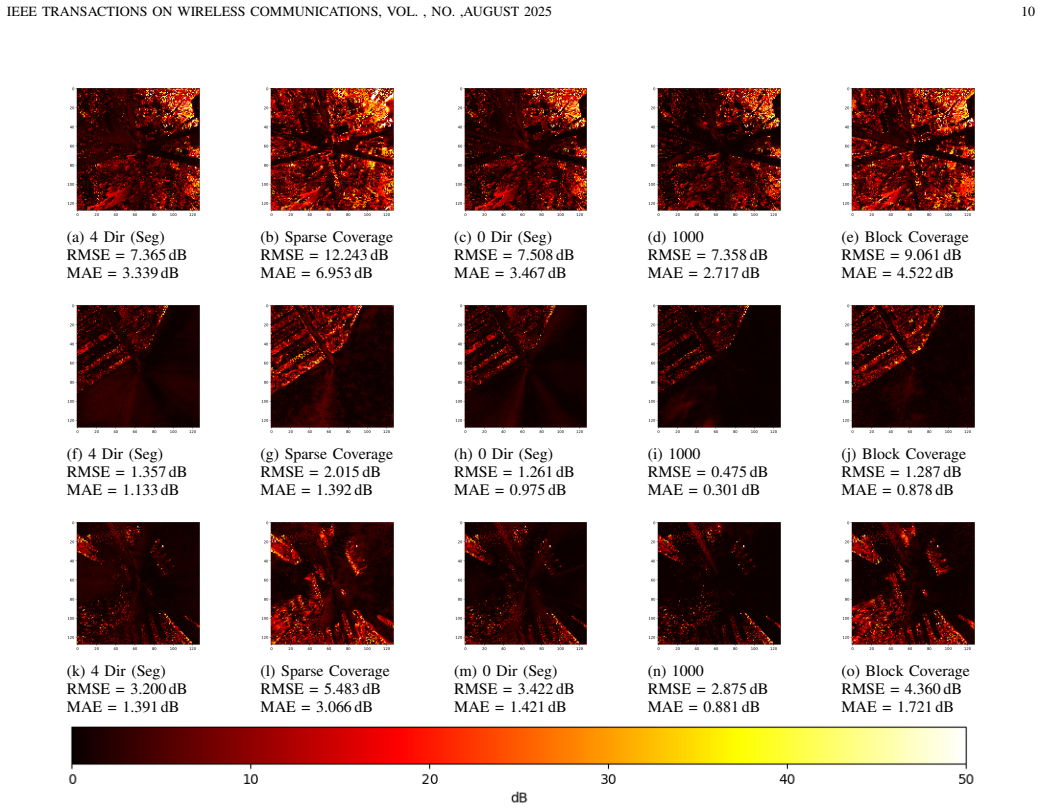

Figure 11. Figure 11: Absolute error maps under different conditions for three test maps. [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
read the original abstract

Sixth-generation (6G) networks are envisioned to achieve full-band cognition by jointly utilizing spectrum resources from Frequency Range 1 (FR1) to Frequency Range 3 (FR3, 7-24 GHz). Realizing this vision faces two challenges. First, physicsbased ray tracing (RT), the standard tool for network planning and coverage modeling, becomes computationally prohibitive for multi-band and multi-directional analysis over large areas. Second, current 5G systems rely on inter-frequency measurement gaps for carrier aggregation and beam management, which reduce throughput, increase latency, and scale poorly as bands and beams proliferate. These limitations motivate a datadriven approach to infer high-frequency characteristics from low-frequency observations. This work proposes CommUNext, a unified deep learning framework for cross-band, multi-directional signal strength (SS) prediction. The framework leverages lowfrequency coverage data and crowd-aided partial measurements at the target band to generate high-fidelity FR3 predictions. Two complementary architectures are introduced: Full CommUNext, which substitutes costly RT simulations for large-scale offline modeling, and Partial CommUNext, which reconstructs incomplete low-frequency maps to mitigate measurement gaps in real-time operation. Experimental results show that CommUNext delivers accurate and robust high-frequency SS prediction even with sparse supervision, substantially reducing both simulation and measurement overhead.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes CommUNext, a unified deep learning framework for cross-band and multi-directional signal strength (SS) prediction to support full-band cognition in 6G networks. It leverages low-frequency coverage data together with crowd-aided partial measurements at the target band to infer high-fidelity FR3 (7-24 GHz) characteristics. Two architectures are presented: Full CommUNext, intended to substitute computationally expensive ray-tracing simulations for large-scale offline modeling, and Partial CommUNext, intended to reconstruct incomplete low-frequency maps for real-time operation. The central empirical claim is that these models deliver accurate and robust high-frequency SS predictions even under sparse supervision, thereby substantially reducing both simulation and measurement overhead.

Significance. If the experimental claims are substantiated with rigorous validation, the work could meaningfully lower the computational and operational costs of multi-band network planning and beam management in 6G systems. Replacing or augmenting physics-based ray tracing with a data-driven predictor and mitigating inter-frequency measurement gaps would be a practical contribution to spectrum-efficient system design.

major comments (2)
  1. [Experimental Results] The central claim that CommUNext produces accurate and robust FR3 predictions rests on experimental results whose supporting details (datasets, model architectures, baselines, error metrics, and statistical significance) are not provided in sufficient depth to allow verification. This absence directly affects the ability to assess whether the reported accuracy holds under the stated sparse-supervision regime.
  2. [Discussion / Validation] The robustness claim requires that the learned mapping generalizes beyond training distributions and captures propagation physics rather than dataset-specific correlations. The manuscript does not report cross-environment hold-out tests, evaluation on new layouts or materials, or comparison against real-world measurements; without such evidence the generalization assumption remains unverified and is load-bearing for the claim of reduced overhead in practical deployments.
minor comments (2)
  1. [Abstract] The abstract states that 'experimental results show' accurate performance but supplies no quantitative figures; adding at least one representative metric (e.g., RMSE or coverage probability) would improve immediate readability.
  2. [Introduction] Notation for frequency ranges (FR1, FR3) and signal-strength abbreviations (SS, RT) should be defined at first use even if conventional in the field.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and the recommendation for major revision. We address each major comment below and indicate the changes planned for the revised manuscript.

read point-by-point responses

  1. Referee: [Experimental Results] The central claim that CommUNext produces accurate and robust FR3 predictions rests on experimental results whose supporting details (datasets, model architectures, baselines, error metrics, and statistical significance) are not provided in sufficient depth to allow verification. This absence directly affects the ability to assess whether the reported accuracy holds under the stated sparse-supervision regime.

    Authors: We agree that greater detail on the experimental setup is needed to support verification and reproducibility. In the revised manuscript we will expand Section IV (and the associated supplementary material) with: (i) full descriptions of the ray-tracing datasets, including sizes, generation parameters, and sparsity patterns; (ii) complete architectural specifications and hyper-parameter tables for both Full and Partial CommUNext; (iii) explicit configurations of all baselines; (iv) precise definitions and formulas for every error metric; and (v) statistical significance results (confidence intervals and paired tests). These additions will directly substantiate the accuracy claims under sparse supervision. revision: yes

  2. Referee: [Discussion / Validation] The robustness claim requires that the learned mapping generalizes beyond training distributions and captures propagation physics rather than dataset-specific correlations. The manuscript does not report cross-environment hold-out tests, evaluation on new layouts or materials, or comparison against real-world measurements; without such evidence the generalization assumption remains unverified and is load-bearing for the claim of reduced overhead in practical deployments.

    Authors: We acknowledge that stronger evidence of generalization is required to support the robustness claim. Our present experiments already evaluate performance across multiple simulated environments and sparsity levels, and we include ablation studies that link prediction accuracy to physically meaningful features. Nevertheless, we agree that explicit cross-environment hold-out tests and material/layout variations would strengthen the paper. In the revision we will add such hold-out results within the simulation framework and expand the discussion to clarify the extent to which the model captures propagation physics versus dataset correlations. We will also explicitly note the current absence of real-world measurement comparisons and state that such validation is planned as future work, thereby avoiding over-claim while addressing the practical-deployment concern. revision: partial

Circularity Check

0 steps flagged

No circularity: purely empirical DL framework with no self-referential derivation

full rationale

The paper introduces CommUNext as a data-driven deep learning model that maps low-frequency observations to high-frequency signal strength predictions. The central claims rest on experimental results showing accuracy under sparse supervision, without any derivation chain, fitted parameters renamed as predictions, or load-bearing self-citations. No equations or uniqueness theorems are invoked that reduce to the model's own training inputs by construction. The approach is self-contained as an empirical ML method whose validity is tested against held-out measurements or simulations, consistent with standard practice for such frameworks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no explicit free parameters, axioms, or invented entities; the approach implicitly relies on standard supervised deep-learning assumptions about data availability and generalization.
