The pith

A new dataset of about 8000 posters with reading order and parent-child annotations, paired with a Layout Tree Decoder, improves accuracy on spatially challenging relations like upward and long-distance ones.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs SciPostLayoutTree, a dataset of approximately 8000 scientific posters annotated with reading order and parent-child relations to address the gap in structural analysis that has mostly targeted papers instead of posters. The dataset deliberately includes more instances of difficult spatial configurations such as upward, horizontal, and long-distance relations. The authors introduce the Layout Tree Decoder, which combines visual features with bounding box information on position and category, and applies beam search to ensure sequence-level plausibility when predicting relations. Experiments indicate that this approach raises accuracy specifically on the spatially hard cases while setting an initial baseline for the task. The work supports future structure-aware interfaces that help users extract research content more reliably from posters.

Core claim

The central claim is that SciPostLayoutTree supplies a large collection of posters with reading order and parent-child annotations that feature more spatially challenging relations than earlier datasets, and that the Layout Tree Decoder, by integrating visual features with bounding box position and category details plus beam search, raises prediction accuracy for those relations and supplies a working baseline for poster structure analysis.

What carries the argument

Layout Tree Decoder that fuses visual features with bounding box position and category information and applies beam search to select relation sequences with overall plausibility.

If this is right

  • More accurate extraction of logical structure from posters that use non-standard layouts.
  • Support for interfaces that present poster content in the correct sequence for readers.
  • A measurable baseline against which future models for poster parsing can be compared.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The dataset could enable automatic conversion of posters into accessible text or audio summaries that respect original reading order.
  • Similar annotation schemes and decoding methods might transfer to analyzing conference slides or scientific infographics.
  • Standardized structural labels could help train models that compare how different researchers visually organize the same findings.

Load-bearing premise

The human annotations for reading order and parent-child relations are consistent across posters and correctly capture the intended structure.

What would settle it

A replication study in which independent annotators relabel a subset of the posters and show low agreement on reading order or parent-child links, or in which the proposed decoder fails to outperform simpler baselines on the subset of upward, horizontal, and long-distance relations.

Figures

Figures reproduced from arXiv: 2511.18329 by Atsushi Hashimoto, Shohei Tanaka, Yoshitaka Ushiku.

Figure 1
Figure 1. Figure 1: Example from SciPostLayoutTree. Each arrow denotes [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

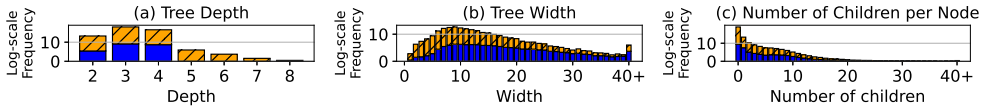

Figure 2. Figure 2: Distributions of tree depth, tree width, and number of children per node. SciPostLayoutTree (blue) and DocHieNet (orange [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

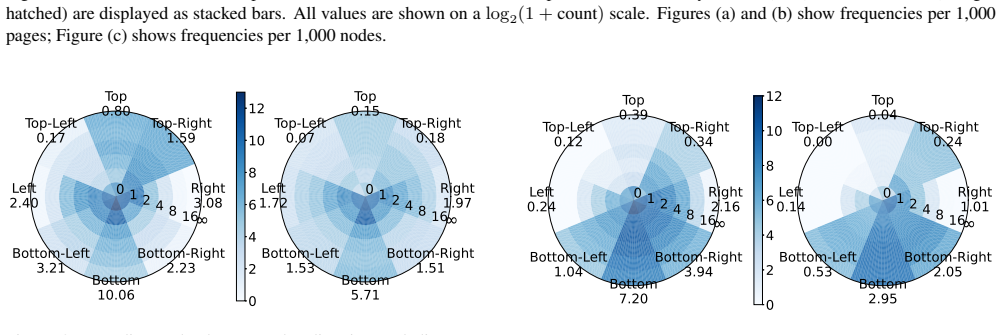

Figure 3. Figure 3: Reading order heatmaps by direction and distance. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 5

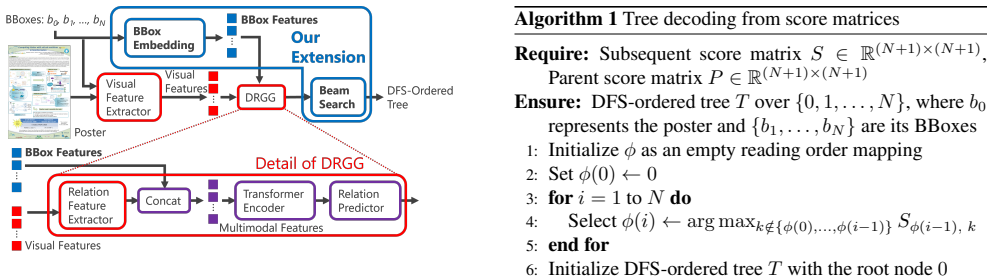

Figure 5. Figure 5: Overview of Layout Tree Decoder. We extend DRGG [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 9

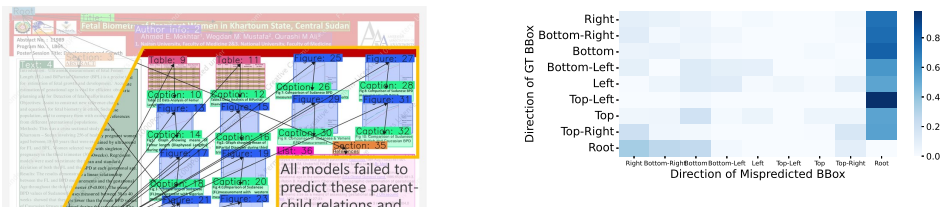

Figure 9. Figure 9: Distribution of parent-child prediction failures for each [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 8

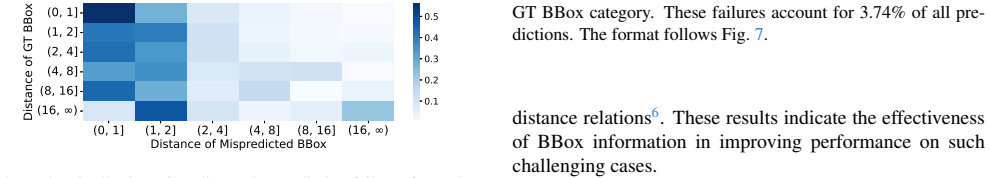

Figure 8. Figure 8: Distribution of reading order prediction failures for each [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 12
Figure 12. Figure 12: Heatmap of reading order frequencies in SciPost [PITH_FULL_IMAGE:figures/full_fig_p011_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Heatmap of parent-child relation frequencies in Sci [PITH_FULL_IMAGE:figures/full_fig_p011_13.png] view at source ↗
Figure 14

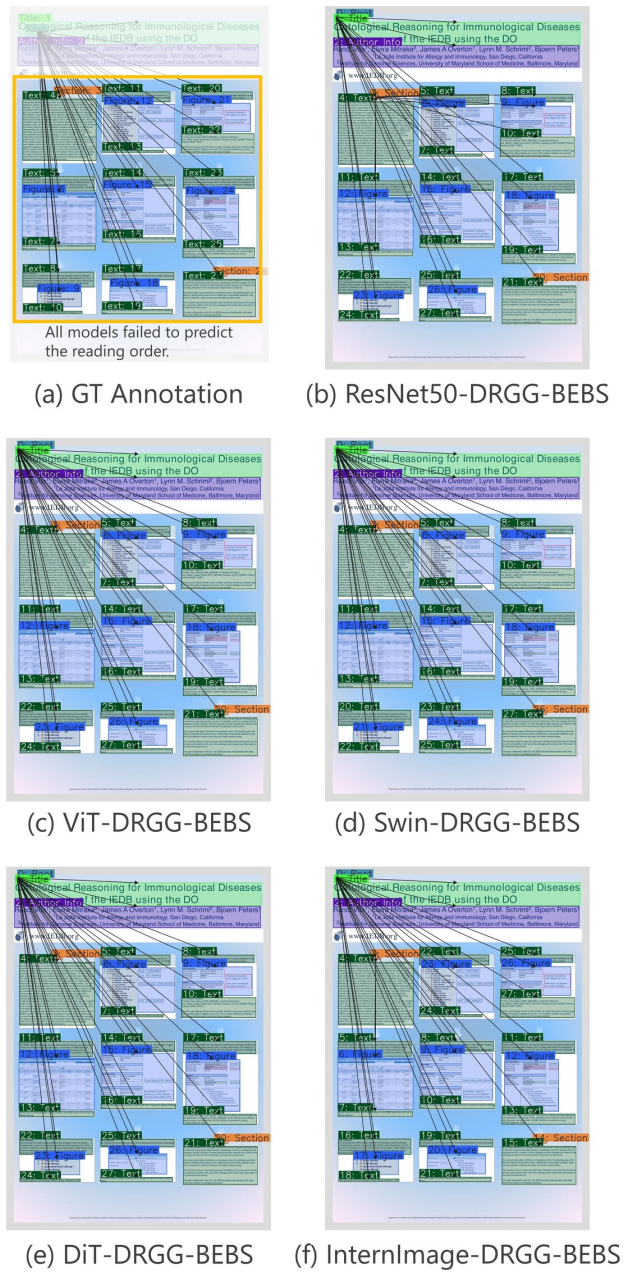

Figure 14. Figure 14: Example of a poster with the GT annotation and the predicted trees. The predicted trees received low STEDS (42.70). [PITH_FULL_IMAGE:figures/full_fig_p017_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Example of a poster with the GT annotation and the predicted trees. The predicted trees received low STEDS (25.71). [PITH_FULL_IMAGE:figures/full_fig_p018_15.png] view at source ↗
Figure 16

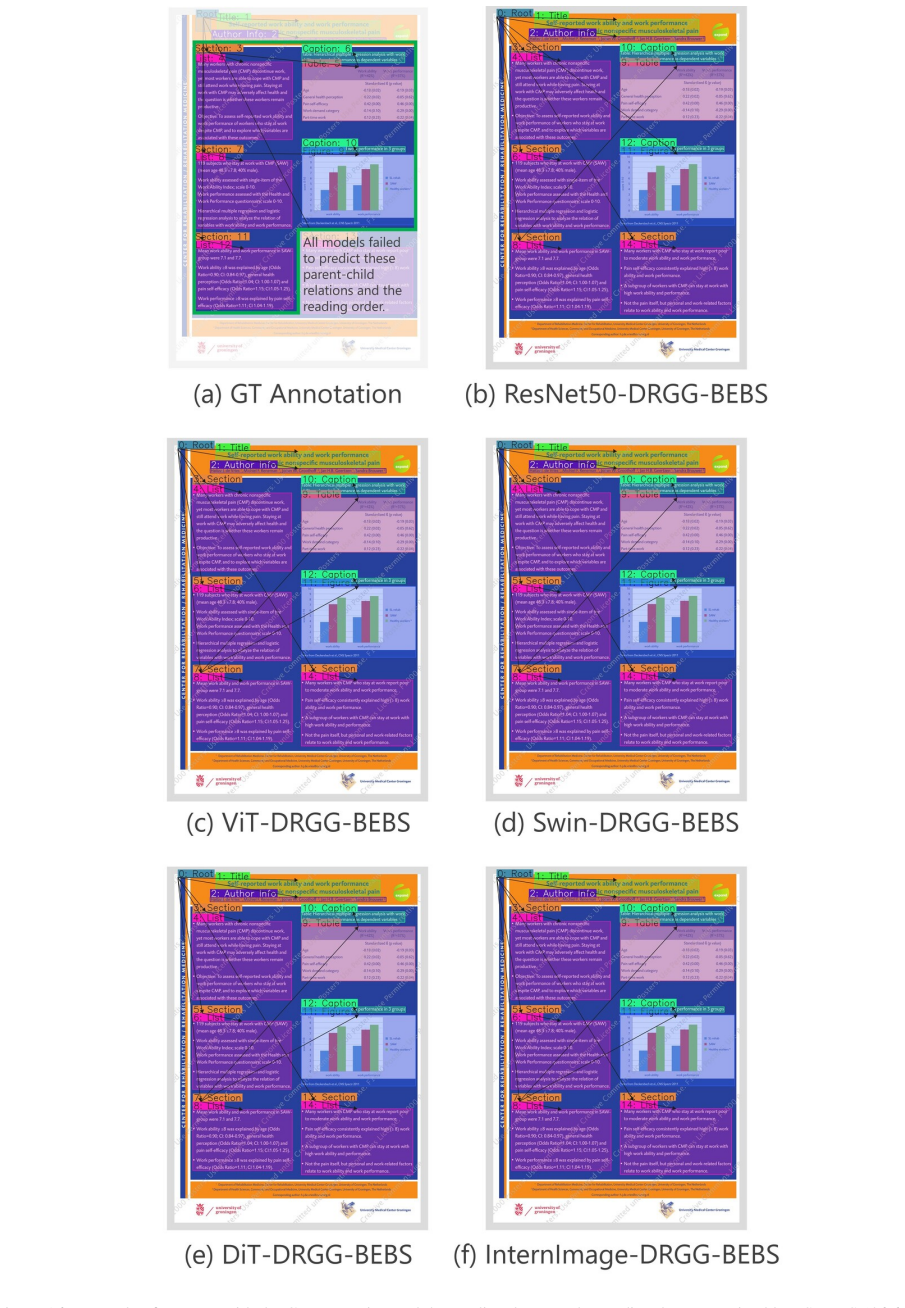

Figure 16. Figure 16: Example of a poster with the GT annotation and the predicted trees. The predicted trees received low STEDS (46.67). [PITH_FULL_IMAGE:figures/full_fig_p019_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Example of a poster with the GT annotation and the predicted trees. The predicted trees received low STEDS (53.68). [PITH_FULL_IMAGE:figures/full_fig_p020_17.png] view at source ↗
Figure 18

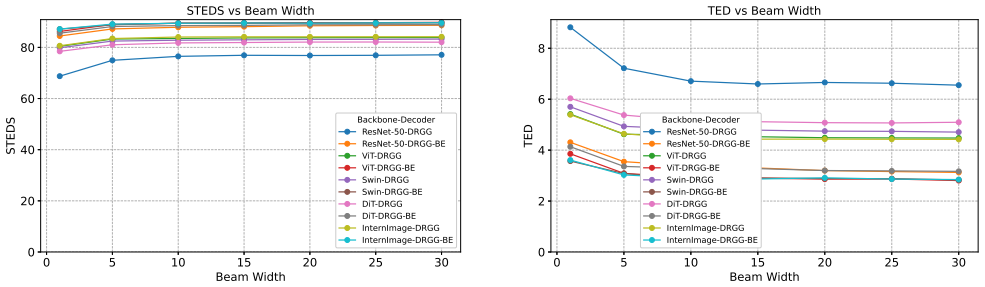

Figure 18. Figure 18: Effect of beam width on STEDS performance [PITH_FULL_IMAGE:figures/full_fig_p021_18.png] view at source ↗
Figure 19

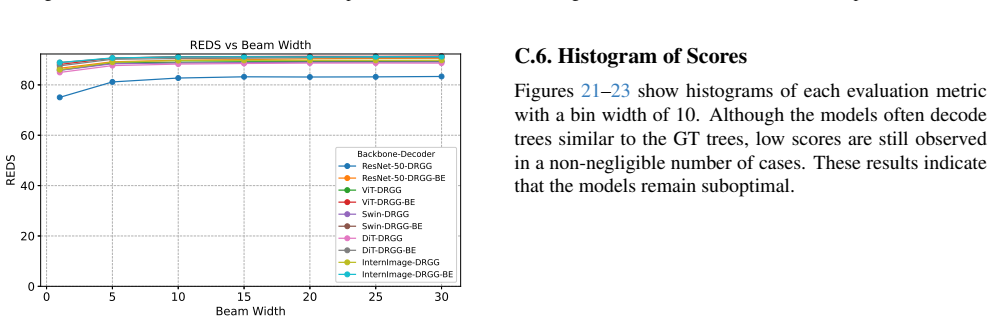

Figure 19. Figure 19: Effect of beam width on REDS performance [PITH_FULL_IMAGE:figures/full_fig_p021_19.png] view at source ↗
Figure 21
Figure 21. Figure 21: Histogram of STEDS with a bin width of 10 [PITH_FULL_IMAGE:figures/full_fig_p023_21.png] view at source ↗
Figure 22
Figure 22. Figure 22: Histogram of REDS with a bin width of 10 [PITH_FULL_IMAGE:figures/full_fig_p024_22.png] view at source ↗
Figure 23

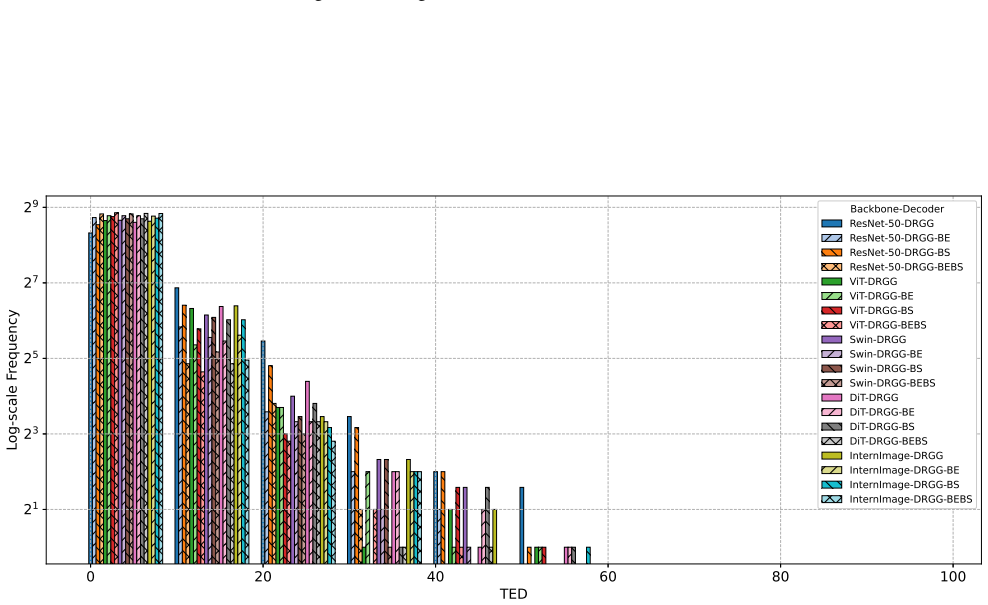

Figure 23. Figure 23: Histogram of TED with a bin width of 10 24 [PITH_FULL_IMAGE:figures/full_fig_p024_23.png] view at source ↗
read the original abstract

Scientific posters play a vital role in academic communication by presenting ideas through visual summaries. Analyzing reading order and parent-child relations of posters is essential for building structure-aware interfaces that facilitate clear and accurate understanding of research content. Despite their prevalence in academic communication, posters remain underexplored in structural analysis research, which has primarily focused on papers. To address this gap, we constructed SciPostLayoutTree, a dataset of approximately 8,000 posters annotated with reading order and parent-child relations. Compared to an existing structural analysis dataset, SciPostLayoutTree contains more instances of spatially challenging relations, including upward, horizontal, and long-distance relations. As a solution to these challenges, we develop Layout Tree Decoder, which incorporates visual features as well as bounding box features including position and category information. The model also uses beam search to predict relations while capturing sequence-level plausibility. Experimental results demonstrate that our model improves the prediction accuracy for spatially challenging relations and establishes a solid baseline for poster structure analysis. The dataset is publicly available at https://huggingface.co/datasets/omron-sinicx/scipostlayouttree. The code is also publicly available at https://github.com/omron-sinicx/scipostlayouttree.
