Parametric processes in nonlinear structures with reflections: an asymptotic-field approach

Tadeu Tassis , Salvador Poveda-Hospital , Nicol\'as Quesada , Martin Houde This is my paper

Pith reviewed 2026-05-17 02:23 UTC · model grok-4.3

classification 🪐 quant-ph
keywords asymptotic fieldsnonlinear opticsFabry-Pérot cavityphoton-pair generationparametric down-conversionscattering theoryquantum optics
0
0 comments X p. Extension

The pith

The asymptotic-fields formalism can model nonlinear processes in Fabry-Pérot cavities once reflections are explicitly included.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to show that the asymptotic-fields formalism, a scattering-theory method, can be used for nonlinear optical processes inside a Fabry-Pérot cavity when reflections from the mirrors are taken into account. The authors derive the corresponding interaction Hamiltonian and apply perturbation theory to obtain photon-pair generation rates. They demonstrate the approach on three cases: spontaneous parametric down-conversion in an idealized flat-mirror cavity, counter-propagating pairs in a periodically poled crystal, and spontaneous four-wave mixing in a Bragg-reflector cavity. A sympathetic reader would care because such modeling helps predict how resonant structures can enhance or shape quantum light for photonic technologies.

Core claim

By extending the asymptotic-fields formalism to include reflections, an interaction Hamiltonian for parametric processes inside a Fabry-Pérot cavity can be derived, from which perturbative photon-pair generation rates follow directly.

What carries the argument

The asymptotic-fields formalism based on scattering theory, now extended to incorporate cavity reflections.

If this is right

  • Photon-pair generation rates follow for spontaneous parametric down-conversion in an idealized cavity with flat-response mirrors.
  • Rates for counter-propagating pairs can be calculated in a periodically poled nonlinear material inside the cavity.
  • Rates for spontaneous four-wave mixing become obtainable in a cavity formed by Bragg reflectors.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same extension could be tried on other resonant structures whose mirrors produce more complicated reflection spectra.
  • The derived Hamiltonian might be used to explore how cavity parameters control the spectrum or entanglement of the generated photon pairs.
  • Numerical or experimental checks against full-wave simulations would clarify the range of cavity finesse where the perturbative rates remain accurate.

Load-bearing premise

The asymptotic-fields formalism remains valid when reflections from the cavity mirrors are added to the description of nonlinear optical processes.

What would settle it

Direct comparison of the model's predicted photon-pair rates against measured rates in a real Fabry-Pérot cavity containing a nonlinear medium would test whether the extension holds.

Figures

Figures reproduced from arXiv: 2512.01999 by Martin Houde, Nicol\'as Quesada, Salvador Poveda-Hospital, Tadeu Tassis.

Figure 1
Figure 1. Figure 1: FIG. 1. Sketch of a scattering problem in quantum nonlinear [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

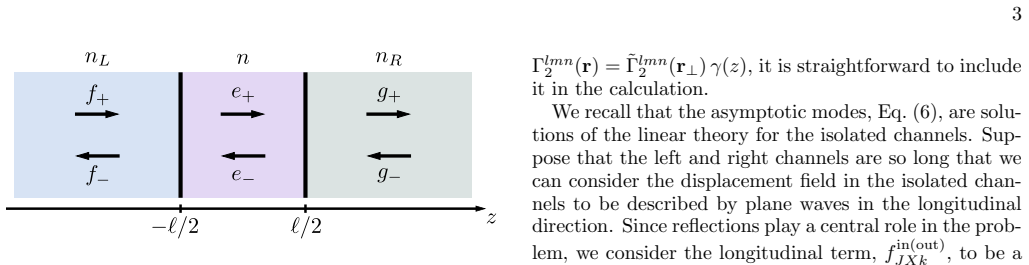

Figure 2. Figure 2: FIG. 2. Illustration of a Fabry-P´erot cavity. The left (L) [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Sketch of the asymptotic conditions on the mode am [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

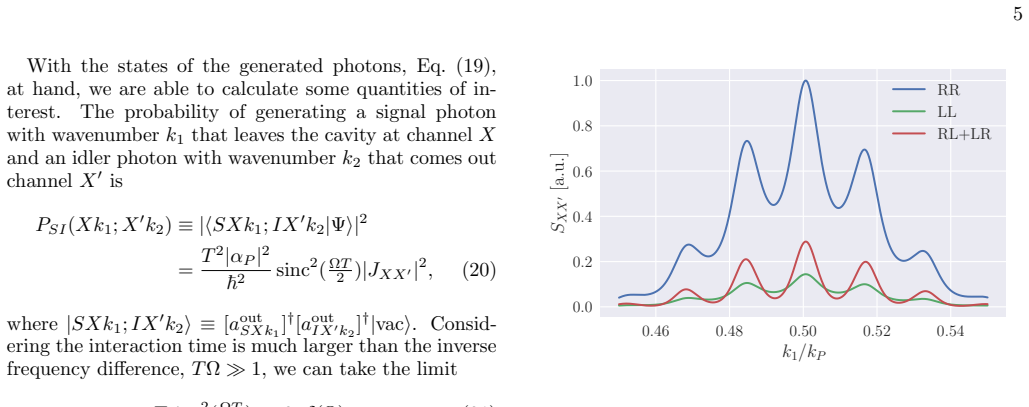

Figure 4. Figure 4: FIG. 4. Spectral distribution of signal photons as a function [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

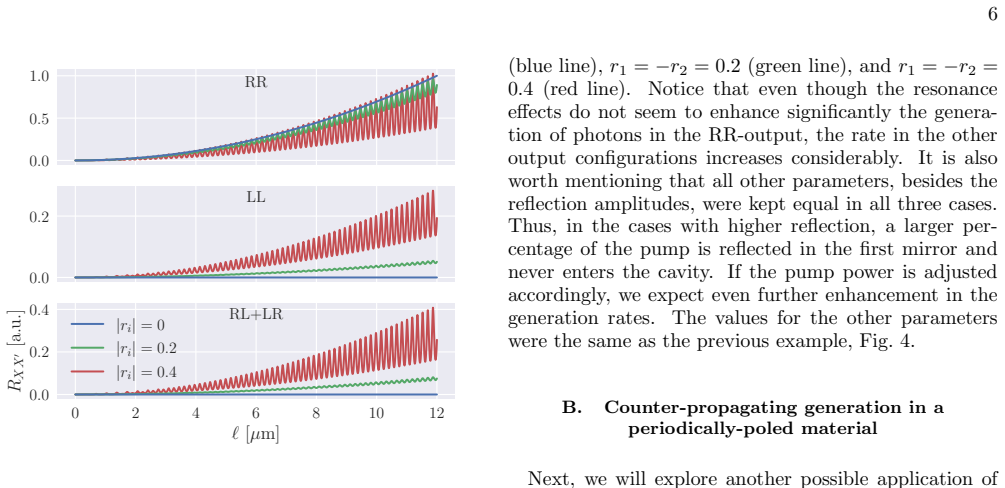

Figure 5. Figure 5: FIG. 5. Total rate of pair generation as a function of the [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Total rate of pair generation for a periodically-poled [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Spectral distribution of signal photons generated via [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
read the original abstract

The generation of engineered quantum states of light via nonlinear processes is fundamental for quantum technologies based on photons. Although embedding nonlinear materials within resonant structures allows for the enhancement and tailoring of photon properties, accurately modeling these quantum interactions remains a challenge. In this work, we apply the asymptotic-fields formalism, an approach based on scattering theory, to describe nonlinear optical processes within a Fabry-P\'erot cavity. Unlike previous applications of this formalism, we explicitly account for reflections in the system. We derive the interaction Hamiltonian and calculate photon-pair generation rates using perturbation theory. The versatility of this model is illustrated through three examples: (i) spontaneous parametric down-conversion in an idealized cavity with flat-response mirrors; (ii) the generation of counter-propagating photon pairs in a periodically-poled material; and (iii) spontaneous four-wave mixing in a cavity built with Bragg reflectors.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper applies the asymptotic-fields formalism from scattering theory to nonlinear optical processes in a Fabry-Pérot cavity, explicitly incorporating reflections from the mirrors. It derives the interaction Hamiltonian and computes photon-pair generation rates via perturbation theory for three cases: spontaneous parametric down-conversion in an idealized cavity, generation of counter-propagating photon pairs in a periodically-poled material, and spontaneous four-wave mixing in a cavity with Bragg reflectors.

Significance. If the central derivation is correct, this approach provides a valuable extension of scattering-theory methods to cavity systems, allowing for the modeling of reflection effects in quantum light generation. This could aid in the design of enhanced sources for quantum technologies. The explicit calculations in multiple examples demonstrate the model's versatility and offer concrete predictions that can be tested experimentally.

major comments (2)
  1. The extension of asymptotic fields to include reflections must ensure that the in/out states remain well-defined and the S-matrix unitary. The manuscript should explicitly show how multiple reflections are accounted for without altering the asymptotic behavior or introducing inconsistencies in the mode normalization.
  2. In the calculation of photon-pair generation rates, confirm that the density of states inside the cavity is correctly modified by the reflections; otherwise, the rates may not match known cavity QED results for the three examples.
minor comments (2)
  1. Ensure all equations are numbered and referenced clearly in the text.
  2. Add a comparison table or plot showing agreement with standard methods for at least one example.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and constructive feedback on our manuscript. We address each of the major comments in detail below and have made revisions to clarify the points raised.

read point-by-point responses

  1. Referee: The extension of asymptotic fields to include reflections must ensure that the in/out states remain well-defined and the S-matrix unitary. The manuscript should explicitly show how multiple reflections are accounted for without altering the asymptotic behavior or introducing inconsistencies in the mode normalization.

    Authors: We agree that demonstrating the well-defined nature of the in and out states and the unitarity of the S-matrix is essential. In the original manuscript, the asymptotic fields are defined in the far-field regions where the influence of the cavity mirrors is negligible, preserving their free propagation characteristics. Multiple reflections are accounted for by solving the wave equation with appropriate boundary conditions at the mirrors, which modifies the internal field amplitudes but leaves the external asymptotic modes normalized as plane waves. To make this explicit, we have added a paragraph in Section 2 explaining the construction of the S-matrix and included a note on unitarity preservation due to the Hermitian nature of the interaction Hamiltonian. We believe this addresses the concern without requiring major changes to the core derivation. revision: yes

  2. Referee: In the calculation of photon-pair generation rates, confirm that the density of states inside the cavity is correctly modified by the reflections; otherwise, the rates may not match known cavity QED results for the three examples.

    Authors: Thank you for this important remark. Our calculations of the photon-pair rates in the three examples incorporate the effects of reflections through the modified mode functions in the interaction Hamiltonian, which effectively alters the density of states. For the idealized cavity, the rate includes a factor proportional to the finesse, consistent with cavity QED enhancements. Similarly for the other cases. However, to confirm explicitly and ensure matching with known results, we have expanded the discussion in the results section and added a comparison table or references to standard cavity QED formulas in the revised manuscript. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation extends scattering formalism to reflections via explicit Hamiltonian construction

full rationale

The paper starts from the established asymptotic-fields formalism (scattering-theory based) and explicitly augments it by incorporating mirror reflections into the mode structure and interaction Hamiltonian for a Fabry-Pérot cavity. Photon-pair rates for the three examples are then obtained from first-order perturbation theory applied to this derived Hamiltonian. No equation reduces to a fitted input renamed as a prediction, no self-citation chain is required to close the central claim, and the uniqueness of the approach is not imported from prior author work as an unverified theorem. The derivation remains self-contained against external benchmarks of scattering theory and cavity QED, with the new content residing in the consistent inclusion of reflections rather than any tautological redefinition.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the applicability of the asymptotic-fields formalism to a cavity geometry that includes reflections, treated as a domain assumption rather than derived from first principles within the paper.

axioms (1)
  • domain assumption Asymptotic-fields formalism from scattering theory can be extended to explicitly include reflections in a Fabry-Pérot cavity while preserving its validity for nonlinear processes.
    Invoked to justify the derivation of the interaction Hamiltonian for the reflective system.

pith-pipeline@v0.9.0 · 5452 in / 1157 out tokens · 31208 ms · 2026-05-17T02:23:41.985197+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

26 extracted references · 26 canonical work pages

  1. [1]

    undepleted pump regime

    b) Asymptotic-out field for channel 4. undepleted pump regime. And, finally, we may be able to describe nonlinear processes that cannot be linearized, such as triplet generation [11]. The paper is organized as follows. In Sec. II, we intro- duce the general asymptotic-in/out formalism, present how to determine the asymptotic fields for a Fabry-P´ erot cav...

    work page

  2. [2]

    J. Wang, F. Sciarrino, A. Laing, and M. G. Thompson, Nature Photonics14, 273 (2020)

    work page 2020

  3. [3]

    Quesada, L

    N. Quesada, L. G. Helt, M. Menotti, M. Liscidini, and J. E. Sipe, Adv. Opt. Photon., AOP14, 291 (2022)

    work page 2022

  4. [4]

    Slattery, L

    O. Slattery, L. Ma, K. Zong, and X. Tang, J Res Natl Inst Stand Technol124, 1 (2019)

    work page 2019

  5. [5]

    N. J. Sorensen, V. Sultanov, and M. V. Chekhova, Opt. Express, OE33, 13946 (2025)

    work page 2025

  6. [6]

    Breit and H

    G. Breit and H. A. Bethe, Phys. Rev.93, 888 (1954)

    work page 1954

  7. [7]

    Liscidini, L

    M. Liscidini, L. G. Helt, and J. E. Sipe, Phys. Rev. A85, 013833 (2012)

    work page 2012

  8. [8]

    Banic, L

    M. Banic, L. Zatti, M. Liscidini, and J. E. Sipe, Phys. Rev. A106, 043707 (2022)

    work page 2022

  9. [9]

    Vendromin, Y

    C. Vendromin, Y. Liu, Z. Yang, and J. E. Sipe, Phys. Rev. A110, 033709 (2024)

    work page 2024

  10. [10]

    Sloan, A

    M. Sloan, A. Viola, M. Liscidini, and J. E. Sipe, Phys. Rev. A111, 063502 (2025)

    work page 2025

  11. [11]

    Macr` ı, A

    V. Macr` ı, A. Viola, and M. Liscidini, Phys. Rev. A112, 043527 (2025)

    work page 2025

  12. [12]

    Lorena Osorio, M

    G. Lorena Osorio, M. Bani´ c, and N. Quesada, Quantum Science and Technology10, 045045 (2025)

    work page 2025

  13. [13]

    Tassis,https://github.com/tadeutassis/ fabry-perot-asy(2025)

    T. Tassis,https://github.com/tadeutassis/ fabry-perot-asy(2025)

    work page 2025

  14. [14]

    Quesada and J

    N. Quesada and J. Sipe, Optics letters42, 3443 (2017)

    work page 2017

  15. [15]

    D. J. Griffiths and C. A. Steinke, Am. J. Phys.69, 137 (2001). 10

    work page 2001

  16. [16]

    C. C. Katsidis and D. I. Siapkas, Applied Optics41, 3978 (2002)

    work page 2002

  17. [17]

    M. C. Booth, M. Atat¨ ure, G. Di Giuseppe, B. E. A. Saleh, A. V. Sergienko, and M. C. Teich, Phys. Rev. A 66, 023815 (2002)

    work page 2002

  18. [18]

    K.-H. Luo, V. Ansari, M. Massaro, M. Santandrea, C. Eigner, R. Ricken, H. Herrmann, and C. Silberhorn, Opt. Express, OE28, 3215 (2020)

    work page 2020

  19. [19]

    Chiriano, C

    F. Chiriano, C. L. Morrison, J. Ho, T. Jaeken, and A. Fedrizzi, Quantum Science and Technology10, 015004 (2024)

    work page 2024

  20. [20]

    R. W. Boyd,Nonlinear Optics(Academic Press, 2020) Chap. 2

    work page 2020

  21. [21]

    S. Xie, Y. Zhang, Y. Hu, S. Veilleux, and M. Dagenais, ACS Photonics7, 1009 (2020)

    work page 2020

  22. [22]

    Kellner, A

    J. Kellner, A. Sabatti, A. Maeder, and R. Grange, Op- tica, OPTICA12, 702 (2025)

    work page 2025

  23. [23]

    Yeh,Optical Waves in Layered Media(Wiley, 2005) Chap

    P. Yeh,Optical Waves in Layered Media(Wiley, 2005) Chap. 6

    work page 2005

  24. [24]

    Abolghasem, M

    P. Abolghasem, M. Hendrych, X. Shi, J. P. Torres, and A. S. Helmy, Opt. Lett., OL34, 2000 (2009)

    work page 2000

  25. [25]

    Fekete, D

    J. Fekete, D. Riel¨ ander, M. Cristiani, and H. de Ried- matten, Phys. Rev. Lett.110, 220502 (2013)

    work page 2013

  26. [26]

    Monteiro, A

    F. Monteiro, A. Martin, B. Sanguinetti, H. Zbinden, and R. T. Thew, Opt. Express, OE22, 4371 (2014)

    work page 2014
