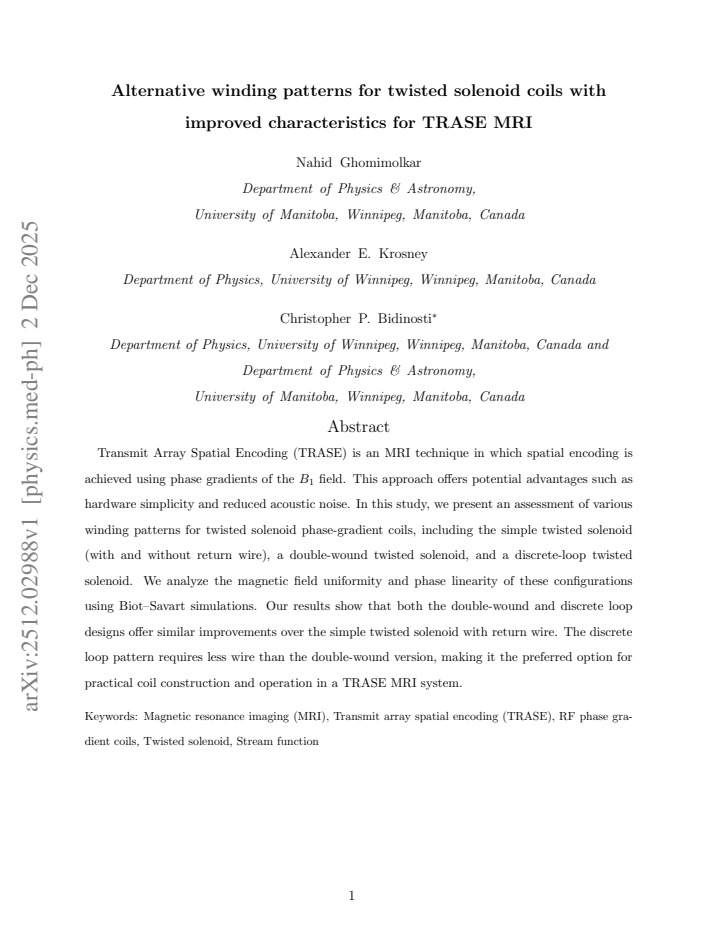

Alternative winding patterns for twisted solenoid coils with improved characteristics for TRASE MRI

Alexander E. Krosney; Christopher P. Bidinosti; Nahid Ghomimolkar

arxiv: 2512.02988 · v1 · submitted 2025-12-02 · ⚛️ physics.med-ph

Alternative winding patterns for twisted solenoid coils with improved characteristics for TRASE MRI

Nahid Ghomimolkar , Alexander E. Krosney , Christopher P. Bidinosti This is my paper

Pith reviewed 2026-05-17 02:12 UTC · model grok-4.3

classification ⚛️ physics.med-ph

keywords TRASE MRItwisted solenoidwinding patternsphase gradient coilsB1 fieldmagnetic field uniformityBiot-Savartdiscrete loop

0 comments

The pith

Discrete-loop twisted solenoid designs match double-wound performance but use less wire in TRASE MRI

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper assesses winding patterns for twisted solenoid coils to improve phase gradients in Transmit Array Spatial Encoding MRI. Simulations compare the simple twisted solenoid with return wire to double-wound and discrete-loop alternatives by evaluating magnetic field uniformity and phase linearity. Both advanced designs show similar improvements over the basic one. The discrete-loop pattern requires less wire, which the authors conclude makes it the better choice for practical use. A reader might care because this could help realize TRASE's advantages in hardware simplicity and reduced noise during scans.

Core claim

We analyze the magnetic field uniformity and phase linearity of simple twisted solenoid (with and without return wire), double-wound twisted solenoid, and discrete-loop twisted solenoid configurations using Biot-Savart simulations. Our results show that both the double-wound and discrete loop designs offer similar improvements over the simple twisted solenoid with return wire. The discrete loop pattern requires less wire than the double-wound version, making it the preferred option for practical coil construction and operation in a TRASE MRI system.

What carries the argument

The discrete-loop twisted solenoid winding pattern, which uses discrete current loops to generate the B1 phase gradients with reduced wire length compared to double-wound alternatives.

If this is right

The improved uniformity and linearity enhance the accuracy of spatial encoding in TRASE MRI.
Less wire in the discrete loop design simplifies coil construction and reduces operational challenges.
The similar performance of double-wound and discrete loop designs provides flexibility in choosing based on practical needs.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

These coil designs may help in developing MRI systems that are both quieter and mechanically simpler.
Experimental validation of the simulations could confirm their utility in real TRASE setups.
The focus on wire efficiency might apply to optimizing other types of gradient coils in MRI.

Load-bearing premise

The simulations assume ideal current distributions and neglect real-world factors such as wire resistance variations and manufacturing tolerances.

What would settle it

Constructing a discrete-loop twisted solenoid coil and experimentally measuring its B1 field uniformity and phase linearity to compare against the simulation results.

Figures

Figures reproduced from arXiv: 2512.02988 by Alexander E. Krosney, Christopher P. Bidinosti, Nahid Ghomimolkar.

**Figure 3.** Figure 3: FIG. 3: Results for the simple twisted solenoid (STS). The left plot shows the STS [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗

**Figure 4.** Figure 4: FIG. 4: Same as Figure 3, but for the RWTS coil. [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗

**Figure 5.** Figure 5: FIG. 5: Same as Figure 3, but for the DWTS coil. [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗

**Figure 6.** Figure 6: FIG. 6: Same as Figure 3, but for the DLTS coil. [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗

**Figure 7.** Figure 7: FIG. 7 [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗

**Figure 8.** Figure 8: FIG. 8: Comparison of the RWTS coil for four different offset angles and the DLTS coil: [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗

**Figure 9.** Figure 9: FIG. 9: Results for the truncated version of the inner RWTS coil. The left plot shows the [PITH_FULL_IMAGE:figures/full_fig_p016_9.png] view at source ↗

**Figure 10.** Figure 10: FIG. 10: Same as Figure 9, but for the truncated inner DLTS coil. [PITH_FULL_IMAGE:figures/full_fig_p017_10.png] view at source ↗

**Figure 11.** Figure 11: FIG. 11: Same as Figure 9, but for the truncated outer RWTS coil. [PITH_FULL_IMAGE:figures/full_fig_p017_11.png] view at source ↗

**Figure 12.** Figure 12: FIG. 12: Same as Figure 9, but for the truncated outer DLTS coil. [PITH_FULL_IMAGE:figures/full_fig_p018_12.png] view at source ↗

read the original abstract

Transmit Array Spatial Encoding (TRASE) is an MRI technique in which spatial encoding is achieved using phase gradients of the B1 field. This approach offers potential advantages such as hardware simplicity and reduced acoustic noise. In this study, we present an assessment of various winding patterns for twisted solenoid phase-gradient coils, including the simple twisted solenoid (with and without return wire), a double-wound twisted solenoid, and a discrete-loop twisted solenoid. We analyze the magnetic field uniformity and phase linearity of these configurations using Biot-Savart simulations. Our results show that both the double-wound and discrete loop designs offer similar improvements over the simple twisted solenoid with return wire. The discrete loop pattern requires less wire than the double-wound version, making it the preferred option for practical coil construction and operation in a TRASE MRI system.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The discrete-loop winding matches the double-wound version on simulated B1 uniformity and phase linearity for TRASE coils while using less wire, but the preference rests on ideal current assumptions that may not survive real construction.

read the letter

The key point is that a discrete-loop winding pattern for twisted solenoid coils performs about as well as a double-wound version in simulations for TRASE MRI, but requires less wire overall. That makes it the better choice for actual construction according to the authors. The paper takes the basic twisted solenoid with return wire and compares it to two improved designs: double-wound and discrete-loop. Using Biot-Savart calculations, they show that both alternatives give better B1 field uniformity and more linear phase gradients across the region of interest. The discrete-loop version stands out because it achieves this with a shorter total length of wire, which reduces material use and potentially simplifies fabrication. This is useful work for the TRASE community. It builds directly on earlier twisted solenoid concepts by adding and testing these specific patterns. The side-by-side comparison is clear and the results are presented in a way that lets readers see the trade-offs. Since the method is standard electromagnetic simulation, the approach itself is reliable for what it sets out to do. The soft spots are mostly around the gap between simulation and practice. The analysis assumes perfect current flow along the ideal paths with no variations in resistance or positioning. In a real coil, manufacturing tolerances could disrupt the discrete loops more than a continuous double winding, which might change which design actually performs better once built. The abstract and available details do not include specifics on simulation mesh size, boundary conditions, or error estimates, so it is hard to gauge the precision of the reported improvements. These are not fatal issues, but they mean the practical recommendation rests on untested assumptions. This paper is for engineers and physicists already working on TRASE or other B1-phase encoding techniques. A reader who needs to design or optimize a phase-gradient coil will get direct value from the winding options and the performance numbers. It is too specialized for broader MRI or medical physics audiences. I would recommend sending it for peer review. The work is focused, the methods are appropriate, and the conclusions are scoped to what the simulations show. Referees can push on the real-world translation and ask for more validation details.

Referee Report

1 major / 2 minor

Summary. The manuscript evaluates alternative winding patterns for twisted solenoid phase-gradient coils in Transmit Array Spatial Encoding (TRASE) MRI. It compares the simple twisted solenoid (with and without return wire), double-wound twisted solenoid, and discrete-loop twisted solenoid using Biot-Savart simulations to assess B1 field uniformity and phase linearity. The central result is that both the double-wound and discrete-loop designs yield similar improvements over the simple twisted solenoid with return wire, with the discrete-loop version preferred for requiring less wire in practical coil construction.

Significance. If the simulation-based performance claims hold under real conditions, the work could inform more efficient coil designs for TRASE MRI, supporting hardware simplicity and reduced acoustic noise. The application of standard Biot-Savart methods for field calculations provides a reproducible framework in principle, though the absence of experimental validation or consideration of non-ideal effects limits immediate applicability to clinical systems.

major comments (1)

The preference for the discrete-loop design over the double-wound version, based on reduced wire length while maintaining similar B1 uniformity and phase linearity (abstract and results), rests on simulations that assume ideal uniform current distributions along wire paths. This assumption is load-bearing for the practical recommendation, as manufacturing tolerances, resistance variations, and hardware interactions could perturb the discrete-loop current distribution more than the continuous double-wound pattern, eroding both the reported performance parity and the wire-length advantage.

minor comments (2)

The methods description should specify mesh resolution, boundary conditions, and quantitative error metrics for the Biot-Savart simulations to support verification of the uniformity and linearity claims.
Provide explicit quantitative values (e.g., standard deviations or percentage improvements) for the 'similar improvements' in B1 uniformity and phase linearity rather than qualitative statements.

Simulated Author's Rebuttal

1 responses · 1 unresolved

We thank the referee for their constructive comments on our manuscript. We address the major comment below and will revise the manuscript to incorporate a discussion of the ideal assumptions in our simulations.

read point-by-point responses

Referee: The preference for the discrete-loop design over the double-wound version, based on reduced wire length while maintaining similar B1 uniformity and phase linearity (abstract and results), rests on simulations that assume ideal uniform current distributions along wire paths. This assumption is load-bearing for the practical recommendation, as manufacturing tolerances, resistance variations, and hardware interactions could perturb the discrete-loop current distribution more than the continuous double-wound pattern, eroding both the reported performance parity and the wire-length advantage.

Authors: We appreciate the referee highlighting this important limitation of our simulation-based approach. Our analysis employs standard Biot-Savart calculations under the assumption of ideal uniform current distributions along the wire paths, which is typical for comparative theoretical studies of coil designs. We agree that this assumption underpins the reported performance parity and the preference for the discrete-loop design on the basis of reduced wire length. In real implementations, manufacturing tolerances, resistance variations, and hardware interactions could indeed affect the segmented discrete-loop configuration differently from the continuous double-wound pattern. To address the comment, we will revise the manuscript by adding a dedicated paragraph in the Discussion section on potential non-ideal effects and by qualifying the preference stated in the abstract and conclusions to note that it is derived from ideal simulations. We will also emphasize the value of future experimental validation. revision: yes

standing simulated objections not resolved

The quantitative impact of manufacturing tolerances, resistance variations, and hardware interactions on the relative performance of the discrete-loop design cannot be assessed from simulations alone and would require physical coil construction and testing.

Circularity Check

0 steps flagged

Simulation-driven comparison against external Biot-Savart law shows no circularity

full rationale

The paper evaluates winding patterns for twisted solenoid coils via direct Biot-Savart numerical integration over specified current paths. B1 uniformity and phase linearity metrics are computed outputs from the standard electromagnetic forward model applied to each geometry; wire length is a direct geometric integral. No parameters are fitted to the reported performance figures, no self-citation supplies a load-bearing uniqueness theorem, and no ansatz or definition is smuggled in from prior author work. The discrete-loop preference follows from comparing two independent simulation outputs (field quality and total wire length) against the same external reference (simple twisted solenoid with return wire). The derivation chain is therefore self-contained and externally falsifiable.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Work rests on standard electromagnetic simulation principles without introducing new free parameters, axioms, or invented entities beyond conventional coil design assumptions.

axioms (1)

standard math Biot-Savart law accurately models static magnetic fields from steady currents in thin wires
Invoked implicitly for all field calculations in the abstract
