Edit-aware RAW Reconstruction

Abhijith Punnappurath , Luxi Zhao , Ke Zhao , Hue Nguyen , Radek Grzeszczuk , Michael S. Brown This is my paper

Pith reviewed 2026-05-17 00:37 UTC · model grok-4.3

classification 💻 cs.CV
keywords RAW reconstructionedit-aware lossdifferentiable ISPsRGB to RAWphotofinishing pipelineimage editingcamera image processing
0
0 comments X

The pith

A plug-and-play loss using a differentiable ISP makes RAW reconstructions more robust to post-capture edits.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces an edit-aware loss function that can be added to any RAW reconstruction method from sRGB images. It works by rendering both the ground-truth and reconstructed RAW through a modular differentiable ISP whose parameters are randomly sampled to mimic real photofinishing variations, then measuring the difference in the resulting sRGB outputs. This matters because users mostly edit sRGB JPEGs rather than storing and editing RAW files, so the recovered RAW needs to support those edits without quality loss. The loss is designed as a general add-on that improves fidelity across rendering styles and editing operations.

Core claim

The authors establish that incorporating their edit-aware loss, computed between ground-truth and reconstructed RAWs after both pass through a modular differentiable ISP with randomly sampled parameters modeling practical camera pipelines, improves sRGB reconstruction quality by up to 1.5-2 dB PSNR across various editing conditions. When applied to metadata-assisted RAW reconstruction methods, the same loss further enables fine-tuning for target edits and yields additional gains.

What carries the argument

Modular differentiable image signal processor (ISP) that renders reconstructed and ground-truth RAWs through randomly sampled photofinishing parameters so the loss can be evaluated in sRGB space.

If this is right

  • Recovered RAWs become more robust to diverse rendering styles and editing operations performed on sRGB outputs.
  • Metadata-assisted RAW reconstruction methods gain the ability to fine-tune specifically for target edits with further quality gains.
  • Existing RAW reconstruction frameworks receive a general mechanism for enhancing edit fidelity and rendering flexibility without redesigning the core model.
  • Consumer workflows improve because photographic editing, the main reason for wanting RAW data, can be performed more accurately after reconstruction.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same loss could be tested on collections of real user edits to check whether the simulated parameter distributions match actual post-capture behavior.
  • Similar differentiable pipeline modeling might transfer to related tasks such as denoising or tone mapping where ISP variations also affect final image quality.
  • The approach opens the possibility of training reconstructors that are conditioned on specific editing intents rather than treating all edits equally.

Load-bearing premise

The modular differentiable ISP with randomly sampled parameters from carefully designed distributions sufficiently models the space of real-world photofinishing pipelines and post-capture edits that users actually apply.

What would settle it

Measuring whether the reported 1.5-2 dB PSNR gain in sRGB space disappears when the same reconstructed RAWs are passed through a set of real camera ISPs or user-applied edits that fall outside the training parameter distributions.

Figures

Figures reproduced from arXiv: 2512.05859 by Abhijith Punnappurath, Hue Nguyen, Ke Zhao, Luxi Zhao, Michael S. Brown, Radek Grzeszczuk.

Figure 1
Figure 1. Figure 1: (A) Existing RAW reconstruction methods typically em [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

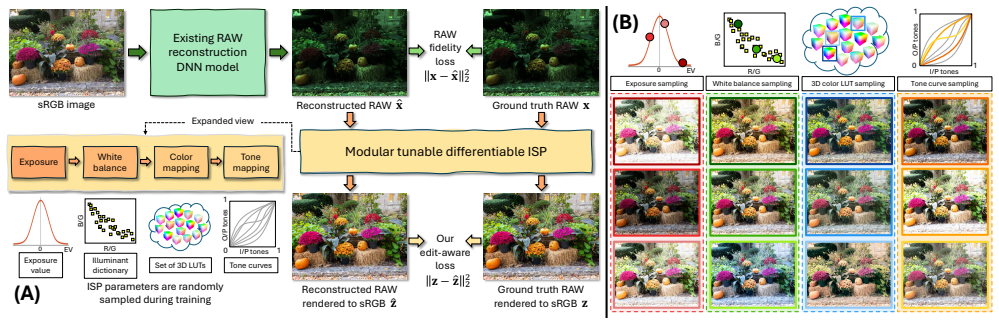

Figure 2. Figure 2: Overview of our edit-aware loss framework and differentiable ISP design. (A) Conventional RAW reconstruction models optimize [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

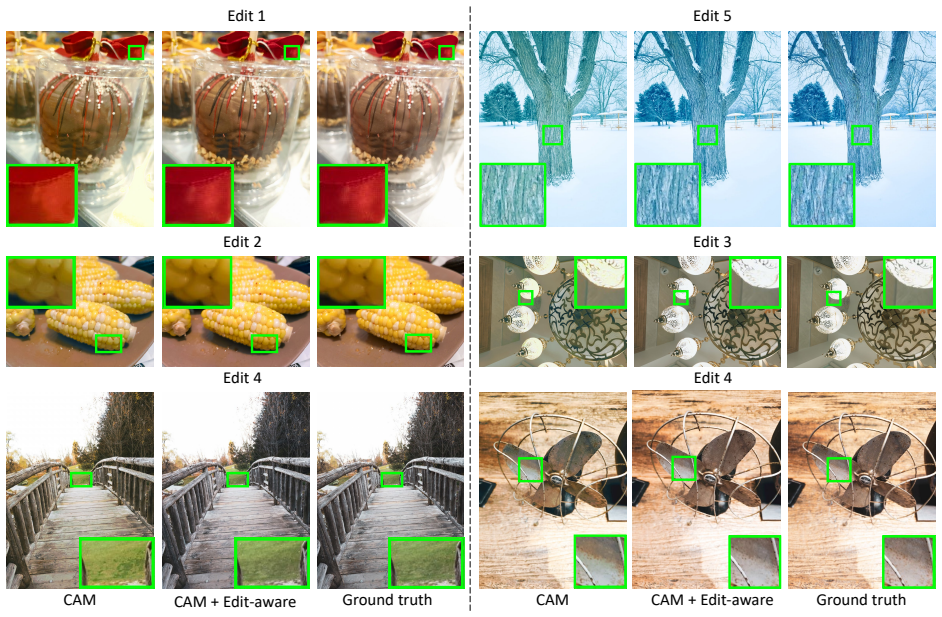

Figure 3. Figure 3: Results of adding our edit-aware loss to the RAW reconstruction method in CAM [ [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

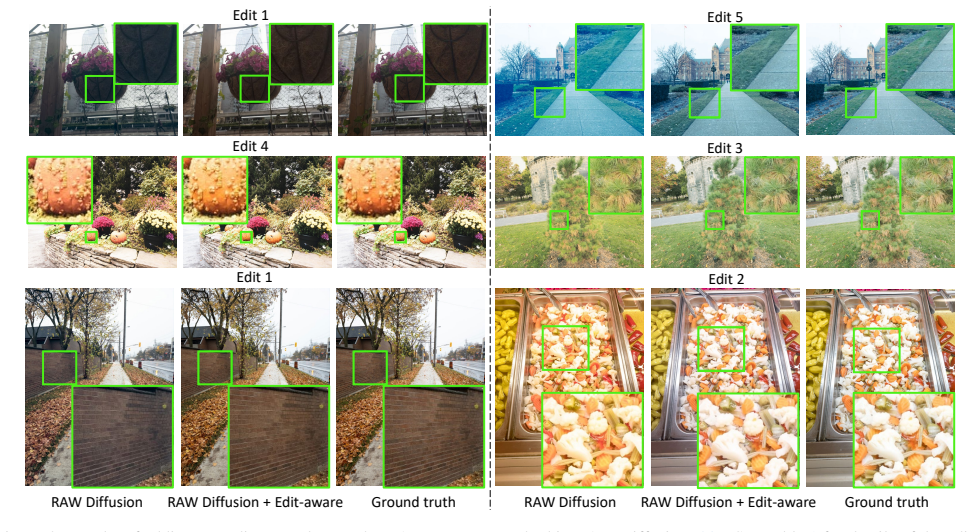

Figure 4. Figure 4: Results of adding our edit-aware loss to the RAW recovery method in RAW Diffusion [ [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Results of fine-tuning (FT) a UNet-based [ [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
read the original abstract

Users frequently edit camera images post-capture to achieve their preferred photofinishing style. While editing in the RAW domain provides greater accuracy and flexibility, most edits are performed on the camera's display-referred output (e.g., 8-bit sRGB JPEG) since RAW images are rarely stored. Existing RAW reconstruction methods can recover RAW data from sRGB images, but these approaches are typically optimized for pixel-wise RAW reconstruction fidelity and tend to degrade under diverse rendering styles and editing operations. We introduce a plug-and-play, edit-aware loss function that can be integrated into any existing RAW reconstruction framework to make the recovered RAWs more robust to different rendering styles and edits. Our loss formulation incorporates a modular, differentiable image signal processor (ISP) that simulates realistic photofinishing pipelines with tunable parameters. During training, parameters for each ISP module are randomly sampled from carefully designed distributions that model practical variations in real camera processing. The loss is then computed in sRGB space between ground-truth and reconstructed RAWs rendered through this differentiable ISP. Incorporating our loss improves sRGB reconstruction quality by up to 1.5-2 dB PSNR across various editing conditions. Moreover, when applied to metadata-assisted RAW reconstruction methods, our approach enables fine-tuning for target edits, yielding further gains. Since photographic editing is the primary motivation for RAW reconstruction in consumer imaging, our simple yet effective loss function provides a general mechanism for enhancing edit fidelity and rendering flexibility across existing methods.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces a plug-and-play edit-aware loss for RAW reconstruction from sRGB images. It employs a modular differentiable ISP with randomly sampled parameters from carefully designed distributions to simulate photofinishing pipelines and post-capture edits. The loss is computed in sRGB space between renderings of ground-truth and reconstructed RAW images through the same ISP. The authors claim this improves sRGB reconstruction quality by up to 1.5-2 dB PSNR across editing conditions and enables further gains via fine-tuning when applied to metadata-assisted RAW reconstruction methods.

Significance. If the central assumption holds, the work has practical significance for consumer imaging applications where RAW reconstruction is motivated by editing flexibility rather than pixel-wise fidelity. The plug-and-play design allows integration into existing frameworks without architectural changes, and the focus on edit robustness is a clear strength. Credit is given for the modular ISP formulation and the emphasis on simulating realistic parameter variations during training.

major comments (2)
  1. [Method (ISP module and parameter sampling)] The reported 1.5-2 dB PSNR gains and robustness claims rest on the modular differentiable ISP's randomly sampled parameter distributions faithfully covering real user edits and photofinishing pipelines. The manuscript should provide explicit validation (e.g., statistical comparison of sampled parameters against real edited image datasets or outputs from commercial editors) to confirm the distributions are representative rather than ad-hoc.
  2. [Experiments] Experiments section: the abstract states improvements 'across various editing conditions' and 'further gains' for metadata-assisted methods. The paper must detail the exact baselines, whether gains persist against stronger or more recent RAW reconstruction methods, and results on real (non-simulated) edits to ensure the improvements are not limited to the training distribution.
minor comments (2)
  1. [Abstract] Abstract: the phrase 'up to 1.5-2 dB' should be supplemented with average gains and standard deviations in the main results to allow precise assessment of the improvement magnitude.
  2. [Method] Ensure all ISP module parameters (tone mapping, color correction, sharpening, etc.) are explicitly listed with their sampling ranges and any correlations modeled.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed review. We address each major comment below and describe the revisions we will make to improve the manuscript.

read point-by-point responses

  1. Referee: [Method (ISP module and parameter sampling)] The reported 1.5-2 dB PSNR gains and robustness claims rest on the modular differentiable ISP's randomly sampled parameter distributions faithfully covering real user edits and photofinishing pipelines. The manuscript should provide explicit validation (e.g., statistical comparison of sampled parameters against real edited image datasets or outputs from commercial editors) to confirm the distributions are representative rather than ad-hoc.

    Authors: We agree that additional validation would strengthen the presentation. The parameter distributions were constructed from ranges and variations documented in prior ISP and camera pipeline literature to reflect practical photofinishing operations. In the revised manuscript we will add an explicit validation subsection (or appendix) that statistically compares the sampled parameter distributions against parameter statistics extracted from real edited images in public datasets and from commercial editors such as Adobe Lightroom and Photoshop, including distribution plots and quantitative metrics. revision: yes

  2. Referee: [Experiments] Experiments section: the abstract states improvements 'across various editing conditions' and 'further gains' for metadata-assisted methods. The paper must detail the exact baselines, whether gains persist against stronger or more recent RAW reconstruction methods, and results on real (non-simulated) edits to ensure the improvements are not limited to the training distribution.

    Authors: We will revise the Experiments section to list all baselines with full citations and implementation details. We will expand the comparison set to include additional recent RAW reconstruction methods and report whether the observed gains hold. For real (non-simulated) edits, we will add quantitative results on a collection of real user-edited images drawn from available public sources, while noting that ground-truth RAW is obtained via the same controlled capture protocol used for the simulated data; this will demonstrate generalization beyond the training distribution. revision: yes

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The paper defines an edit-aware loss via a modular differentiable ISP whose module parameters are randomly sampled from designed distributions during training; the loss measures sRGB-space difference between ground-truth and reconstructed RAW images after identical rendering. The reported 1.5-2 dB PSNR gains are presented as empirical outcomes on sRGB reconstruction quality under various editing conditions, not as a mathematical identity or quantity forced by the same fitted parameters. No equation reduces the central result to its inputs by construction, no uniqueness theorem or self-citation is invoked as load-bearing justification, and the evaluation metric (PSNR) remains an external, standard benchmark independent of the training distributions. The derivation is therefore self-contained against external validation rather than tautological.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The method rests on the assumption that a modular differentiable ISP can be parameterized to cover realistic photofinishing variation; no new physical entities are introduced.

free parameters (1)
  • ISP module parameter distributions
    Distributions for tone curves, color matrices, sharpening, etc., are described as 'carefully designed' to model practical variations; these act as tunable free parameters that define the training distribution.
axioms (1)
  • domain assumption A modular differentiable ISP can faithfully simulate real camera photofinishing pipelines when its parameters are randomly sampled.
    Invoked in the loss formulation section of the abstract.
