arxiv: 2512.09584 · v2 · submitted 2025-12-10 · ❄️ cond-mat.str-el · cond-mat.mtrl-sci

Single-crystal growth, structural characterization, and physical properties of a decorated square-kagome antiferromagnet KCu₇TeO₄(SO₄)₅Cl

Jingjing Jing , Andreas Eich , Yiqiu Liu , Lunhua He , Aifeng Wang , Yisheng Chai , Young Sun , Yi Cui
show 4 more authors
Weiqiang Yu Xinrun Mi Michael Merz Mingquan He
This is my paper

Pith reviewed 2026-05-16 23:43 UTC · model grok-4.3

classification ❄️ cond-mat.str-el cond-mat.mtrl-sci
keywords square-kagome latticeantiferromagnetismferroelectric transitionssingle crystalNMRfrustrated magnetisminterlayer couplingnabokoite
0
0 comments X

The pith

KCu7TeO4(SO4)5Cl realizes a decorated square-kagome antiferromagnet with long-range antiferromagnetic order below 4.5 K and two ferroelectric transitions near 30 K and 27 K.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors report single-crystal growth of KCu7TeO4(SO4)5Cl and characterize its structure as a distorted square-kagome lattice of copper ions decorated by additional Cu2 sites. Magnetization and specific-heat data display weak anomalies near 4 K, while 35Cl NMR measurements establish the formation of long-range antiferromagnetic order below 4.5 K. Magnetic susceptibility remains nearly isotropic with Curie-Weiss temperatures near -145 K for both in-plane and out-of-plane fields. Dielectric measurements reveal two successive ferroelectric transitions at approximately 30 K and 27 K that arise from inversion-symmetry breaking in the Cu2O4Cl pyramids and neighboring SO4 tetrahedra. These observations indicate that interlayer couplings mediated by the decorating sites must be included in any realistic description of the material.

Core claim

In KCu7TeO4(SO4)5Cl the square-kagome lattice is distorted and decorated by Cu2 sites; weak anomalies appear near 4 K in magnetization and specific heat, 35Cl NMR confirms long-range antiferromagnetic order below 4.5 K, and two successive ferroelectric transitions occur at T_FE1 approximately 30 K and T_FE2 approximately 27 K due to inversion-symmetry breaking, requiring a three-dimensional model that incorporates interlayer couplings through the decorating Cu2 sites.

What carries the argument

The distorted and decorated square-kagome lattice of Cu ions, with the decorating Cu2O4Cl pyramids providing interlayer couplings that link the frustrated layers and drive both magnetic order and inversion-symmetry breaking.

If this is right

  • Long-range antiferromagnetic order sets in below 4.5 K rather than remaining frustrated or short-range.
  • Ferroelectric polarization develops in two discrete steps tied to specific structural distortions in the Cu2 pyramids and SO4 tetrahedra.
  • Magnetic interactions remain nearly isotropic between in-plane and out-of-plane directions.
  • Models limited to two dimensions fail to capture the measured magnetic and electric transitions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The material offers a platform for studying how interlayer couplings lift frustration and couple magnetic and electric orders in square-kagome systems.
  • Chemical substitution on the decorating or sulfate sites could tune the transition temperatures and potentially induce magnetoelectric coupling below 4.5 K.
  • Similar nabokoite-family compounds may be synthesized to test whether the ferroelectric transitions persist when interlayer couplings are weakened.

Load-bearing premise

The observed antiferromagnetic and ferroelectric behaviors cannot be accounted for by purely two-dimensional physics or extrinsic effects and instead require three-dimensional interlayer couplings via the decorating Cu2 sites.

What would settle it

A neutron diffraction study that finds no long-range magnetic Bragg peaks below 4.5 K, or dielectric measurements that detect no polarization anomalies at 30 K and 27 K, would falsify the central claims of long-range order and inversion-symmetry breaking.

Figures

Figures reproduced from arXiv: 2512.09584 by Aifeng Wang, Andreas Eich, Jingjing Jing, Lunhua He, Michael Merz, Mingquan He, Weiqiang Yu, Xinrun Mi, Yi Cui, Yiqiu Liu, Yisheng Chai, Young Sun.

Figure 1
Figure 1. Figure 1: FIG. 1. The square kagome lattice in KCu [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. (a) and (b) Temperature dependence of the magnetic susceptibility measured for a KCu [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. NMR spectra and spin-lattice relaxation rate 1 [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 5

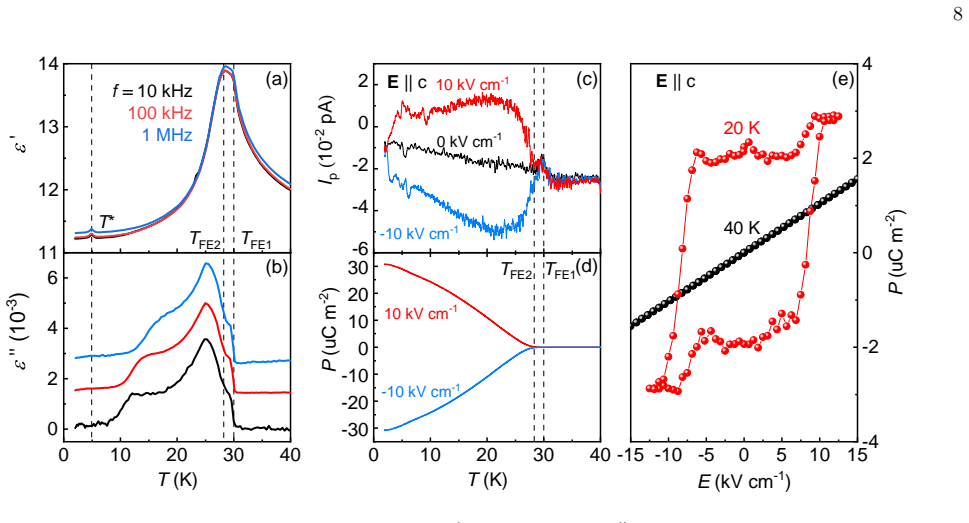

Figure 5. Figure 5: FIG. 5. (a) and (b) Temperature dependence of the real ( [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
read the original abstract

The square-kagome lattice, composed of two-dimensional corner-sharing triangles, provides a novel platform for studying frustrated magnetism. However, material realizations of the square-kagome lattice remain scarce. Here, we report the single-crystal growth, structural characterization, magnetic and electric properties of KCu$_7$TeO$_4$(SO$_4$)$_5$Cl, a nabokoite compound featuring a distorted and decorated square-kagome lattice. Weak anomalies near 4 K are observed in both magnetization and specific heat, indicating the onset of a magnetic transition.The formation of a long-range antiferromagnetic state below 4.5 K is further confirmed by $^{35}$Cl nuclear magnetic resonance (NMR) measurements. Magnetic susceptibility data reveal nearly isotropic Curie-Weiss temperatures ($\sim-145$ K) and $g$-factors ($\sim2.4$) for both in-plane and out-of-plane magnetic fields. Moreover, we observe two successive ferroelectric transitions at $T_\mathrm{FE1}\sim30$ K and $T_\mathrm{FE2}\sim27$ K, driven by inversion-symmetry breaking, most likely associated with distortions in the Cu2O$_4$Cl$_1$ pyramids and the adjacent SO$_4$ tetrahedra. These results suggest that a three-dimensional model incorporating interlayer couplings via decorating Cu2 sites is essential for capturing the magnetic and electric behaviors in KCu$_7$TeO$_4$(SO$_4$)$_5$Cl.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript reports the single-crystal growth and characterization of KCu₇TeO₄(SO₄)₅Cl, a nabokoite compound with a distorted decorated square-kagome lattice. Magnetization and specific-heat data show weak anomalies near 4 K, interpreted as the onset of long-range antiferromagnetic order below 4.5 K and confirmed by ³⁵Cl NMR. Susceptibility measurements yield nearly isotropic Curie-Weiss temperatures of approximately -145 K and g-factors of ~2.4. Two successive ferroelectric transitions are reported at T_FE1 ~30 K and T_FE2 ~27 K, attributed to inversion-symmetry breaking in the Cu2O₄Cl pyramids and adjacent SO₄ tetrahedra. The authors conclude that a three-dimensional model incorporating interlayer couplings via the decorating Cu2 sites is required to describe the observed magnetic and electric properties.

Significance. If the reported transition temperatures and symmetry-breaking mechanism hold, the work supplies a new experimental realization of the square-kagome lattice that exhibits both antiferromagnetic order and ferroelectricity, offering a platform for studying coupled frustrated magnetism and multiferroic behavior. The consistency across magnetization, specific heat, and NMR strengthens the identification of the 4.5 K transition, though the necessity of three-dimensional interlayer effects remains to be demonstrated quantitatively.

major comments (1)
  1. Abstract: The assertion that 'a three-dimensional model incorporating interlayer couplings via decorating Cu2 sites is essential' is not supported by the data presented. The near-isotropic Curie-Weiss temperature of -145 K is compatible with dominant two-dimensional frustration, yet no quantitative comparison to pure 2D square-kagome models, no impurity-subtracted specific-heat analysis, and no temperature-dependent structural refinements confirming the claimed symmetry breaking are provided to establish the necessity of the 3D terms.
minor comments (2)
  1. The manuscript should include explicit error bars, fitting details, and exclusion criteria for the magnetization and specific-heat anomalies to allow independent assessment of the transition temperatures.
  2. Clarify the precise temperature dependence of the ³⁵Cl NMR line shape or relaxation rate that confirms long-range order rather than short-range correlations.

Simulated Author's Rebuttal

1 responses · 1 unresolved

We thank the referee for the careful and constructive review of our manuscript. We address the major comment below and have revised the abstract to more accurately reflect the suggestive nature of our conclusions regarding the role of three-dimensional couplings.

read point-by-point responses

  1. Referee: Abstract: The assertion that 'a three-dimensional model incorporating interlayer couplings via decorating Cu2 sites is essential' is not supported by the data presented. The near-isotropic Curie-Weiss temperature of -145 K is compatible with dominant two-dimensional frustration, yet no quantitative comparison to pure 2D square-kagome models, no impurity-subtracted specific-heat analysis, and no temperature-dependent structural refinements confirming the claimed symmetry breaking are provided to establish the necessity of the 3D terms.

    Authors: We agree that the data presented does not include a quantitative comparison to pure 2D square-kagome models or an impurity-subtracted specific-heat analysis, and that the near-isotropic Curie-Weiss temperature is consistent with dominant 2D frustration. The structural description and the two ferroelectric transitions linked to distortions involving the Cu2 sites provide the basis for our suggestion that interlayer couplings may be relevant, but we acknowledge this remains qualitative. We have revised the abstract to state that the results 'suggest that interlayer couplings via the decorating Cu2 sites may be important' rather than claiming the 3D model is 'essential'. Temperature-dependent structural refinements to confirm the symmetry breaking are not available in the present work. revision: yes

standing simulated objections not resolved
  • No quantitative comparison to pure 2D square-kagome models or impurity-subtracted specific-heat analysis is provided, as these would require additional theoretical modeling and data processing beyond the current experimental scope.

Circularity Check

0 steps flagged

No circularity: purely experimental reporting with no derivation chain

full rationale

This is an experimental materials paper reporting crystal growth, structural data, magnetization, specific heat, 35Cl NMR, and dielectric measurements. No equations, ansatze, fitted parameters renamed as predictions, or self-citation chains appear in the provided text or abstract. The interpretive suggestion that interlayer couplings via Cu2 sites are essential is presented as a qualitative conclusion from the data rather than a mathematical derivation that reduces to its own inputs. All reported transition temperatures and g-factors are direct observations, rendering the work self-contained with no load-bearing steps that collapse by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

No free parameters, invented entities, or non-standard axioms; relies on conventional crystallographic structure solution and standard interpretation of susceptibility, heat capacity, NMR, and dielectric data.

axioms (1)
  • standard math Standard assumptions of X-ray crystallography for space-group assignment and atomic positions
    Invoked for structural characterization of the distorted square-kagome lattice.
