Fisher Information Measures under Lattice Combined Paul Trap
Pith reviewed 2026-05-16 22:13 UTC · model grok-4.3
The pith
Fisher-Shannon complexity stays invariant under lattice control in Paul traps.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The Fisher-Shannon complexity measure remains invariant under effective frequency control. The invariance demonstrates that optical modulation of kappa rescales localization, without altering the harmonic structure of the motional states. Beyond the harmonic limit, quartic corrections introduce non-Gaussian features that break this invariance, with stronger effects for excited states.
What carries the argument
The Fisher-Shannon complexity, defined as the product of Fisher information and Shannon entropy, which compensates changes from the effective frequency omega_eff = omega sqrt(1-kappa) to keep the product fixed in the harmonic regime.
If this is right
- Fisher information and Shannon entropy redistribute between position and momentum spaces following the effective frequency.
- The invariance holds specifically in the harmonic small-oscillation limit.
- Retaining quartic lattice terms breaks the invariance by mixing higher states and creating non-Gaussian wavefunctions.
- Departures from the invariant value grow with increasing kappa and are larger for the first excited state.
Where Pith is reading between the lines
- This invariance could serve as a diagnostic for whether an ion trap operates in the pure harmonic regime.
- Similar calculations might apply to other combined traps, such as those with static fields.
- Experimental measurement of complexity in real ion systems could map the boundary where quartic effects appear.
- Applications in quantum information might use lattice tuning to control localization while preserving complexity metrics.
Load-bearing premise
The ion motion is confined to the small-oscillation harmonic regime where quartic corrections from the lattice can be neglected.
What would settle it
Calculate the Fisher-Shannon complexity including the quartic lattice term in the potential and check whether it deviates from the constant value predicted in the harmonic approximation.
Figures
read the original abstract

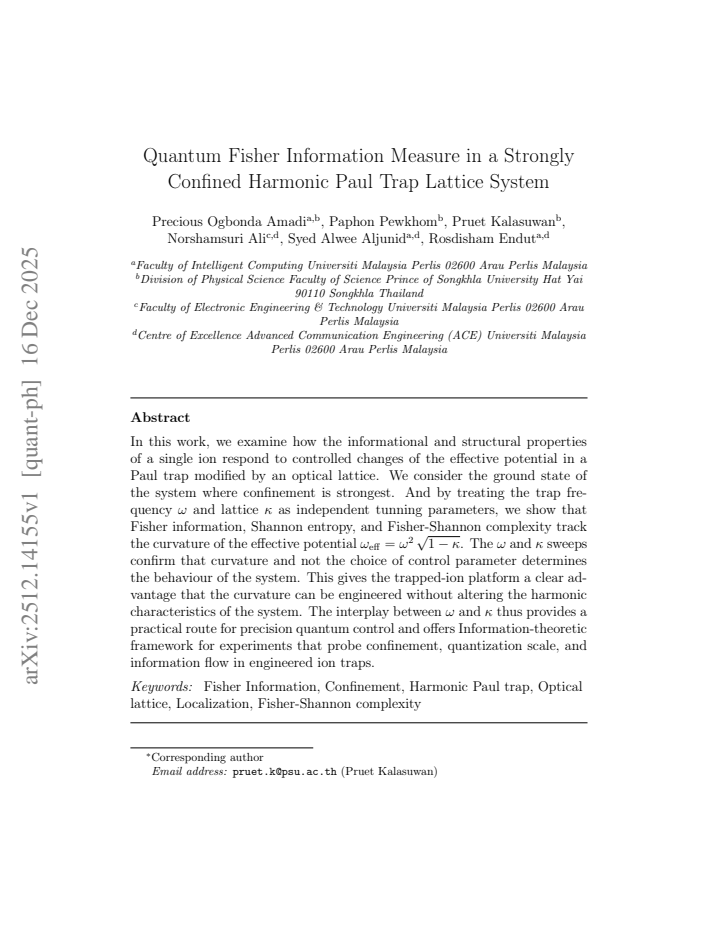

We examine how the informational properties of a confined single ion response in a Paul trap modified by optical-lattice. We focus on the ground and first excited motional states and show that Fisher information, Shannon entropy, and Fisher-Shannon complexity track the effective frequency $\omega_{\mathrm{eff}}=\omega\sqrt{1-\kappa}$ of the potential. We show that the Fisher information and Shannon entropy reflect an effective frequency-driven redistribution of information between conjugate spaces. Our results show that the Fisher-Shannon complexity measure remains invariant under effective frequency control. The invariance demonstrates that optical modulation of $\kappa$ rescales localization, without altering the harmonic structure of the motional states. These results establish a controlled information-theoretic baseline for lattice-assisted Paul traps. Beyond the harmonic limit, retaining the quartic lattice correction introduces non-Gaussian wavefunction features through state-dependent mixing of higher eigenstates, which breaks the mutual compensation between Fisher information and Shannon entropy that sustains the invariant. The departure of $P'$ from its harmonic reference value intensifies with $\kappa$ and is stronger for the excited state, which confirms that the Fisher-Shannon complexity invariance is a distinctive property of the small-oscillation harmonic regime.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript examines Fisher information, Shannon entropy, and Fisher-Shannon complexity for the ground and first excited motional states of a single ion in a Paul trap combined with an optical lattice. In the harmonic (small-oscillation) approximation, these quantities track the effective frequency ω_eff = ω √(1 − κ); the Fisher-Shannon complexity I_x exp(2 S_x) remains invariant under modulation of κ because the ω_eff scaling of I_x and the logarithmic scaling of S_x cancel exactly. The paper explicitly states that retention of the quartic lattice term produces non-Gaussian mixing and breaks the invariance, thereby scoping the result to the pure-harmonic regime.
Significance. If the algebraic invariance holds under the stated approximation, the work supplies a clean information-theoretic baseline for lattice-assisted Paul traps, showing that optical modulation of κ rescales localization without changing the underlying harmonic structure of the motional states. The explicit acknowledgment that the quartic term destroys the invariance is a strength, as is the focus on both ground and excited states. The result is modest in scope but could serve as a reference point for quantum-control protocols that rely on effective-frequency tuning.
major comments (2)
- [Abstract and main derivation section] The central invariance claim is presented as following directly from the known scaling properties of harmonic-oscillator Fisher information once ω_eff is substituted, yet the manuscript supplies no explicit derivation of I_x(ω_eff) or S_x(ω_eff) for the effective potential (see abstract and the paragraph following Eq. (presumably the definition of ω_eff)). Without these steps the cancellation I_x exp(2 S_x) = constant cannot be verified from the text alone.
- [Discussion of quartic term] The paper states that the quartic correction breaks the invariance via state-dependent mixing, but provides no quantitative estimate (e.g., overlap integrals or perturbative correction to P(x)) of how large the departure becomes as a function of κ for the ground versus excited state. This omission weakens the contrast drawn between the harmonic and anharmonic regimes.
minor comments (2)
- [Introduction / Methods] Notation for the effective frequency is introduced as ω_eff = ω √(1 − κ) without an accompanying equation number; subsequent references to “the effective frequency” would be clearer if the defining relation were labeled.
- [Abstract] The abstract refers to “P′” as the departure from the harmonic reference; this symbol is not defined in the provided text and should be introduced explicitly when first used.
Simulated Author's Rebuttal
We thank the referee for the positive evaluation and the recommendation of minor revision. The comments are helpful for improving the clarity of the invariance result and the contrast with the anharmonic regime. We address each point below and will revise the manuscript as indicated.
read point-by-point responses
-
Referee: [Abstract and main derivation section] The central invariance claim is presented as following directly from the known scaling properties of harmonic-oscillator Fisher information once ω_eff is substituted, yet the manuscript supplies no explicit derivation of I_x(ω_eff) or S_x(ω_eff) for the effective potential (see abstract and the paragraph following Eq. (presumably the definition of ω_eff)). Without these steps the cancellation I_x exp(2 S_x) = constant cannot be verified from the text alone.
Authors: We agree that an explicit derivation strengthens the presentation. In the revised manuscript we will insert a short derivation immediately after the definition of ω_eff. For the ground state the rescaled Gaussian wavefunction yields I_x = 2mω_eff/ℏ and S_x = ½ + ½ log(2πℏ/(mω_eff)), so that I_x exp(2S_x) is exactly independent of ω_eff (and thus of κ). The same scaling holds for the first excited state by direct computation of its Hermite-Gaussian moments. This step-by-step verification will be added to the main text. revision: yes
-
Referee: [Discussion of quartic term] The paper states that the quartic correction breaks the invariance via state-dependent mixing, but provides no quantitative estimate (e.g., overlap integrals or perturbative correction to P(x)) of how large the departure becomes as a function of κ for the ground versus excited state. This omission weakens the contrast drawn between the harmonic and anharmonic regimes.
Authors: We acknowledge that a quantitative estimate would better illustrate the breakdown. Because the paper’s focus is the exact harmonic invariance, a full numerical diagonalization of the quartic problem is outside scope. We will add a first-order perturbative remark: the leading correction to P(x) arises from matrix elements of the quartic term, which are larger for the excited state owing to its broader support and nodal structure. The relative departure in I_x then grows linearly with κ at small κ, with a steeper coefficient for the excited state. This qualitative estimate will be inserted in the discussion section as a partial revision. revision: partial
Circularity Check
No significant circularity; derivation self-contained in harmonic limit
full rationale
The paper defines the effective frequency ω_eff = ω √(1−κ) from the quadratic approximation to the combined Paul-lattice potential and notes that the motional states are then exact harmonic-oscillator eigenfunctions. The claimed invariance of the Fisher-Shannon complexity follows directly from the known scaling properties of position-space Fisher information (∝ ω_eff) and Shannon entropy (∝ −½ log ω_eff) for Gaussian wave functions; this algebraic identity is a standard feature of the harmonic oscillator and is not introduced by redefinition or self-citation within the paper. The abstract explicitly contrasts the result with the non-harmonic case where quartic terms break the invariance, confirming that the central claim is scoped to and exhausted by the stated approximation without reducing to its own inputs by construction.
Axiom & Free-Parameter Ledger
free parameters (1)
- κ
axioms (1)
- domain assumption Motional states remain in the harmonic-oscillator ground or first-excited eigenstates of the effective potential.
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
We show that the Fisher-Shannon complexity measure remains invariant under effective frequency control... ω_eff = ω √(1−κ)
-
IndisputableMonolith/Foundation/DimensionForcing.leanalexander_duality_circle_linking unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
The invariance demonstrates that optical modulation of κ rescales localization, without altering the harmonic structure
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
C. D. Bruzewicz, J. Chiaverini, R. McConnell, J. M. Sage, Trapped-ion quantum computing: Progress and challenges, Applied Physics Reviews 6 (2) (2019) 021314.doi:https://doi.org/10.1063/1.5088164
-
[2]
D. Leibfried, R. Blatt, C. Monroe, D. Wineland, Quantum dynamics of single trapped ions, Reviews of Modern Physics 75 (1) (2003) 281–324. doi:https://doi.org/10.1103/revmodphys.75.281
-
[3]
T. Fogarty, H. Landa, C. Cormick, G. Morigi, Optomechanical many- body cooling to the ground state using frustration, Physical Review A 94 (2) (Aug 2016).doi:https://doi.org/10.1103/physreva.94. 023844
-
[4]
T. Manovitz, Y. Shapira, L. Gazit, N. Akerman, R. Ozeri, Trapped-ion quantum computer with robust entangling gates and quantum coherent feedback, PRX Quantum 3 (1) (Mar 2022).doi:https://doi.org/10. 1103/prxquantum.3.010347
work page 2022
-
[5]
H. Häffner, C. F. Roos, R. Blatt, Quantum computing with trapped ions, Physics Reports 469 (4) (2008) 155–203.doi:https://doi.org/ 10.1016/j.physrep.2008.09.003
-
[6]
C. Monroe, J. Bollinger, Atomic physics in ion traps, Physics World 10 (3) (1997) 37–42.doi:https://doi.org/10.1088/2058-7058/10/ 3/22
-
[7]
H. Landa, M. Drewsen, B. Reznik, A. Retzker, Modes of oscilla- tion in radiofrequency paul traps, New Journal of Physics 14 (9) (2012) 093023–093023.doi:https://doi.org/10.1088/1367-2630/ 14/9/093023
-
[8]
T. Lindvall, K. J. Hanhijärvi, T. Fordell, A. E. Wallin, High-accuracy determination of paul-trap stability parameters for electric-quadrupole- shift prediction, Journal of Applied Physics 132 (12) (Sep 2022).doi: https://doi.org/10.1063/5.0106633
- [9]
-
[10]
Y. Pan, J. Zhang, E. Cohen, C.-w. Wu, P.-X. Chen, N. Davidson, Weak- to-strong transition of quantum measurement in a trapped-ion system, Nature Physics 16 (12) (2020) 1206–1210.doi:https://doi.org/10. 1038/s41567-020-0973-y
work page 2020
-
[11]
C. Hölzl, A. Götzelmann, M. Wirth, M. S. Safronova, S. Weber, F. Mein- ert, Motional ground-state cooling of single atoms in state-dependent optical tweezers, Physical Review Research 5 (3) (Aug 2023).doi: https://doi.org/10.1103/physrevresearch.5.033093
-
[12]
X. Shi, J. Sinanan-Singh, K. DeBry, S. L. Todaro, I. L. Chuang, J. Chi- averini, Long-lived metastable-qubit memory, Physical Review A 111 (2) (Feb 2025).doi:https://doi.org/10.1103/physreva.111.l020601
-
[13]
O.Abah, J.Roßnagel, G.Jacob, S.Deffner, F.Schmidt-Kaler, K.Singer, E. Lutz, Single-ion heat engine at maximum power, Physical Re- view Letters 109 (20) (Nov 2012).doi:https://doi.org/10.1103/ physrevlett.109.203006
work page 2012
-
[14]
J.Roßnagel, S.T.Dawkins, K.N.Tolazzi, O.Abah, E.Lutz, F.Schmidt- Kaler, K. Singer, A single-atom heat engine, Science 352 (6283) (2016) 325–329.doi:https://doi.org/10.1126/science.aad6320
-
[15]
D.Gelbwaser-Klimovsky, A.Bylinskii, D.Gangloff, R.Islam, A.Aspuru- Guzik, V. Vuletić, Single-atom heat machines enabled by energy quanti- zation, Physical Review Letters 120 (17) (2018) 170601.doi:10.1103/ PhysRevLett.120.170601
work page 2018
-
[16]
D. Schwerdt, L. Peleg, Y. Shapira, N. Priel, Y. Florshaim, A. Gross, A. Zalic, G. Afek, N. Akerman, A. Stern, A. B. Kish, R. Ozeri, Scal- able architecture for trapped-ion quantum computing using rf traps and dynamic optical potentials, Physical Review X 14 (4) (Oct 2024). doi:https://doi.org/10.1103/physrevx.14.041017
-
[17]
T. Harty, D. Allcock, C. Ballance, L. Guidoni, H. Janacek, N. Linke, D. Stacey, D. Lucas, High-fidelity preparation, gates, memory, and read- out of a trapped-ion quantum bit, Physical Review Letters 113 (22) (Nov 2014).doi:https://doi.org/10.1103/physrevlett.113.220501. 19
-
[18]
P. A. Ivanov, N. V. Vitanov, K. Singer, High-precision force sensing using a single trapped ion, Scientific Reports 6 (1) (Jun 2016).doi: https://doi.org/10.1038/srep28078
-
[19]
L. Karpa, A. Bylinskii, D. Gangloff, M. Cetina, V. Vuletić, Sup- pression of ion transport due to long-lived subwavelength localization by an optical lattice, Physical Review Letters 111 (16) (Oct 2013). doi:https://doi.org/10.1103/physrevlett.111.163002
-
[20]
M. Enderlein, T. Huber, C. Schneider, T. Schaetz, Single ions trapped in a one-dimensional optical lattice, Physical Review Letters 109 (23) (Dec 2012).doi:https://doi.org/10.1103/physrevlett.109.233004
-
[21]
R. B. Linnet, I. D. Leroux, M. Marciante, A. Dantan, M. Drewsen, Pin- ning an ion with an intracavity optical lattice, Physical Review Letters 109 (23) (Dec 2012).doi:https://doi.org/10.1103/physrevlett. 109.233005
-
[22]
D. Gangloff, A. Bylinskii, I. Counts, W. Jhe, V. Vuletić, Velocity tun- ing of friction with two trapped atoms, Nature Physics 11 (11) (2015) 915–919.doi:https://doi.org/10.1038/nphys3459
-
[23]
A. Bylinskii, D. Gangloff, V. Vuletic, Tuning friction atom-by-atom in an ion-crystal simulator, Science 348 (6239) (2015) 1115–1118.doi: https://doi.org/10.1126/science.1261422
-
[24]
L. Wu, S. Zhang, B. Li, Fisher information for endohedrally confined hydrogen atom, Physics Letters A 384 (1) (2020) 126033.doi:https: //doi.org/10.1016/j.physleta.2019.126033
-
[25]
N. Mukherjee, S. Majumdar, A. K. Roy, Fisher information in confined hydrogen-like ions, Chemical Physics Letters 691 (2017) 449–455.doi: https://doi.org/10.1016/j.cplett.2017.11.059
-
[26]
R.A.Fisher, Theoryofstatisticalestimation, MathematicalProceedings of the Cambridge Philosophical Society 22 (5) (1925) 700–725.doi: https://doi.org/10.1017/s0305004100009580
-
[27]
S. B. Sears, R. G. Parr, U. Dinur, On the quantum-mechanical kinetic energyasameasureoftheinformationinadistribution, IsraelJournalof 20 Chemistry 19 (1-4) (1980) 165–173.doi:https://doi.org/10.1002/ ijch.198000018
work page 1980
-
[28]
F. C. E. Lima, A. R. P. Moreira, C. A. S. Almeida, C. O. Edet, N. Ali, Quantum information entropy of a particle trapped by the aharonov–bohm-type effect, Physica Scripta 98 (6) (2023) 065111–065111.doi:https://doi.org/10.1088/1402-4896/acd309
-
[29]
C. N. Isonguyo, K. J. Oyewumi, O. S. Oyun, Quantum information- theoretic measures for the static screened coulomb potential, Interna- tional Journal of Quantum Chemistry 118 (15) (Mar 2018).doi:https: //doi.org/10.1002/qua.25620
-
[30]
A. N. Ikot, G. J. Rampho, P. O. Amadi, M. J. Sithole, U. S. Oko- rie, M. I. Lekala, Shannon entropy and fisher information-theoretic measures for mobius square potential, The European Physical Jour- nal Plus 135 (6) (Jun 2020).doi:https://doi.org/10.1140/epjp/ s13360-020-00525-2
-
[31]
P. O. Amadi, S. Suryadi, N. Ali, S. A. Aljunid, R. Endut, M. A. Jamlos, A.N.Ikot, Complexitymeasuresofelectricscreeningeffectininterstellar medium, Results in Physics 65 (2024) 107963–107963.doi:https:// doi.org/10.1016/j.rinp.2024.107963
-
[32]
E. P. Inyang, N. Ali, R. Endut, N. Yusof, S. Aljunid, M. Romli, Quan- tum mechanical analysis of cesium dimer, titanium hydride, and tita- nium carbide: Vibrational spectra, expectation values, and information- theoretic measures, Chinese Journal of Physics 97 (Jul 2025).doi: https://doi.org/10.1016/j.cjph.2025.07.010
-
[33]
Q. Dong, A. J. Torres-Arenas, G.-H. Sun, S.-H. Dong, Radial posi- tion–momentum uncertainties for the infinite spherical well and the fisher entropy, Laser Physics Letters 15 (11) (2018) 115202.doi:https: //doi.org/10.1088/1612-202x/aadf6b
-
[34]
L. Li, J. Hu, Y. Zhang, One-dimension periodic potentials in schrödinger equation solved by the finite difference method, European Journal of Physics 46 (1) (2024) 015402–015402.doi:https://doi.org/10.1088/ 1361-6404/ad8d23. 21
work page 2024
-
[35]
B. Falaye, F. Serrano, S.-H. Dong, Fisher information for the position- dependent mass schrödinger system, Physics Letters A 380 (1-2) (2016) 267–271.doi:https://doi.org/10.1016/j.physleta.2015.09.029
-
[36]
C. A. Onate, I. B. Okon, E. S. Eyube, E. Omugbe, K. O. Emeje, M. C. Onyeaju, O. O. Ajani, J. A. Akinpelu, Fisher information for a system composed of a combination of similar potential models, Quan- tum Reports 6 (2) (2024) 184–199.doi:https://doi.org/10.3390/ quantum6020015
work page 2024
-
[37]
J. Koch, G. R. Hunanyan, T. Ockenfels, E. Rico, E. Solano, M. Weitz, Quantumrabidynamicsoftrappedatomsfarinthedeepstrongcoupling regime, Nature Communications 14 (1) (Feb 2023).doi:https://doi. org/10.1038/s41467-023-36611-z
-
[38]
R. W. Robinett, Quantum and classical probability distributions for position and momentum, American Journal of Physics 63 (9) (1995) 823–832.doi:https://doi.org/10.1119/1.17807
-
[39]
S. Luo, Fisher information, kinetic energy and uncertainty relation in- equalities, JournalofPhysicsaMathematicalandGeneral35(25)(2002) 5181–5187.doi:https://doi.org/10.1088/0305-4470/35/25/303
-
[40]
A. Stam, Some inequalities satisfied by the quantities of information of fisher and shannon, Information and Control 2 (2) (1959) 101–112. doi:https://doi.org/10.1016/s0019-9958(59)90348-1
-
[41]
J. S. Dehesa, González-Férez, Sánchez-Moreno, The fisher-information- based uncertainty relation, cramer–rao inequality and kinetic energy for the d-dimensional central problem, Journal of Physics A: Mathematical and Theoretical 40 (8) (2007) 1845–1856.doi:https://doi.org/10. 1088/1751-8113/40/8/011
work page 2007
-
[42]
H. Montgomery, K. Sen, Statistical complexity and fisher–shannon in- formation measure of h+2, Physics Letters A 372 (13) (2008) 2271–2273. doi:https://doi.org/10.1016/j.physleta.2007.11.041
- [43]
