SuperWing: a comprehensive transonic wing dataset for data-driven aerodynamic design

Yunjia Yang , Weishao Tang , Mengxin Liu , Nils Thuerey , Yufei Zhang , Haixin Chen This is my paper

Pith reviewed 2026-05-16 21:45 UTC · model grok-4.3

classification 💻 cs.LG physics.flu-dyn
keywords transonic wing datasetaerodynamic surrogate modelingmachine learning aerodynamicsRANS flow solutionszero-shot generalizationwing shape parameterizationdata-driven design
0
0 comments X

The pith

SuperWing supplies 4,239 parameterized transonic wings and 28,856 flow solutions so machine-learning models can predict surface aerodynamics on unseen shapes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper creates an open dataset of swept transonic wings whose shapes are built by varying airfoil sections, twist, and dihedral independently along the span. This approach generates greater geometric variety than methods that start from a single baseline and add small changes. Transformer models trained on the data reach a 2.5-drag-count error on held-out cases and transfer directly to standard test wings such as the DLR-F6 and NASA CRM without additional fine-tuning. The work therefore supplies both the raw examples and evidence that data-driven surrogates can move beyond narrow families of wing shapes.

Core claim

SuperWing contains 4,239 wing geometries generated with a parameterization that controls spanwise airfoil shape, twist, and dihedral, together with 28,856 RANS solutions spanning typical transonic Mach numbers and angles of attack. Two state-of-the-art transformer architectures trained on the dataset accurately reconstruct surface flow and achieve an average drag error of 2.5 counts on held-out samples. The same models, without retraining, produce useful predictions on complex benchmark wings such as DLR-F6 and NASA CRM.

What carries the argument

SuperWing dataset generated by a spanwise-parameterized geometry model that independently varies airfoil shape, twist, and dihedral at multiple stations.

If this is right

  • Pretrained models can be dropped into design loops for new transonic wings without running fresh flow simulations for each candidate.
  • The dataset supports direct comparison of different machine-learning architectures on the same large, diverse collection of three-dimensional cases.
  • Zero-shot transfer to established benchmarks indicates that the data distribution already covers features needed for practical wing families.
  • Open release of both geometries and flow fields allows other groups to train or fine-tune additional surrogate types.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same parameterization could be extended by adding free parameters for sweep angle or thickness distribution to increase coverage further.
  • Success on DLR-F6 and CRM suggests the dataset already encodes enough physics that similar generalization may appear on other transport wings not yet tested.
  • Integration of SuperWing into optimization frameworks could reduce the number of high-fidelity simulations required to reach a target lift-to-drag ratio.
  • Future work might test whether models pretrained here also accelerate predictions for off-design conditions such as buffet onset.

Load-bearing premise

The chosen spanwise variations in airfoil, twist, and dihedral are enough to represent the essential aerodynamic behavior of real transonic wings.

What would settle it

Train the same transformer architecture on SuperWing and measure whether its drag and surface-pressure predictions remain within 3 counts of RANS results on a new set of 20 swept wings whose planform and section details lie outside the parameterization ranges used in the dataset.

Figures

Figures reproduced from arXiv: 2512.14397 by Haixin Chen, Mengxin Liu, Nils Thuerey, Weishao Tang, Yufei Zhang, Yunjia Yang.

Figure 1
Figure 1. Figure 1: Three-view diagram of a typical kink wing [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Spanwise distribution of parameters for typical kinked wings [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Airfoil shapes and their thickness and camber distributions [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Spanwise control points and the variables to generate distributed wing parameters [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

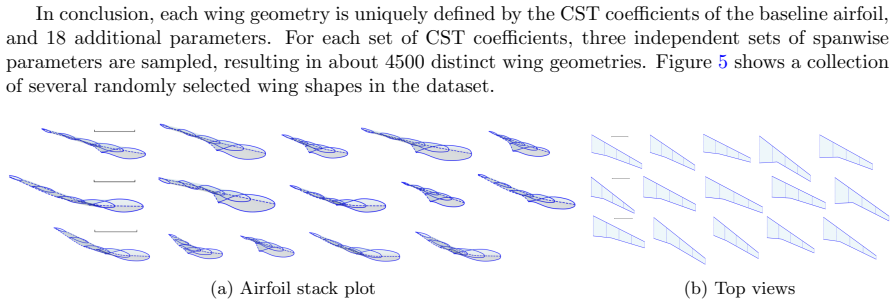

Figure 5. Figure 5: Visualization of several wing shapes in the dataset [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Surface computation mesh of the wings 0.5 1 1.5 ·10−4 200 205 210 N −2/3 C D (count) Ours Lyu et al. [38] [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Mesh convergence study of the CRM wing [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Visualization of flow fields around wings in the dataset [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9

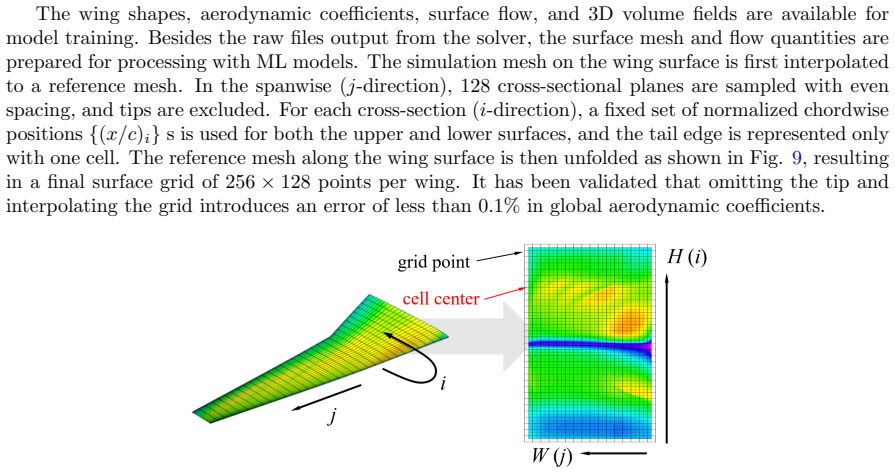

Figure 9. Figure 9: Transferring surface mesh and quantities from simulation mesh to reference mesh [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Surface flow prediction of ViT for three wings in the test dataset [PITH_FULL_IMAGE:figures/full_fig_p013_10.png] view at source ↗
Figure 11

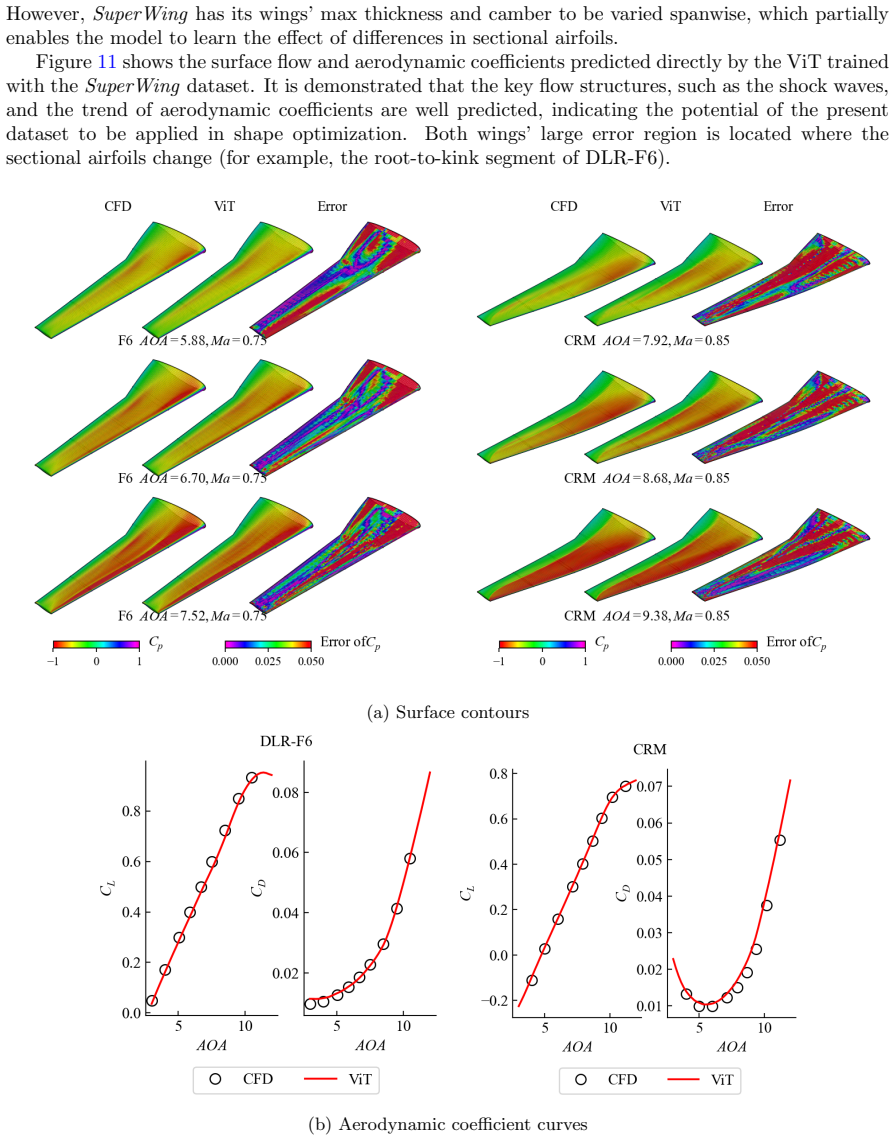

Figure 11. Figure 11: Surface flow and aerodynamic coefficients prediction of ViT for benchmark wings [PITH_FULL_IMAGE:figures/full_fig_p014_11.png] view at source ↗
read the original abstract

Machine-learning surrogate models have shown promise in accelerating aerodynamic design, yet progress toward generalizable predictors for three-dimensional wings has been limited by the scarcity and restricted diversity of existing datasets. Here, we present SuperWing, a comprehensive open dataset of transonic swept-wing aerodynamics comprising 4,239 parameterized wing geometries and 28,856 Reynolds-averaged Navier-Stokes flow field solutions. The wing shapes in the dataset are generated using a simplified yet expressive geometry parameterization that incorporates spanwise variations in airfoil shape, twist, and dihedral, allowing for an enhanced diversity without relying on perturbations of a baseline wing. All shapes are simulated under a broad range of Mach numbers and angles of attack covering the typical flight envelope. To demonstrate the dataset's utility, we benchmark two state-of-the-art Transformers that accurately predict surface flow and achieve a 2.5 drag-count error on held-out samples. Models pretrained on SuperWing further exhibit strong zero-shot generalization to complex benchmark wings such as DLR-F6 and NASA CRM, underscoring the dataset's diversity and potential for practical usage.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents SuperWing, an open dataset consisting of 4,239 parameterized transonic swept-wing geometries and 28,856 RANS flow solutions. The geometries are generated via a parameterization allowing spanwise variations in airfoil shape, twist, and dihedral. The authors benchmark Transformer models for predicting surface flow fields, reporting a 2.5 drag-count error on held-out data, and demonstrate zero-shot generalization to benchmark configurations such as the DLR-F6 and NASA CRM.

Significance. If the performance claims and generalization results hold, this dataset would represent a valuable contribution to data-driven aerodynamic design by providing a large, diverse set of 3D wing simulations that could enable more robust ML surrogates for practical wing design applications. The open release and zero-shot results on established benchmarks are particularly noteworthy strengths.

major comments (2)
  1. [Geometry parameterization] The zero-shot generalization to DLR-F6 and NASA CRM assumes these complex wing-body configurations lie within the spanwise variations of airfoil shape, twist, and dihedral. No quantitative assessment of the fitting error (e.g., for planform, camber, or junction effects) is provided, which is load-bearing for interpreting the generalization results as true zero-shot rather than extrapolation from a restricted shape family.
  2. [Benchmarking results] The reported 2.5 drag-count error lacks details on mesh convergence, turbulence model selection, data splitting procedure, and statistical significance, undermining confidence in the central performance claim despite the abstract stating concrete metrics.
minor comments (2)
  1. [Abstract] Specify the exact definition of 'drag-count error' and the baseline drag values for context.
  2. [Methods] Provide more details on the Reynolds number range and flow conditions to enhance reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address each major comment below and will incorporate revisions to improve clarity and rigor.

read point-by-point responses

  1. Referee: [Geometry parameterization] The zero-shot generalization to DLR-F6 and NASA CRM assumes these complex wing-body configurations lie within the spanwise variations of airfoil shape, twist, and dihedral. No quantitative assessment of the fitting error (e.g., for planform, camber, or junction effects) is provided, which is load-bearing for interpreting the generalization results as true zero-shot rather than extrapolation from a restricted shape family.

    Authors: We acknowledge that the parameterization focuses on isolated swept wings with spanwise variations and does not explicitly model wing-body junctions or full planform complexity of the DLR-F6 and NASA CRM. The reported zero-shot results show transfer of learned aerodynamic features, but we agree a quantitative assessment is needed to clarify the degree of extrapolation. In the revised manuscript we will add a new subsection that projects the benchmark geometries onto our parameterization, reports L2 fitting residuals for camber, twist, dihedral, and planform parameters, and quantifies the resulting aerodynamic discrepancy on a subset of cases. This will allow readers to evaluate the generalization claim more precisely. revision: yes

  2. Referee: [Benchmarking results] The reported 2.5 drag-count error lacks details on mesh convergence, turbulence model selection, data splitting procedure, and statistical significance, undermining confidence in the central performance claim despite the abstract stating concrete metrics.

    Authors: We agree these details are required for reproducibility. The revised manuscript will expand the methods and results sections to include: (i) mesh-convergence studies confirming drag coefficients converge to within 0.5 drag counts across the dataset; (ii) explicit statement of the turbulence model (Spalart-Allmaras); (iii) data-splitting protocol (80/10/10 split performed at the unique-geometry level to prevent leakage); and (iv) statistical significance via mean and standard deviation of the 2.5 drag-count error computed over five independent random seeds. These additions will directly support the reported metric. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper consists of dataset generation via a described geometry parameterization followed by RANS simulations, then standard supervised learning benchmarks on held-out samples plus zero-shot tests on external wings. No derived quantity is defined in terms of a fitted parameter that is re-used as a prediction, and no load-bearing claim reduces to a self-citation or self-definitional loop. The central results are empirical evaluations against independent benchmarks, making the work self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on the representativeness of the chosen geometry parameterization and the adequacy of RANS solutions for the intended surrogate-model use case; both are standard domain practices rather than new postulates.

axioms (1)
  • domain assumption Reynolds-averaged Navier-Stokes simulations with the chosen turbulence model and mesh settings produce flow fields sufficiently accurate for training surrogate models
    Invoked implicitly when the authors treat the 28,856 solutions as ground truth for model training and evaluation.
