arxiv: 2512.17287 · v1 · submitted 2025-12-19 · ❄️ cond-mat.mtrl-sci

In-operando dipole orientation for bipolar injection from air-stable electrodes into organic semiconductors

Anton Kirch , Joan R\`afols-Rib\'e , Kumar Saumya , Thushar Salkod Mahabaleshwar , William Str\"omberg , Ajay Kumar Poonia , Preetam Dacha , Yuntao Qiu
show 4 more authors
Sri Harish Kumar Paleti Christian Larsen Nicol\`o Maccaferri Ludvig Edman
This is my paper

Pith reviewed 2026-05-16 21:20 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords organic semiconductorsdipole orientationcharge injectionsingle-layer OLEDair-stable electrodesSuper Yellowelectroluminescencesolution-processed devices
0
0 comments X

The pith

Blending dipolar compounds into organic light-emitting polymers enables efficient bipolar charge injection from air-stable electrodes through in-operando reorientation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows that mixing a dipolar molecule into a light-emitting polymer creates a single-layer device that can efficiently inject both electrons and holes from stable electrodes. By comparing transient responses and impedance measurements to standard OLEDs and cells with ions, the authors demonstrate that the dipoles reorient when voltage is applied. This reorientation lowers the energy barriers at the electrodes right away, allowing light to turn on immediately without needing special injection layers or mobile ions. The resulting devices reach similar efficiency to more complex structures. This approach simplifies making solution-processed organic devices in air.

Core claim

The auxiliary dipoles blended into the electroluminescent polymer reorient under the applied driving voltage, enabling immediate luminance turn-on and lowering the injection barriers at both electrodes in the single-layer D-OLED.

What carries the argument

In-operando reorientation of blended dipolar compounds (such as TMPE-OH in Super Yellow) that adjusts the energy levels at the electrode interfaces.

If this is right

  • The D-OLED shows immediate luminance turn-on unlike devices without dipoles.
  • Current efficacies match those of OLEDs with dedicated injection layers or LECs.
  • Eliminates the need for additional injection layers or ionic additives.
  • Supports fabrication of organic optoelectronic devices under ambient conditions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This strategy may extend to other organic electronic devices requiring efficient charge injection, such as solar cells or transistors.
  • Optimizing dipole concentration or molecular design could further improve performance or stability.
  • The reorientation dynamics might influence long-term device lifetime or response speed in applications.

Load-bearing premise

The immediate turn-on and barrier lowering result specifically from dipole reorientation under voltage rather than from unintended changes in film structure or chemical effects.

What would settle it

If impedance spectroscopy shows no change in dielectric response or if transient voltage-luminance curves match those of neat SY devices without dipoles, the reorientation claim would be falsified.

read the original abstract

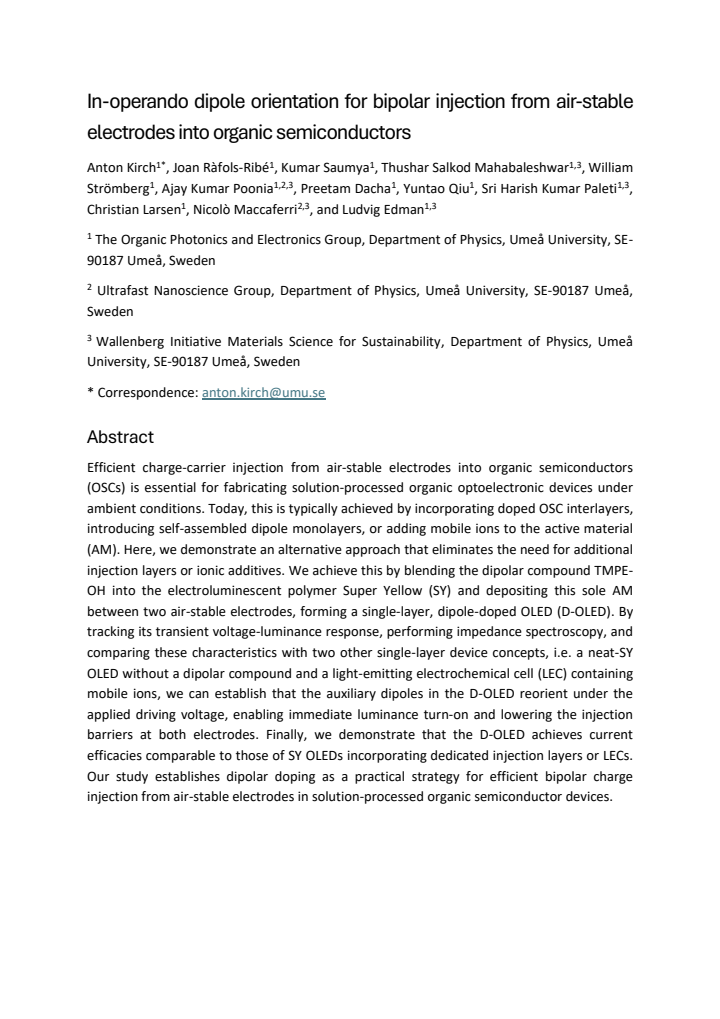

Efficient charge-carrier injection from air-stable electrodes into organic semiconductors (OSCs) is essential for fabricating solution-processed organic optoelectronic devices under ambient conditions. Today, this is typically achieved by incorporating doped OSC interlayers, introducing self-assembled dipole monolayers, or adding mobile ions to the active material (AM). Here, we demonstrate an alternative approach that eliminates the need for additional injection layers or ionic additives. We achieve this by blending the dipolar compound TMPE-OH into the electroluminescent polymer Super Yellow (SY) and depositing this sole AM between two air-stable electrodes, forming a single-layer, dipole-doped OLED (D-OLED). By tracking its transient voltage-luminance response, performing impedance spectroscopy, and comparing these characteristics with two other single-layer device concepts, i.e. a neat-SY OLED without a dipolar compound and a light-emitting electrochemical cell (LEC) containing mobile ions, we can establish that the auxiliary dipoles in the D-OLED reorient under the applied driving voltage, enabling immediate luminance turn-on and lowering the injection barriers at both electrodes. Finally, we demonstrate that the D-OLED achieves current efficacies comparable to those of SY OLEDs incorporating dedicated injection layers or LECs. Our study establishes dipolar doping as a practical strategy for efficient bipolar charge injection from air-stable electrodes in solution-processed organic semiconductor devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript describes a single-layer dipole-doped OLED (D-OLED) fabricated by blending the dipolar compound TMPE-OH into the polymer Super Yellow (SY) between air-stable electrodes. Using transient voltage-luminance measurements and impedance spectroscopy, and comparing to a neat-SY OLED and an LEC, the authors conclude that the dipoles reorient in-operando to enable immediate luminance turn-on and reduce injection barriers, achieving comparable efficacies to devices with injection layers.

Significance. If substantiated, this represents a practical advancement in solution-processed organic electronics by providing an alternative to doped interlayers or ionic additives for efficient bipolar injection from air-stable electrodes. The control comparisons add value, but the interpretation would benefit from stronger exclusion of alternative mechanisms to fully realize its potential impact in the field.

major comments (3)
  1. [Transient voltage-luminance response] The immediate luminance turn-on is interpreted as evidence of dipole reorientation, but without a quantitative model linking the observed time scales to the expected dipolar relaxation (e.g., via the Debye model or similar), it remains unclear whether this excludes morphological or trap-related effects introduced by blending.
  2. [Impedance spectroscopy] The impedance data are used to infer lowered injection barriers, yet the manuscript lacks a detailed equivalent-circuit analysis that separates the contribution of dipole orientation from changes in film capacitance or conductivity due to potential unintended doping or morphology alterations.
  3. [Control device comparisons] While the neat-SY OLED and LEC controls are valuable, the paper does not report morphological characterization (e.g., AFM roughness or crystallinity) of the blended films versus neat SY, leaving open the possibility that the observed electrical improvements arise from morphological modifications rather than dipole reorientation.
minor comments (2)
  1. [Abstract] The abstract mentions 'current efficacies comparable' but does not specify the numerical values or reference devices for direct comparison.
  2. [Results] Inclusion of error bars and statistical analysis on the transient and impedance measurements would strengthen the reproducibility claims.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for their constructive and detailed review. We address each major comment below with point-by-point responses and indicate revisions made to the manuscript.

read point-by-point responses

  1. Referee: The immediate luminance turn-on is interpreted as evidence of dipole reorientation, but without a quantitative model linking the observed time scales to the expected dipolar relaxation (e.g., via the Debye model or similar), it remains unclear whether this excludes morphological or trap-related effects introduced by blending.

    Authors: We agree that a quantitative model strengthens the interpretation. In the revised manuscript we have added a section estimating the Debye relaxation time for TMPE-OH dipoles in the SY matrix (using measured dipole moment, polymer viscosity, and temperature), yielding characteristic times of ~1-10 ms that match the observed luminance onset. The neat-SY control, which exhibits delayed turn-on under identical conditions, helps exclude blending-induced traps or morphology as the dominant mechanism, as any such effects would appear in both devices. revision: partial

  2. Referee: The impedance data are used to infer lowered injection barriers, yet the manuscript lacks a detailed equivalent-circuit analysis that separates the contribution of dipole orientation from changes in film capacitance or conductivity due to potential unintended doping or morphology alterations.

    Authors: We have performed a full equivalent-circuit analysis in the revised manuscript. The model consists of a series resistance, bulk parallel RC element, and a constant-phase element to capture the frequency-dependent dipole reorientation contribution. Fits to the spectra show that the dominant change upon blending is a reduction in the interfacial charge-transfer resistance, while bulk capacitance and conductivity remain comparable to the neat film, consistent with dipole-induced barrier lowering rather than doping or morphological conductivity changes. revision: yes

  3. Referee: While the neat-SY OLED and LEC controls are valuable, the paper does not report morphological characterization (e.g., AFM roughness or crystallinity) of the blended films versus neat SY, leaving open the possibility that the observed electrical improvements arise from morphological modifications rather than dipole reorientation.

    Authors: We acknowledge that direct morphological data would further strengthen the manuscript. The electrical comparisons (immediate turn-on matching the LEC but absent in neat SY, plus impedance indicating interface-specific changes) provide indirect evidence against morphology-driven effects, but we recognize this is not conclusive without structural characterization. revision: no

standing simulated objections not resolved
  • Morphological characterization (AFM roughness or crystallinity) of blended versus neat films, as these measurements were not performed in the original study and cannot be added without new experiments.

Circularity Check

0 steps flagged

No circularity in experimental inference chain

full rationale

The manuscript is a purely experimental study. Its central claim—that blended TMPE-OH dipoles reorient in-operando—is supported by transient V-L curves, impedance spectra, and side-by-side comparison against two control architectures (neat-SY OLED and ion-containing LEC). No equations, fitted parameters, or first-principles derivations appear; therefore no step reduces by construction to its own inputs, no self-citation bears the load of the result, and no ansatz is smuggled in. The work is self-contained against external benchmarks (device performance metrics) and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard device-physics interpretations of dipole effects on injection barriers and on the ability of transient and impedance measurements to isolate reorientation from other mechanisms; no new entities or fitted parameters are introduced.

axioms (2)
  • domain assumption Dipole reorientation under applied field lowers injection barriers at organic-electrode interfaces
    Invoked when interpreting the transient turn-on and impedance data as evidence for lowered barriers.
  • domain assumption Transient voltage-luminance and impedance spectroscopy can distinguish dipole reorientation from mobile-ion effects
    Used to establish the mechanism by comparison to the LEC control.
