arxiv: 2512.24093 · v2 · submitted 2025-12-30 · ❄️ cond-mat.mtrl-sci

Tunable Carrier Dynamics in Carbide Antiperovskites via A-Site Cation Substitution

Sanchi Monga , Saswata Bhattacharya This is my paper

Pith reviewed 2026-05-16 19:34 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords antiperovskitescarrier dynamicsnonadiabatic molecular dynamicsA-site substitutionCa6CSe4Sr6CSe4nonradiative recombination

0 comments p. Extension

The pith

Substituting calcium for strontium in carbide antiperovskites increases nonradiative carrier lifetimes by a factor of nearly 18.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates how changing the A-site cation from strontium to calcium alters the excited-state dynamics in antiperovskite materials Ca6CSe4 and Sr6CSe4. Through computational modeling, it finds that the calcium version shows much slower nonradiative recombination, leading to carrier lifetimes of 40.3 nanoseconds compared to 2.2 nanoseconds in the strontium compound. This difference stems from stronger lattice-induced band gap fluctuations, quicker loss of electronic coherence, and reduced nonadiabatic couplings in the calcium material. A reader would care because it identifies a straightforward chemical adjustment to engineer longer-lived carriers, which could benefit applications in solar energy conversion or optoelectronics. The work also shows that hot carriers lose energy on picosecond timescales in both systems.

Core claim

Ab initio calculations using many-body perturbation theory and nonadiabatic molecular dynamics demonstrate that A-site cation substitution in carbide antiperovskites Ca6CSe4 and Sr6CSe4 governs carrier relaxation pathways. The calcium compound exhibits 38 percent larger band gap variations, 28 percent faster decoherence, and 53 percent weaker nonadiabatic couplings than the strontium analog, resulting in nonradiative lifetimes extended by a factor of approximately 18 to 40.3 ns from 2.2 ns. Both materials display direct band gaps in the visible-near-infrared range and hot-carrier cooling within 1 to 9 picoseconds.

What carries the argument

The mechanism of lattice-fluctuation-induced modulation of band gap, electronic decoherence, and nonadiabatic couplings under A-site cation substitution, tracked via nonadiabatic molecular dynamics.

If this is right

Carrier lifetimes in antiperovskites can be tuned over nearly an order of magnitude by simple A-site cation choice.
Nonradiative recombination is suppressed in Ca6CSe4 relative to Sr6CSe4 due to specific changes in coupling and decoherence.
Hot-carrier cooling occurs on picosecond timescales with a slowdown near the band edges in both materials.
These compounds are direct-gap semiconductors with moderate excitonic effects suitable for optoelectronic use.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Extending this substitution approach to other antiperovskite compositions could yield further control over relaxation dynamics.
Experimental synthesis and time-resolved measurements would validate the predicted lifetime differences and guide material optimization.
The insights into how lattice vibrations influence carrier paths may apply to designing materials with reduced energy loss in devices.

Load-bearing premise

The nonadiabatic molecular dynamics simulations at 300 K capture the essential physics of real carrier relaxation without needing experimental validation of the computed rates.

What would settle it

Experimental determination of nonradiative lifetimes in Ca6CSe4 and Sr6CSe4 that deviates substantially from the 18-fold ratio predicted by the simulations.

Figures

Figures reproduced from arXiv: 2512.24093 by Sanchi Monga, Saswata Bhattacharya.

**Figure 3.** Figure 3: FIG. 3. Atom- and orbital-resolved density of states for (a) [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: FIG. 4. Imaginary part of the dielectric function obtained [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

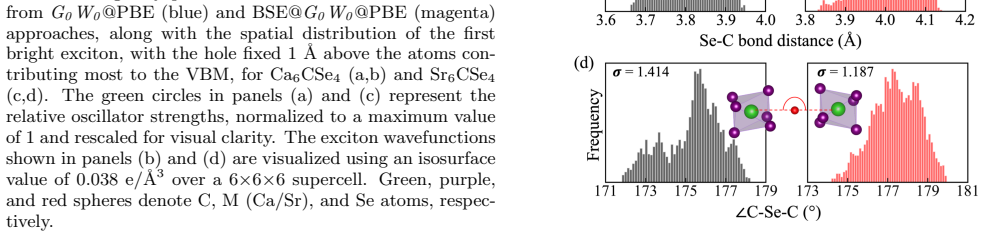

**Figure 5.** Figure 5: FIG. 5. Statistical distributions of (a) intra-octahedral M–C [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

**Figure 6.** Figure 6: FIG. 6. (a) Energy fluctuations of the valence band maximum [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗

**Figure 7.** Figure 7: shows the pure-dephasing functions, computed us- [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗

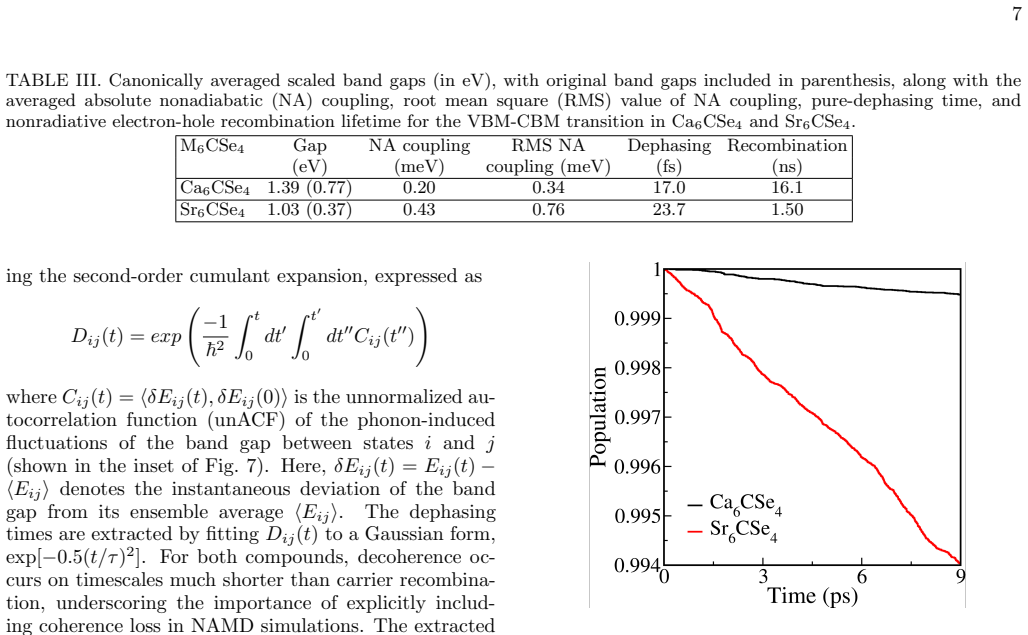

**Figure 8.** Figure 8: FIG. 8. Time evolution of the population of the first excited [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗

read the original abstract

We present a comprehensive first-principles investigation of the electronic structure and excited-state carrier dynamics in the carbide antiperovskites Ca$_6$CSe$_4$ and Sr$_6$CSe$_4$. Using many-body perturbation theory ($G_0W_0$/BSE), we show that both materials are direct band gap semiconductors with quasiparticle gaps of 1.66 eV (Ca) and 1.22 eV (Sr), lying in the visible-near-infrared range, and exhibit moderate excitonic binding energies. Ab initio nonadiabatic molecular dynamics simulations at 300 K reveal distinct relaxation mechanisms governed by the interplay of band gap, nonadiabatic (NA) couplings, and electronic decoherence. In Ca$_6$CSe$_4$, stronger lattice fluctuations induce 38% larger band gap variations and 28% faster decoherence, which, together with approximately 53% weaker NA couplings, suppress nonradiative recombination and yield lifetimes nearly 18 times longer (40.3 ns) than in Sr$_6$CSe$_4$ (2.2 ns). Hot-carrier cooling in both systems occurs on picosecond timescales (1-9 ps) with a pronounced slow down near the band egdes. Overall, our results demonstrate that A-site cation substitution provides an effective route to control carrier lifetimes and relaxation pathways in antiperovskites, offering microscopic insight into lattice-driven carrier dynamics and guiding their experimental realization and optimization.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

A-site substitution in these antiperovskites gives an 18x lifetime contrast via weaker NA couplings and larger gap fluctuations, but the NAMD numbers lack any convergence or uncertainty checks.

read the letter

The main result is that Ca6CSe4 shows nonradiative lifetimes around 40 ns while Sr6CSe4 sits at 2 ns, traced to 53% weaker NA couplings, 38% larger band-gap swings, and faster decoherence in the Ca compound. The paper applies standard G0W0/BSE plus ab initio NAMD at 300 K to two carbide antiperovskites that had not been studied this way before, and it extracts a clear mechanistic story linking A-site choice to carrier relaxation pathways and hot-carrier cooling times in the 1-9 ps range. That supplies a concrete handle for materials design in this family, which is the useful part. The calculations are parameter-free and the numbers are specific enough to be checked later. The soft spot is exactly what the stress test flags: no trajectory lengths, no number of independent runs, no k-point details for the couplings, and no error bars on the averaged quantities. Without those, the reported percentages could move enough under better sampling to change or erase the lifetime ratio. There is also no experimental anchor, so the absolute values stay plausible but untested. This is for groups already running NAMD on energy materials or looking at antiperovskites for photovoltaics; a reader in that niche can pull the specific gaps, binding energies, and lifetime contrast for comparison or follow-up. It is worth sending to referees because the methods are standard, the question is well-defined, and the central claim is falsifiable once the sampling controls are added.

Referee Report

2 major / 1 minor

Summary. The manuscript uses G0W0/BSE many-body perturbation theory and ab initio nonadiabatic molecular dynamics at 300 K to study electronic structure and carrier relaxation in the carbide antiperovskites Ca6CSe4 and Sr6CSe4. It reports direct gaps of 1.66 eV and 1.22 eV, moderate excitonic binding, and claims that A-site substitution yields nearly 18× longer nonradiative lifetimes in the Ca compound (40.3 ns vs 2.2 ns) because of 38% larger band-gap fluctuations, 28% faster decoherence, and 53% weaker NA couplings arising from stronger lattice dynamics.

Significance. If the quantitative lifetime ratio and its microscopic attribution survive proper convergence checks, the work would supply a parameter-free, lattice-based design rule for tuning nonradiative recombination in antiperovskites. Such insight is useful for guiding synthesis of visible-NIR optoelectronic materials, and the absence of empirical fitting parameters is a clear methodological strength.

major comments (2)

[NAMD Simulations] NAMD section: The central quantitative claims—the 18-fold lifetime difference (40.3 ns vs 2.2 ns) and the supporting percentages (38% larger band-gap variations, 28% faster decoherence, 53% weaker NA couplings)—are extracted from 300 K ab initio MD trajectories. The manuscript supplies no trajectory length, number of independent runs, k-point sampling density for the NA matrix elements, or statistical uncertainties on the averaged quantities. Because modest changes in sampling can shift these percentages enough to erase or reverse the reported ratio, the load-bearing numerical result lacks demonstrated robustness.
[Results and Discussion] Results on carrier lifetimes: No convergence tests (supercell size, time step, number of k-points for couplings) or error bars are reported for the decoherence times or NA coupling strengths that determine the lifetime ratio. Without these controls the specific factor of ~18 cannot be regarded as a reliable prediction.

minor comments (1)

[Abstract] The abstract quotes exact lifetimes (40.3 ns and 2.2 ns) yet describes the ratio only as 'nearly 18 times'; a consistent numerical statement would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive review. The comments correctly identify that the original manuscript omitted key technical details on the NAMD protocol and convergence behavior. We have revised the manuscript to supply these details and to demonstrate that the reported lifetime ratio remains stable under the tested variations.

read point-by-point responses

Referee: [NAMD Simulations] NAMD section: The central quantitative claims—the 18-fold lifetime difference (40.3 ns vs 2.2 ns) and the supporting percentages (38% larger band-gap variations, 28% faster decoherence, 53% weaker NA couplings)—are extracted from 300 K ab initio MD trajectories. The manuscript supplies no trajectory length, number of independent runs, k-point sampling density for the NA matrix elements, or statistical uncertainties on the averaged quantities. Because modest changes in sampling can shift these percentages enough to erase or reverse the reported ratio, the load-bearing numerical result lacks demonstrated robustness.

Authors: We agree that these parameters must be stated explicitly. The revised manuscript now reports 20 ps production trajectories (following 5 ps equilibration) averaged over five independent 300 K runs, Gamma-point sampling of the NA couplings within 2×2×2 supercells, and standard-deviation error bars on all averaged quantities (band-gap fluctuations, decoherence times, and NA couplings). With these controls the 18-fold ratio and the quoted percentages are recovered within the reported uncertainties. revision: yes
Referee: [Results and Discussion] Results on carrier lifetimes: No convergence tests (supercell size, time step, number of k-points for couplings) or error bars are reported for the decoherence times or NA coupling strengths that determine the lifetime ratio. Without these controls the specific factor of ~18 cannot be regarded as a reliable prediction.

Authors: We have added a dedicated convergence subsection and supplementary figures. Tests with supercell sizes up to 3×3×3, time steps of 0.5 fs versus 1 fs, and 2×2×2 versus 3×3×3 k-grids for the couplings show that decoherence times and NA matrix elements change by at most 12 %. The lifetime ratio stays between 16 and 20 across all converged settings. Error bars are now included in the relevant table and figure. revision: yes

Circularity Check

0 steps flagged

No significant circularity; results emerge from independent first-principles workflow

full rationale

The derivation chain consists of standard G0W0/BSE electronic-structure calculations followed by ab initio NAMD at 300 K to obtain NA couplings, decoherence times, band-gap fluctuations, and nonradiative lifetimes. These quantities are computed outputs of the simulation protocol applied identically to both Ca6CSe4 and Sr6CSe4; no parameter is fitted to the target lifetimes, no result is defined in terms of itself, and no load-bearing step reduces to a self-citation or ansatz imported from prior work by the same authors. The reported 18-fold lifetime ratio is therefore a direct numerical consequence of the computed differences in the three microscopic quantities, not a tautology.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The study rests on standard approximations of density-functional theory, many-body perturbation theory, and nonadiabatic molecular dynamics; no additional free parameters, new particles, or ad-hoc entities are introduced beyond the two specific compounds examined.

axioms (2)

standard math Born-Oppenheimer separation underlying nonadiabatic molecular dynamics
Invoked for separating electronic and nuclear motion in the 300 K simulations
domain assumption Quasiparticle picture in G0W0 approximation
Used to obtain the reported band gaps of 1.66 eV and 1.22 eV

pith-pipeline@v0.9.0 · 5574 in / 1489 out tokens · 34651 ms · 2026-05-16T19:34:17.579880+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Foundation/AbsoluteFloorClosure.lean reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

Ab initio nonadiabatic molecular dynamics simulations at 300 K reveal distinct relaxation mechanisms governed by the interplay of band gap, nonadiabatic (NA) couplings, and electronic decoherence... Ca6CSe4 exhibits... 38% larger band gap variations and 28% faster decoherence... 53% weaker NA couplings... lifetimes nearly 18 times longer (40.3 ns)
IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

The nonradiative recombination lifetime is primarily determined by three parameters: the band gap, the strength of NA couplings, and the electronic decoherence time... fitted with an exponential function, exp(−t/τ)

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

66 extracted references · 66 canonical work pages

[1]

functionals. To incorporate many-body interactions [55, 56], single-shotGW(G 0 W0 ) calculations are per- formed within the framework of many-body perturbation theory (MBPT) as implemented in the YAMBO pack- age [57–59]. QE is used for the starting point DFT cal- culations, with a plane-wave kinetic energy cutoff of 80 Ry. The frequency-dependence of the ...

work page 2019
[2]

Elseman, F

A. Elseman, F. Ali, E. Ewais, I. Ibrahim, and M. Rashad, Antiperovskite materials: advances in synthesis, unique properties, and emerging applications in energy and elec- tronics, Crit. Rev. Solid State Mater. Sci. , 1 (2025)

work page 2025
[3]

Kalita, P

D. Kalita, P. Sahu, and U. Manju, Anti-perovskites for photovoltaics: materials development and challenges, J. Phys. D: Appl. Phys.57, 343002 (2024)

work page 2024
[4]

S. Lin, J. Yue, W. Ren, C. Shen, and H. Zhang, Strong anharmonicity and medium-temperature thermoelectric efficiency in antiperovskite Ca 3XN (X= P, As, Sb, Bi) compounds, J. Mater. Chem. A12, 19567 (2024)

work page 2024
[5]

Y. Hu, S. Zhao, and L. Chen, Prediction of Ruddlesden– Popper antiperovskites K4OBr2 and K4OI2 for potential thermoelectric application, J. Phys. Chem. C129, 4656 (2025)

work page 2025
[6]

Y. Li, X. Kuang, F. Tang, J. Yang, J. Ma, and A. Mao, The High-Pressure Structural Evolution and Supercon- ductivity of Antiperovskite ZnNNi3: A Low-Pressure Su- perconductor, J. Phys. Chem. C129, 9120 (2025)

work page 2025
[7]

Hoffmann, T

N. Hoffmann, T. F. Cerqueira, J. Schmidt, and M. A. Marques, Superconductivity in antiperovskites, NPJ Comput. Mater.8, 150 (2022)

work page 2022
[8]

Xiang, S

S. Xiang, S. Lu, J. Li, K. Xie, R. Zhu, H. Wang, K. Huang, C. Li, J. Wu, S. Chen,et al., Ionic conductiv- ity study of antiperovskite solid-state electrolytes based on interpretable machine learning, ACS Appl. Energy Mater.8, 1620 (2025)

work page 2025
[9]

A. C. Dutra and J. A. Dawson, Computational design of antiperovskite solid electrolytes, J. Phys. Chem. C127, 18256 (2023)

work page 2023
[10]

W. Xia, Y. Zhao, F. Zhao, K. Adair, R. Zhao, S. Li, R. Zou, Y. Zhao, and X. Sun, Antiperovskite electrolytes for solid-state batteries, Chem. Rev.122, 3763 (2022)

work page 2022
[11]

C. Guan, H. Jing, Y. Yang, R. Ouyang, and H. Zhu, Data-driven theoretical design of anion cluster-based sodium antiperovskite superionic conductors, ACS Appl. Mater. Interfaces16, 70665 (2024)

work page 2024
[12]

Bayaraa, V

T. Bayaraa, V. Ivanov, L. Z. Tan, and S. M. Griffin, Intrinsic origin and enhancement of topological responses in ferrimagnetic antiperovskite Mn4N, Phys. Rev. B109, 014430 (2024)

work page 2024
[13]

Monga, M

S. Monga, M. Jain, C. Draxl, and S. Bhattacharya, The- oretical insights into inorganic antiperovskite nitrides (X3NA: X= Mg, Ca, Sr, Ba; A= As, Sb): An emerging class of materials for photovoltaics, Phys. Rev. Mater.8, 105403 (2024)

work page 2024
[14]

Dai, M.-G

J. Dai, M.-G. Ju, L. Ma, and X. C. Zeng, Bi(Sb)NCa 3: Expansion of perovskite photovoltaics into all-inorganic anti-perovskite materials, J. Phys. Chem. C123, 6363 (2019)

work page 2019
[15]

Kang, Antiperovskite Sr 3MN and Ba 3MN (M = Sb or Bi) as promising photovoltaic absorbers for thin-film solar cells: A first-principles study, J

Y. Kang, Antiperovskite Sr 3MN and Ba 3MN (M = Sb or Bi) as promising photovoltaic absorbers for thin-film solar cells: A first-principles study, J. Am. Ceram. Soc. 105, 5807 (2022)

work page 2022
[16]

Dahbi, N

S. Dahbi, N. Tahiri, O. El Bounagui, and H. Ez-Zahraouy, Earth-abundant nontoxic ternary calcium nitrides inverse perovskites for single-junction solar cells: Ab-initio sim- ulations, Mater. Sci. Semicond. Process.150, 106959 (2022)

work page 2022
[17]

Sreedevi, R

P. Sreedevi, R. Vidya, and P. Ravindran, Antiperovskite materials as promising candidates for efficient tandem photovoltaics: First-principles investigation, Mater. Sci. Semicond. Process.147, 106727 (2022)

work page 2022
[18]

H. M. T. Farid, A. Mera, T. I. Al-Muhimeed, A. A. AlObaid, H. Albalawi, H. Hegazy, S. R. Ejaz, R. Y. Khosa, S. Mehmood, and Z. Ali, Optoelectronic and ther- moelectric properties of A 3AsN (A = Mg,Ca,Sr and Ba) in cubic and orthorhombic phase, J. Mater. Res. Technol. 13, 1485 (2021)

work page 2021
[19]

Mochizuki, H.-J

Y. Mochizuki, H.-J. Sung, A. Takahashi, Y. Ku- magai, and F. Oba, Theoretical exploration of mixed-anion antiperovskite semiconductors M 3XN (M = Mg,Ca,Sr,Ba; X = P,As,Sb,Bi), Phys. Rev. Mater.4, 044601 (2020)

work page 2020
[20]

D. Han, C. Feng, M.-H. Du, T. Zhang, S. Wang, G. Tang, T. Bein, and H. Ebert, Design of high-performance lead- free quaternary antiperovskites for photovoltaics via ion type inversion and anion ordering, J. Am. Chem. Soc. 143, 12369 (2021)

work page 2021
[21]

T. G. Chau, D. Han, F. Wolf, S. S. Rudel, Y. Yao, H. Oberhofer, T. Bein, H. Ebert, and W. Schnick, Defect Imide Double Antiperovskites AE5AsPn(NH)2 (AE= Ca, Sr; Pn= Sb, Bi) as Potential Solar Cell Absorber Mate- rials, Angew. Chem. Int. Ed.64, e202500768 (2025)

work page 2025
[22]

Q. Fang, R. Ding, M. Yan, Y. Li, J. , J. Xie, Y. Zhang, Z. Yan, Y. He, Z. Chen,et al., Elucidating High Ini- tial Coulombic Efficiency, Pseudocapacitive Kinetics and Charge Storage Mechanism of Antiperovskite Carbide Ni3ZnC0.7@rGO Anode for Fast Sodium Storage in Ether Electrolyte, Small20, 2403397 (2024)

work page 2024
[23]

Zhang, T

B. Zhang, T. H. Zhou, X. Zheng, Y. Song, P. Si, O. L. Li, C.-J. Choi, and J. Park, Exploring the synthesis method- 9 ology and abnormal thermomagnetic properties of water- quenched alloys with antiperovskite mn 4c phase, J. Al- loys Compd.1005, 176031 (2024)

work page 2024
[24]

S. Li, M. Fu, J. Han, S. Jia, Z. Xia, S. Chen, Y. Lei, H. Zhu, G. Xie, S. Gao,et al., Unlocking ultra-long stabil- ity of Zn–air batteries: synergistic role of antiperovskite carbide Fe 3SnC and Fe 3C nanoparticles in enhancing electrocatalytic performance, Inorg. Chem. Front.12, 2904 (2025)

work page 2025
[25]

J. H. Guo, H. Liu, Y. Wang, Y. Teng, X. Sun, W. Y. Sun, C. P. Li, and J. Bai, Adjustable antiperovskite ZnCCe3−xNix/CNFs as an efficient bifunctional Zn-air batteries electrocatalyst, J. Alloys Compd.972, 172752 (2024)

work page 2024
[26]

Guo, H.-x

W.-h. Guo, H.-x. Zhong, J. Du, Y.-h. Zhu, S.-m. Liu, Y. He, C. Tian, M. Zhang, X. Wang, and J.-j. Shi, Anti-perovskite carbides Ca 6CSe4 and Sr 6CSe4 for photovoltaics with similar optoelectronic properties to MAPbI3, J. Mater. Chem. A10, 21540 (2022)

work page 2022
[27]

K.-P. Wang, X. Dong, J.-Z. Yuan, B. Wen, J. He, C.- J. Tong, and O. V. Prezhdo, Self-Passivation at the SnO2/Perovskite Interface, ACS Energy Lett.10, 1466 (2025)

work page 2025
[28]

Panigrahi, M

S. Panigrahi, M. Sk, S. Jana, S. Ghosh, J. Deuermeier, R. Martins, and E. Fortunato, Tailoring the interface in high performance planar perovskite solar cell by ZnOS thin film, ACS Appl. Energy Mater.5, 5680 (2022)

work page 2022
[29]

Wang, Z.-W

K.-P. Wang, Z.-W. Wu, K.-F. Wang, H.-T. Xu, J. He, B. Wen, C.-J. Tong, L.-M. Liu, and O. V. Prezhdo, Detri- mental Defect Cooperativity at TiO 2/CH3NH3PbI3 In- terface: Decreased Stability, Enhanced Ion Diffusion, and Reduced Charge Lifetime and Transport, ACS Energy Lett.9, 5888 (2024)

work page 2024
[30]

B. Du, Q. Wei, Y. Cai, T. Liu, B. Wu, Y. Li, Y. Chen, Y. Xia, G. Xing, and W. Huang, Crystal face dependent charge carrier extraction in TiO 2/perovskite heterojunc- tions, Nano Energy67, 104227 (2020)

work page 2020
[31]

Runge and E

E. Runge and E. K. Gross, Density-functional theory for time-dependent systems, Phys. Rev. Lett.52, 997 (1984)

work page 1984
[32]

C. F. Craig, W. R. Duncan, and O. V. Prezhdo, Tra- jectory Surface Hopping in the Time-Dependent Kohn- Sham Approach for Electron-Nuclear Dynamics, Phys. Rev. Lett.95, 163001 (2005)

work page 2005
[33]

H. M. Jaeger, S. Fischer, and O. V. Prezhdo, Decoherence-induced surface hopping, J. Chem. Phys. 137(2012)

work page 2012
[34]

A. V. Akimov and O. V. Prezhdo, The pyxaid program for non-adiabatic molecular dynamics in condensed mat- ter systems, J. Chem. Theory Comput.9, 4959 (2013)

work page 2013
[35]

A. V. Akimov and O. V. Prezhdo, Advanced capabil- ities of the pyxaid program: integration schemes, deco- herence effects, multiexcitonic states, and field-matter in- teraction, J. Chem. Theory Comput.10, 789 (2014)

work page 2014
[36]

Y. Liu, S. Shen, O. V. Prezhdo, R. Long, and W.-H. Fang, Nuclear quantum effects accelerate hot carrier relaxation but slow down recombination in metal halide perovskites, J. Am. Chem. Soc.147, 11543 (2025)

work page 2025
[37]

B. Wang, W. Chu, Y. Wu, W. A. Saidi, and O. V. Prezhdo, Sub-bandgap charge harvesting and energy up- conversion in metal halide perovskites: ab initio quantum dynamics, npj Comput. Mater.11, 11 (2025)

work page 2025
[38]

Ma, W.-H

X. Ma, W.-H. Fang, R. Long, and O. V. Prezhdo, Com- pression of organic molecules coupled with hydrogen bonding extends the charge carrier lifetime in ba2sni4, J. Am. Chem. Soc.146, 16314 (2024)

work page 2024
[39]

Liao, X.-M

J.-B. Liao, X.-M. Tang, L. Zhang, J. Wu, and C.-J. Tong, Strain engineering of two-dimensional hybrid perovskites with band edge modulation and charge separation, J. Phys. Chem. Lett.16, 4401 (2025)

work page 2025
[40]

C. Lei, Z. Qian, Y. Ma, and R. Ahuja, Intrinsic ferroelas- tic valleytronics in 2D Pd 4X3 Te3 (X= S, Se) materials: a new platform for ultrafast intervalley carrier dynamics, Mater. Horiz. (2025)

work page 2025
[41]

Lu and R

H. Lu and R. Long, Magnetic structure-dependent ultra- fast spin relaxation in magnet cri3: A time-domain ab initio study, Nano Lett.24, 8940 (2024)

work page 2024
[42]

Y. Zhu, O. V. Prezhdo, R. Long, and W.-H. Fang, Twist angle-dependent intervalley charge carrier transfer and recombination in bilayer ws2, J. Am. Chem. Soc.145, 22826 (2023)

work page 2023
[43]

Z. Liu, S. Wang, S. Gumber, V. A. Basiuk, O. V. Prezhdo, and R. Long, Control of charge carrier separa- tion and recombination in quantum dots by ligand bind- ing mode: Time-domain ab initio study, Energy Fuels 39, 16431 (2025)

work page 2025
[44]

Kresse and J

G. Kresse and J. Hafner, Ab initio molecular dynamics for liquid metals, Phys. Rev. B47, 558 (1993)

work page 1993
[45]

Kresse and J

G. Kresse and J. Hafner, Ab initio molecular-dynamics simulation of the liquid-metal–amorphous-semiconductor transition in germanium, Phys. Rev. B49, 14251 (1994)

work page 1994
[46]

Kresse and J

G. Kresse and J. Furthm¨ uller, Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set, Comput. Mater. Sci.6, 15 (1996)

work page 1996
[47]

Kresse and J

G. Kresse and J. Furthm¨ uller, Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set, Phys. Rev. B54, 11169 (1996)

work page 1996
[48]

Giannozzi, S

P. Giannozzi, S. Baroni, N. Bonini, M. Calandra, R. Car, C. Cavazzoni, D. Ceresoli, G. L. Chiarotti, M. Cococ- cioni, I. Dabo,et al., QUANTUM ESPRESSO: a modu- lar and open-source software project for quantum simula- tions of materials, J. Phys.: Condens. Matter21, 395502 (2009)

work page 2009
[49]

Kresse and D

G. Kresse and D. Joubert, From ultrasoft pseudopoten- tials to the projector augmented-wave method, Phys. Rev. B.59, 1758 (1999)

work page 1999
[50]

M. J. Van Setten, M. Giantomassi, E. Bousquet, M. J. Verstraete, D. R. Hamann, X. Gonze, and G.-M. Rig- nanese, The PseudoDojo: Training and grading a 85 ele- ment optimized norm-conserving pseudopotential table, Comput. Phys. Commun.226, 39 (2018)

work page 2018
[51]

J. P. Perdew, K. Burke, and M. Ernzerhof, Generalized gradient approximation made simple, Phys. Rev. Lett. 77, 3865 (1996)

work page 1996
[52]

A. Togo, F. Oba, and I. Tanaka, First-principles calcu- lations of the ferroelastic transition between rutile-type and CaCl2-type SiO2 at high pressures, Phys. Rev. B78, 134106 (2008)

work page 2008
[53]

Togo and I

A. Togo and I. Tanaka, First principles phonon calcula- tions in materials science, Scripta Mater.108, 1 (2015)

work page 2015
[54]

Baroni, S

S. Baroni, S. De Gironcoli, A. Dal Corso, and P. Gi- annozzi, Phonons and related crystal properties from density-functional perturbation theory, Rev. Mod. Phys. 73, 515 (2001)

work page 2001
[55]

A. V. Krukau, O. A. Vydrov, A. F. Izmaylov, and G. E. Scuseria, Influence of the exchange screening parame- ter on the performance of screened hybrid functionals, J. Chem. Phys.125, 224106 (2006). 10

work page 2006
[56]

Reining, The GW approximation: content, successes and limitations, Wiley Interdiscip

L. Reining, The GW approximation: content, successes and limitations, Wiley Interdiscip. Rev. Comput. Mol. Sci.8, e1344 (2018)

work page 2018
[57]

Onida, L

G. Onida, L. Reining, and A. Rubio, Electronic exci- tations: density-functional versus many-body Green’s- function approaches, Rev. Mod. Phys.74, 601 (2002)

work page 2002
[58]

Marini, C

A. Marini, C. Hogan, M. Gr¨ uning, and D. Varsano, Yambo: an ab initio tool for excited state calculations, Comput. Phys. Commun.180, 1392 (2009)

work page 2009
[59]

Sangalli, A

D. Sangalli, A. Ferretti, H. Miranda, C. Attaccalite, I. Marri, E. Cannuccia, P. Melo, M. Marsili, F. Paleari, A. Marrazzo,et al., Many-body perturbation theory cal- culations using the yambo code, J. Phys.: Condens. Mat- ter31, 325902 (2019)

work page 2019
[60]

Marsili, A

M. Marsili, A. Molina-S´ anchez, M. Palummo, D. San- galli, and A. Marini, Spinorial formulation of the GW- BSE equations and spin properties of excitons in two- dimensional transition metal dichalcogenides, Phys. Rev. B103, 155152 (2021)

work page 2021
[61]

Rojas, R

H. Rojas, R. W. Godby, and R. Needs, Space-time method for ab initio calculations of self-energies and di- electric response functions of solids, Phys. Rev. Lett.74, 1827 (1995)

work page 1995
[62]

Strinati, Application of the Green’s functions method to the study of the optical properties of semiconductors, L

G. Strinati, Application of the Green’s functions method to the study of the optical properties of semiconductors, L. Riv. Nuovo Cim.11, 1 (1988)

work page 1988
[63]

Supplementary Material at [URL] for summary of com- putational parameters employed in the YAMBO pack- age for DFT and MBPT calculations; impact of spin- orbit coupling on PBE band gaps; conventional cell of M6CSe4 (M = Ca, Sr); electron localization function of M6CSe4; effective masses of electrons and holes; charge density distributions corresponding to ...

work page 2025
[64]

Tang and Y

T. Tang and Y. Tang, Promising anti-perovskites Ba6CCh4 (Ch= S, Se, Te) with direct bandgaps and great light absorption: A first-principles study, Inorg. Chem. Commun.157, 111337 (2023)

work page 2023
[65]

Mouhat and F.-X

F. Mouhat and F.-X. Coudert, Necessary and sufficient elastic stability conditions in various crystal systems, Phys. Rev. B90, 224104 (2014)

work page 2014
[66]

A. M. Ganose, A. J. Jackson, and D. O. Scanlon, sumo: Command-line tools for plotting and analysis of peri- odic ab initio calculations, J. Open Source Softw.3, 717 (2018)

work page 2018
