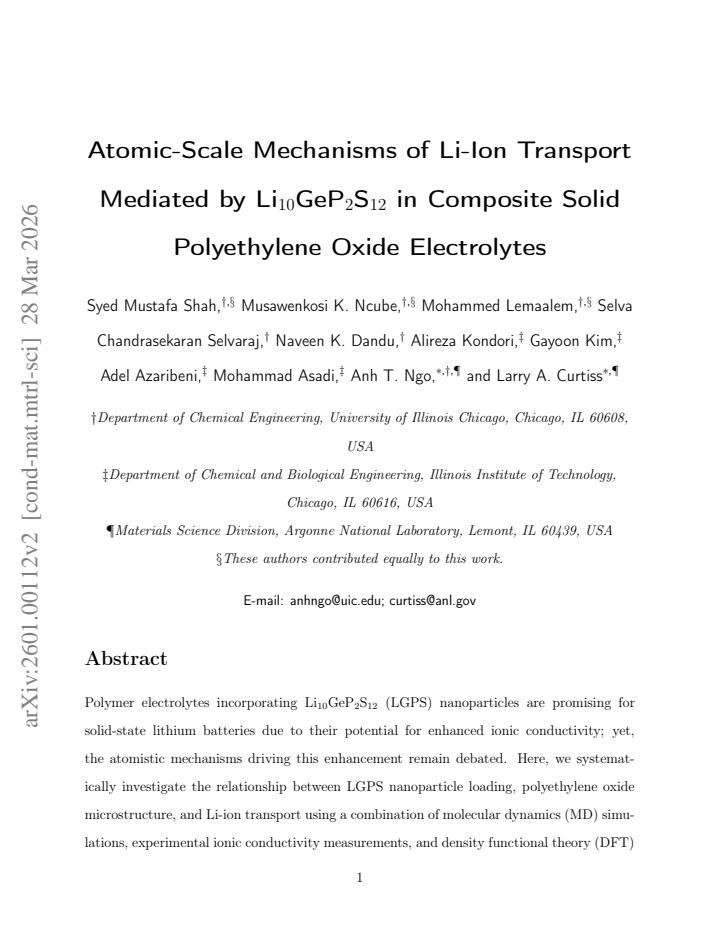

Atomic-Scale Mechanisms of Li-Ion Transport Mediated by Li10GeP2S12 in Composite Solid Polyethylene Oxide Electrolytes

Adel Azaribeni; Alireza Kondori; Anh T. Ngo; Gayoon Kim; Larry A. Curtiss; Mohammad Asadi; Mohammed Lemaalem; Musawenkosi K. Ncube; Naveen K. Dandu; Selva Chandrasekaran Selvaraj

arxiv: 2601.00112 · v2 · submitted 2025-12-31 · ❄️ cond-mat.mtrl-sci

Atomic-Scale Mechanisms of Li-Ion Transport Mediated by Li10GeP2S12 in Composite Solid Polyethylene Oxide Electrolytes

Syed Mustafa Shah , Musawenkosi K. Ncube , Mohammed Lemaalem , Selva Chandrasekaran Selvaraj , Naveen K. Dandu , Alireza Kondori , Gayoon Kim , Adel Azaribeni

show 3 more authors

Mohammad Asadi Anh T. Ngo Larry A. Curtiss

This is my paper

Pith reviewed 2026-05-16 17:44 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords composite polymer electrolytesLi-ion transportLGPSPEOdensity functional theorymolecular dynamicssolid-state batteriesinterfacial mechanisms

0 comments

The pith

Li-ion migration at PEO-LGPS interfaces proceeds via vacancy-mediated hopping favored at S-rich sites.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines how adding LGPS nanoparticles to PEO polymer electrolytes boosts ionic conductivity. Simulations and experiments match up to 10% LGPS loading, revealing a peak in conductivity from changes in polymer motion and interface effects. Beyond that, experiments show further gains not explained by the models. DFT calculations pinpoint the atomic mechanism: lithium ions move by hopping into vacancies, with easier paths at sulfur-rich spots on the interface and harder ones near germanium atoms.

Core claim

DFT calculations indicate that Li-ion migration at the PEO|LGPS interface proceeds via vacancy-mediated hopping, with low barriers favored by S-rich interfacial sites and hindered by Ge. MD and experimental results agree up to 10% LGPS, showing a volcano-shaped conductivity trend driven by polymer segmental dynamics and interfacial effects. Beyond 10%, experiments reveal additional conductivity enhancement unexplained by MD, suggesting a distinct transport regime.

What carries the argument

Vacancy-mediated hopping at the PEO|LGPS interface, where S-rich sites lower energy barriers for Li-ion jumps while Ge atoms raise them.

If this is right

Conductivity peaks at around 10% LGPS because polymer segmental motion and interface effects reach an optimum.
Beyond 10% loading a separate mechanism, not captured in the current MD setup, drives further conductivity gains.
Interfacial chemistry, specifically the availability of S-rich sites, sets the energy barriers for Li-ion transport.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Surface treatments that increase the proportion of S-rich sites on LGPS particles could raise conductivity without increasing particle loading.
The same vacancy-hopping preference may appear in other sulfide-polymer electrolyte pairs, offering a general design rule.
Extending MD to higher loadings or adding explicit percolation pathways would be needed to model the unexplained conductivity rise.

Load-bearing premise

The MD simulations fully capture polymer segmental dynamics and interfacial effects only up to 10% LGPS loading, with higher loadings involving a distinct regime.

What would settle it

Direct measurement of the fraction of S-rich interfacial sites versus Ge-exposed sites, combined with conductivity data across loadings, would test whether site-specific barriers control the observed trends.

read the original abstract

Polymer electrolytes incorporating Li$_{10}$GeP$_{2}$S$_{12}$ (LGPS) nanoparticles show promise for solid-state lithium batteries owing to their enhanced ionic conductivity, though the governing mechanisms remain unclear. We combine molecular dynamics (MD) simulations, experimental ionic conductivity measurements, and density functional theory (DFT) calculations to elucidate the effect of LGPS loading on polyethylene oxide (PEO) structure and Li-ion transport. MD and experimental results agree up to 10\% LGPS, showing a volcano-shaped conductivity trend driven by polymer segmental dynamics and interfacial effects. Beyond 10\%, experiments reveal additional conductivity enhancement unexplained by MD, suggesting a distinct transport regime. DFT calculations indicate that Li-ion migration at the PEO|LGPS interface proceeds via vacancy-mediated hopping, with low barriers favored by S-rich interfacial sites and hindered by Ge. These findings link interfacial chemistry and microstructure to Li-ion dynamics, offering guidelines for designing high-performance composite polymer electrolytes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper ties the conductivity peak at ~10% LGPS in PEO to S-rich interface sites that lower vacancy-hopping barriers, with MD matching experiment in that range while leaving the higher-loading upturn unexplained.

read the letter

The main thing to know is that MD simulations reproduce the experimental conductivity volcano up to 10% LGPS loading, and DFT calculations link the lower barriers to vacancy-mediated hops at sulfur-rich interfacial sites, with germanium acting as a hindrance. That supplies a specific atomic-scale picture for the trend that prior conductivity studies had only observed empirically. The work integrates the three methods cleanly enough to show how polymer segmental dynamics and interface chemistry together drive the rise and fall in conductivity below the threshold. The DFT barriers are reported directly from the calculations and align with the observed trend, which is a concrete step forward. The post-10% experimental gain is flagged as outside the current MD model rather than forced into it, which keeps the claims proportionate. The soft spot is that the high-loading regime gets no quantitative treatment or alternative mechanism, and the DFT results lack direct experimental cross-check or error bars in the summary. Interface construction details in the MD runs would also help assess whether all relevant polymer motions are captured. This is for groups working on composite polymer electrolytes for solid-state batteries. Anyone trying to design interfaces for better ion transport will find the S-rich site preference and Ge hindrance useful to test. I would send it to peer review; the method combination and the match up to 10% are solid enough to justify referee time even with the open question at higher loadings.

Referee Report

1 major / 3 minor

Summary. The manuscript combines MD simulations, ionic conductivity experiments, and DFT calculations to examine Li-ion transport in PEO electrolytes loaded with LGPS nanoparticles. MD and experiment agree up to 10% LGPS, producing a volcano-shaped conductivity dependence attributed to polymer segmental dynamics and interfacial effects; beyond 10% the experiments show further gains outside the MD model. DFT identifies vacancy-mediated hopping at the PEO|LGPS interface, with lower barriers at S-rich sites and higher barriers near Ge.

Significance. If the central results hold, the work supplies concrete atomic-scale links between interfacial chemistry, microstructure, and Li-ion dynamics in composite polymer electrolytes. The MD-experiment agreement up to 10% loading and the identification of specific S-rich versus Ge sites via DFT constitute clear strengths that can guide electrolyte design.

major comments (1)

[DFT Calculations] DFT Calculations: the reported migration barriers for vacancy-mediated hopping are presented without error bars or uncertainty quantification, weakening the quantitative claim that S-rich sites are distinctly favored over Ge sites.

minor comments (3)

[Abstract] Abstract: the phrase 'volcano-shaped conductivity trend' is used without citing the figure or the precise loading value at the peak.
[Methods] Methods: the number of independent MD trajectories, total simulation time, and force-field parameters for the PEO-LGPS interface should be stated explicitly for reproducibility.
[Results and Discussion] Results: the post-10% experimental upturn is correctly flagged as outside the MD scope, but a short paragraph outlining candidate mechanisms (percolation, new pathways) would help readers assess the model's domain of applicability.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive assessment and the recommendation for minor revision. We address the single major comment below.

read point-by-point responses

Referee: [DFT Calculations] DFT Calculations: the reported migration barriers for vacancy-mediated hopping are presented without error bars or uncertainty quantification, weakening the quantitative claim that S-rich sites are distinctly favored over Ge sites.

Authors: We agree that explicit discussion of uncertainty would strengthen the presentation. The barriers were obtained from standard NEB calculations at the PBE level. In the revised manuscript we will add a concise paragraph noting that typical DFT uncertainties for Li-migration barriers are ~0.05-0.1 eV (from functional choice and convergence tests) and that the computed differences between S-rich and Ge-proximal sites (0.2-0.3 eV) exceed this range, thereby supporting the reported site preference. The absolute values and the qualitative ordering remain unchanged. revision: yes

Circularity Check

0 steps flagged

No significant circularity; results from independent MD, experiment, and DFT

full rationale

The derivation chain rests on three independent pillars: MD trajectories that reproduce the experimental conductivity volcano up to 10% LGPS loading, direct conductivity measurements, and separate DFT barrier calculations that identify vacancy-mediated hopping at S-rich sites. None of these reduce by construction to parameters fitted inside the paper's own equations, nor do they rely on load-bearing self-citations whose validity is assumed rather than re-derived. The post-10% experimental upturn is explicitly flagged as outside the modeled regime rather than retrofitted. The central claims therefore remain self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

Work rests on standard MD force fields and DFT exchange-correlation approximations whose parameters are typically fitted to bulk data; the 10% threshold and distinct-regime interpretation are data-driven observations rather than derived quantities.

free parameters (1)

LGPS loading threshold
Observed 10% crossover point separating regimes is identified from data rather than predicted a priori.

axioms (1)

standard math Standard DFT approximations for migration energy barriers
Used to compute vacancy-hopping barriers at the interface.
