arxiv: 2601.02070 · v2 · submitted 2026-01-05 · 🪐 quant-ph · physics.atom-ph

Bridging gaps in Rydberg RF receivers using modulation transfer bandwidth enhancement

Mickael Branco , K V Adwaith , Gabriel Boccara , Duc-Anh Trinh , Sacha Welinski , Perrine Berger , Fabienne Goldfarb , Fabien Bretenaker This is my paper

Pith reviewed 2026-05-16 18:03 UTC · model grok-4.3

classification 🪐 quant-ph physics.atom-ph
keywords Rydberg atomsRF receiversmodulation transferbandwidth enhancementquantum sensingphase modulationnonlinear atomic response
0
0 comments X

The pith

Optimizing phase modulation extends Rydberg RF receiver bandwidth

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper optimizes the phase modulation frequency and amplitude applied to the coupling beam in a hot Rydberg atom system so that the atoms' nonlinear response converts it into stronger amplitude modulation on the probe beam. This modulation transfer protocol is shown to deliver higher sensitivity than the conventional approach once the RF signal detuning exceeds a few megahertz. Experiments confirm that the optimized parameters allow the receiver to bridge the gap between two Rydberg transitions separated by 166 MHz. Measured sensitivities agree closely with the predictions of the theoretical model across the tested detunings.

Core claim

By tuning the modulation frequency and amplitude of the coupling beam, the modulation transfer protocol leverages the nonlinear atomic response to increase sensitivity to detuned RF fields, outperforming the standard protocol for detunings larger than a few megahertz and enabling bridging of 166 MHz gaps between Rydberg transitions.

What carries the argument

The modulation transfer protocol, in which phase modulation on the coupling beam is converted to amplitude modulation on the probe beam through the atoms' nonlinear optical response, with parameters chosen to maximize that response at chosen detunings.

If this is right

  • The protocol yields higher sensitivity to RF signals detuned by more than a few megahertz than the usual readout method.
  • Detection gaps between Rydberg transitions separated by 166 MHz can be bridged without changing the atomic species or cell.
  • The optimized parameters produce experimental sensitivities that match the theoretical predictions.
  • Rydberg RF receivers gain usable bandwidth while retaining the same optical and atomic hardware.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same parameter-tuning approach could be applied to other atomic-vapor sensors that rely on nonlinear light-matter interactions.
  • Real-time adjustment of modulation settings might allow the receiver to track changing RF frequencies in dynamic environments.
  • The method is compatible with existing hot-atom Rydberg setups and requires only changes to the coupling-beam drive electronics.

Load-bearing premise

The theoretical model used to optimize modulation frequency and amplitude accurately describes the nonlinear atomic response for the chosen detunings and powers.

What would settle it

A measurement showing no sensitivity improvement over the conventional protocol for RF detunings of 10 MHz or larger, or a clear mismatch between measured and simulated response curves, would falsify the central claim.

Figures

Figures reproduced from arXiv: 2601.02070 by Duc-Anh Trinh, Fabien Bretenaker, Fabienne Goldfarb, Gabriel Boccara, K V Adwaith, Mickael Branco, Perrine Berger, Sacha Welinski.

Figure 1
Figure 1. Figure 1: FIG. 1. (a) Excitation scheme used for the conventional Rydberg [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

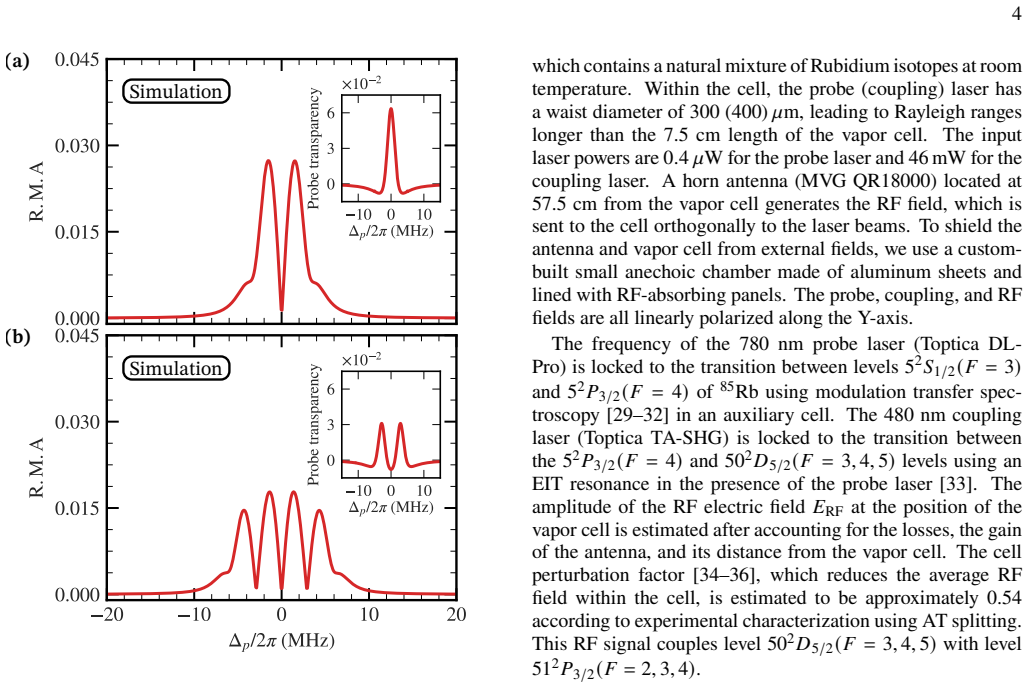

Figure 2. Figure 2: FIG. 2. Simulated evolution of the Relative Modulation Amplitude [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

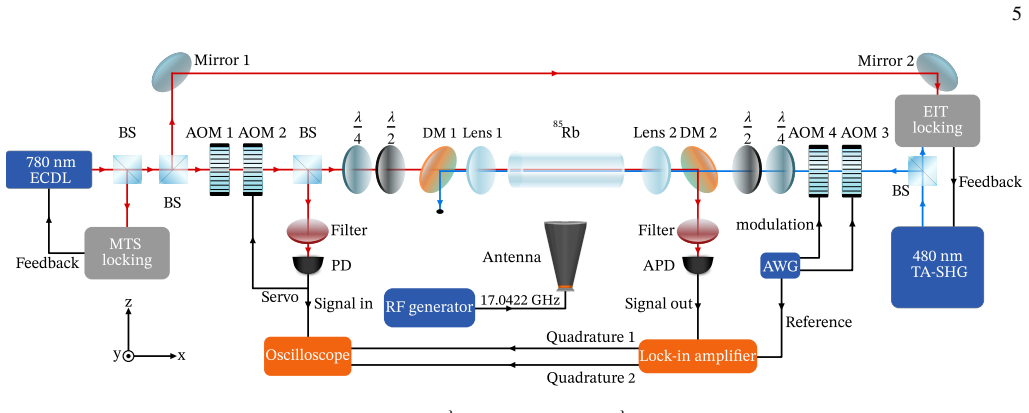

Figure 3. Figure 3: FIG. 3. Simplified experimental setup. BS: beam splitter, [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

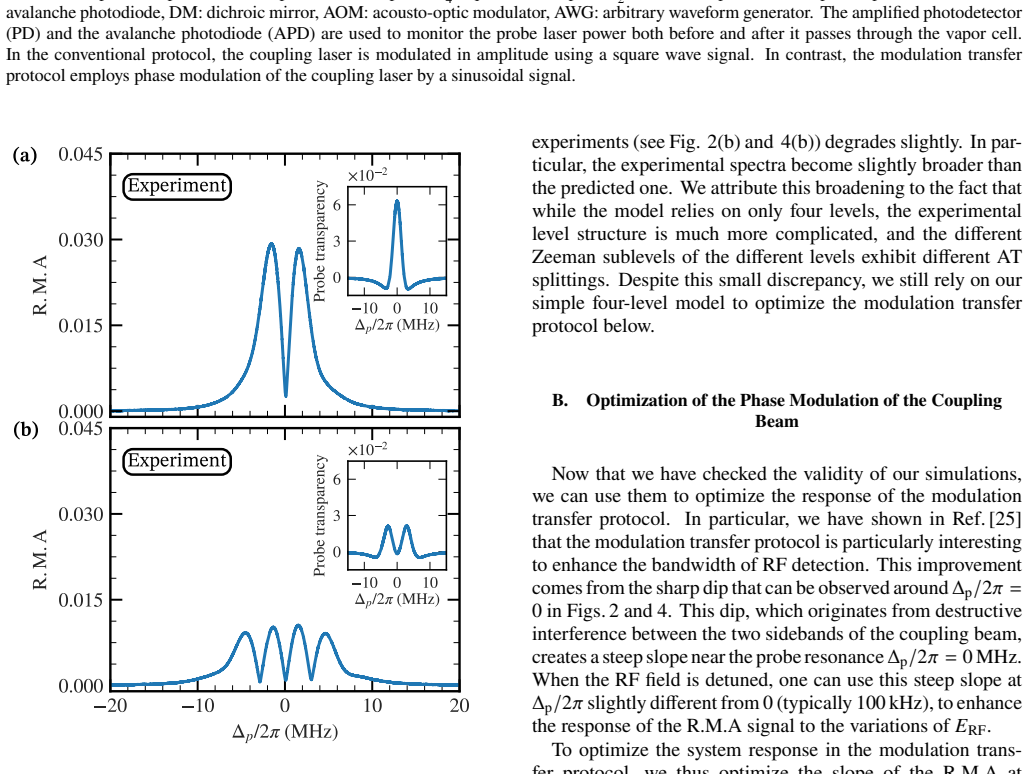

Figure 4. Figure 4: FIG. 4. Experimental spectra corresponding to the simulations of [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

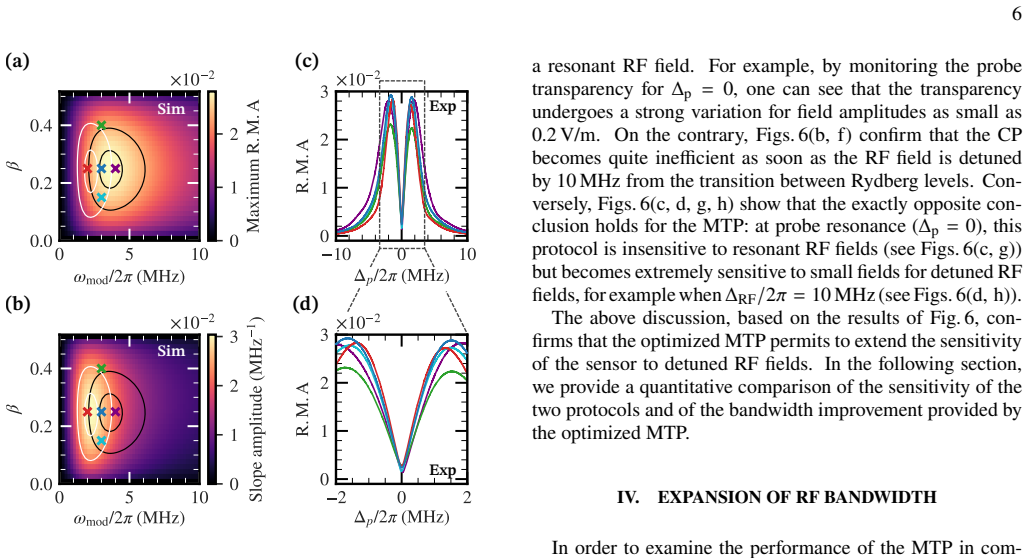

Figure 5. Figure 5: FIG. 5. Simulated R.M.A signal (a) amplitude and (b) slope at [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6

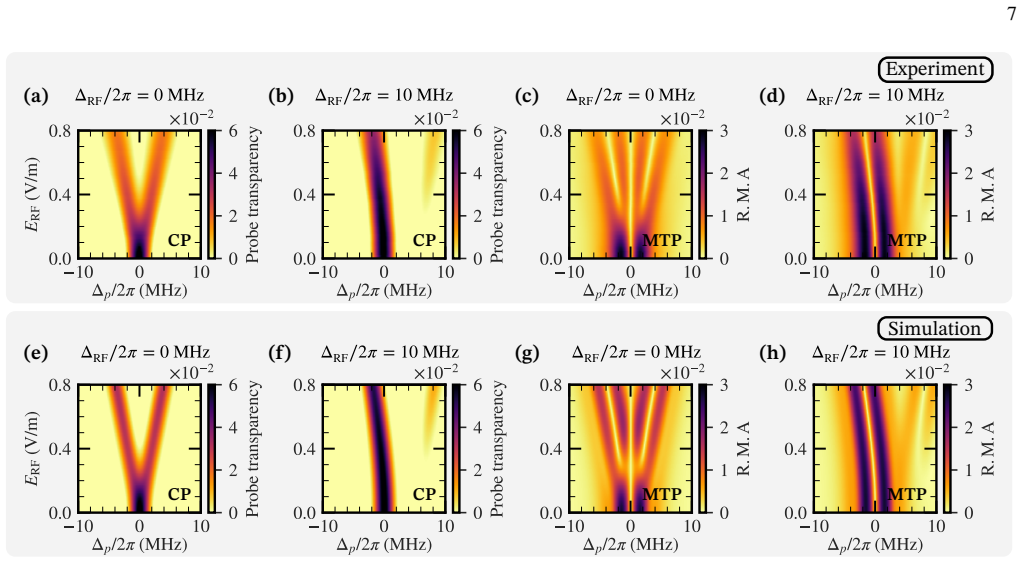

Figure 6. Figure 6: FIG. 6. Spectra evolutions versus (a, c, e, g) resonant or (b, d, f, h) detuned RF field amplitude. (a-d) Experiments. (e-h) Simulations. [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

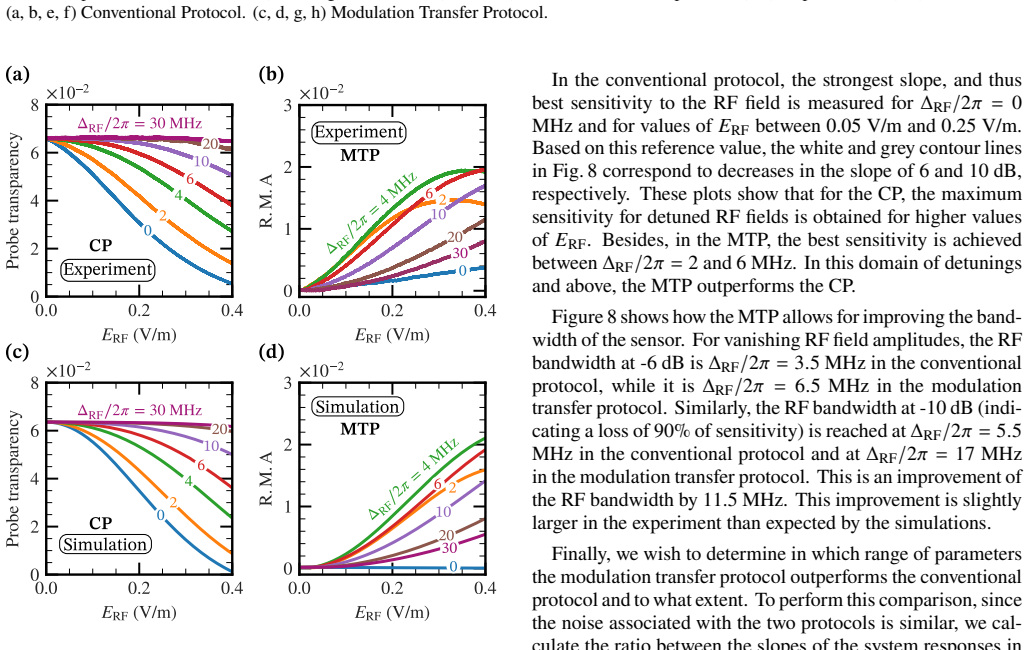

Figure 7. Figure 7: FIG. 7. (a, b) Measured and (c, d) simulated sensor responses for [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8

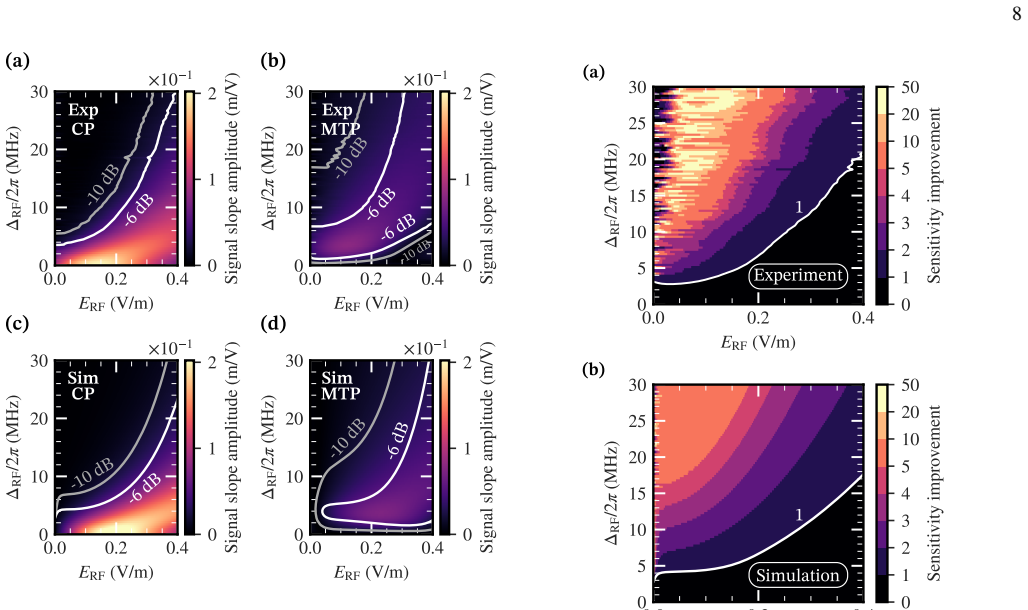

Figure 8. Figure 8: FIG. 8. (a, b) Experimental and (c, d) theoretical slopes of the [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
read the original abstract

We optimize theoretically and experimentally the performances of the recently demonstrated modulation transfer protocol [D.-A. Trinh, K. V. Adwaith, M. Branco, A. Rouxel, S. Welinski, P. Berger, F. Goldfarb, and F. Bretenaker, Applied Physics Letters 125, 154001 (2024)] aiming at extending the bandwidth of quantum RF receivers based on hot Rydberg atoms. This optimization relies on tuning the parameters of the phase modulation of the coupling beam, which is converted by the nonlinear response of the atoms into an amplitude modulation of the probe beam. We develop a theoretical model to optimize both the modulation frequency and the modulation amplitude of the coupling beam, thereby maximizing the atomic response. Once optimized, the sensitivity to detuned RF fields of this modulation transfer protocol is measured and compared with that of the conventional protocol. This comparison shows that the new protocol permits a strong increase in the detection bandwidth. Indeed, it outperforms the usual one as soon as the RF signal to be measured is detuned by more than a few MHz. We illustrate the capability of this modulation transfer protocol to enhance the detection bandwidth by showing experimentally how it permits to bridge the gap between two Rydberg transitions separated by 166 MHz. In all cases, the experimental results are in good agreement with the simulations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper optimizes a modulation-transfer protocol for hot Rydberg-atom RF receivers by phase-modulating the coupling laser and converting the modulation via atomic nonlinearity into probe amplitude modulation. A theoretical model is used to choose optimal modulation frequency and amplitude; the resulting sensitivity to detuned RF fields is measured and shown to exceed that of the conventional (unmodulated) protocol once the RF detuning exceeds a few MHz. The protocol is further demonstrated to bridge a 166 MHz gap between two Rydberg transitions, with experimental curves stated to agree with the simulations.

Significance. If the underlying model of the nonlinear atomic response is accurate at the experimental Rabi frequencies and detunings, the work provides a practical route to extend the instantaneous bandwidth of Rydberg RF sensors without requiring additional lasers or atoms, directly addressing the transition-gap problem that limits many quantum RF receiver applications.

major comments (2)
  1. [theoretical model / optimization section] The central bandwidth-enhancement claim rests on the theoretical model correctly predicting the optimal modulation frequency and amplitude. The manuscript states that a model was developed but does not supply the explicit rate equations, the treatment of power broadening, or any discussion of higher-order nonlinear terms or additional decoherence channels that become relevant at the chosen detunings and powers. Without these details it is impossible to verify that the predicted sensitivity curves remain reliable beyond a few MHz detuning.
  2. [experimental results / comparison figures] The experimental comparison (sensitivity vs. RF detuning) is presented without error bars, repeated-run statistics, or a quantitative measure of the crossover point where the modulation-transfer protocol surpasses the conventional one. This omission weakens the assertion that outperformance begins “as soon as the RF signal is detuned by more than a few MHz.”
minor comments (2)
  1. [abstract] The abstract asserts “good agreement with the simulations” yet reports neither quantitative residuals nor the precise parameter values used in the model; adding these would strengthen the claim.
  2. [figures] Figure captions should explicitly state the RF power, probe and coupling Rabi frequencies, and cell temperature so that the plotted curves can be reproduced from the model equations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading and constructive comments. We address each major comment below and will revise the manuscript to incorporate the requested details and improvements.

read point-by-point responses

  1. Referee: The central bandwidth-enhancement claim rests on the theoretical model correctly predicting the optimal modulation frequency and amplitude. The manuscript states that a model was developed but does not supply the explicit rate equations, the treatment of power broadening, or any discussion of higher-order nonlinear terms or additional decoherence channels that become relevant at the chosen detunings and powers. Without these details it is impossible to verify that the predicted sensitivity curves remain reliable beyond a few MHz detuning.

    Authors: We agree that the theoretical model section would benefit from greater transparency. In the revised manuscript we will add the explicit optical Bloch equations (or rate equations) employed, specify how power broadening is incorporated via the Rabi frequencies and detunings, and discuss the truncation of higher-order nonlinear terms together with the dominant decoherence channels (spontaneous emission, transit-time broadening, and laser linewidth) at the experimental parameters. These additions will allow direct verification that the predicted sensitivity remains reliable for RF detunings beyond a few MHz. revision: yes

  2. Referee: The experimental comparison (sensitivity vs. RF detuning) is presented without error bars, repeated-run statistics, or a quantitative measure of the crossover point where the modulation-transfer protocol surpasses the conventional one. This omission weakens the assertion that outperformance begins “as soon as the RF signal is detuned by more than a few MHz.”

    Authors: We acknowledge that the experimental figures would be strengthened by statistical information. In the revision we will include error bars derived from repeated measurements (typically 5–10 runs per detuning point), report the standard deviation or standard error, and add a quantitative statement of the crossover detuning (with uncertainty) at which the modulation-transfer protocol exceeds the conventional sensitivity. The revised text will also clarify how the crossover is extracted from the data. revision: yes

Circularity Check

1 steps flagged

Minor self-citation of prior protocol; central experimental bandwidth comparison is independent

specific steps
  1. self citation load bearing [Abstract (and introduction)]
    "We optimize theoretically and experimentally the performances of the recently demonstrated modulation transfer protocol [D.-A. Trinh, K. V. Adwaith, M. Branco, A. Rouxel, S. Welinski, P. Berger, F. Goldfarb, and F. Bretenaker, Applied Physics Letters 125, 154001 (2024)]"

    The protocol under optimization is introduced solely by self-citation to prior work by the same group; however, because the new claims rest on independent experimental measurements and a model developed here, the citation is not load-bearing for the bandwidth-enhancement result.

full rationale

The paper introduces the modulation transfer protocol via citation to prior work by overlapping authors but develops a new theoretical model in this manuscript to optimize modulation parameters and then performs fresh experimental comparisons against the conventional protocol. No load-bearing derivation reduces to a fitted parameter defined by the same dataset, no self-definitional equations, and the central claim (outperformance for detunings > few MHz, bridging 166 MHz gap) rests on measured sensitivity curves rather than the citation. This qualifies as a normal minor self-citation (score 2) with the derivation remaining self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The model assumes the atoms' nonlinear response converts phase modulation to amplitude modulation; two parameters (modulation frequency and amplitude) are tuned to maximize response. No new entities are postulated.

free parameters (2)
  • modulation frequency
    Chosen to maximize atomic response to detuned RF fields
  • modulation amplitude
    Chosen to maximize atomic response to detuned RF fields
axioms (1)
  • domain assumption The nonlinear atomic response converts phase modulation of the coupling beam into amplitude modulation of the probe beam
    Invoked to justify the modulation transfer protocol

pith-pipeline@v0.9.0 · 5572 in / 1184 out tokens · 35635 ms · 2026-05-16T18:03:07.705136+00:00 · methodology
