arxiv: 2601.05970 · v2 · submitted 2026-01-09 · ❄️ cond-mat.mes-hall

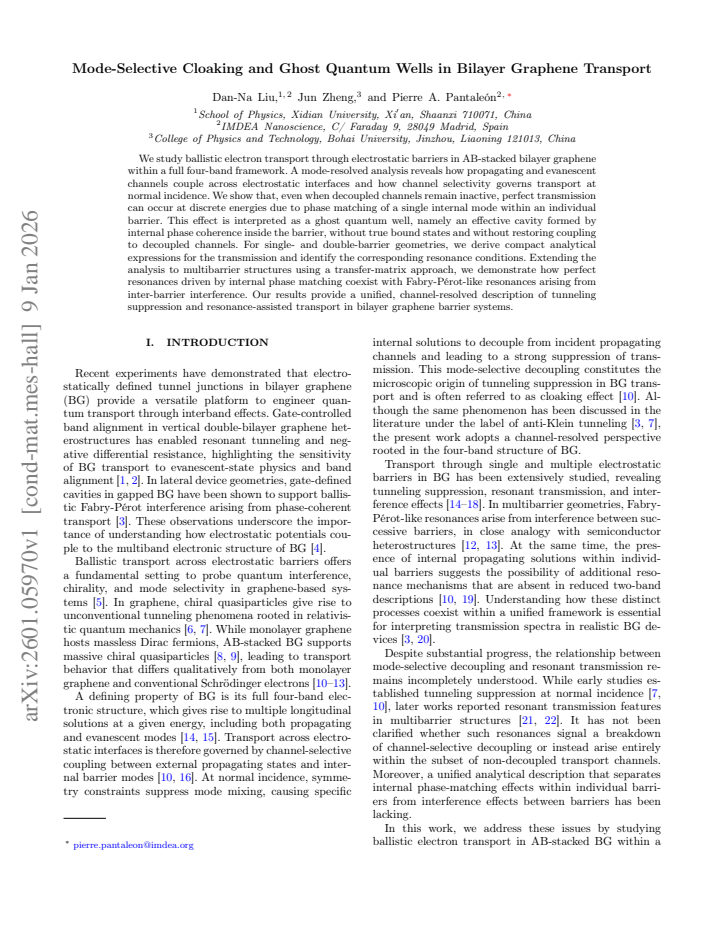

Mode-selective cloaking and phase-matching cavity resonances in bilayer graphene transport

Dan-Na Liu , Jun Zheng , Pierre A. Pantaleon This is my paper

Pith reviewed 2026-05-16 15:25 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords bilayer grapheneballistic transportelectrostatic barriersphase-matching cavityperfect transmissionmode selectivityFabry-Perot resonanceschannel decoupling
0
0 comments X

The pith

Perfect transmission occurs at discrete energies in bilayer graphene barriers through phase matching of a single internal mode, forming an effective cavity without bound states or extra channels.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that electrons in AB-stacked bilayer graphene can pass perfectly through electrostatic barriers at specific discrete energies. This occurs when a single mode inside the barrier reaches phase matching, creating an effective cavity from internal coherence alone. The process leaves other decoupled channels inactive and avoids forming real bound states. A reader would care because it separates this resonance mechanism from standard interference, offering a route to energy-selective transport control in clean graphene systems. The work derives exact transmission formulas for single and double barriers and shows how the effect persists alongside Fabry-Perot resonances in longer structures.

Core claim

We show that perfect transmission can occur at discrete energies due to phase matching of a single internal mode within an individual barrier, without activating the decoupled channels. This effect is interpreted as a phase-matching cavity, namely, an effective cavity formed by internal phase coherence inside the barrier, which yields perfect transmission at discrete energies without true bound states and without opening additional transport channels. For single- and double-barrier geometries, we derive compact analytical expressions for the transmission and identify the corresponding resonance conditions. Extending the analysis to multibarrier structures using a transfer-matrix approach, we

What carries the argument

The phase-matching cavity: an effective resonance created by phase coherence of one propagating mode inside an electrostatic barrier that produces perfect transmission at discrete energies.

Load-bearing premise

Transport stays perfectly ballistic in an ideal clean AB-stacked bilayer graphene sample with no disorder, scattering, or higher-order effects that could mix channels or damp resonances.

What would settle it

Measuring transmission versus energy through a single clean electrostatic barrier in bilayer graphene and finding perfect transmission exactly at the predicted discrete energies with no transmission appearing in the other modes.

Figures

Figures reproduced from arXiv: 2601.05970 by Dan-Na Liu, Jun Zheng, Pierre A. Pantaleon.

Figure 1
Figure 1. Figure 1: Quantum transport in BG. Schematics of the electronic structure of AB-stacked BG in the presence of a single electrostatic barrier. The left and right N regions are unperturbed, while the central S region is subjected to a uni￾form on-site electrostatic potential V0, producing a rigid shift of the energy bands. At normal incidence, transport occurs through two independent channels, T + + and T − − , corres… view at source ↗
Figure 2
Figure 2. Figure 2: Transport modes. Band structure in the N region (blue lines) with modes k ±, and in the S region with modes q ± 1,2 (solid and dashed red lines) for V0 = 0.6 eV and γ1 = 0.4 eV. For ky = 0, the colored regions (I to V) denote distinct transport regimes characterized by different combinations of propagating and evanescent modes as a function of energy. Panel (b) shows a schematic representation of a wave pr… view at source ↗
Figure 3
Figure 3. Figure 3: Multibarrier transport. Transmission probability in the T + + channel for (a) a double-barrier structure (blue curve) and (b) a triple-barrier structure (green curve). Insets in panels (a) and (b) show schematics of the corresponding multibarrier geometries. Panels (c) and (d) display enlarged views of the transmission spectrum in selected energy windows of panel (a), corresponding to regions I (orange) an… view at source ↗
read the original abstract

We study ballistic electron transport through electrostatic barriers in AB-stacked bilayer graphene within a full four-band framework. A mode-resolved analysis reveals how propagating and evanescent channels couple across electrostatic interfaces and how channel selectivity governs transport at normal incidence. We show that perfect transmission can occur at discrete energies due to phase matching of a single internal mode within an individual barrier, without activating the decoupled channels. This effect is interpreted as a phase-matching cavity, namely, an effective cavity formed by internal phase coherence inside the barrier, which yields perfect transmission at discrete energies without true bound states and without opening additional transport channels. For single- and double-barrier geometries, we derive compact analytical expressions for the transmission and identify the corresponding resonance conditions. Extending the analysis to multibarrier structures using a transfer-matrix approach, we demonstrate how perfect resonances driven by internal phase matching coexist with Fabry-Perot-type resonances arising from interbarrier interference. Our results provide a unified, channel-resolved description of tunneling suppression and resonance-assisted transport in bilayer graphene barrier systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript analyzes ballistic electron transport through electrostatic barriers in AB-stacked bilayer graphene using the full four-band tight-binding model. It derives compact analytical expressions for transmission through single- and double-barrier geometries and employs a transfer-matrix formalism for multibarrier structures. The central result is that perfect transmission occurs at discrete energies from phase matching of a single internal propagating mode inside an individual barrier, without activating decoupled evanescent or other channels; this is interpreted as a phase-matching cavity resonance that produces perfect transmission without true bound states.

Significance. If the derivations hold, the work supplies a unified, channel-resolved account of resonance-assisted transport and tunneling suppression in bilayer graphene. The explicit phase-matching conditions and the distinction from Fabry-Perot interbarrier resonances provide concrete, testable predictions for clean systems and may inform design of mode-selective graphene devices.

minor comments (3)
  1. The title refers to 'mode-selective cloaking,' yet the abstract and main text emphasize phase-matching cavity resonances and perfect transmission; a single clarifying sentence linking the two concepts would improve consistency.
  2. §2.2, after Eq. (8): the boundary-matching conditions for the four-component spinor are stated but the explicit 4×4 matching matrix is not written out; including it would aid reproducibility of the single-barrier transmission formula.
  3. Figure 3 caption: the labeling of resonance peaks as 'phase-matching' versus 'Fabry-Perot' is clear in the text but the figure itself would benefit from an inset or annotation indicating which peaks correspond to each mechanism.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the careful reading of the manuscript and for the positive assessment that leads to a recommendation of acceptance. The referee's summary correctly identifies the central result: perfect transmission at discrete energies arising from phase matching of a single internal propagating mode inside an electrostatic barrier, without activating decoupled channels, and the distinction from interbarrier Fabry-Perot resonances.

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper derives resonance conditions and transmission expressions directly from the four-band tight-binding Hamiltonian for AB-stacked bilayer graphene under electrostatic barriers. Phase-matching conditions for perfect transmission arise from solving the wave functions in barrier regions and applying continuity at interfaces, without any fitted parameters or self-referential definitions. The analysis uses standard transfer-matrix methods for multi-barrier cases, and assumptions like ballistic transport are explicit and not circular. No load-bearing self-citations or ansatzes are identified that reduce the results to inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The central claim rests on the four-band tight-binding model for AB bilayer graphene and the assumption of ballistic coherent transport; the phase-matching cavity is introduced as an interpretive construct without independent experimental support.

axioms (2)
  • domain assumption The four-band tight-binding model accurately captures low-energy ballistic electron states in AB-stacked bilayer graphene.
    Invoked throughout the full four-band framework for describing propagating and evanescent channels.
  • domain assumption Transport remains ballistic and coherent with no disorder or inelastic scattering.
    Required for the electrostatic barrier analysis and phase coherence inside barriers.
invented entities (1)
  • phase-matching cavity no independent evidence
    purpose: Interpretive label for the effective resonance arising from internal phase coherence that produces perfect transmission without true bound states.
    New conceptual entity introduced to unify the observed discrete-energy perfect transmission.

pith-pipeline@v0.9.0 · 5480 in / 1438 out tokens · 95115 ms · 2026-05-16T15:25:41.097201+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

  1. Mode-Resolved Multiband Ballistic Transport and Conductance Thresholds in Bilayer Graphene Junctions

    cond-mat.mes-hall 2026-04 unverdicted novelty 6.0

    Bilayer graphene junctions exhibit a tunable conductance threshold marking upper-band onset and symmetry-suppressed transmission that strain and bias can shift without disorder.
