Performance evaluation of Luxium Solutions BCF-XL wavelength-shifting fibers
Pith reviewed 2026-05-16 15:42 UTC · model grok-4.3
The pith
New Luxium BCF-XL fibers deliver faster decay and better time resolution than Kuraray Y-11 while matching light yields.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The BCF-XL fibers exhibit faster decay times (92XL: 2.10±0.01 ns, 9929AXL: 2.10±0.02 ns, 9995XL: 2.41±0.03 ns) than Y-11 (7.44±0.06 ns). The attenuation lengths are comparable to that of Y-11 within the measurement range up to 3.2 m. When coupled to an EJ-204 plastic scintillator, the BCF-XL fibers achieve superior time resolution while maintaining light yields comparable to those expected for a single-clad Y-11 fiber.
What carries the argument
Comparison of decay time, attenuation length, time resolution, and light yield measurements between BCF-XL and Y-11 fibers coupled to EJ-204 scintillators.
If this is right
- Improved time resolution in scintillator-based detectors without reduced light output.
- Potential for higher precision in event timing for particle detection systems.
- Comparable performance over fiber lengths up to 3.2 m supports use in medium-scale setups.
- Single-clad design of BCF-XL achieves timing advantages typically associated with more complex fibers.
Where Pith is reading between the lines
- These fibers could enable simpler detector designs by matching single-clad light yields with enhanced speed.
- Applications in high-energy physics or medical imaging might see gains in timing accuracy from adopting BCF-XL.
- Extending measurements beyond 3.2 m would test if the attenuation advantage persists in larger systems.
- Pairing with different scintillators could reveal broader compatibility beyond EJ-204.
Load-bearing premise
The laboratory tests with EJ-204 and short fiber lengths capture the full performance in real-world large detector systems without hidden systematic errors affecting time resolution or yields.
What would settle it
Finding that BCF-XL time resolution is no better than Y-11 or that light yields fall short of single-clad Y-11 expectations when tested in a complete detector configuration.

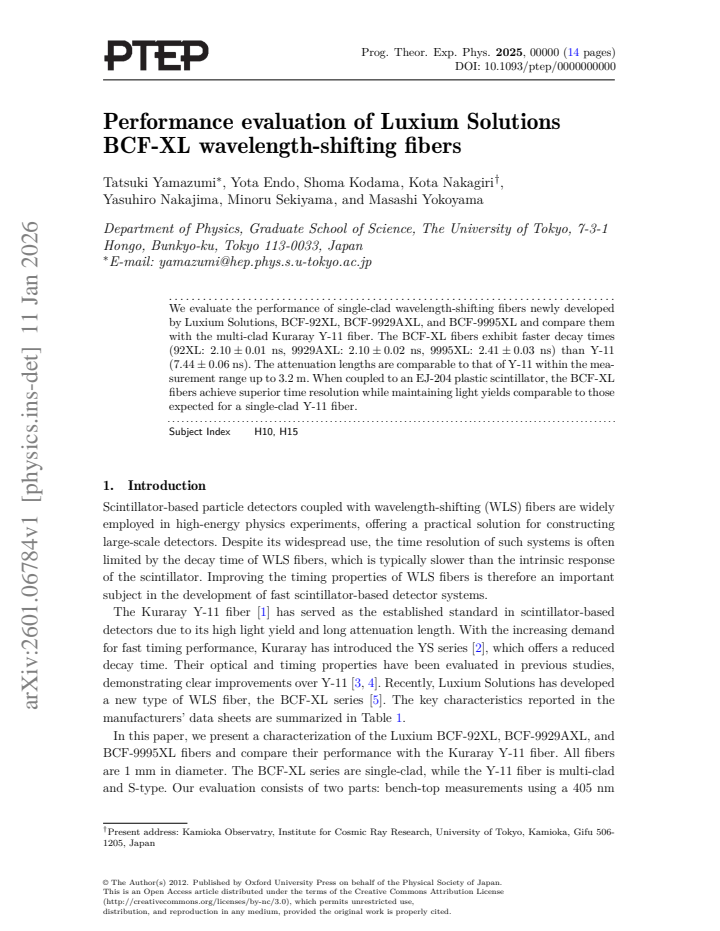

read the original abstract
We evaluate the performance of single-clad wavelength-shifting fibers newly developed by Luxium Solutions, BCF-92XL, BCF-9929AXL, and BCF-9995XL and compare them with the multi-clad Kuraray Y-11 fiber. The BCF-XL fibers exhibit faster decay times (92XL: $2.10\pm0.01$ ns, 9929AXL: $2.10\pm0.02$ ns, 9995XL: $2.41\pm0.03$ ns) than Y-11 ($7.44\pm0.06$ ns). The attenuation lengths are comparable to that of Y-11 within the measurement range up to 3.2 m. When coupled to an EJ-204 plastic scintillator, the BCF-XL fibers achieve superior time resolution while maintaining light yields comparable to those expected for a single-clad Y-11 fiber.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript evaluates the performance of three new single-clad wavelength-shifting fibers from Luxium Solutions (BCF-92XL, BCF-9929AXL, BCF-9995XL) against the multi-clad Kuraray Y-11 fiber. It reports faster decay times for the BCF-XL fibers (2.10±0.01 ns, 2.10±0.02 ns, and 2.41±0.03 ns versus 7.44±0.06 ns for Y-11), comparable attenuation lengths up to 3.2 m, and, when coupled to EJ-204 plastic scintillator, superior time resolution while maintaining light yields comparable to those expected for single-clad Y-11.
Significance. If the results hold, the faster decay times and improved time resolution of the BCF-XL fibers could enable better timing performance in scintillator-based detectors without compromising light yield, which is relevant for high-energy physics, nuclear physics, and medical imaging applications requiring precise timing. The direct laboratory measurements of decay times and attenuation provide concrete experimental support for the performance claims.
major comments (1)
- [Abstract] Abstract: The claim that BCF-XL fibers achieve light yields 'comparable to those expected for a single-clad Y-11 fiber' when coupled to EJ-204 relies on external expected values rather than a direct side-by-side measurement in the identical setup. This makes the comparability dependent on unverified assumptions about setup-specific factors such as fiber diameter and optical coupling efficiency, which could affect the strength of the central performance claim.
minor comments (1)
- The manuscript would benefit from explicit details on the exact procedures and fitting methods used to extract decay times, attenuation lengths, and time resolutions to support full reproducibility of the quantitative results.
Simulated Author's Rebuttal
We thank the referee for the careful review and positive recommendation. We address the single major comment below.
read point-by-point responses
-
Referee: [Abstract] Abstract: The claim that BCF-XL fibers achieve light yields 'comparable to those expected for a single-clad Y-11 fiber' when coupled to EJ-204 relies on external expected values rather than a direct side-by-side measurement in the identical setup. This makes the comparability dependent on unverified assumptions about setup-specific factors such as fiber diameter and optical coupling efficiency, which could affect the strength of the central performance claim.
Authors: We agree that a direct side-by-side light-yield measurement of Y-11 in the identical EJ-204-coupled setup would strengthen the comparison. Our light-yield data for the BCF-XL fibers were obtained in a dedicated configuration, and the stated comparability rests on standard literature values for single-clad Y-11 under comparable conditions. To address the concern, we will revise the abstract to read that the observed light yields are consistent with typical values reported for single-clad Y-11, and we will add a short paragraph in the results section explicitly noting the literature basis and the relevant setup parameters (fiber diameter, coupling). This revision clarifies the claim without altering the experimental results or conclusions. revision: yes
Circularity Check
No circularity: pure experimental measurements with no derivations or fitted predictions
full rationale
The paper reports direct laboratory measurements of decay times, attenuation lengths, light yields, and time resolutions for BCF-XL fibers compared to Y-11. All claims rest on observed data from the described setup with EJ-204 scintillator up to 3.2 m. No equations, models, ansatzes, or predictions are derived; light-yield comparability is stated against external expected values for Y-11 rather than any self-derived quantity. No self-citations are load-bearing for any central claim, and the work contains no derivation chain that could reduce to its inputs by construction.
