arxiv: 2601.16160 · v2 · submitted 2026-01-22 · 💻 cs.CR

CONTEX-T: Contextual Exploitation of Encrypted Traffic for Device Fingerprinting via Transformer Time-Frequency Analysis

Nazmul Islam , Mohammad Zulkernine This is my paper

Pith reviewed 2026-05-16 11:40 UTC · model grok-4.3

classification 💻 cs.CR
keywords IoT device fingerprintingencrypted traffic analysistime-frequency analysisvision transformerspacket length sequencespassive network monitoringdevice identification
0
0 comments X

The pith

Time-frequency analysis of packet length sequences allows vision transformers to fingerprint IoT devices from encrypted traffic with over 99 percent accuracy.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents CONTEX-T as a method that converts sequences of packet lengths observed in encrypted IoT communications into combined temporal and spectral representations. These representations are then classified by vision transformer models to identify specific devices without accessing message contents. Experiments on traffic from multiple IoT devices demonstrate classification accuracy exceeding 99 percent using only passive metadata. This outcome shows that device-specific patterns remain detectable in the timing and size statistics even when strong encryption hides the payload. The framework therefore exposes an attack surface that standard encryption alone does not close.

Core claim

CONTEX-T first converts raw packet-length sequences extracted from encrypted wireless traffic into time-frequency representations and then applies vision transformers to perform device classification, attaining accuracy above 99 percent while remaining fully passive on observable contextual metadata.

What carries the argument

Time-frequency representations of packet-length sequences fed into vision transformers for classification.

If this is right

  • Encrypted IoT traffic can be monitored to track individual devices without decrypting payloads.
  • Passive collection of packet metadata alone suffices for high-accuracy identification.
  • Standard encryption leaves device identities exposed through timing and length statistics.
  • IoT network management requires additional countermeasures beyond payload encryption.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same time-frequency approach could extend to fingerprinting non-IoT encrypted flows such as VPN or web traffic.
  • Attackers might combine this method with traffic injection to amplify device tracking in shared networks.
  • Defenses such as randomized padding or constant-rate transmission could be evaluated directly against these representations.

Load-bearing premise

Time-frequency representations of raw packet-length sequences produce stable, device-specific signatures that hold across varying network conditions, traffic volumes, and firmware versions.

What would settle it

If classification accuracy falls substantially below 99 percent when the same devices are tested on different networks or after firmware updates, the claim that these representations generalize would be falsified.

Figures

Figures reproduced from arXiv: 2601.16160 by Mohammad Zulkernine, Nazmul Islam.

Figure 1
Figure 1. Figure 1: illustrates the overview of the adversarial framework. The adversary captures packet metadata via wireless sniffing but does not modify, inject, or probe network traffic. Formally, the adversary has GPU-accelerated inference capabilities, access to training samples per device (∣ ãtrain (r) ∣), knowledge of the device class set â and the model å, and access to general signal processing priors. This can be … view at source ↗

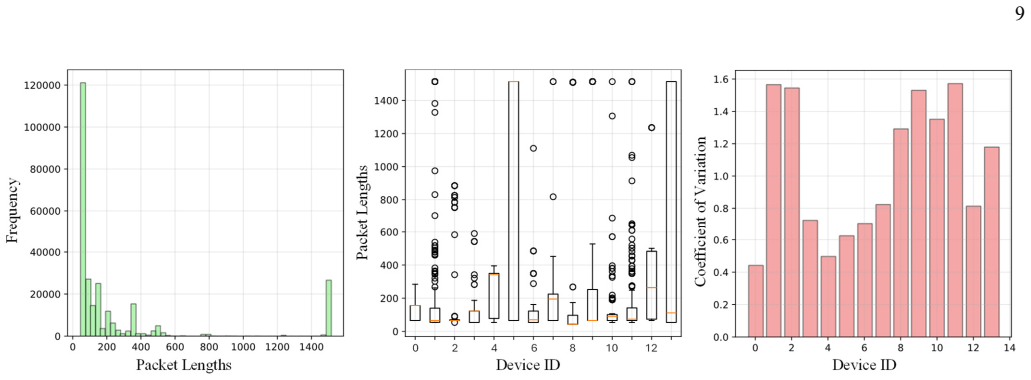

Figure 2
Figure 2. Figure 2: Packet statistics of the devices in the dataset. TABLE IV TRAIN, VALIDATION AND TEST SPLIT Test setVal setTrain Set ImagesPktsImagesPktsImagesPkts 80800080800040040000 {16,32,64} 0% 100 8040008040004002000050% 301500301500150750000% 500 30750307501503750050% [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗

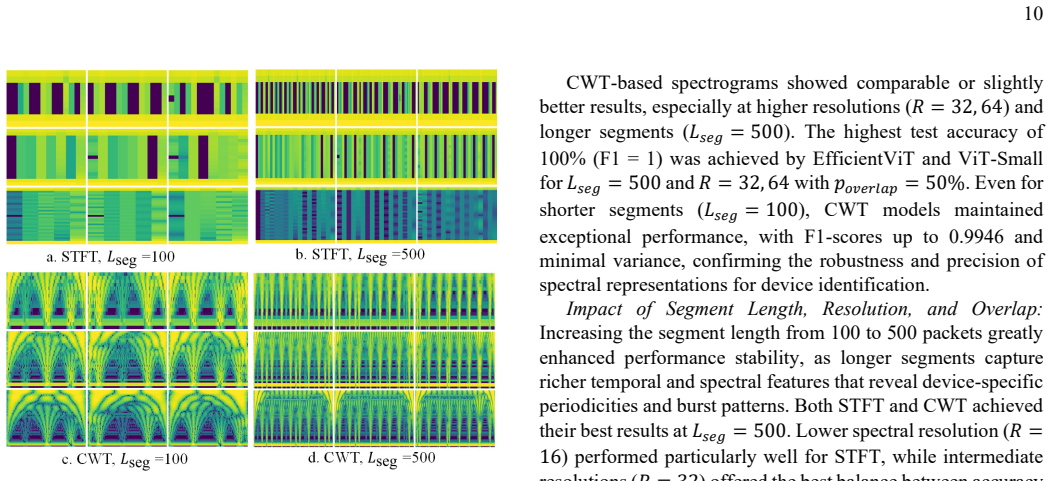

Figure 3
Figure 3. Figure 3: Sample spectrogram of Device (0). The spectral resolutions ; ∈ {16,32,64} from top to bottom, respectively [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
read the original abstract

The rapid expansion of internet of things (IoT) devices has created a pervasive ecosystem where encrypted wireless communications serve as the primary privacy and security protection mechanism. While encryption effectively protects message content, contextual information from packet metadata and statistics inadvertently expose device identities. Various studies have exploited raw packet statistics and their visual representations for device fingerprinting and identification. However, these approaches remain confined to the spatial domain with limited feature representation. Therefore, this paper presents CONTEX-T, a novel framework that exploits device-level information from encrypted traffic metadata using temporal and spectral representation. The experiments show that time-frequency analysis provides new and rich feature representation, revealing a complex and expanding threat landscape that would require robust countermeasures for IoT security management. CONTEX-T first transforms raw packet-length sequences into temporal and spectral representations and then utilizes vision transformers (ViTs) for device identification. We systematically evaluated multiple time-frequency representation techniques and transformer-based models across encrypted traffic samples from various IoT devices. CONTEX-T achieved device classification accuracy exceeding 99% while operating passively on observable contextual metadata. This demonstrates that temporal and spectral signatures persist under strong encryption, highlighting a critical attack surface for IoT network security and management.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes CONTEX-T, a framework that converts raw packet-length sequences from encrypted IoT traffic into temporal and spectral representations via time-frequency transforms and applies Vision Transformers for device classification. It reports device identification accuracy exceeding 99% on samples from various IoT devices and concludes that temporal and spectral signatures remain exploitable despite encryption.

Significance. If the empirical results are shown to be robust, the work would establish a concrete privacy risk for encrypted IoT traffic by demonstrating that time-frequency features of packet metadata can support high-accuracy passive fingerprinting. This would strengthen the case for traffic-analysis countermeasures in IoT deployments.

major comments (2)
  1. [Abstract and Evaluation] Abstract and Evaluation section: the central claim of >99% accuracy is presented without any reported dataset size, number of devices, train/test split, cross-validation procedure, baseline comparisons, or error analysis. These omissions prevent assessment of whether the result reflects genuine generalization or favorable collection conditions.
  2. [Methodology and Evaluation] Methodology and Evaluation: no experiments are described that vary network conditions, traffic volume, background flows, latency, or firmware versions. The claim that time-frequency signatures are stable device traits therefore rests on a single uncharacterized collection regime, directly undermining the generalization asserted in the abstract.
minor comments (1)
  1. [Abstract] The abstract states that multiple time-frequency techniques and transformer models were evaluated, yet no quantitative comparison table or selection criteria are referenced.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on the need for greater experimental transparency. We have revised the manuscript to expand the abstract and evaluation sections with the requested details and to moderate generalization claims where appropriate.

read point-by-point responses

  1. Referee: [Abstract and Evaluation] Abstract and Evaluation section: the central claim of >99% accuracy is presented without any reported dataset size, number of devices, train/test split, cross-validation procedure, baseline comparisons, or error analysis. These omissions prevent assessment of whether the result reflects genuine generalization or favorable collection conditions.

    Authors: We agree that the abstract should explicitly report these parameters. In the revised manuscript we have expanded the abstract to include the dataset size, number of devices, train/test split, cross-validation procedure, baseline comparisons, and error analysis. The evaluation section has also been updated to present these elements clearly so that readers can directly assess generalization. revision: yes

  2. Referee: [Methodology and Evaluation] Methodology and Evaluation: no experiments are described that vary network conditions, traffic volume, background flows, latency, or firmware versions. The claim that time-frequency signatures are stable device traits therefore rests on a single uncharacterized collection regime, directly undermining the generalization asserted in the abstract.

    Authors: We acknowledge that the current experiments are confined to a single collection regime and do not vary network conditions, traffic volume, background flows, latency, or firmware versions. This limits the strength of claims about signature stability. In the revision we have added a limitations subsection that explicitly discusses the single-regime setting and its implications for generalization. We have also moderated the language in the abstract and conclusion to avoid asserting broad stability, while preserving the core finding that time-frequency features enable high-accuracy fingerprinting under the reported conditions. revision: partial

Circularity Check

0 steps flagged

Empirical ML pipeline with no derivation circularity

full rationale

The paper presents CONTEX-T as an experimental framework that converts raw packet-length sequences into time-frequency representations and feeds them to vision transformers for device classification. All reported results (>99% accuracy) are measured outcomes from systematic evaluations on collected IoT traffic samples. No equations, fitted parameters, or self-citations are invoked to derive the accuracy figures; the central claim remains an empirical observation rather than a reduction to inputs by construction. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that packet-length sequences contain unique temporal-spectral signatures and on standard machine-learning hyperparameters that are fitted during training; no new physical entities are postulated.

free parameters (1)
  • Vision transformer hyperparameters and time-frequency transform parameters
    Standard training-time choices that control model capacity and feature extraction; their specific values are not reported.
axioms (1)
  • domain assumption Packet length sequences from encrypted IoT traffic contain device-specific temporal and spectral signatures that are stable enough for classification
    Invoked as the basis for transforming sequences into representations that enable high-accuracy identification.
