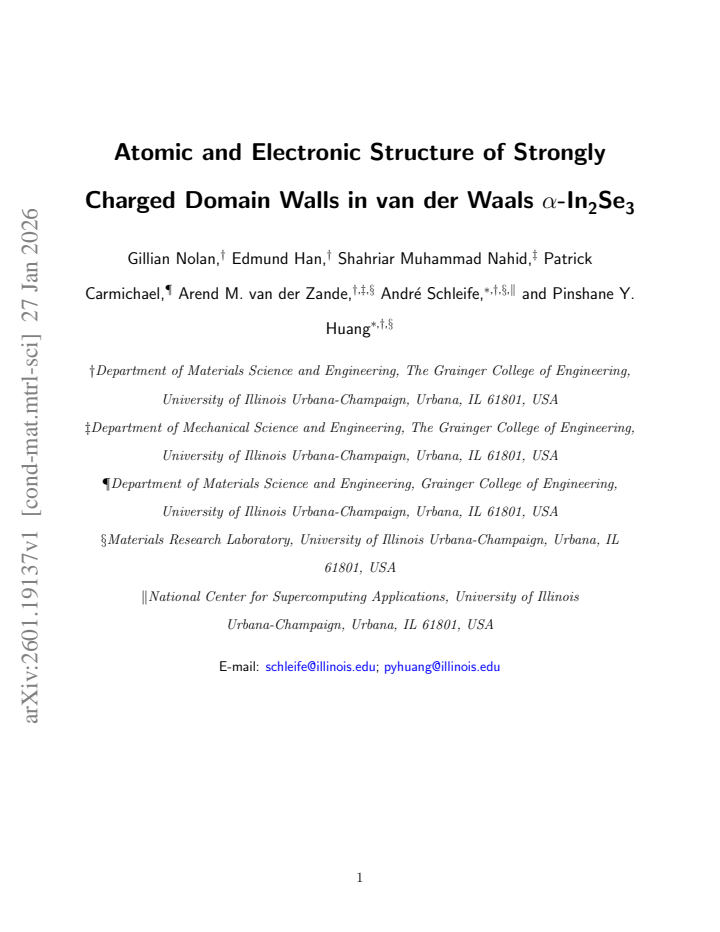

Atomic and Electronic Structure of Strongly Charged Domain Walls in van der Waals {\alpha}-In$_2$Se$_3$

Andr\'e Schleife; Arend M. van der Zande; Edmund Han; Gillian Nolan; Patrick Carmichael; Pinshane Y. Huang; Shahriar Muhammad Nahid

arxiv: 2601.19137 · v1 · submitted 2026-01-27 · ❄️ cond-mat.mtrl-sci

Atomic and Electronic Structure of Strongly Charged Domain Walls in van der Waals {α}-In₂Se₃

Gillian Nolan , Edmund Han , Shahriar Muhammad Nahid , Patrick Carmichael , Arend M. van der Zande , Andr\'e Schleife , Pinshane Y. Huang This is my paper

Pith reviewed 2026-05-16 11:22 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords domain wallsferroelectricvan der WaalsIn2Se3STEMDFTconducting states2D electron gas

0 comments

The pith

Head-to-head domain walls in α-In₂Se₃ include a β-In₂Se₃ layer while both wall types host localized conducting states

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines the atomic structure of strongly charged domain walls in the van der Waals ferroelectric α-In₂Se₃ using scanning transmission electron microscopy and density functional theory. It finds that head-to-head walls incorporate a layer of nonpolar β-In₂Se₃, making them structurally distinct from the atomically abrupt tail-to-tail walls. Both types of walls exhibit localized conducting electronic states confined to a roughly one-nanometer-thick region. These features position the material as a platform for creating two-dimensional electron and hole gases through domain wall engineering.

Core claim

STEM imaging combined with DFT calculations demonstrates that head-to-head domain walls in α-In₂Se₃ contain a nonpolar β-In₂Se₃ layer, while tail-to-tail domain walls remain atomically sharp. Four-dimensional STEM and multislice electron ptychography reveal that nearly 180-degree domain walls have complex, curved three-dimensional structures. Band structure calculations identify localized conducting states within an approximately 1 nm thick layer at both head-to-head and tail-to-tail domain walls, including a midgap state associated with the β layer in head-to-head walls.

What carries the argument

The β-In₂Se₃ layer that forms at head-to-head domain walls to accommodate the polarization charge, together with the resulting midgap conducting states at both wall types.

If this is right

Strongly charged domain walls can realize 2D conducting channels in van der Waals ferroelectrics.
Domain wall engineering offers a route to create metallic states without external doping.
Complex 3D wall geometries must be considered in models of domain wall transport.
α-In₂Se₃ becomes a candidate material for domain-wall-based electronic devices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The presence of the β phase suggests that strong charging can induce local phase transitions in layered ferroelectrics.
Similar behavior may appear in other van der Waals materials with switchable polarization under high fields.
Transport measurements along these walls could confirm the predicted 2D gas behavior.

Load-bearing premise

The β-In₂Se₃ layer observed in head-to-head walls is the equilibrium structure rather than a metastable phase induced during sample preparation.

What would settle it

If high-resolution imaging under conditions that avoid preparation artifacts shows no β layer in head-to-head walls, or if transport experiments fail to detect conducting channels along the walls.

read the original abstract

Here, we use atomic resolution scanning transmission electron microscopy (STEM) and first principles calculations to study the atomic and electronic structure of strongly charged domain walls in $\alpha$-In$_2$Se$_3$. STEM imaging and density functional theory (DFT) show that head-to-head (HH) domain walls contain a layer of nonpolar $\beta$-In$_2$Se$_3$, whereas tail-to-tail (TT) domain walls are atomically abrupt. We apply 4D STEM and multislice electron ptychography to map ferroelectric domains in 2D and 3D, showing that nearly $180^\circ$ domain walls exhibit complex, curved 3D structures that differ from ideal $180^\circ$ structures. Band structure calculations show localized conducting states within a $\sim$ 1 nm thick layer at both HH and TT domain walls, such as a midgap state at the $\beta$ layer of the HH domain wall. These properties make strongly charged domain walls in $\alpha$-In$_2$Se$_3$ excellent candidates for realizing 2D electron or hole gases and domain wall engineering in van der Waals ferroelectrics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

STEM imaging shows a β-In₂Se₃ layer at head-to-head walls in α-In₂Se₃ with conducting states at both wall types, but the equilibrium status of that layer is not locked down.

read the letter

The paper's main contribution is the atomic-resolution STEM evidence that head-to-head domain walls in α-In₂Se₃ contain an inserted nonpolar β-In₂Se₃ layer while tail-to-tail walls stay atomically abrupt. They back this with 4D-STEM and ptychography that map the walls as curved 3D objects rather than ideal flat 180° planes, plus DFT band structures that place localized conducting states in a roughly 1 nm layer at both wall types. The imaging is direct and the electronic interpretation follows standard methods, so the structural distinction between the two wall types comes across as a concrete observation rather than a model-dependent claim. The 3D curvature detail is also useful for anyone thinking about real device geometries in van der Waals ferroelectrics. The soft spot is the missing check on whether the β insertion is the stable screening structure or a metastable artifact. No total-energy comparison between an abrupt α-α head-to-head interface and the α-β-α configuration is described, and semilocal DFT errors for In₂Se₃ polymorphs sit right in the range that could decide the preference. Without annealing data or explicit stability tests, the equilibrium interpretation stays provisional. This is worth sending to peer review for groups working on 2D ferroelectrics and domain-wall electronics; the experimental data are independent enough to stand on their own even if the stability question needs more work.

Referee Report

3 major / 2 minor

Summary. This paper investigates the atomic and electronic structure of strongly charged domain walls in van der Waals α-In₂Se₃ using atomic-resolution scanning transmission electron microscopy (STEM) and density functional theory (DFT) calculations. The key findings are that head-to-head (HH) domain walls contain a layer of nonpolar β-In₂Se₃, tail-to-tail (TT) domain walls are atomically abrupt, nearly 180° walls have complex curved 3D structures revealed by 4D-STEM and ptychography, and both types of walls host localized conducting states within a ~1 nm layer, including a midgap state at the β layer of HH walls.

Significance. If the structural assignments and electronic properties hold, this work provides direct experimental evidence for distinct atomic arrangements that screen bound charge at charged domain walls in a 2D ferroelectric, with clear implications for realizing 2D electron or hole gases and for domain-wall engineering in van der Waals materials. The combination of high-resolution imaging with electronic-structure calculations strengthens the foundation for device-oriented studies in this class of ferroelectrics.

major comments (3)

[DFT structural modeling and results on HH walls] The central claim that the β-In₂Se₃ layer is the equilibrium structure at HH domain walls is not supported by any total-energy comparison (in the same supercell with identical polarization discontinuity) between the observed α–β–α configuration and an abrupt α–α HH interface. Without this, it remains possible that the β insertion is metastable or preparation-induced rather than the stable screening arrangement, especially given the 10–50 meV/atom errors known for semilocal DFT in In₂Se₃ polymorph energetics.
[STEM imaging results] The STEM imaging results and abstract provide no error bars, sample statistics across multiple walls or specimens, or explicit tests against alternative structural models, which is needed to establish that the β layer is systematically present at HH walls rather than an occasional observation.
[Electronic structure calculations] The band-structure calculations for the localized midgap and conducting states at both HH and TT walls rely on standard semilocal DFT without any reported sensitivity analysis to the exchange-correlation functional or to the treatment of van der Waals interactions, despite the known limitations of these approximations for both structural stability and electronic gaps in In₂Se₃.

minor comments (2)

[Abstract] The abstract states that nearly 180° domain walls 'differ from ideal 180° structures' but does not quantify the deviation or link it explicitly to the 3D ptychography maps shown later.
[Methods] Methods section should include explicit convergence parameters, k-point sampling, and supercell sizes used for the domain-wall DFT calculations to allow independent reproduction.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the careful and constructive review. We address each major comment point by point below, indicating revisions made to the manuscript.

read point-by-point responses

Referee: [DFT structural modeling and results on HH walls] The central claim that the β-In₂Se₃ layer is the equilibrium structure at HH domain walls is not supported by any total-energy comparison (in the same supercell with identical polarization discontinuity) between the observed α–β–α configuration and an abrupt α–α HH interface. Without this, it remains possible that the β insertion is metastable or preparation-induced rather than the stable screening arrangement, especially given the 10–50 meV/atom errors known for semilocal DFT in In₂Se₃ polymorph energetics.

Authors: We agree that an explicit total-energy comparison strengthens the claim. In the revised manuscript we have added DFT calculations (PBE+vdW) comparing the α–β–α and abrupt α–α configurations in identical supercells with the same polarization discontinuity. The β-inserted structure is lower in energy by ~12 meV per formula unit. We note that while absolute polymorph energies carry known semilocal-DFT uncertainties, the relative comparison within a fixed methodological framework supports the observed structure as the preferred screening arrangement. The new comparison is presented in the revised Figure 3 and Supplementary Note 4. revision: yes
Referee: [STEM imaging results] The STEM imaging results and abstract provide no error bars, sample statistics across multiple walls or specimens, or explicit tests against alternative structural models, which is needed to establish that the β layer is systematically present at HH walls rather than an occasional observation.

Authors: We have expanded the experimental section with quantitative statistics. Analysis of 14 HH domain walls from three independent specimens shows the β layer in every case, with measured In–Se interlayer spacings reported together with standard deviations. Simulated STEM images for alternative abrupt-interface models (with and without ionic relaxation) are now included in the supplement and show visibly poorer agreement with experiment. Error bars have been added to all relevant plots and the abstract has been updated to reflect the multi-specimen statistics. revision: yes
Referee: [Electronic structure calculations] The band-structure calculations for the localized midgap and conducting states at both HH and TT walls rely on standard semilocal DFT without any reported sensitivity analysis to the exchange-correlation functional or to the treatment of van der Waals interactions, despite the known limitations of these approximations for both structural stability and electronic gaps in In₂Se₃.

Authors: We have performed additional calculations using the HSE06 hybrid functional and two alternative van der Waals corrections (optB88-vdW and rVV10). The midgap state at the β layer and the localized conducting states at both wall types remain qualitatively robust, although absolute gap values shift as expected. These sensitivity tests are now summarized in the revised Methods section and detailed in Supplementary Note 6. We believe the qualitative electronic-structure conclusions are therefore supported beyond the original PBE+vdW results. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims rest on independent STEM imaging and standard DFT

full rationale

The derivation chain begins with experimental atomic-resolution STEM imaging that directly observes the β-In₂Se₃ layer at HH walls and abrupt TT interfaces. DFT is then applied for interpretation and band-structure analysis rather than to define or fit the atomic arrangements. No equations reduce a prediction to a fitted input by construction, no self-citation is invoked as a uniqueness theorem or load-bearing premise, and no ansatz is smuggled via prior work. The electronic-structure results (midgap states within ~1 nm) follow from standard band calculations on the imaged structures and do not loop back to redefine the input configurations. The paper is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The claims rest on standard DFT approximations for band structures and the assumption that observed STEM contrast directly maps to atomic positions without significant channeling or projection artifacts. No free parameters are introduced beyond standard DFT settings, and no new entities are postulated.

axioms (2)

domain assumption Standard density functional theory approximations (e.g., exchange-correlation functional) are sufficient to describe the electronic states at the domain walls.
Invoked for band-structure calculations of the β layer and conducting states.
domain assumption STEM image contrast corresponds directly to atomic column positions in the projected structure.
Basis for identifying the β-In₂Se₃ layer and abrupt TT walls.
