Flow-induced bending response rheometer to measure viscoelastic bending of microrods

Barrett T Smith; Maciej Lisicki; Michal Czerepaniak; Sara M Hashmi

arxiv: 2602.02801 · v2 · submitted 2026-02-02 · ❄️ cond-mat.soft

Flow-induced bending response rheometer to measure viscoelastic bending of microrods

Barrett T Smith , Michal Czerepaniak , Maciej Lisicki , Sara M Hashmi This is my paper

Pith reviewed 2026-05-16 08:12 UTC · model grok-4.3

classification ❄️ cond-mat.soft

keywords rheometermicrorodsviscoelastic bendinghydrogel fiberscapillary flowEuler-Bernoulli beam theorybending modulusmicroscale mechanics

0 comments

The pith

Water flow through a capillary bends microscale rods to measure their bending modulus and viscoelastic response.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a flow-induced bending response rheometer that positions a hydrated fiber or rod across the entrance of a glass capillary and applies controlled pressure-driven water flow to generate quantifiable hydrodynamic forces on the sample. Deflection is tracked by simultaneous video microscopy, and an analytical model combined with Euler-Bernoulli beam theory converts those observations into bending modulus and time-dependent viscoelastic properties such as creep recovery. This matters for characterizing small, soft, hydrated structures used in tissue engineering, soft robotics, and drug delivery, where conventional contact-based methods are difficult to apply without damaging the specimen or altering its hydration state.

Core claim

By positioning the rod across the capillary entrance and driving water inflow at constant, stepwise, or oscillatory rates, the setup applies known hydrodynamic loads whose effects on steady deflection or dynamic response are recorded optically; Euler-Bernoulli beam theory then extracts the bending modulus from the steady-state data and the viscoelastic moduli from the time-dependent data, demonstrated across fibers 5–300 microns in diameter with elastic moduli spanning 100 Pa to over 100 MPa.

What carries the argument

The flow-induced bending response (FIBR) setup, in which pressure-driven water flow exerts hydrodynamic forces on a rod held at the capillary entrance, with deflection measured by video microscopy and converted to material properties via an analytical hydrodynamic model and Euler-Bernoulli beam theory.

If this is right

Constant flow rates produce steady deflections that directly yield the bending modulus.
Stepwise or cyclic flow application measures creep, recovery, and time-dependent viscoelastic response.
Oscillatory flow enables extraction of frequency-dependent viscoelastic moduli.
The method functions for both natural and synthetic hydrated fibers over three orders of magnitude in modulus.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The non-contact water-based loading could allow repeated measurements on the same biological fiber under varying physiological conditions.
Embedding the capillary in a larger microfluidic circuit might enable automated, high-throughput screening of many rods in sequence.
The same geometry could be adapted to apply torsional loads by offsetting the rod or using asymmetric flow, though this is not demonstrated.

Load-bearing premise

The analytical model correctly calculates the distributed hydrodynamic forces on the rod at the capillary entrance, and Euler-Bernoulli beam theory applies without significant corrections for the observed deflections or material hydration.

What would settle it

A calibration rod of independently known bending modulus showing measured deflections that deviate systematically from the predictions of the hydrodynamic force model plus beam theory at the same flow rates would falsify the force-resolution accuracy.

read the original abstract

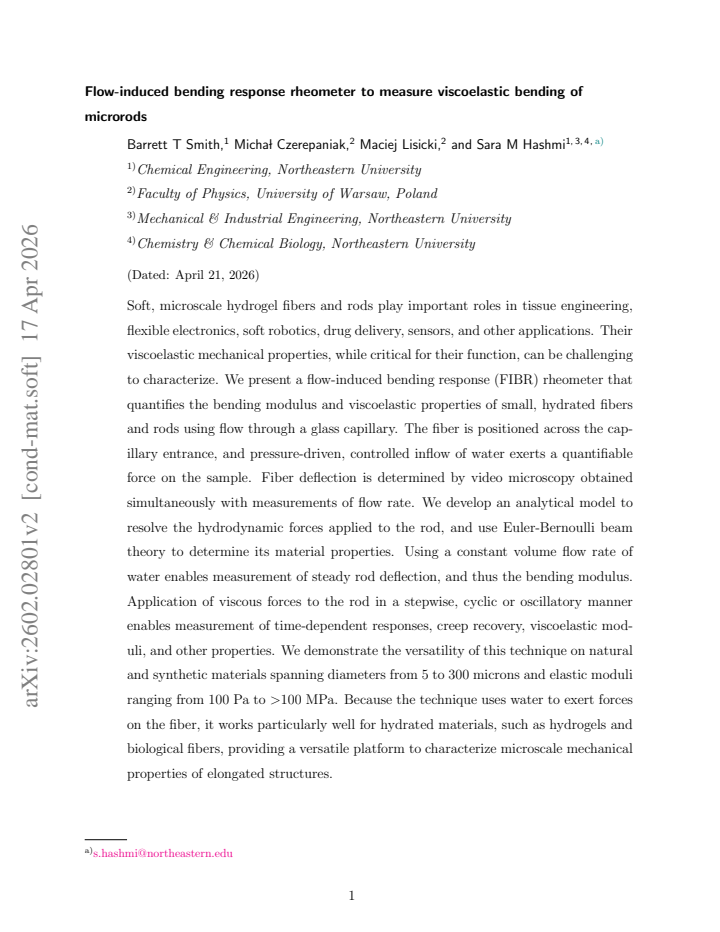

Soft, microscale hydrogel fibers and rods play important roles in tissue engineering, flexible electronics, soft robotics, drug delivery, sensors, and other applications. Their viscoelastic mechanical properties, while critical for their function, can be challenging to characterize. We present a flow-induced bending response (FIBR) rheometer that quantifies the bending modulus and viscoelastic properties of small, hydrated fibers and rods using flow through a glass capillary. The fiber is positioned across the capillary entrance, and pressure-driven, controlled inflow of water exerts a quantifiable force on the sample. Fiber deflection is determined by video microscopy obtained simultaneously with measurements of flow rate. We develop an analytical model to resolve the hydrodynamic forces applied to the rod, and use Euler-Bernoulli beam theory to determine its material properties. Using a constant volume flow rate of water enables measurement of steady rod deflection, and thus the bending modulus. Application of viscous forces to the rod in a stepwise, cyclic or oscillatory manner enables measurement of time-dependent responses, creep recovery, viscoelastic moduli, and other properties. We demonstrate the versatility of this technique on natural and synthetic materials spanning diameters from 5 to 300 microns and elastic moduli ranging from 100 Pa to >100 MPa. Because the technique uses water to exert forces on the fiber, it works particularly well for hydrated materials, such as hydrogels and biological fibers, providing a versatile platform to characterize microscale mechanical properties of elongated structures.
