Origin of donor compensation in monoclinic (Al_xGa_{1{rm -}x})₂O₃ alloys
Pith reviewed 2026-05-16 07:44 UTC · model grok-4.3
The pith
Cation vacancies compensate Si donors in monoclinic AlGaO3 alloys above 16 percent Al.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central discovery is that in monoclinic (Al_x Ga_{1-x})_2 O_3 alloys, the formation energy of cation vacancies is lower than that of Si donors for aluminum compositions greater than 16 percent, independent of the Fermi level. This leads to the vacancies compensating the intentional n-type doping with Si.
What carries the argument
The key mechanism is the comparison of defect formation energies for split cation vacancies and silicon donors calculated with the HSE06 hybrid functional in supercells.
If this is right
- Si doping becomes ineffective in alloys containing more than 16% aluminum due to vacancy formation.
- Experimental observations of carrier reduction above 26% Al are directly accounted for by this compensation.
- Vacancies adopt split configurations in the alloys just as they do in pure Ga2O3.
- The compensation occurs regardless of the Fermi level position in the material.
Where Pith is reading between the lines
- Device fabrication may require alternative dopants or processing methods to avoid vacancy formation in high-aluminum alloys.
- The compensation mechanism identified here may limit doping in similar wide-bandgap oxide alloys used in electronics.
- Testing with different donor species could reveal whether the vacancy preference is specific to silicon or general.
Load-bearing premise
The relative formation energies between cation vacancies and Si donors are accurately predicted by the chosen hybrid functional and supercell models.
What would settle it
A measurement showing significant free carrier density from Si doping in an alloy with 20% Al would contradict the claim that vacancies always compensate above 16% Al.
read the original abstract

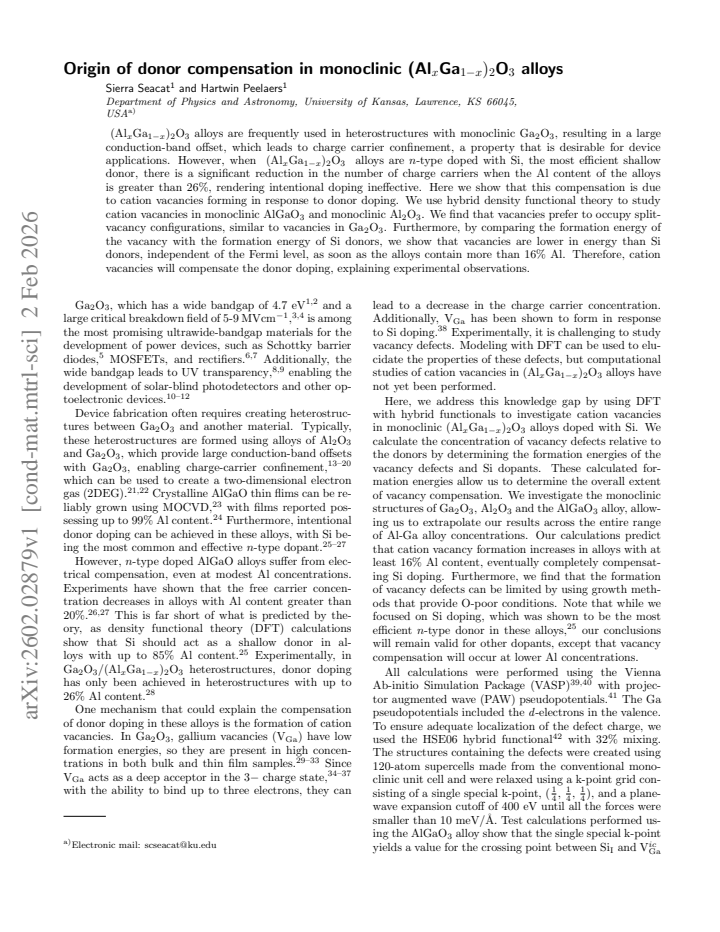

(Al$_x$Ga$_{1{\rm -}x})_2$O$_3$ alloys are frequently used in heterostructures with monoclinic Ga$_2$O$_3$, resulting in a large conduction-band offset, which leads to charge carrier confinement, a property that is desirable for device applications. However, when (Al$_x$Ga$_{1{\rm -}x})_2$O$_3$ alloys are $n$-type doped with Si, the most efficient shallow donor, there is a significant reduction in the number of charge carriers when the Al content of the alloys is greater than 26%, rendering intentional doping ineffective. Here we show that this compensation is due to cation vacancies forming in response to donor doping. We use density functional theory with the HSE06 hybrid functional to study cation vacancies in monoclinic AlGaO$_3$ and monoclinic Al$_2$O$_3$. We find that vacancies prefer to occupy split-vacancy configurations, similar to vacancies in Ga$_2$O$_3$. Furthermore, by comparing the formation energy of the vacancy with the formation energy of Si donors, we show that vacancies are lower in energy than Si donors, independent of the Fermi level, as soon as the alloys contain more than 16% Al. Therefore, cation vacancies will compensate the donor doping, explaining experimental observations.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript uses HSE06 hybrid-functional DFT calculations on supercells of monoclinic (Al_x Ga_{1-x})_2 O_3 to compute formation energies of cation vacancies (including split-vacancy configurations) and Si donors. It reports that for Al fractions x > 0.16 the vacancy formation energy lies below that of the Si donor for all Fermi levels, providing a microscopic explanation for the experimentally observed carrier compensation above ~26% Al.
Significance. If the relative formation energies are reliable, the work supplies a parameter-free, first-principles account of why intentional Si doping becomes ineffective in AlGaO3 alloys, a result directly relevant to the design of Ga2O3-based heterostructures for power electronics. The approach follows standard practice in the field and links theory to the cited experimental doping thresholds without additional fitting.
minor comments (3)
- [Abstract] Abstract and §3: the 16% Al threshold is presented as the point where vacancy E_f drops below Si-donor E_f independent of E_F; the text should explicitly state at which charge states and Fermi-level positions this crossing occurs and whether it is robust to the choice of supercell size.
- [Methods] Methods section: finite-size corrections (electrostatic and potential-alignment) applied to the formation energies of the charged vacancies and donors should be tabulated or described quantitatively, as these corrections directly affect the reported energy ordering.
- [Results] Figure 4 (or equivalent formation-energy plot): the legend and axis labels should distinguish the different vacancy configurations (split vs. simple) and the Si donor charge states so that the reader can verify the claimed crossing at x = 0.16.
Simulated Author's Rebuttal
We thank the referee for the careful reading and positive assessment of our manuscript, including the recommendation for minor revision. No specific major comments were listed in the report.
Circularity Check
No significant circularity detected
full rationale
The paper derives its central claim—that cation vacancies have lower formation energy than Si donors for x>0.16, independent of Fermi level—directly from ab initio DFT calculations using the HSE06 hybrid functional on supercell models of monoclinic (Al_x Ga_{1-x})_2 O_3. Formation energies are computed from first principles without any fitting to experimental compensation thresholds or doping data; the 16% threshold is the numerical result of comparing those computed E_f values. No self-definitional steps, fitted inputs renamed as predictions, load-bearing self-citations, or ansatz smuggling appear in the provided derivation chain. The logic is self-contained and externally falsifiable via independent DFT runs or experiment.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption HSE06 hybrid functional provides sufficiently accurate formation energies for cation vacancies and Si donors in monoclinic AlGaO3 to determine their relative stability
- domain assumption Cation vacancies are the dominant compensating defects and split-vacancy configurations are the lowest-energy arrangements
discussion (0)
Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.
