Mutual Inductance Sensing SQUID: Cryogenic microcalorimeter based on mutual inductance readout of superconducting temperature sensors
Pith reviewed 2026-05-16 06:24 UTC · model grok-4.3
The pith
Mutual inductance readout of superconducting sensors projects sub-100 meV resolution for soft X-rays
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central claim is that the temperature dependence of the magnetic penetration depth in a superconductor near Tc, read out through mutual inductance to a SQUID, yields a non-hysteretic, tunable cryogenic microcalorimeter. Prototype measurements confirm stable operation across temperatures, and calculations project that an optimized device reaches energy resolution below 100 meV FWHM for soft X-rays under 800 eV.
What carries the argument
Mutual inductance between a superconducting temperature sensor (whose penetration depth varies sharply near Tc) and a SQUID readout circuit, converting inductance shifts into flux signals with adjustable gain.
If this is right
- Higher resolving power in X-ray emission spectroscopy becomes possible without hysteresis-related noise.
- Signal gain can be adjusted in place to match different photon energies or operating points.
- The approach integrates with existing SQUID infrastructure for detector arrays.
- Soft X-ray spectroscopy can move closer to the efficiency of wavelength-dispersive instruments while retaining high quantum efficiency.
Where Pith is reading between the lines
- Larger absorber volumes paired with this sensor could extend the usable energy range while preserving resolution.
- Arrays of such sensors would support high-throughput imaging spectroscopy in synchrotron or laboratory settings.
- The tunable readout gain offers a route to adapt the detector to varying count rates without hardware changes.
Load-bearing premise
Prototype measurements and existing models will translate directly to an optimized absorber-sensor combination without new noise sources or fabrication limits that degrade the projected resolution.
What would settle it
Build and test an optimized absorber-sensor device, then measure its actual energy resolution on soft X-ray photons below 800 eV; failure to reach below 100 meV FWHM would falsify the projection.
read the original abstract

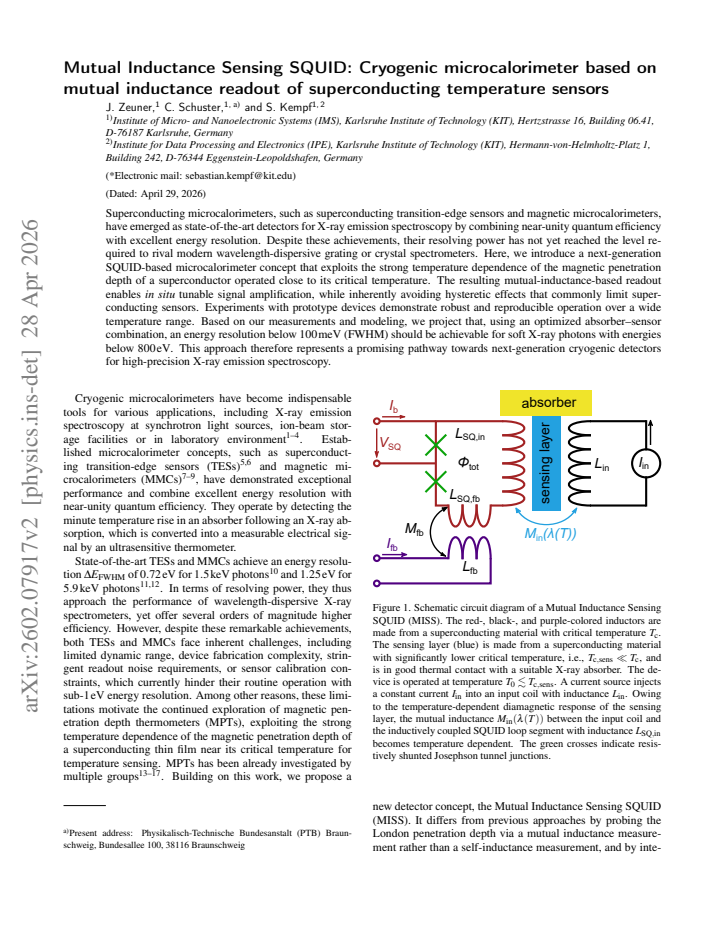

Superconducting microcalorimeters, such as superconducting transition-edge sensors and magnetic microcalorimeters, have emerged as state-of-the-art detectors for X-ray emission spectroscopy by combining near-unity quantum efficiency with excellent energy resolution. Despite these achievements, their resolving power has not yet reached the level required to rival modern wavelength-dispersive grating or crystal spectrometers. Here, we introduce a next-generation SQUID-based microcalorimeter concept that exploits the strong temperature dependence of the magnetic penetration depth of a superconductor operated close to its critical temperature. The resulting mutual-inductance-based readout enables in situ tunable signal amplification, while inherently avoiding hysteretic effects that commonly limit superconducting sensors. Experiments with prototype devices demonstrate robust and reproducible operation over a wide temperature range. Based on our measurements and modeling, we project that, using an optimized absorber-sensor combination, an energy resolution below 100meV (FWHM) should be achievable for soft X-ray photons with energies below 800eV. This approach therefore represents a promising pathway towards next-generation cryogenic detectors for high-precision X-ray emission spectroscopy.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript introduces a mutual-inductance sensing SQUID microcalorimeter that exploits the temperature dependence of the superconducting penetration depth for tunable, non-hysteretic readout. Prototype devices are reported to operate robustly over a wide temperature range, and the authors project that an optimized absorber-sensor combination will achieve energy resolution below 100 meV FWHM for soft X-ray photons below 800 eV, based on their measurements and modeling.
Significance. If the projected resolution is realized, the approach would offer a promising route to cryogenic detectors that combine near-unity quantum efficiency with resolving power competitive with wavelength-dispersive spectrometers, while providing in-situ tunable amplification and avoiding common hysteretic limitations of other superconducting sensors.
major comments (1)
- [Abstract and modeling/projection discussion] The central projection of <100 meV FWHM resolution (Abstract) rests on prototype measurements and modeling, yet the manuscript provides neither a complete noise-budget breakdown nor a sensitivity analysis demonstrating that the identified noise terms (thermal, readout, sensor-intrinsic) remain exhaustive and scale without new contributions once the absorber-sensor geometry is optimized. This omission directly affects the load-bearing claim that the prototype results extrapolate to the target performance.
minor comments (1)
- [Abstract] The notation '100meV' in the Abstract should be written as '100 meV' for consistency with standard units formatting.
Simulated Author's Rebuttal
We thank the referee for their thorough review and constructive feedback on our manuscript. We address the single major comment below and will incorporate the requested clarifications and additions in the revised version to strengthen the presentation of our noise modeling and performance projections.
read point-by-point responses
-
Referee: [Abstract and modeling/projection discussion] The central projection of <100 meV FWHM resolution (Abstract) rests on prototype measurements and modeling, yet the manuscript provides neither a complete noise-budget breakdown nor a sensitivity analysis demonstrating that the identified noise terms (thermal, readout, sensor-intrinsic) remain exhaustive and scale without new contributions once the absorber-sensor geometry is optimized. This omission directly affects the load-bearing claim that the prototype results extrapolate to the target performance.
Authors: We agree that a more explicit and complete noise-budget breakdown, together with a sensitivity analysis, would improve the clarity and robustness of our performance projection. The current manuscript summarizes the dominant noise terms (thermal fluctuations, SQUID readout noise, and sensor-intrinsic contributions arising from penetration-depth fluctuations) and their scaling with temperature and geometry, but does not present them in a single consolidated table or perform a full parameter-sweep sensitivity study. In the revised manuscript we will add a dedicated subsection that (i) tabulates all measured and modeled noise contributions with their functional dependencies, (ii) shows that these terms remain exhaustive for the projected absorber-sensor geometries, and (iii) includes a sensitivity analysis demonstrating that no new dominant noise sources appear when the absorber heat capacity and sensor volume are optimized. This addition will directly support the extrapolation to <100 meV FWHM for E < 800 eV. revision: yes
Circularity Check
No circularity: projection rests on independent prototype data and separate modeling
full rationale
The paper's central claim is an extrapolation to <100 meV resolution for an optimized absorber-sensor pair, explicitly framed as derived from prototype measurements plus modeling. No equations, self-citations, or fitted parameters are shown that reduce the projected resolution to its inputs by construction. The derivation chain remains self-contained against external benchmarks and does not invoke load-bearing self-references or ansatzes smuggled via prior work.
