arxiv: 2602.20155 · v2 · submitted 2026-02-23 · 🌌 astro-ph.EP

Topography-Induced Stationary Waves and the Onset of Nightside Warming on Rocky Planets around M-dwarf Stars

Howard Chen , Aida Ildirimzade , Evelyn Macdonald This is my paper

Pith reviewed 2026-05-15 19:50 UTC · model grok-4.3

classification 🌌 astro-ph.EP
keywords exoplanet climatestidally locked planetsM-dwarf starsatmospheric circulationstationary wavesorographycloud greenhouseplanetary habitability
0
0 comments X

The pith

Topography on tidally locked M-dwarf planets induces stationary waves that enhance nightside cloud formation and lower the stellar flux needed for deglaciation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors use climate model simulations to show how surface topography affects the atmospheric circulation on planets locked in synchronous rotation around M-dwarf stars. Steep mountains and plateaus break the symmetric flow, creating stationary waves and Rossby gyres that strengthen winds across the day-night boundary and lift moisture there. This leads to more clouds on the cold nightside, which trap outgoing heat and allow the planet to avoid permanent freezing at lower incoming stellar energy than flat-surface models predict. Because the shape of continents and mountains is unknown for most such worlds, this mechanism could shift the boundaries of the habitable zone.

Core claim

Across experiments with nitrogen pressures from 0.5 to 8 bar and stellar fluxes from 1200 to 1700 W m^{-2}, surface relief replaces circumpolar vortices with stationary waves. Steep orography generates standing Rossby gyres that strengthen the cross-terminator jet, align vertical uplift with the terminator, enhance moisture transport, increase nightside infrared optical depth through additional cloud formation, and strengthen the cloud-greenhouse feedback, thereby reducing the critical fluxes required for global deglaciation. Elevated plateaus produce a similar but weaker effect.

What carries the argument

Mechanically forced stationary waves and standing Rossby gyres induced by surface topography, which break flow symmetry and reorganize the circulation to favor cross-terminator transport.

If this is right

  • Steep orography strengthens the cross-terminator jet and aligns uplift with the day-night boundary.
  • Enhanced moisture transport increases infrared optical depth and promotes nightside cloud formation.
  • The stronger cloud-greenhouse feedback lowers the critical stellar fluxes for global deglaciation.
  • Broad elevated plateaus yield a fragmented circulation with less effective moisture transport.
  • Landmass distribution and relief exert strong controls on climatic bifurcations of tidally locked M-dwarf planets.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Planets with significant topography may remain habitable over a wider range of orbital distances than those with flat surfaces.
  • Atmospheric observations of nightside cloud cover could indirectly reveal surface relief on these exoplanets.
  • Current climate models that assume smooth surfaces may underestimate the likelihood of nightside warming on real M-dwarf planets.

Load-bearing premise

That the chosen topographic and landmass configurations, along with the model's simplified physics, accurately represent the conditions on actual rocky planets orbiting M-dwarfs.

What would settle it

Measurement of unexpectedly high nightside cloud cover or temperatures on a known tidally locked M-dwarf planet that would not be predicted by flat-surface models but match the topography-induced circulation patterns.

Figures

Figures reproduced from arXiv: 2602.20155 by Aida Ildirimzade, Evelyn Macdonald, Howard Chen.

Figure 1

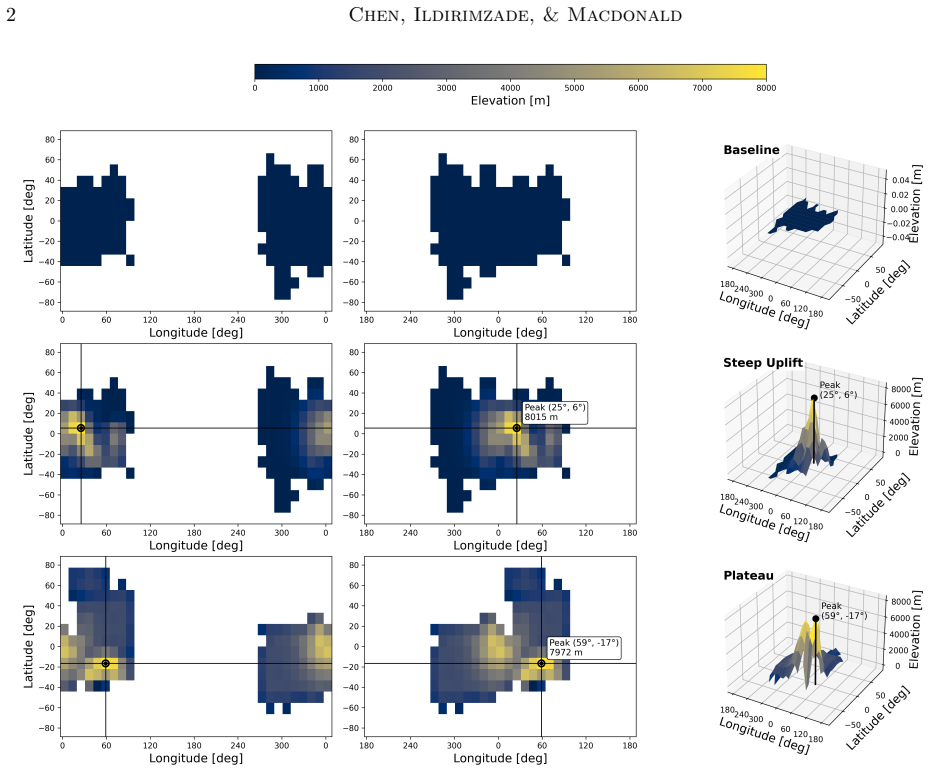

Figure 1. Figure 1: Surface boundary configurations used in this study. Middle column: map view of continental distribution and topography with the substellar point centered at 0° longitude, or on the dayside. Left column: identical surface realizations centered on the nightside. Right column: corresponding three-dimensional renderings of the topography. Rows show (top) Baseline flat continent, (middle) Steep Uplift, and (bot… view at source ↗
Figure 2

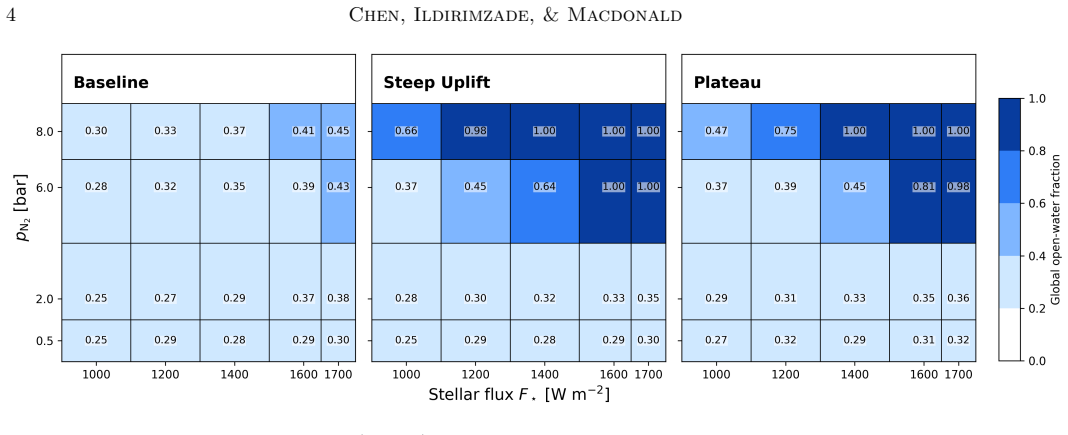

Figure 2. Figure 2: Open-water fraction across the (F⋆, pN2 ) parameter grid. Color indicates the global fractional area that remains ice-free at equilibrium, with darker shades marking more extensive open-water regions. At low incident flux (1200–1400 W m−2 ), all simulations remain predominantly glaciated. At 1600 W m−2 , atmospheres exceeding a few bars develop measurable open￾water areas, marking the onset of transitional… view at source ↗
Figure 3

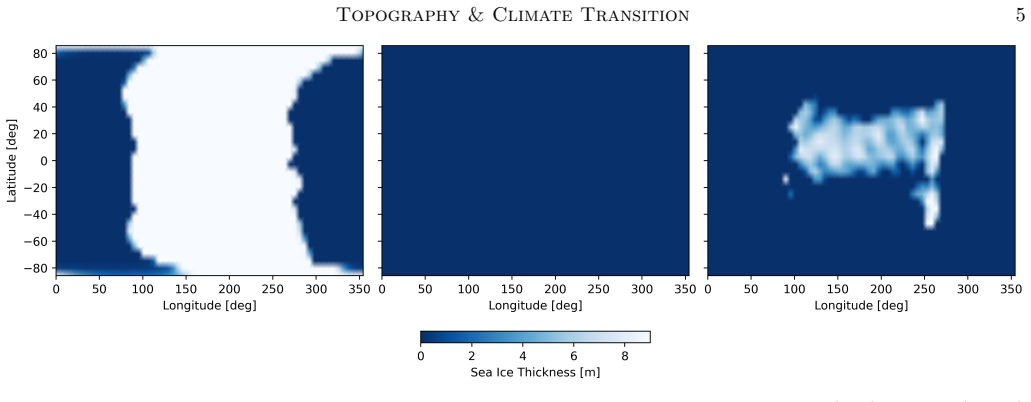

Figure 3. Figure 3: Equilibrium sea-ice thickness for the three topographies. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

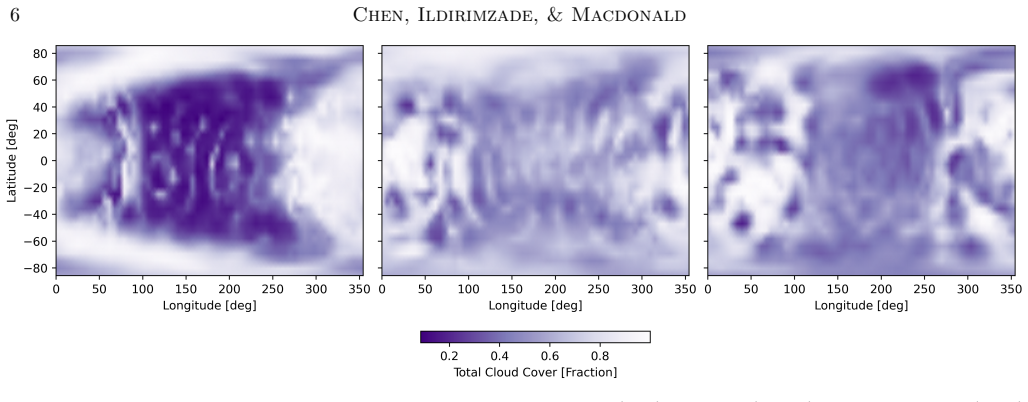

Figure 4. Figure 4: Time-mean total cloud cover. The panels shown are for: (Left) Baseline, (center ) Steep Uplift, and (right) Plateau. The Baseline case exhibits the conventional tidally locked cloud distribution, with enhanced cloudiness on the dayside and reduced cloudiness on the nightside. Orography enhances ascent and cloudiness. The Steep case produces the highest cloud cover at the nightside compared to the other two… view at source ↗
Figure 5

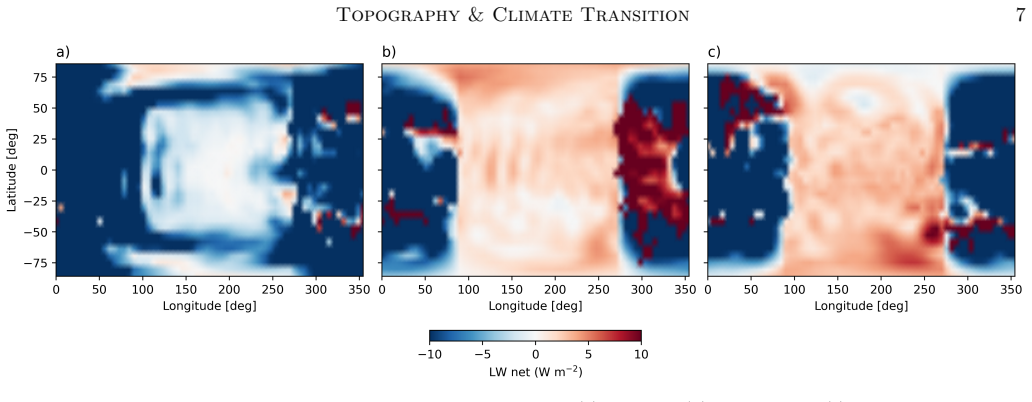

Figure 5. Figure 5: Net longwave flux at the planetary surface. [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

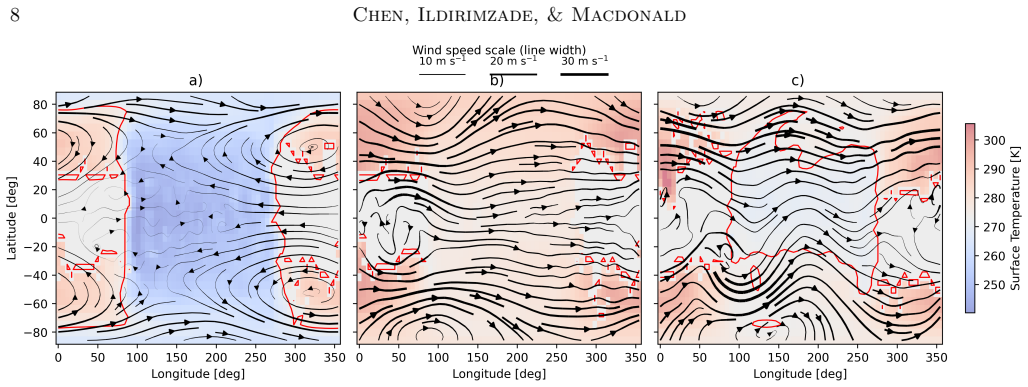

Figure 6. Figure 6: Global wind velocity streamlines for the three topographic configurations. [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7

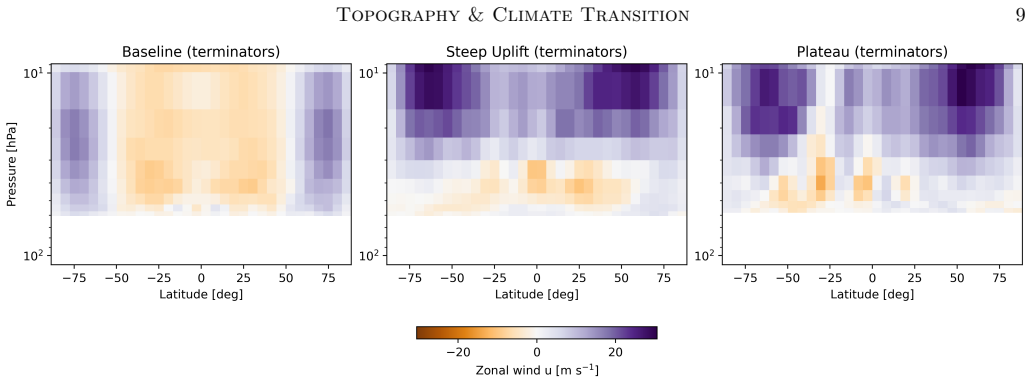

Figure 7. Figure 7: Latitude–pressure cross-sections of zonal wind at the day–night terminators. [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8

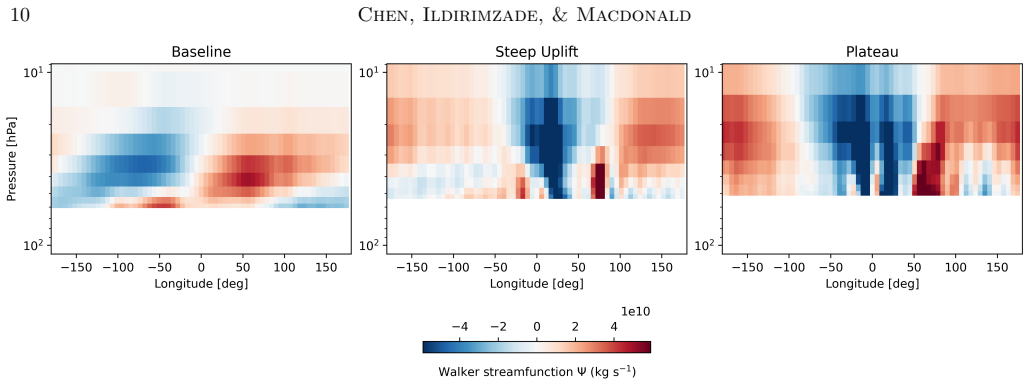

Figure 8. Figure 8: Equatorial Walker streamfunction Ψ in longitude–pressure space. Shown are the zonally overturning circu￾lation patterns for the (left) Baseline, (center ) Steep Uplift, and (right) Plateau simulations. The Baseline case is characterized by broad, smoothly varying overturning spanning much of the longitudinal domain. In the Steep Uplift configuration, the circulation breaks into multiple vertically stacked … view at source ↗
Figure 9

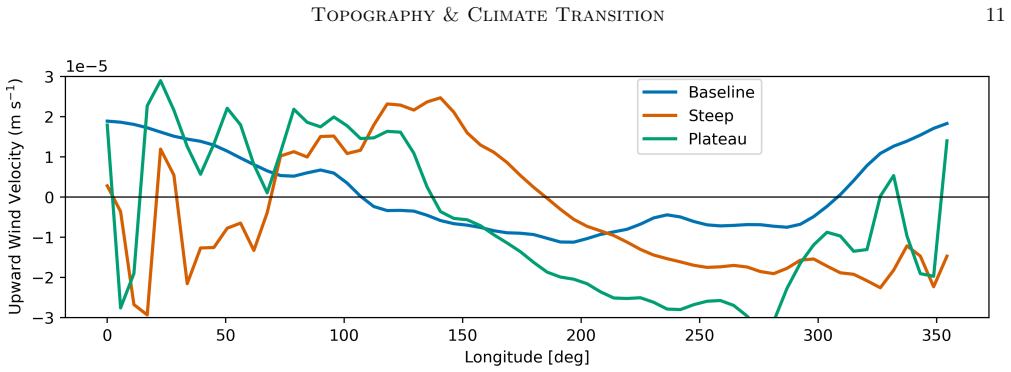

Figure 9. Figure 9: Mass-weighted vertical velocity at 200 hPa for the three surface configurations. Compared to the Baseline case, both Steep and Plateau topographies shift ascent downstream, enhancing vertical motion on the nightside. The Steep case exhibits a sharper, more localized updraft near 120°-140° longitude, aligning with the evening terminator jet, while the Plateau case shows a broader region of enhanced ascent c… view at source ↗
Figure 10

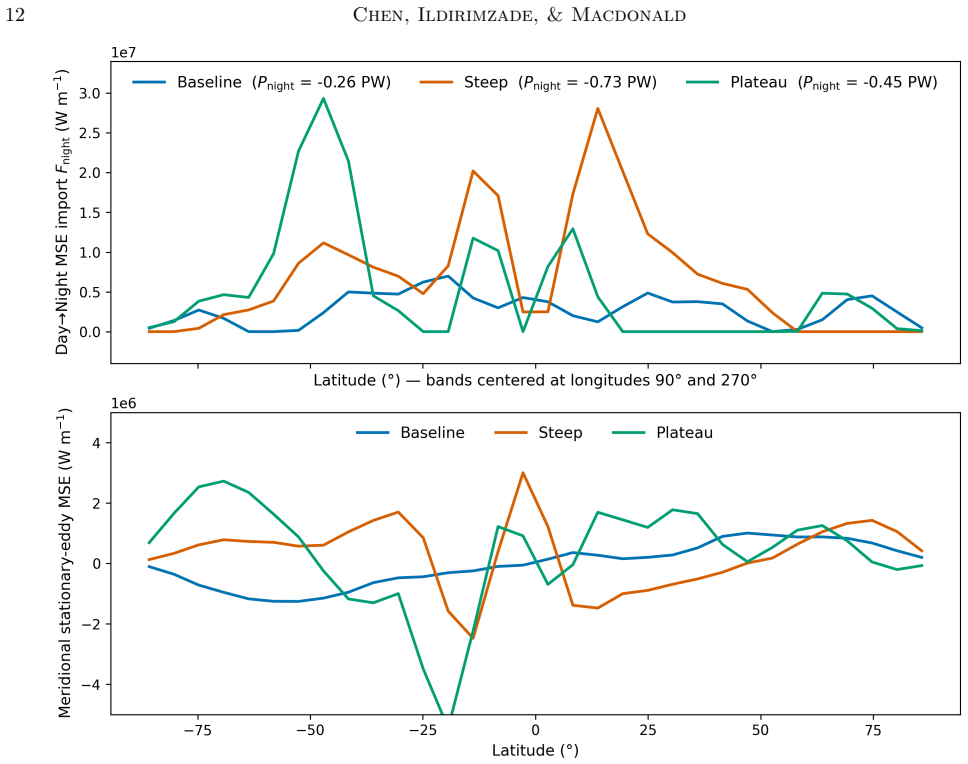

Figure 10. Figure 10: Day–night energy exchange and its stationary–eddy mechanism. Top: Cross–terminator import of moist static energy (MSE) as a function of latitude, computed from stationary–eddy fluxes of u m′ and averaged in ± 90◦ longitude bands centered at the west and east terminators (longitudes 90◦ and 270◦ ). The legend lists the global nightside power Pnight. Bottom: Vertically integrated meridional stationary–eddy … view at source ↗
Figure 11

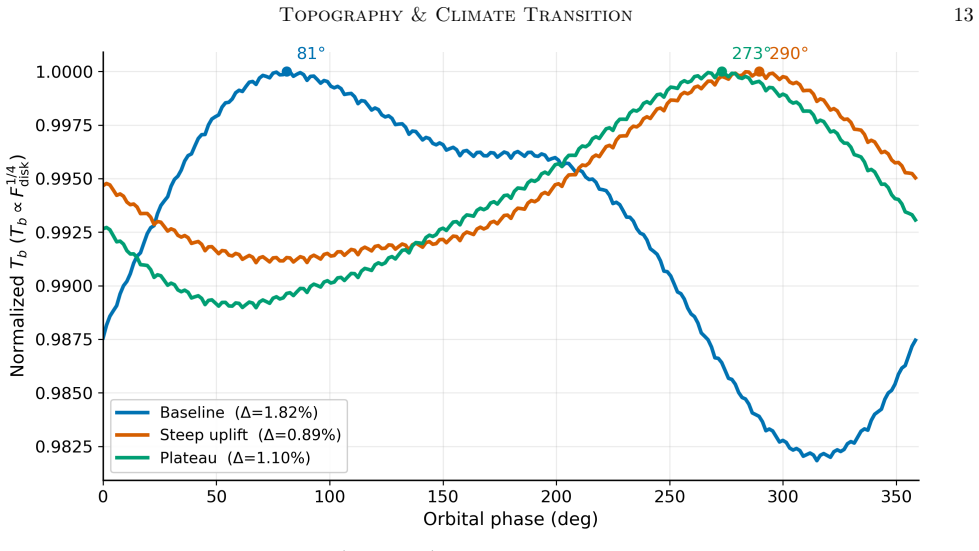

Figure 11. Figure 11: Normalized brightness temperature (bolometric) phase curves inferred from disk-integrated TOA longwave emission for the baseline, steep-uplift, and plateau cases. Peak emission occurs at ∼ 81◦ , ∼ 290◦ , and ∼ 273◦ , respectively, with corre￾sponding phase-curve amplitudes of 1.82%, 0.89%, and 1.10%. Enhanced topography both reduces the phase-curve amplitude and displaces the thermal hotspot, indicating m… view at source ↗
read the original abstract

Among potentially habitable worlds, rocky planets orbiting M dwarfs offer the most favorable prospects for atmospheric characterization, yet their climates may differ substantially from those of Earth analogs. In the tidally locked limit, the nightside's tendency to radiatively cool and potentially trap volatiles as permanent ice introduces a strong dependence of habitability on the planet's surface and atmospheric boundary conditions. We perform a suite of synchronously rotating experiments spanning a wide range of topographic and orographic realizations with different mean elevations and landmass distributions. Across a grid of $p_{\mathrm{N2}} = 0.5$-$8~\mathrm{bar}$ and $F_{\star} = 1200$-$1700~\mathrm{W\,m^{-2}}$, we find that surface relief breaks the flow symmetry, replacing the circumpolar vortices with mechanically forced stationary waves. Steep orography produces standing Rossby gyres that strengthen the cross-terminator jet and align vertical uplift with the day--night boundary. These new circulation regimes enhance moisture transport, increasing the infrared optical depth and promoting additional nightside cloud formation, which produces a stronger cloud-greenhouse feedback and lower the critical fluxes required for global planetary deglaciation. Broad, elevated plateaus drive a similarly fragmented but slightly weaker circulation, yielding less effective moisture transport. These results show that the relief and spatial distribution of landmasses, parameters unconstrained for most exoplanets, can exert strong controls on the climatic bifurcations of tidally locked M-dwarf exoplanets.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports a suite of GCM experiments for synchronously rotating rocky planets around M-dwarfs, spanning N2 surface pressures of 0.5-8 bar and stellar fluxes of 1200-1700 W m^{-2} with varied topographic realizations. It claims that steep orography breaks flow symmetry, replaces circumpolar vortices with stationary Rossby gyres, strengthens the cross-terminator jet, aligns vertical uplift with the day-night boundary, enhances moisture transport, raises nightside infrared optical depth via additional cloud formation, strengthens the cloud-greenhouse feedback, and thereby lowers the critical stellar flux required for global deglaciation; broad elevated plateaus produce weaker but similar effects.

Significance. If the central circulation changes and their climatic consequences prove robust, the work would establish that unconstrained surface properties (relief and landmass distribution) exert first-order control on the atmospheric regimes and deglaciation thresholds of tidally locked M-dwarf planets, with direct implications for habitability assessments and interpretation of future atmospheric observations.

major comments (2)
  1. [Methods] Methods (GCM configuration): the experiments omit ocean dynamics and explicit cloud microphysics, yet the central claim (abstract) that topography-induced gyres enhance moisture transport, raise IR optical depth, and strengthen the cloud-greenhouse feedback depends quantitatively on surface evaporation, latent heating, and cloud particle properties; these omissions are load-bearing and require either justification via sensitivity tests or explicit acknowledgment of their impact on the reported thresholds.
  2. [Results] Results (parameter sweep): no quantitative metrics (e.g., changes in jet speed, moisture convergence, optical depth, or cloud fraction), error bars, or convergence tests are reported for the grid of p_N2 and F_star values, leaving the magnitude and statistical significance of the claimed circulation and feedback changes unverified.
minor comments (2)
  1. [Abstract] Abstract: 'lower the critical fluxes' is grammatically inconsistent with the subject; change to 'lowers the critical fluxes'.
  2. [Abstract] Abstract and results: the phrase 'mechanically forced stationary waves' is used without a supporting figure or diagnostic (e.g., streamfunction or geopotential height anomalies) showing the wave structure, reducing clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their detailed and constructive comments on our manuscript. We address each major comment below and outline the revisions we will make to strengthen the paper.

read point-by-point responses

  1. Referee: [Methods] Methods (GCM configuration): the experiments omit ocean dynamics and explicit cloud microphysics, yet the central claim (abstract) that topography-induced gyres enhance moisture transport, raise IR optical depth, and strengthen the cloud-greenhouse feedback depends quantitatively on surface evaporation, latent heating, and cloud particle properties; these omissions are load-bearing and require either justification via sensitivity tests or explicit acknowledgment of their impact on the reported thresholds.

    Authors: We agree that the omission of ocean dynamics and explicit cloud microphysics is a significant simplification that affects the quantitative aspects of moisture transport and cloud formation. In the revised manuscript, we will expand the Methods section to explicitly discuss these model limitations and their implications for the reported deglaciation thresholds. We will reference previous studies that have performed sensitivity tests with more complex cloud schemes in similar setups to justify that the qualitative trends remain robust. No new sensitivity tests will be added at this stage, but we will clearly state that the thresholds should be interpreted as indicative rather than precise. revision: yes

  2. Referee: [Results] Results (parameter sweep): no quantitative metrics (e.g., changes in jet speed, moisture convergence, optical depth, or cloud fraction), error bars, or convergence tests are reported for the grid of p_N2 and F_star values, leaving the magnitude and statistical significance of the claimed circulation and feedback changes unverified.

    Authors: We acknowledge that the current manuscript lacks quantitative metrics and convergence tests for the parameter sweep. In the revision, we will add a new figure or table summarizing key metrics such as the strength of the cross-terminator jet, nightside cloud fraction, and infrared optical depth for each simulation. Additionally, we will include resolution convergence tests in an appendix to verify the robustness of the stationary wave patterns. This will provide the necessary quantification and allow assessment of statistical significance. revision: yes

Circularity Check

0 steps flagged

No significant circularity: results from independent forward GCM integrations

full rationale

The paper's central claims derive from a suite of forward numerical experiments in a GCM, with topography, landmass distributions, p_N2, and stellar flux varied as independent inputs. The reported circulation changes (stationary Rossby gyres, strengthened cross-terminator jet, aligned uplift) and downstream effects on moisture transport and cloud-greenhouse feedback emerge directly from the model integrations rather than from any algebraic reduction, fitted parameter renamed as prediction, or self-citation chain that defines the target outcome. No equations are presented that equate the claimed result to its own inputs by construction, and the study does not invoke uniqueness theorems or ansatzes from prior self-work to force the conclusions. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on numerical integration of standard atmospheric fluid equations with imposed surface topography and fixed ranges of N2 pressure and stellar flux; no new physical entities or laws are introduced.

free parameters (2)
  • N2 surface pressure
    Varied across 0.5-8 bar as an experimental input parameter.
  • incident stellar flux
    Varied across 1200-1700 W m^{-2} as an experimental input parameter.
axioms (2)
  • domain assumption Planets are synchronously rotating (tidally locked)
    Standard assumption for close-in rocky planets around M-dwarfs invoked throughout the experimental design.
  • standard math Atmospheric flow obeys standard primitive equations in a general circulation model
    Relies on established GCM framework without derivation in the paper.
