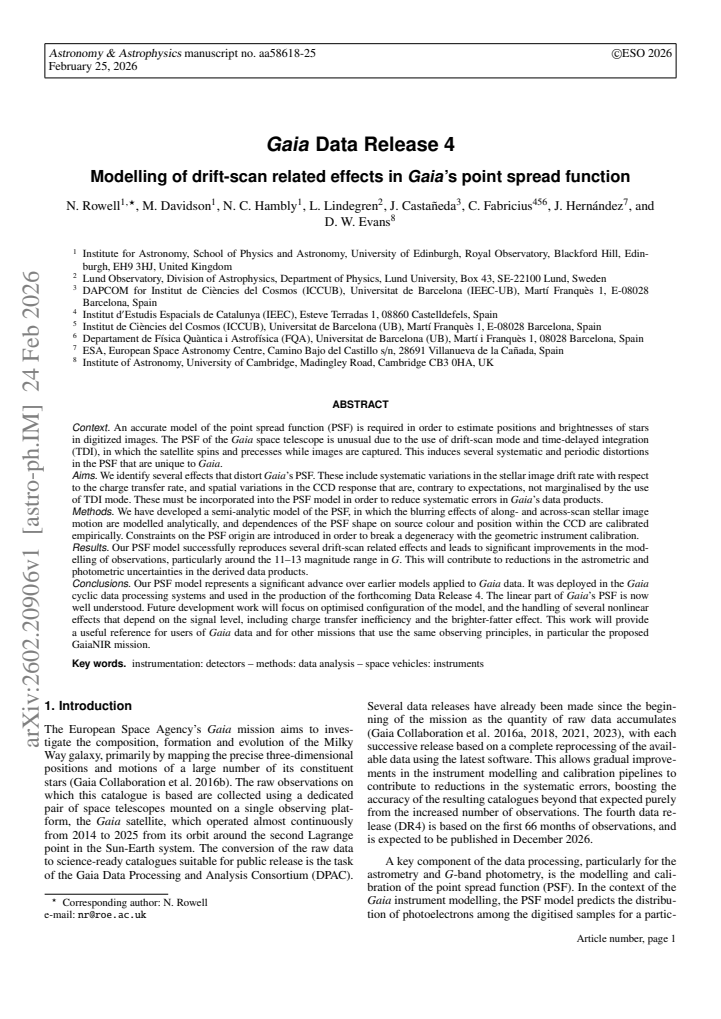

Gaia Data Release 4: Modelling of drift-scan related effects in Gaia's point spread function
Pith reviewed 2026-05-15 19:50 UTC · model grok-4.3
The pith
Gaia’s new semi-analytic PSF model improves star position and brightness estimates in the 11-13 magnitude range.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central claim is that a semi-analytic PSF model, in which blurring from stellar image drift relative to the charge transfer rate is treated analytically and dependences on source colour and CCD position are calibrated empirically, captures the dominant systematic and periodic distortions unique to Gaia’s drift-scan mode. Introduction of constraints on the PSF origin breaks the degeneracy with instrument geometry. The model produces significant improvements in the fit to observations, especially in the 11-13 magnitude range in G, and thereby contributes to lower uncertainties in the derived astrometric and photometric data products.
What carries the argument
Semi-analytic PSF model that represents along- and across-scan motion blurring analytically while calibrating colour and position dependences empirically.
If this is right
- Reductions in astrometric uncertainties for sources in the affected magnitude range.
- Reductions in photometric uncertainties for sources in the affected magnitude range.
- Deployment of the model in the cyclic processing pipeline that produced Data Release 4.
- The linear component of Gaia’s PSF is now considered well understood.
Where Pith is reading between the lines
- Extension of the same semi-analytic approach to nonlinear effects such as charge transfer inefficiency could further tighten measurements at brighter and fainter magnitudes.
- The framework offers a practical template for future missions that also rely on drift-scan or TDI readout.
- Analysts using Gaia data in the 11-13 magnitude window can anticipate higher precision in stellar positions and fluxes once the new model is fully propagated.
Load-bearing premise
The combination of analytic motion blurring and empirical colour and position calibrations captures the dominant distortions without requiring full nonlinear modelling at this stage.
What would settle it
A side-by-side comparison of fit residuals or derived uncertainties for stars in the 11-13 G magnitude range showing no measurable improvement when the new PSF model is substituted for the previous version.
read the original abstract
An accurate model of the point spread function is required in order to estimate positions and brightnesses of stars in digitized images. The PSF of the Gaia space telescope is unusual due to the use of drift-scan mode and time-delayed integration, in which the satellite spins and precesses while images are captured. This induces several systematic and periodic distortions in the PSF that are unique to Gaia. These include systematic variations in the stellar image drift rate with respect to the charge transfer rate, and spatial variations in the CCD response that are, contrary to expectations, not marginalised by the use of TDI mode. These must be incorporated into the PSF model in order to reduce systematic errors in Gaia's data products. We have developed a semi-analytic model of the PSF, in which the blurring effects of along- and across-scan stellar image motion are modelled analytically, and dependences of the PSF shape on source colour and position within the CCD are calibrated empirically. Constraints on the PSF origin are introduced in order to break a degeneracy with the geometric instrument calibration. Our new PSF model leads to significant improvements in the modelling of observations, particularly around the 11-13 magnitude range in G. This will contribute to reductions in the astrometric and photometric uncertainties in the derived data products. Our PSF model was deployed in the Gaia cyclic data processing systems and used in the production of the forthcoming Data Release 4. The linear part of Gaia's PSF is now well understood. Future development work will focus on the handling of several nonlinear effects that depend on the signal level, including charge transfer inefficiency and the brighter-fatter effect. This work will provide a useful reference for users of Gaia data and for other missions that use the same observing principles, such as the proposed GaiaNIR mission.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper presents a semi-analytic PSF model for Gaia that analytically describes along- and across-scan blurring induced by drift-scan and TDI observing modes, while empirically calibrating PSF shape dependencies on source colour and position on the CCD. PSF-origin constraints are introduced to resolve geometric degeneracies with the instrument calibration. The model was deployed in the Gaia cyclic processing pipeline for DR4 production. The central claim is that this model yields significant improvements in observation modelling, especially for G magnitudes 11-13, thereby reducing astrometric and photometric uncertainties; the linear component of Gaia's PSF is stated to be well understood, with nonlinear effects (CTI, brighter-fatter) deferred to future work.
Significance. If the claimed improvements are substantiated, the work is significant because it provides a practical, first-principles treatment of Gaia's unique scanning-law distortions that directly affects the quality of positions and fluxes in DR4. The analytic-empirical split and the use of PSF-origin constraints to break degeneracies are strengths that could serve as a reference for other TDI-based missions such as the proposed GaiaNIR.
major comments (2)
- [Abstract] Abstract: The assertion that the new PSF model 'leads to significant improvements in the modelling of observations, particularly around the 11-13 magnitude range in G' and will reduce astrometric and photometric uncertainties is load-bearing for the central claim that the linear PSF is now well understood, yet the manuscript supplies no quantitative support (residual RMS, chi-squared reductions, before/after comparisons, or magnitude-specific error budgets).
- [Abstract] Abstract and modelling sections: Without an explicit error budget or assessment of the relative size of the deferred nonlinear terms (CTI, brighter-fatter) in the 11-13 G-mag range, it remains unclear whether the analytic motion blurring plus empirical colour/position terms capture the dominant distortions, as assumed in the weakest point of the argument.
minor comments (2)
- [Abstract] The abstract refers to 'systematic variations in the stellar image drift rate with respect to the charge transfer rate' without a forward reference to the specific analytic expressions or section that derives them.
- [General] Figures showing PSF models would benefit from explicit before/after residual maps or quantitative metrics to illustrate the claimed improvements.
Simulated Author's Rebuttal
We thank the referee for the careful and constructive review. The comments correctly identify that the manuscript's central claims about improvements require stronger quantitative backing. We will revise the abstract and modelling sections accordingly while preserving the paper's focus on the linear PSF treatment.
read point-by-point responses
-
Referee: [Abstract] Abstract: The assertion that the new PSF model 'leads to significant improvements in the modelling of observations, particularly around the 11-13 magnitude range in G' and will reduce astrometric and photometric uncertainties is load-bearing for the central claim that the linear PSF is now well understood, yet the manuscript supplies no quantitative support (residual RMS, chi-squared reductions, before/after comparisons, or magnitude-specific error budgets).
Authors: We agree that the abstract and main text currently lack explicit quantitative metrics. In the revised manuscript we will add a dedicated results subsection (with new figures) presenting before/after residual RMS values, chi-squared reductions, and magnitude-binned error budgets for G=11-13, drawn directly from the cyclic processing pipeline tests that motivated the model deployment. These additions will substantiate the claimed improvements without altering the semi-analytic framework. revision: yes
-
Referee: [Abstract] Abstract and modelling sections: Without an explicit error budget or assessment of the relative size of the deferred nonlinear terms (CTI, brighter-fatter) in the 11-13 G-mag range, it remains unclear whether the analytic motion blurring plus empirical colour/position terms capture the dominant distortions, as assumed in the weakest point of the argument.
Authors: We accept that an explicit error budget is needed to justify deferring nonlinear terms. The revised version will include a short new paragraph in the modelling section that quantifies the expected relative size of CTI and brighter-fatter contributions in the 11-13 G range (using published Gaia scaling relations and internal validation runs). This will demonstrate that the analytic blurring plus empirical terms address the dominant scan-induced distortions while the nonlinear effects remain secondary for the linear-PSF claim. revision: yes
Circularity Check
Semi-analytic PSF model derivation is independent of its fitted outputs
full rationale
The paper derives the semi-analytic PSF model from first-principles analytic blurring terms based on Gaia's known scanning geometry and TDI mode, combined with empirical calibrations of color and position dependences drawn from external observations. PSF-origin constraints are introduced explicitly to break a geometric degeneracy with instrument calibration, which is a standard modeling choice rather than a self-referential loop. No equations, predictions, or central claims reduce by construction to fitted parameters, self-citations, or renamed inputs. The assertion of improvements for 11-13 G-mag sources is presented as an outcome of the model deployment in DR4 processing but does not form a circular derivation step. The work is self-contained against external benchmarks of scanning physics and data calibration.
Axiom & Free-Parameter Ledger
free parameters (1)
- empirical PSF shape dependencies on colour and position
axioms (1)
- domain assumption Blurring effects of along- and across-scan stellar image motion can be modeled analytically
