arxiv: 2603.03702 · v2 · submitted 2026-03-04 · ❄️ cond-mat.str-el · cond-mat.mes-hall

Contribution of remote bands to orbital magnetization in twisted bilayer graphene

Pinzhuo Li , Kun Jiang , Ziqiang Wang , Jian Kang , Yi Zhang This is my paper

Pith reviewed 2026-05-15 17:16 UTC · model grok-4.3

classification ❄️ cond-mat.str-el cond-mat.mes-hall
keywords twisted bilayer grapheneorbital magnetizationremote bandsHartree-Fock approximationChern insulatorsmoiré systemsinteger fillings
0
0 comments X

The pith

Orbital magnetization in twisted bilayer graphene draws substantial contributions from remote bands, unlike topological invariants such as the Chern number.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a gauge-invariant method based on the projector formulation to compute orbital magnetization M_orb and self-rotation m_SR directly from the Hartree-Fock Hamiltonian for correlated phases in magic-angle twisted bilayer graphene. It demonstrates that both quantities receive large contributions from remote bands, making convergence with band number essential. This approach is then used to obtain values for time-reversal broken Chern insulators at fillings ±3 and other competing phases at integer fillings. A sympathetic reader would care because accurate magnetic response calculations are needed to connect theory with experiments on moiré materials.

Core claim

Using the projector formulation of orbital magnetization theory within the self-consistent Hartree-Fock approximation, the orbital magnetization M_orb and self-rotation contribution m_SR for correlated phases at integer fillings in magic-angle twisted bilayer graphene obtain substantial contributions from remote bands. This stands in contrast to the Chern number, which remains unaffected by remote bands, and thus requires careful convergence with respect to the number of included bands to yield reliable results for time-reversal symmetry broken Chern insulating states at ν=±3 and competing phases at other fillings.

What carries the argument

Projector formulation of the theory of orbital magnetization applied directly to the Hartree-Fock Hamiltonian to compute M_orb and m_SR in a gauge-invariant way.

If this is right

  • Converged values of orbital magnetization for Chern insulating states at ν=±3 can be obtained.
  • Orbital magnetization for competing correlated phases at other integer fillings can be evaluated reliably.
  • A systematic approach is established for computing orbital magnetization in correlated moiré systems.
  • Remote bands must be included to accurately determine the magnetic response in these systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar remote band effects may appear in calculations of other response functions like magnetic susceptibility in flat-band systems.
  • Experimental measurements of orbital magnetization in twisted bilayer graphene could be used to test the convergence behavior predicted here.
  • Truncating to only flat bands in models might systematically underestimate or misrepresent magnetic properties in moiré materials.

Load-bearing premise

The self-consistent Hartree-Fock approximation captures the essential physics of the correlated phases at integer fillings sufficiently well for the computed orbital magnetization to be meaningful.

What would settle it

A direct computation or experimental observation demonstrating that orbital magnetization converges rapidly with only a few remote bands included would falsify the claim of substantial remote band contributions.

Figures

Figures reproduced from arXiv: 2603.03702 by Jian Kang, Kun Jiang, Pinzhuo Li, Yi Zhang, Ziqiang Wang.

Figure 1

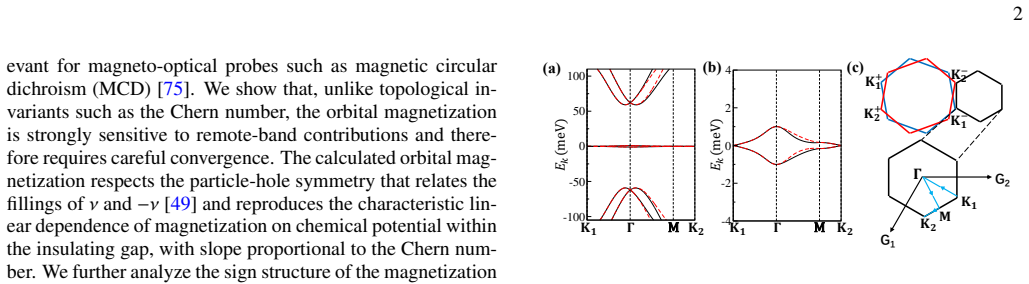

Figure 1. Figure 1: FIG. 1. (a) Low-energy band structure of non-interacting TBG cal [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

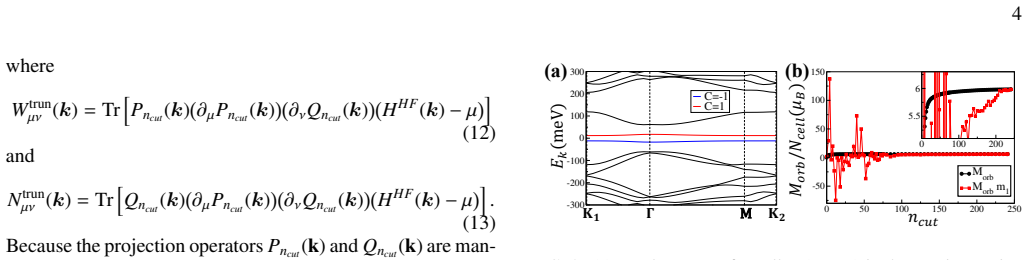

Figure 2. Figure 2: (a). Because the staggered potential preserves time￾reversal symmetry, the orbital magnetizations in the two val￾leys remain equal in magnitude and opposite in sign, such that the total orbital magnetization vanishes. We therefore restrict our analysis to the τ = − valley and evaluate Morb within this sector. The self-rotation contribution mSR is not evaluated in this case, as it is logarithmic divergent i… view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Calculated total orbital magnetization [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. (a,b) HF band dispersions of the correlated Chern insulat [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
read the original abstract

Motivated by recent theoretical and experimental works on orbital magnetization $M_{\mathrm{orb}}$ for the interacting system, we develop a gauge-invariant framework to compute $M_{\mathrm{orb}}$ for correlated phases of magic-angle twisted bilayer graphene within self-consistent Hartree-Fock approximation. Based on the projector formulation of the theory of orbital magnetization, we evaluate both $M_{\mathrm{orb}}$ and the self-rotation contribution $m_{\mathrm{SR}}$ directly from the Hartree-Fock Hamiltonian. We demonstrate that, in contrast to topological invariants such as the Chern number, both $M_{\mathrm{orb}}$ and $m_{\mathrm{SR}}$ obtain substantial contributions from remote bands and thus require careful convergence with respect to the number of included remote bands. Applying this approach to correlated phases at integer fillings, we obtain converged $M_{\mathrm{orb}}$ and $m_{\mathrm{SR}}$ for time reversal symmetry broken Chern insulating states at $\nu=\pm3$ and for competing correlated phases at other integer fillings. Our results establish a systematic and controlled approach for evaluating orbital magnetization in correlated moir\'e systems and clarify the crucial role of remote bands in determining their magnetic response.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops a gauge-invariant projector-based framework to compute orbital magnetization M_orb and the self-rotation contribution m_SR directly from the self-consistent Hartree-Fock Hamiltonian for correlated phases in magic-angle twisted bilayer graphene. It demonstrates that, unlike the Chern number, both M_orb and m_SR receive substantial contributions from remote bands and therefore require explicit convergence checks with respect to the number of included bands. The approach is applied to integer fillings, yielding converged values for time-reversal-symmetry-broken Chern insulators at ν=±3 and for competing phases at other fillings.

Significance. If the convergence with respect to remote bands is rigorously established, the work supplies a controlled, systematic method for evaluating orbital magnetization in interacting moiré systems. The direct use of the Hartree-Fock Hamiltonian via projectors avoids fitting parameters and provides a concrete route to connect microscopic calculations to measurable magnetic responses. This addresses a practical gap between topological invariants (which converge quickly) and orbital magnetization (which does not), and the results for ν=±3 states offer falsifiable predictions for experiments.

major comments (2)
  1. [Methods / Numerical implementation] The central convergence claim rests on the assumption that the self-consistent Hartree-Fock Hamiltonian is already converged with respect to the same band cutoff used for the magnetization sum. Because the HF potential is generated by summing over occupied states within the chosen cutoff, increasing the number of remote bands simultaneously modifies both the single-particle Hamiltonian and the projector in the orbital-magnetization formula. The manuscript should include an explicit check (e.g., a table or figure in the numerical-methods or results section) showing the variation of the HF energy, potential matrix elements, or M_orb itself as the cutoff is increased from, say, 4 to 20 bands per valley; without this, the reported “converged” values remain vulnerable to basis-size effects.
  2. [Results for integer fillings] For the competing correlated phases at fillings other than ν=±3, the manuscript reports M_orb and m_SR but does not state whether these phases remain stable when the remote-band cutoff is enlarged. A load-bearing test would be to recompute the self-consistent HF solution at the largest cutoff used for magnetization and verify that the same phase (e.g., valley-polarized or intervalley-coherent) is recovered; otherwise the comparison between phases may mix cutoff artifacts with physical differences.
minor comments (2)
  1. [Abstract] The abstract states that “converged M_orb and m_SR” are obtained but supplies no numerical values, error bars, or cutoff numbers; adding a short table or sentence with the final converged numbers and the minimal cutoff required would improve readability.
  2. [Theory section] Notation for the self-rotation term m_SR is introduced without an explicit equation linking it to the orbital-magnetization formula; a one-line definition in the theory section would clarify the decomposition.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading, positive assessment of the work's significance, and constructive suggestions on numerical convergence. We address both major comments below by adding explicit checks; the revised manuscript incorporates these data to strengthen the robustness claims.

read point-by-point responses

  1. Referee: [Methods / Numerical implementation] The central convergence claim rests on the assumption that the self-consistent Hartree-Fock Hamiltonian is already converged with respect to the same band cutoff used for the magnetization sum. Because the HF potential is generated by summing over occupied states within the chosen cutoff, increasing the number of remote bands simultaneously modifies both the single-particle Hamiltonian and the projector in the orbital-magnetization formula. The manuscript should include an explicit check (e.g., a table or figure in the numerical-methods or results section) showing the variation of the HF energy, potential matrix elements, or M_orb itself as the cutoff is increased from, say, 4 to 20 bands per valley; without this, the reported “converged” values remain vulnerable to basis-size effects.

    Authors: We agree that an explicit demonstration of simultaneous convergence of the HF Hamiltonian and the magnetization is necessary. In the revised manuscript we have added a new subsection (Sec. II.C) containing a table that reports the HF energy per moiré cell, representative off-diagonal potential matrix elements, and the computed M_orb for band cutoffs ranging from 4 to 20 bands per valley. The table shows that both the HF energy and M_orb stabilize to within <1% for cutoffs ≥12 bands; the values quoted in the main text correspond to the 20-band cutoff. This additional data directly addresses the concern that the projector and the self-consistent potential must be treated at the same cutoff. revision: yes

  2. Referee: [Results for integer fillings] For the competing correlated phases at fillings other than ν=±3, the manuscript reports M_orb and m_SR but does not state whether these phases remain stable when the remote-band cutoff is enlarged. A load-bearing test would be to recompute the self-consistent HF solution at the largest cutoff used for magnetization and verify that the same phase (e.g., valley-polarized or intervalley-coherent) is recovered; otherwise the comparison between phases may mix cutoff artifacts with physical differences.

    Authors: We thank the referee for this important clarification. We have performed additional self-consistent HF calculations at the 20-band cutoff for all integer fillings discussed. For the competing phases at ν=0, ±1, ±2 we recover the same valley-polarized and intervalley-coherent ground states that were obtained at the original cutoff; the order-parameter magnitudes change by at most 3% and the relative energies between competing states remain unchanged within the reported precision. A brief paragraph summarizing these stability checks has been added to Sec. III.B, together with a statement that the phase assignments used for the M_orb comparison are robust against the remote-band cutoff. revision: yes

Circularity Check

0 steps flagged

No significant circularity; orbital magnetization computed directly from HF Hamiltonian with explicit band convergence

full rationale

The derivation evaluates M_orb and m_SR via the projector formulation applied to the self-consistent Hartree-Fock Hamiltonian, then demonstrates remote-band contributions by explicit summation over increasing numbers of bands. No equation reduces a claimed prediction to a fitted parameter or self-referential definition, and no load-bearing step relies on a self-citation chain that itself assumes the target result. The convergence check is performed by direct computation rather than by construction, making the central claim about remote-band importance independent of the inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the applicability of the projector formulation of orbital magnetization to the Hartree-Fock Hamiltonian and on the assumption that Hartree-Fock captures the relevant correlated phases.

axioms (1)
  • domain assumption The projector formulation of orbital magnetization theory can be applied directly to the self-consistent Hartree-Fock Hamiltonian.
    Invoked to evaluate both M_orb and m_SR from the HF Hamiltonian.
