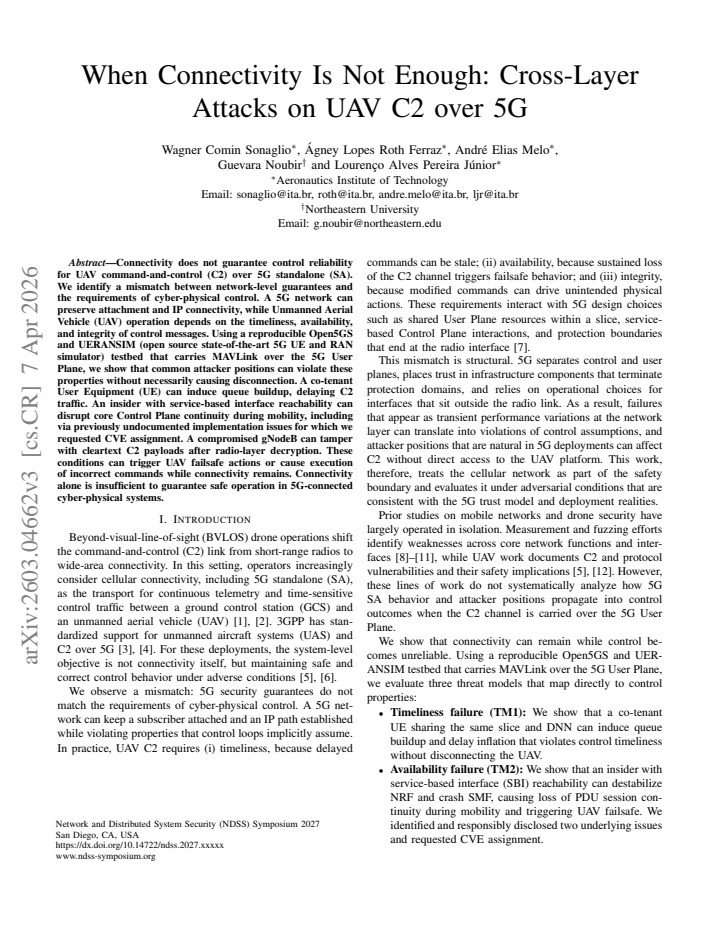

When Connectivity Is Not Enough: Cross-Layer Attacks on UAV C2 over 5G
Pith reviewed 2026-05-15 16:05 UTC · model grok-4.3
The pith
Connectivity indicators alone do not guarantee safe closed-loop control for UAVs over 5G.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The paper claims that attacks can degrade UAS C2 when timeliness degrades under shared User Plane contention, mobility continuity fails during Control Plane instability, or command integrity is violated at a trusted gNodeB. This undermines the use of connectivity indicators as the central security measure for UAV operations.
What carries the argument

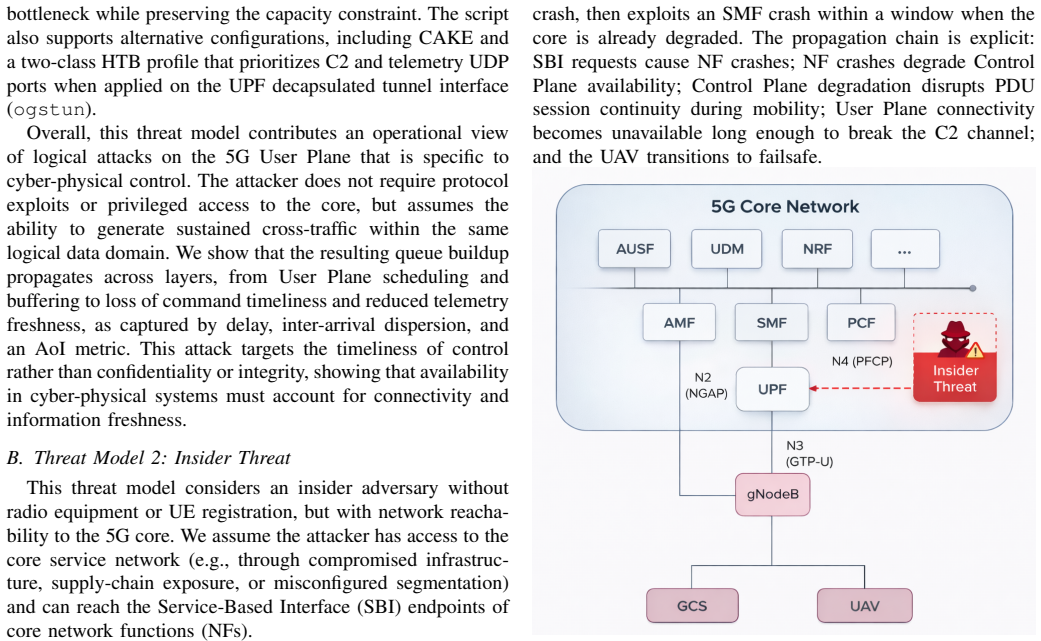

Three threat models targeting user plane contention, control plane instability, and gNodeB command rewriting that force unsafe closed-loop states in MAVLink C2 without clean disconnect.
If this is right

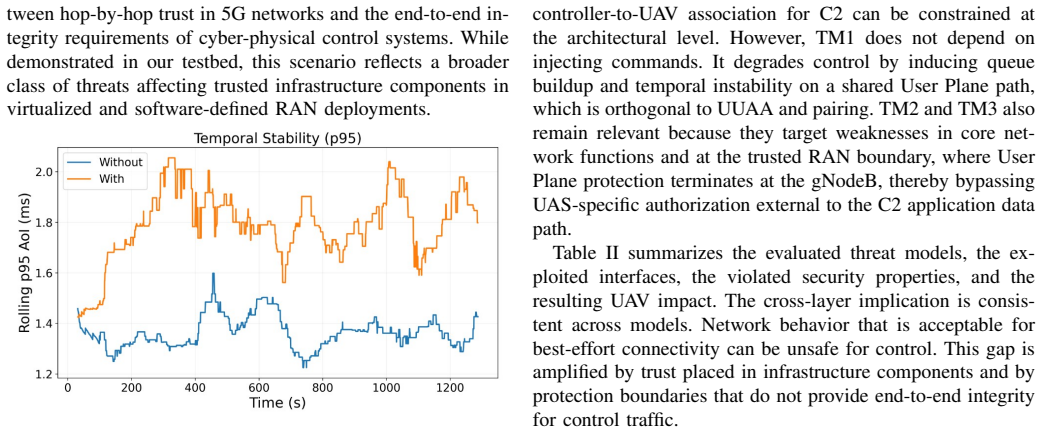

- Stale telemetry and heavy-tailed delays occur under co-tenant user plane contention.

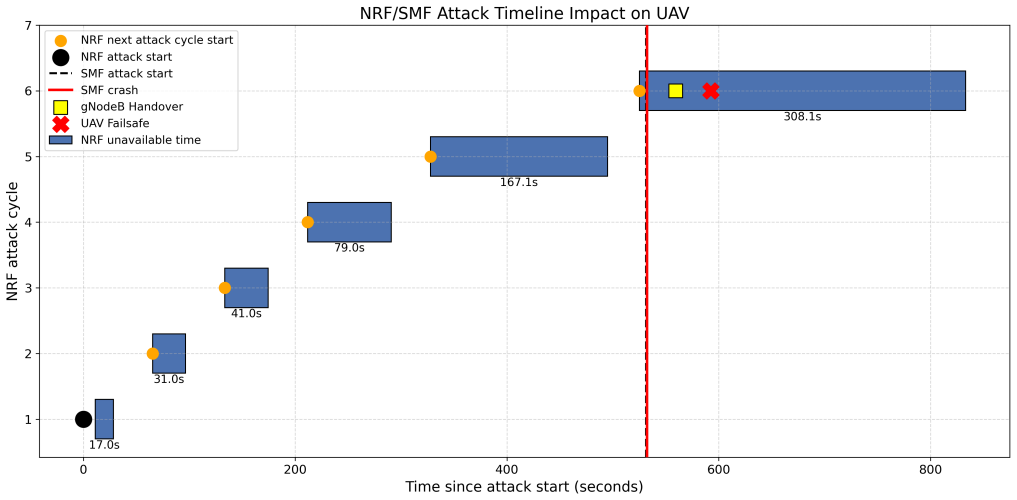

- Failsafe activation follows handover under control plane instability.
- Navigation hijacking results from command rewriting at a compromised gNodeB.
- Mitigations are needed to address timeliness, availability, and integrity failures.
- Five robustness issues were disclosed, leading to CVEs.
Where Pith is reading between the lines
- Real-world 5G networks for critical UAV operations may need additional safety layers beyond standard connectivity checks.
- Similar vulnerabilities could affect other latency-sensitive applications using 5G for control.
- Deployment assumptions in the testbed suggest the need for validation in live commercial networks.
- Revising 3GPP UAS specifications to include cross-layer security checks could prevent such attacks.
Load-bearing premise
The Open5GS and UERANSIM testbed along with the commercial Nokia core accurately represent real-world 5G deployments and realistic attacker capabilities.
What would settle it
An observation in a production 5G network where all unsafe closed-loop states trigger a clean disconnect would falsify the central claim.
Figures
read the original abstract

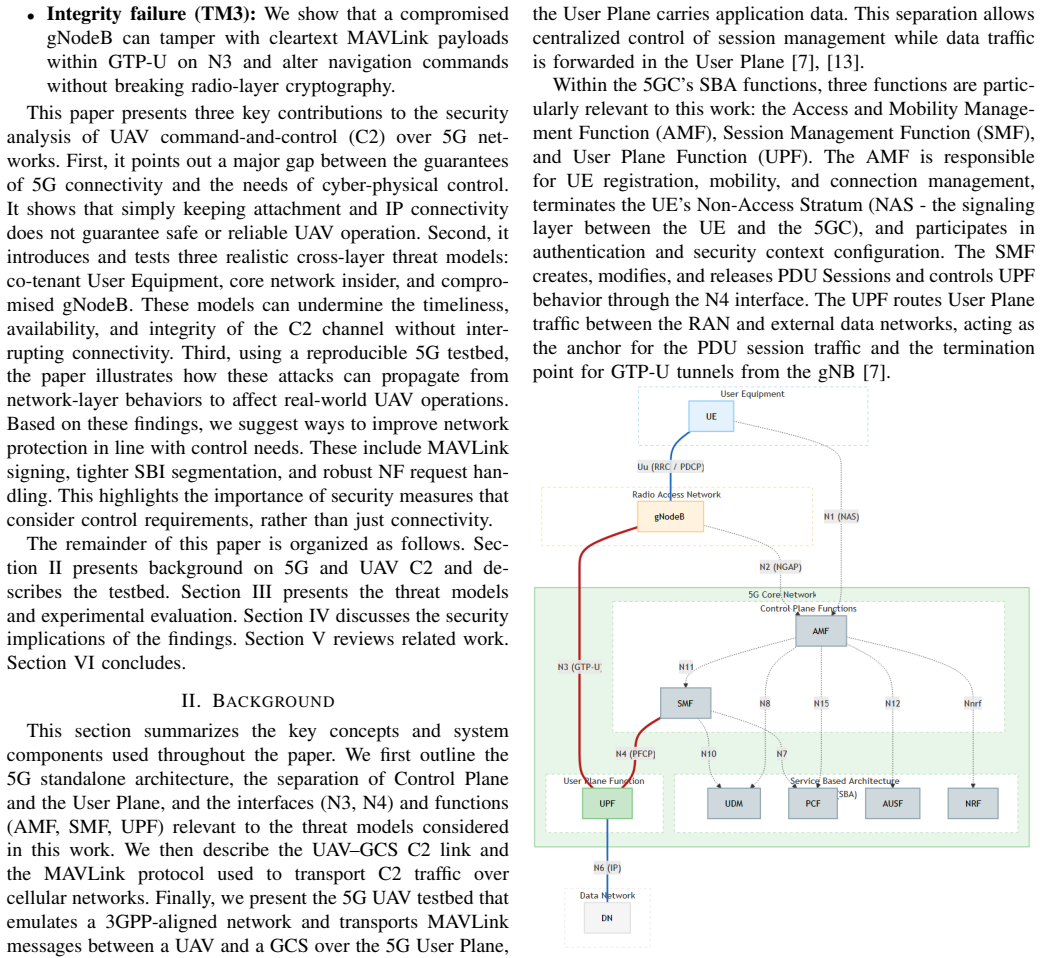

Beyond Visual Line of Sight (BVLOS) unmanned aerial vehicle (UAV) operations increasingly use 5G standalone (SA) networks for command and control (C2) between the UAV and the ground control station (GCS). The 3rd Generation Partnership Project (3GPP) has specified mechanisms for authentication and authorization of unmanned aircraft systems (UAS) in this architectural setting. As a result, operators may treat registration state, Protocol Data Unit (PDU) session status, and IP reachability as evidence that the C2 path is available. In practice, however, these connectivity indicators alone do not guarantee that closed-loop control remains operationally safe. Attacks can degrade UAS C2 when timeliness degrades under shared User Plane contention, mobility continuity fails during Control Plane instability, or command integrity is violated at a trusted next-generation Node B (gNodeB). Such failures undermine connectivity as the central security indicator for UAV operations. In this paper, we demonstrate these issues using three distinct threat models on a reproducible Open5GS and UERANSIM testbed that carries Micro Air Vehicle Link (MAVLink) over the 5G User Plane, and we use a commercial Nokia core to ground deployment assumptions. We address timeliness, availability, and integrity through experiments in which attack success is defined as forcing an unsafe closed-loop state without a clean disconnect. We observe stale telemetry and heavy-tailed delay under co-tenant User Plane contention, failsafe after handover under Control Plane instability, and navigation hijacking after command rewriting at a compromised gNodeB. We further discuss why each threat model arises and evaluate mitigations for these cross-layer failures. Across the study, we disclosed five robustness issues: three CVEs have already been assigned, and two additional CVE requests are pending.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper claims that 5G SA connectivity indicators (registration state, PDU session status, IP reachability) are insufficient to guarantee safe closed-loop C2 for BVLOS UAVs. Using three threat models on a reproducible Open5GS/UERANSIM testbed carrying MAVLink traffic (plus a commercial Nokia core), the authors demonstrate that shared user-plane contention produces stale telemetry and heavy-tailed delays, control-plane instability during handover triggers failsafe, and a compromised gNodeB enables command rewriting that hijacks navigation—all without triggering a clean disconnect. They report five robustness issues, three already assigned CVEs.
Significance. If the empirical results hold, the work is significant for highlighting that 3GPP UAS authentication/authorization mechanisms do not address cross-layer timing, mobility, and integrity failures in safety-critical C2 loops. The reproducible testbed, concrete MAVLink observations, and CVE disclosures provide a concrete basis for operators and standards bodies to move beyond connectivity-as-safety metrics.
major comments (2)
- [Testbed and experimental setup] Testbed fidelity section: the central claim that observed effects force unsafe closed-loop states in realistic deployments rests on Open5GS/UERANSIM plus Nokia core accurately modeling RRC state machines, radio resource allocation, and handover latency under UAV velocities and MAVLink traffic patterns. No explicit validation (e.g., comparison of simulated contention traces or handover timing against commercial gNodeB logs) is provided, leaving the mapping from testbed outcomes to operational risk unanchored.
- [Threat models and experiments] Attack success definition (experiments): attack success is defined as forcing an unsafe closed-loop state without clean disconnect, yet the manuscript does not specify quantitative thresholds (e.g., maximum allowable telemetry age before failsafe, or exact delay tail that triggers unsafe behavior). This makes it difficult to assess whether the reported stale telemetry and heavy-tailed delays actually cross operational safety boundaries.
minor comments (2)
- [Figures] Figure captions for the delay and handover plots should include the exact number of runs, confidence intervals, and the precise MAVLink message rates used.
- [Mitigations] The discussion of mitigations would benefit from a table mapping each threat model to the proposed countermeasure and its deployment feasibility in 3GPP Release 17/18 UAS frameworks.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed feedback. We address each major comment below with clarifications and planned revisions to improve the manuscript.
read point-by-point responses
-
Referee: [Testbed and experimental setup] Testbed fidelity section: the central claim that observed effects force unsafe closed-loop states in realistic deployments rests on Open5GS/UERANSIM plus Nokia core accurately modeling RRC state machines, radio resource allocation, and handover latency under UAV velocities and MAVLink traffic patterns. No explicit validation (e.g., comparison of simulated contention traces or handover timing against commercial gNodeB logs) is provided, leaving the mapping from testbed outcomes to operational risk unanchored.
Authors: We acknowledge the referee's point on testbed fidelity. The manuscript already uses a commercial Nokia core alongside the Open5GS/UERANSIM setup specifically to ground deployment assumptions for core network and handover behaviors. However, we agree that direct quantitative comparisons (such as contention traces or handover timings) against proprietary commercial gNodeB logs are absent. In the revision, we will add a new subsection to the testbed description that explicitly discusses fidelity limitations, cites publicly available 5G handover latency data from standards and prior studies, states the UAV velocity and MAVLink traffic assumptions, and clarifies how the Nokia core results support the mapping to operational risk. This addresses the anchoring concern without claiming full equivalence to all commercial deployments. revision: partial
-
Referee: [Threat models and experiments] Attack success definition (experiments): attack success is defined as forcing an unsafe closed-loop state without clean disconnect, yet the manuscript does not specify quantitative thresholds (e.g., maximum allowable telemetry age before failsafe, or exact delay tail that triggers unsafe behavior). This makes it difficult to assess whether the reported stale telemetry and heavy-tailed delays actually cross operational safety boundaries.
Authors: We agree that explicit quantitative thresholds are needed for clarity. In the revised manuscript, we will add precise definitions in the threat models and experiments sections: for example, telemetry age exceeding 2 seconds (based on MAVLink heartbeat intervals and typical BVLOS failsafe triggers) constitutes an unsafe state, and delay tails beyond 500 ms are flagged as crossing safety boundaries per common UAV C2 requirements. These thresholds will be justified with references to MAVLink specifications and operational guidelines, and the reported results will be re-presented against them to demonstrate that the observed stale telemetry and heavy-tailed delays do cross these boundaries. revision: yes
Circularity Check
Empirical testbed demonstration with no derivations or fitted predictions
full rationale
The paper is an empirical security study that demonstrates cross-layer attacks via experiments on Open5GS/UERANSIM and a Nokia core testbed carrying MAVLink traffic. No equations, parameters, or derivation chains appear in the manuscript. Claims about timeliness degradation, handover failures, and command integrity are supported directly by observed outcomes (stale telemetry, failsafe triggers, navigation hijacking) rather than any reduction of a 'prediction' to fitted inputs or self-citation. No self-definitional steps, uniqueness theorems, or ansatz smuggling are present. The work is self-contained as a reproducible experimental report.
Axiom & Free-Parameter Ledger
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Connectivity indicators alone do not guarantee that closed-loop control remains operationally safe. Attacks can degrade UAS C2 when timeliness degrades under shared User Plane contention...
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
We observe stale telemetry and heavy-tailed delay under co-tenant User Plane contention, failsafe after handover under Control Plane instability...
