arxiv: 2603.05859 · v3 · submitted 2026-03-06 · ⚛️ physics.atom-ph · quant-ph

Optical pumping of alkali-metal vapor in the quasi-high-pressure regime

Kezheng Yan , Jinbo Hu , Nan Zhao This is my paper

Pith reviewed 2026-05-15 15:52 UTC · model grok-4.3

classification ⚛️ physics.atom-ph quant-ph
keywords optical pumpingalkali-metal vaporquasi-high-pressure regimebuffer gasatomic magnetometrycollisional broadeninghyperfine splittingspin polarization
0
0 comments X

The pith

A unified model for optical pumping describes alkali vapor behavior when collisional broadening equals hyperfine splitting.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds a single theoretical description that covers optical pumping of alkali-metal atoms in buffer gas when the collisional broadening becomes comparable in size to the ground-state hyperfine splitting. This quasi-high-pressure regime produces light absorption, steady-state spin polarization, and magnetic-resonance linewidth values that deviate from the formulas derived for the strict high-pressure limit. The differences create pressure ranges that can be used to advantage in atomic magnetometers and similar devices. The work supplies explicit expressions that let experimenters choose realistic buffer-gas pressures instead of assuming the high-pressure approximation always holds.

Core claim

We develop a unified theoretical framework of optical pumping in the quasi-high-pressure regime, where collisional broadening is comparable to the ground-state hyperfine splitting. Light absorption, spin polarization, and magnetic-resonance linewidth in this regime differ significantly from those predicted by the high-pressure limit and offer favorable operating conditions for atomic magnetometry.

What carries the argument

The unified theoretical framework that treats collisional broadening as comparable to hyperfine splitting during the optical pumping cycle.

If this is right

  • Light absorption rates take different values than high-pressure predictions.
  • Steady-state spin polarization reaches levels distinct from the high-pressure case.
  • Magnetic-resonance linewidths change with pressure in a manner not captured by the high-pressure limit.
  • Realistic buffer-gas pressures can yield better performance in magnetometry than the strict high-pressure regime.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Sensor designers could scan intermediate pressures to balance fluorescence quenching against wall relaxation using the new expressions.
  • The same interpolation approach might apply to other hyperfine transitions or different buffer gases in vapor-cell experiments.
  • Direct comparison of measured polarization efficiency against the two limiting formulas at the crossover pressure would test the framework.

Load-bearing premise

A single set of equations suffices to describe the physics accurately when collisional broadening is comparable to hyperfine splitting.

What would settle it

Measure the steady-state spin polarization or the magnetic resonance linewidth at a buffer-gas pressure where collisional broadening equals the hyperfine splitting and check whether the results match the new framework or the high-pressure formulas.

Figures

Figures reproduced from arXiv: 2603.05859 by Jinbo Hu, Kezheng Yan, Nan Zhao.

Figure 1
Figure 1. Figure 1: FIG. 1. Schematic illustration of optical pumping on the alkali [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

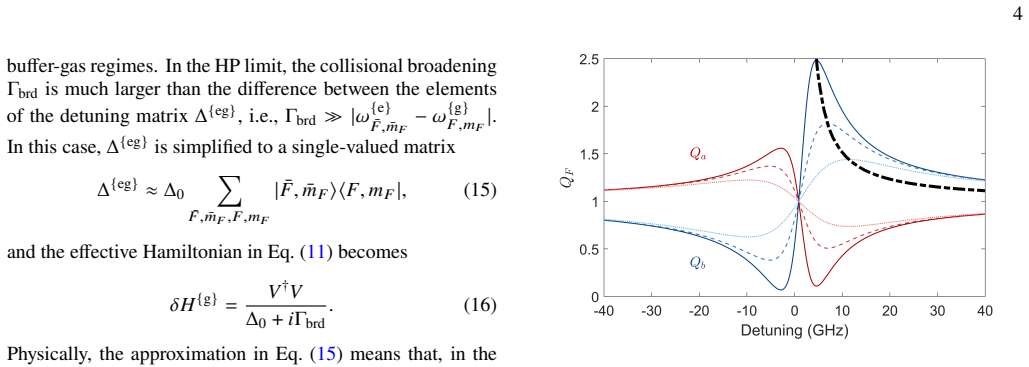

Figure 2. Figure 2: FIG. 2. Weighting factor [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Real part of optical pumping superoperator within the [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

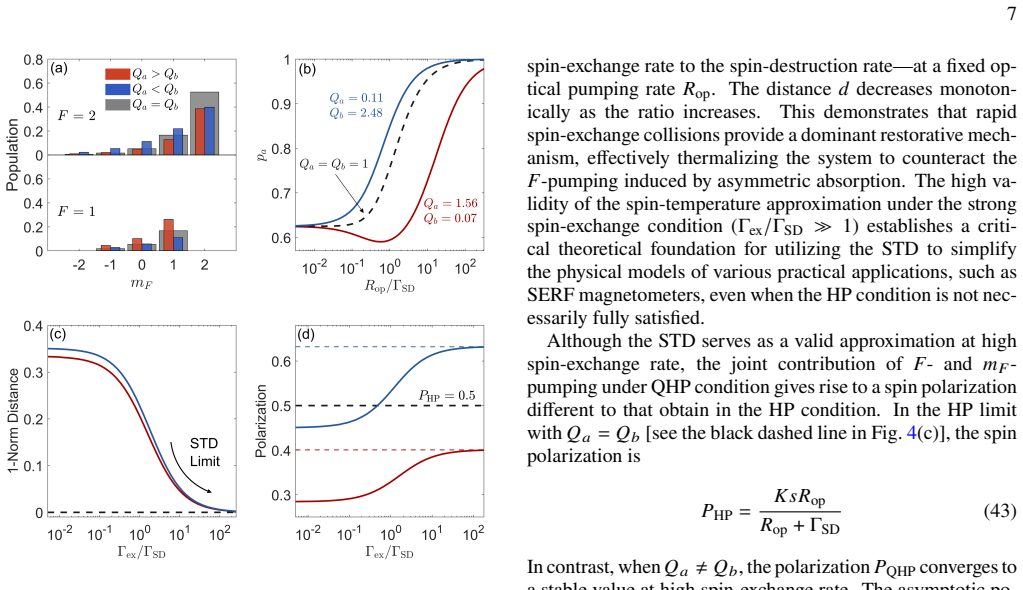

Figure 4. Figure 4: FIG. 4. (a) Representative steady-state populations under slow spin [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Absorption cross section [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

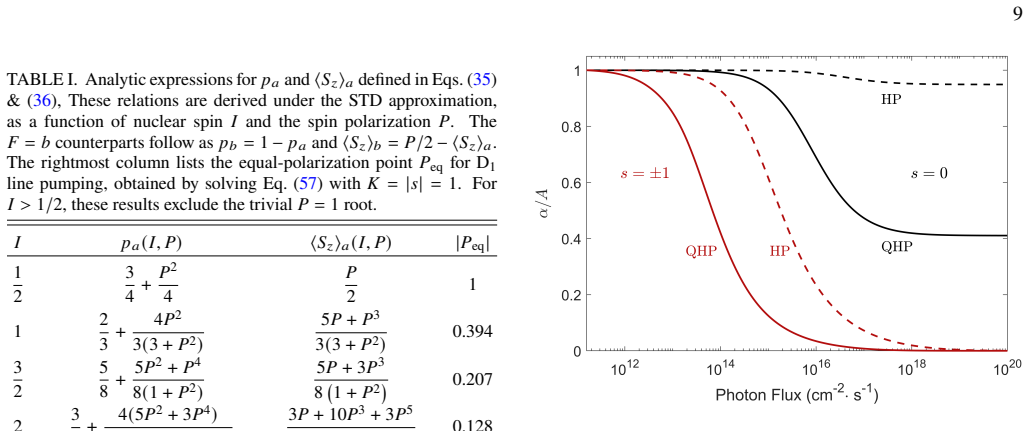

Figure 6. Figure 6: compares the variation of 𝛼 for different 𝑠 in both QHP and HP cases. For linearly polarized light (black curves), 𝛼 decays from 𝐴 and plateaus at 𝐴eff in the strong-pumping limit, consistent with Eq. (46). Notably, the QHP case ex￾hibits a pronounced reduction in 𝛼 (solid line), whereas the HP case remains nearly unchanged (dashed line). This behav￾ior is dictated by the ratio 𝜉 defined in Eq. (47)]: the … view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. (a) Two–dimensional color map of spin polarization [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. (a) Light-induced contribution to the magnetic resonance linewidth, [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗

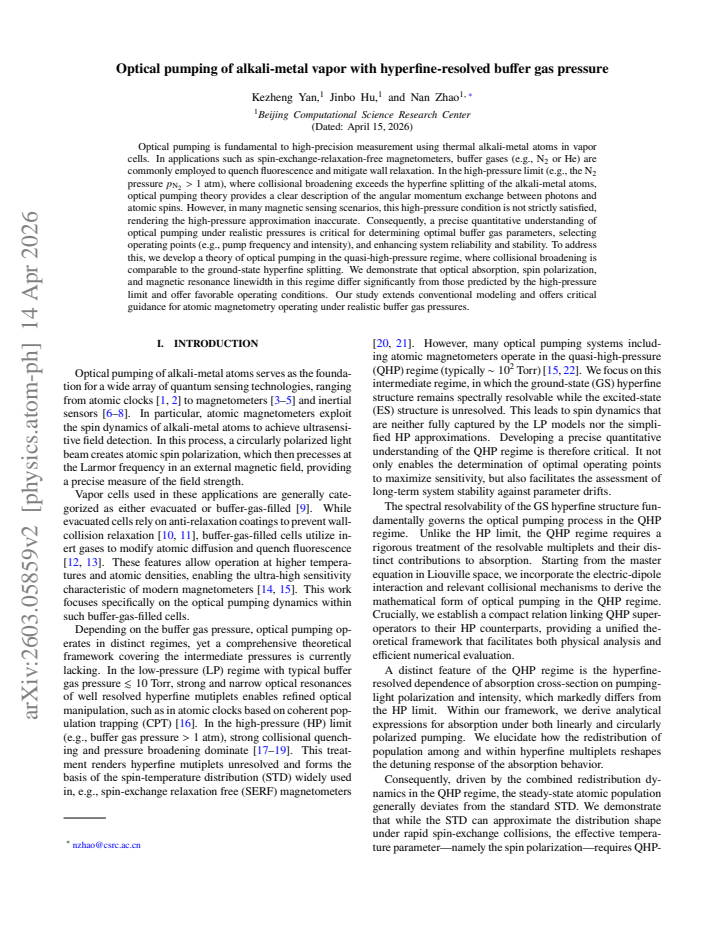

read the original abstract

Optical pumping is fundamental to high-precision measurement using thermal alkali-metal atoms in vapor cells. In applications such as atomic magnetometry, buffer gases (e.g., $\mathrm{N}_2$ or $\mathrm{He}$) at specific pressures are introduced to quench fluorescence and mitigate wall relaxation. In the high-pressure limit (e.g., the $\mathrm{N}_2$ pressure $p_{\mathrm{N}_2}> 1$~atm), where collisional broadening exceeds hyperfine splittings of the atoms, optical pumping theory provides a clear description of the angular momentum exchange between photons and atomic spins. However, in many magnetic sensing scenarios, the high-pressure approximation becomes inadequate as its pressure conditions are not strictly satisfied. Consequently, an explicit description of optical pumping under realistic pressures is critical for selecting operating points and enhancing system performance. To address this, we develop a unified theoretical framework of optical pumping in the quasi-high-pressure regime, where collisional broadening is comparable to the ground-state hyperfine splitting. We demonstrate that light absorption, spin polarization, and magnetic-resonance linewidth in this regime differ significantly from those predicted by the high-pressure limit and offer favorable operating conditions. Our study extends conventional modeling and offers critical guidance for atomic magnetometry operating under realistic buffer gas pressures.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper develops a unified theoretical framework for optical pumping of alkali-metal atoms in the quasi-high-pressure regime, where collisional broadening is comparable to the ground-state hyperfine splitting. It uses explicit rate-equation derivations to obtain expressions for light absorption, steady-state spin polarization, and magnetic-resonance linewidth that interpolate between the high-pressure limit and this intermediate regime, demonstrating significant differences from high-pressure predictions and identifying favorable operating conditions for applications such as atomic magnetometry.

Significance. If the derivations and parameter dependence hold, the work fills a modeling gap for realistic buffer-gas pressures in high-precision vapor-cell sensors, providing analytic limits and numerical results that can guide pressure selection to improve polarization and linewidth performance beyond conventional high-pressure approximations.

minor comments (3)
  1. [Abstract] The abstract states that differences are demonstrated but does not quantify the pressure range or give a specific numerical example of the deviation in absorption or linewidth; adding one such example would strengthen the claim.
  2. [Rate-equation derivations] In the rate-equation section, the definition of the effective detuning or broadening parameter should explicitly state how it reduces to the high-pressure limit to make the interpolation transparent.
  3. [Figures] Figure captions for the polarization and linewidth plots should include the exact values of the hyperfine splitting and collisional width used, to allow direct comparison with the analytic limits.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary of our work and for recommending minor revision. The referee's description accurately captures the unified theoretical framework we developed for optical pumping in the quasi-high-pressure regime and its relevance to atomic magnetometry. No specific major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The manuscript constructs its unified framework through explicit rate-equation derivations that interpolate between the high-pressure limit and the quasi-high-pressure regime. Absorption, polarization, and linewidth expressions are obtained directly from the rate equations and their analytic limits without any reduction to fitted parameters defined by the target observables or to self-citation chains that carry the central claims. The claimed differences and favorable operating points emerge from the explicit parameter dependence shown in the derivations and figures, rendering the chain self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities; the framework appears to rest on standard atomic-physics assumptions whose details are not supplied.

pith-pipeline@v0.9.0 · 5520 in / 1111 out tokens · 58308 ms · 2026-05-15T15:52:20.407333+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

33 extracted references · 33 canonical work pages

  1. [1]

    (12) play a central role in describing optical pumping in different 4 buffer-gas regimes

    Depopulation The energy denominator matricesΔ {eg} +𝑖Γ brd in Eqs. (12) play a central role in describing optical pumping in different 4 buffer-gas regimes. In the HP limit, the collisional broadening Γbrd is much larger than the difference between the elements of the detuning matrixΔ {eg} , i.e.,Γ brd ≫ |𝜔 {e} ¯𝐹,¯𝑚𝐹 −𝜔 {g} 𝐹,𝑚 𝐹 |. In this case,Δ {eg} i...

    work page

  2. [2]

    (13) represents the genera- tion and relaxation of the atomic ES spin during the optical pumping process

    Repopulation The repopulation term in Eq. (13) represents the genera- tion and relaxation of the atomic ES spin during the optical pumping process. In the similar way of dealing withA dp, the optical excitation superoperatorA {eg} p is simplified as (see Appendix A for detailed proof) A {eg} p PZ =2 ∑︁ 𝐹 (ˆe∗ ·d) ⊗ (d † · ˆe)𝑄 𝐹 P𝐹 .(27) This result physi...

    work page

  3. [3]

    𝜎=− 2 Φ Im 𝛿𝐻 {g} 𝜌0 ,(32) where(𝐴|𝐵)=Tr[𝐴𝐵]denotes the inner product in Liouville space

    Light absorption of atoms Optical absorption of atoms is quantified by the absorption cross section𝜎, which is expressed in terms of the effective 6 Hamiltonian𝛿𝐻 {g} and the GS population|𝜌 0)[17]. 𝜎=− 2 Φ Im 𝛿𝐻 {g} 𝜌0 ,(32) where(𝐴|𝐵)=Tr[𝐴𝐵]denotes the inner product in Liouville space. Following Eqs. (20), (21) and (26), the absorption cross-section in ...

    work page

  4. [4]

    Population and polarization In the presence of longitudinal pumping light, spin- destruction and spin-exchange relaxation in Eq. (6), the popu- lation dynamics are governed by 𝑑 |𝜌0) 𝑑𝑡 =−G pop |𝜌0) .(37) with the superoperatorG pop Gpop =ΓSD [ASD]0,0 +𝑅 op Aop 0,0 +Γ ex [ASD]0,0 − ⟨𝑆 𝑧⟩ h A (𝑧) SE i 0,0 ,(38) where⟨𝑆 𝑧⟩=(𝑆 𝑧 |𝜌 0)is the expectation value...

    work page

  5. [5]

    To streamline the theoreti- cal analysis, we conceptualize the framework established in our previous work [19] under the notion ofintrinsicmag- netic resonance

    Intrinsic magnetic resonance The population imbalance across the𝑚 𝐹 sublevels enables Zeeman magnetic resonance under a radio-frequency (RF) driving field oscillating at𝜔 rf. To streamline the theoreti- cal analysis, we conceptualize the framework established in our previous work [19] under the notion ofintrinsicmag- netic resonance. This intrinsic regime...

    work page

  6. [6]

    Y.-Y. Jau, A. B. Post, N. N. Kuzma, A. M. Braun, M. V. Romalis, and W. Happer, Phys. Rev. Lett.92, 110801 (2004)

    work page 2004

  7. [7]

    Vanier and C

    J. Vanier and C. Audoin,The Quantum Physics of Atomic Fre- 14 quency Standards(A. Hilger, Philadelphia, 1989)

    work page 1989

  8. [8]

    Budker and M

    D. Budker and M. Romalis, Nature Physics3, 227 (2007)

    work page 2007

  9. [9]

    Budker and D

    D. Budker and D. F. J. Kimball,Optical Magnetometry(Cam- bridge University Press, Cambridge, UK, 2013)

    work page 2013

  10. [10]

    Fang and J

    J. Fang and J. Qin, Sensors12, 6331 (2012)

    work page 2012

  11. [11]

    M. J. Wright, L. Anastassiou, C. Mishra, J. M. Davies, A. M. Phillips, S. Maskell, and J. F. Ralph, Front. Phys.10, 994459 (2022)

    work page 2022

  12. [12]

    T. G. Walker and M. S. Larsen, Adv. At. Mol. Opt. Phys.65, 373 (2016)

    work page 2016

  13. [13]

    G. Gao, J. Hu, F. Tang, W. Liu, X. Zhang, B. Wang, D. Deng, M. Zhu, and N. Zhao, Phys. Rev. Appl.21, 014042 (2024)

    work page 2024

  14. [14]

    Happer, Rev

    W. Happer, Rev. Mod. Phys.44, 169 (1972)

    work page 1972

  15. [15]

    S. J. Seltzer, Developments in alkali-metal atomic magnetome- try, Ph.d. thesis, Princeton University (2008)

    work page 2008

  16. [16]

    S. J. Seltzer and M. V. Romalis, Journal of Applied Physics106, 114905 (2009)

    work page 2009

  17. [17]

    M. E. Wagshul and T. E. Chupp, Phys. Rev. A49, 3854 (1994)

    work page 1994

  18. [18]

    Lancor and T

    B. Lancor and T. G. Walker, Phys. Rev. A82, 043417 (2010)

    work page 2010

  19. [19]

    J. Lu, S. Zhang, Y. Zhou, Y. Yan, F. Lu, K. Wang, Y. Zhai, and M. Ye, Sensors and Actuators A: Physical347, 113928 (2022)

    work page 2022

  20. [20]

    Y. Jia, Z. Liu, Z. Chai, X. Liang, and W. Wu, IEEE Trans. Instrum. Meas.70, 1 (2021)

    work page 2021

  21. [21]

    Vanier, Appl

    J. Vanier, Appl. Phys. B81, 421 (2005)

    work page 2005

  22. [22]

    Happer, Y

    W. Happer, Y. Y. Jau, and T. Walker,Optically Pumped Atoms (Wiley, New York, 2010)

    work page 2010

  23. [23]

    T. G. Walker and W. Happer, Rev. Mod. Phys.69(1997)

    work page 1997

  24. [24]

    Tang and N

    F. Tang and N. Zhao, Phys. Rev. A111, 013103 (2025)

    work page 2025

  25. [25]

    Happer and A

    W. Happer and A. C. Tam, Phys. Rev. A16, 1877 (1977)

    work page 1977

  26. [26]

    I. M. Savukov and M. V. Romalis, Phys. Rev. A71, 023405 (2005)

    work page 2005

  27. [27]

    Chang, Y.-H

    Y. Chang, Y.-H. Guo, and J. Qin, Phys. Rev. A99, 063411 (2019)

    work page 2019

  28. [28]

    Ishikawa and T

    K. Ishikawa and T. Yabuzaki, Phys. Rev. A62, 065401 (2000)

    work page 2000

  29. [29]

    Appelt, A

    S. Appelt, A. B.-A. Baranga, C. J. Erickson, M. V. Romalis, A. R. Young, and W. Happer, Phys. Rev. A58, 1412 (1998)

    work page 1998

  30. [30]

    F. P. Kelly,Reversibility and Stochastic Networks(Cambridge University Press, Cambridge, UK, 2011)

    work page 2011

  31. [31]

    Happer and B

    W. Happer and B. S. Mathur, Phys. Rev. Lett.18, 577 (1967)

    work page 1967

  32. [32]

    Appelt, A

    S. Appelt, A. Ben-Amar Baranga, A. R. Young, and W. Happer, Phys. Rev. A59, 2078 (1999)

    work page 2078

  33. [33]

    E. P. Corsini, T. Karaulanov, M. Balabas, and D. Budker, Phys. Rev. A87, 022901 (2013)

    work page 2013
