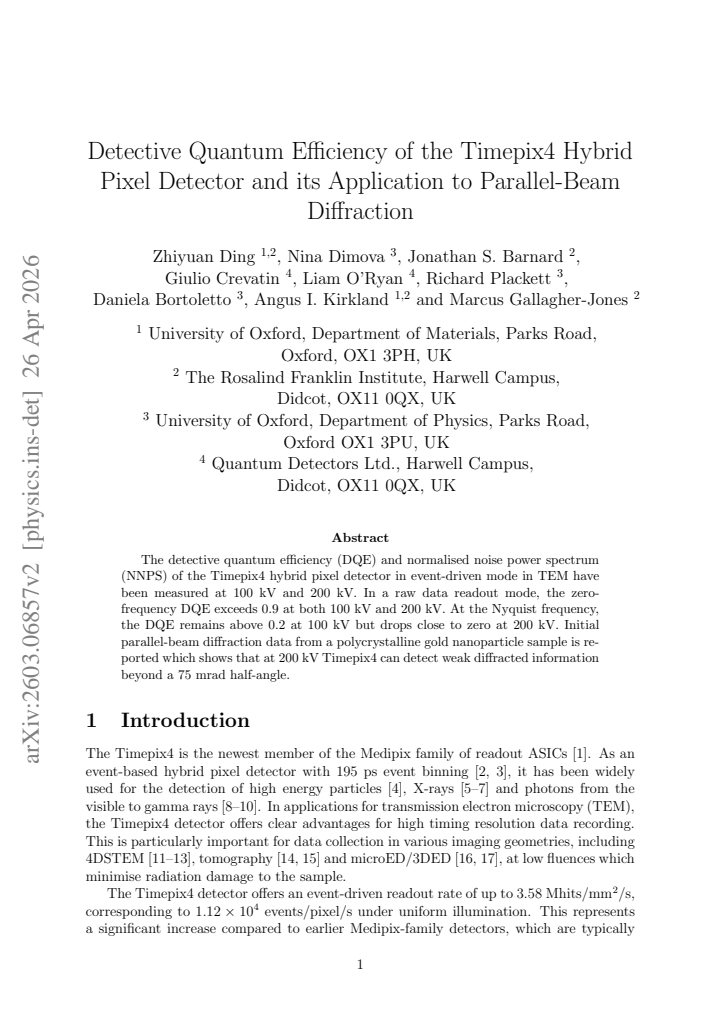

Detective Quantum Efficiency of the Timepix4 Hybrid Pixel Detector and its Application to Parallel-Beam Diffraction

Zhiyuan Ding , Nina Dimova , Jonathan S. Barnard , Giulio Crevatin , Liam O'Ryan , Richard Plackett , Daniela Bortoletto , Angus I. Kirkland
show 1 more author
Marcus Gallagher-Jones
This is my paper

Pith reviewed 2026-05-15 14:32 UTC · model grok-4.3

classification ⚛️ physics.ins-det cond-mat.mtrl-sci
keywords Detective quantum efficiencyTimepix4Hybrid pixel detectorTransmission electron microscopyParallel-beam diffractionNoise power spectrumDQE measurement
0
0 comments X

The pith

Timepix4 hybrid pixel detector reaches zero-frequency DQE above 0.9 at 100 kV and 200 kV in event-driven TEM mode.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper measures the detective quantum efficiency and normalised noise power spectrum of the Timepix4 detector operating in event-driven readout for transmission electron microscopy. It reports that the zero-frequency DQE exceeds 0.9 at both 100 kV and 200 kV, while performance at the Nyquist frequency is voltage-dependent, staying above 0.2 at 100 kV but falling near zero at 200 kV. Parallel-beam diffraction data from a polycrystalline gold nanoparticle sample demonstrates that the detector can record weak diffracted beams beyond a 75 mrad half-angle at 200 kV.

Core claim

In raw data readout mode the zero-frequency DQE of the Timepix4 exceeds 0.9 at both 100 kV and 200 kV; at the Nyquist frequency the DQE stays above 0.2 at 100 kV but approaches zero at 200 kV, and the detector records weak diffracted information from a polycrystalline gold nanoparticle beyond a 75 mrad half-angle at 200 kV.

What carries the argument

Detective quantum efficiency (DQE) and normalised noise power spectrum (NNPS) evaluated from event-driven raw data in a transmission electron microscope at two accelerating voltages.

If this is right

  • Low-dose imaging and diffraction experiments become feasible at 100 kV where high-frequency DQE remains usable.
  • At 200 kV the detector is limited to low-spatial-frequency signals, restricting its use for high-resolution work.
  • Parallel-beam diffraction setups can now target weak scattering beyond 75 mrad half-angle without additional dose.
  • Event-driven readout mode is validated for quantitative noise analysis in hybrid pixel detectors.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The voltage-dependent drop at Nyquist frequency suggests that charge-sharing or energy-loss effects become dominant at higher beam energies.
  • Similar detectors could be tested for cryo-EM or in-situ diffraction where high DQE at low dose is critical.
  • Combining Timepix4 with post-processing to recover high-frequency information at 200 kV might extend its useful range.

Load-bearing premise

The DQE and NNPS values rest on the assumption that event-driven readout introduces no unaccounted artifacts and that normalization and noise-subtraction steps remain free of systematic bias.

What would settle it

A direct measurement in the same raw-data mode that yields zero-frequency DQE below 0.9 at either voltage, or that fails to register the reported high-angle diffraction spots from the gold sample, would contradict the central claim.

Figures

Figures reproduced from arXiv: 2603.06857 by Angus I. Kirkland, Daniela Bortoletto, Giulio Crevatin, Jonathan S. Barnard, Liam O'Ryan, Marcus Gallagher-Jones, Nina Dimova, Richard Plackett, Zhiyuan Ding.

Figure 1
Figure 1. Figure 1: (a) The custom aluminium knife-edge fabricated for electron data collection. It [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

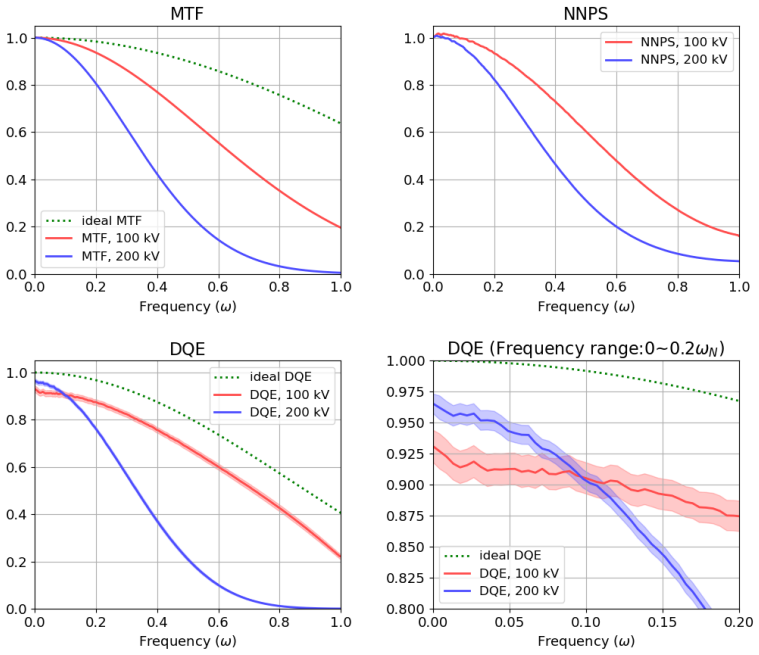

Figure 2
Figure 2. Figure 2: MTF, NNPS and DQE of Timepix4 detector for 100 kV and 200 kV electrons. [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗

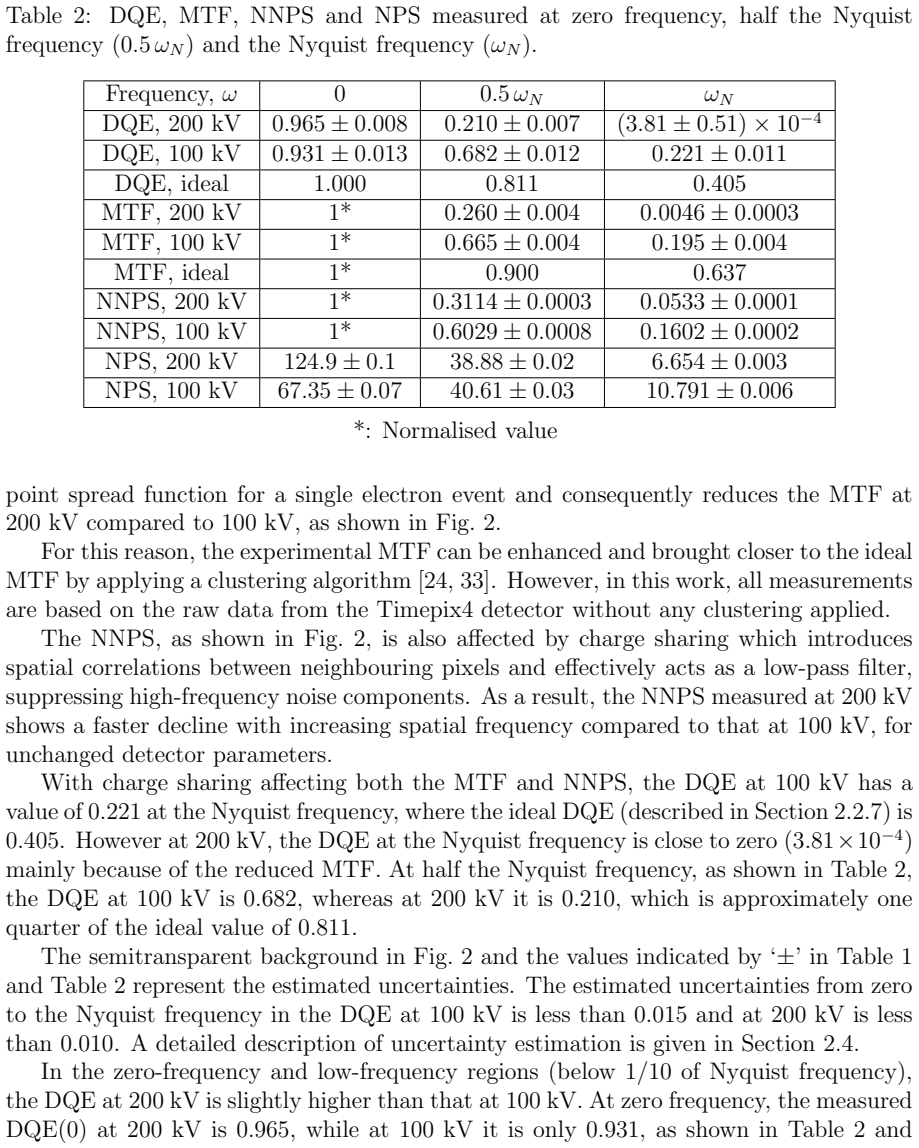

Figure 2
Figure 2. Figure 2: The difference in DQE(0) at 100 kV and 200 kV arises due to the skewness in the [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗

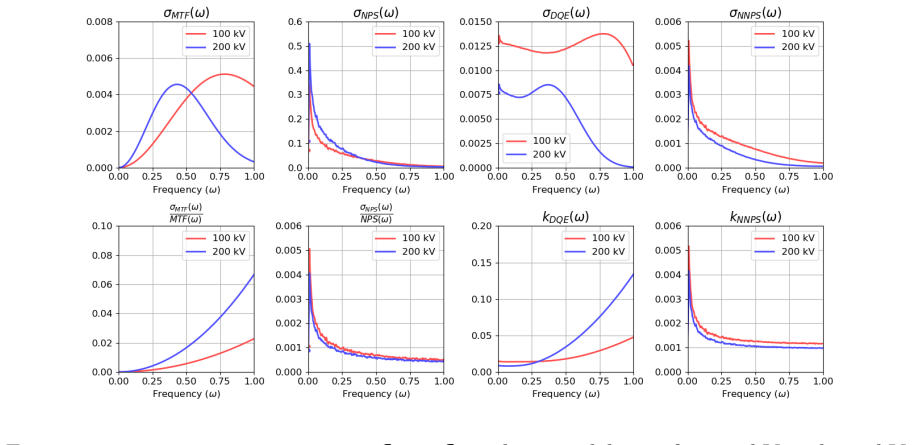

Figure 3
Figure 3. Figure 3: σMTF, σNPS, σDQE, σNNPS, σMTF MTF , σNPS NPS , kDQE and kNNPS for 100 kV and 200 kV. X-axes are the ratio of spatial frequency to the Nyquist sampling frequency of the detector. σNPS(0) and σNPS(0) NPS(0) are marked as dots on y-axis. 2.4.2 Uncertainty in the NNPS The uncertainty of NNPS for ω > 0 is derived from Equation 13 using error propaga￾tion. Since NPS(0) is calculated independently of NPS(ω), thei… view at source ↗

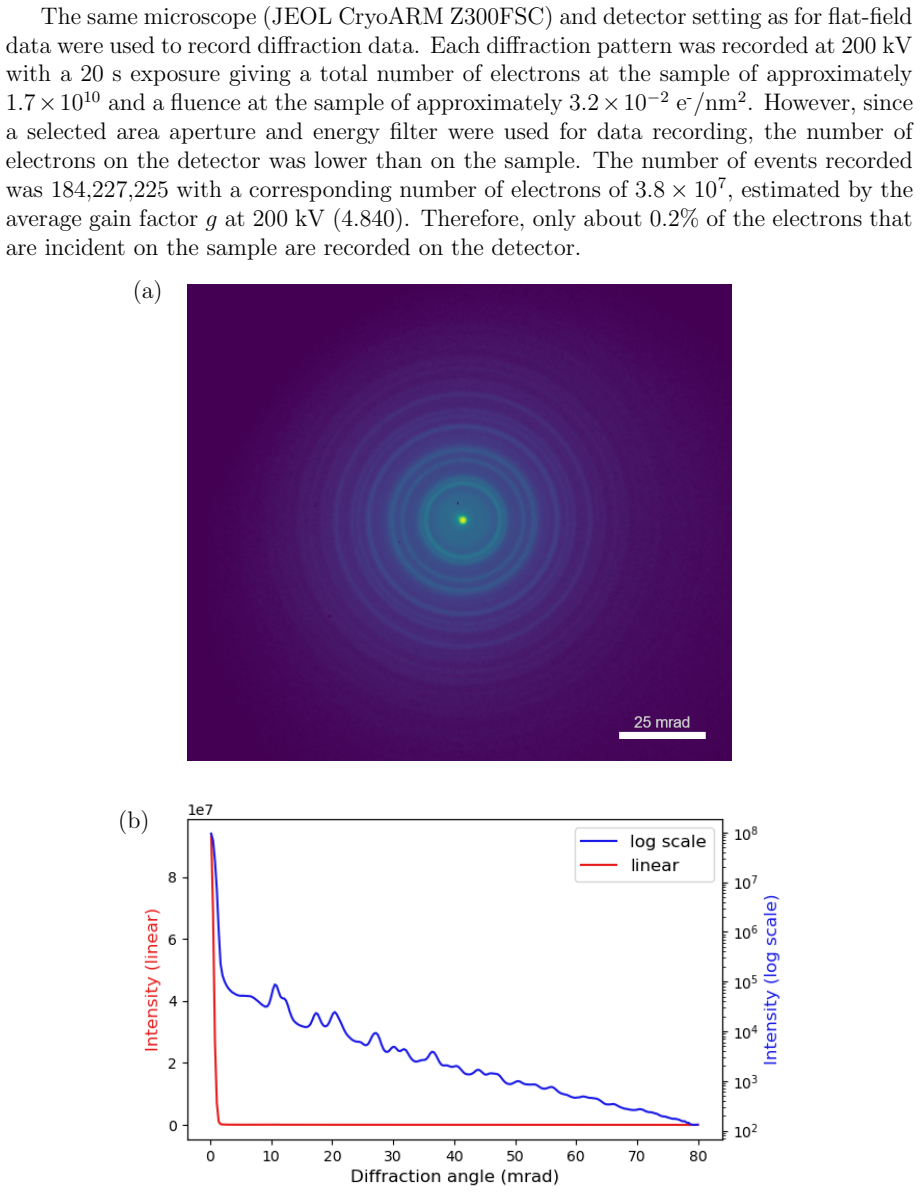

Figure 4
Figure 4. Figure 4: Parallel-Beam Diffraction pattern from a polycrystalline gold sample recorded [PITH_FULL_IMAGE:figures/full_fig_p015_4.png] view at source ↗

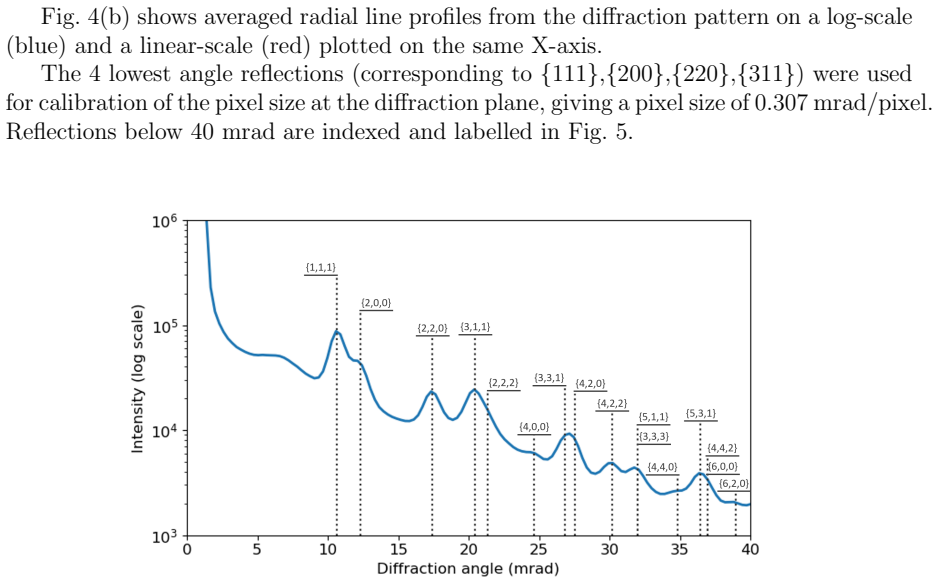

Figure 5
Figure 5. Figure 5: Average radial line profile of the diffraction pattern (0 to 40 mrad, corresponding [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗

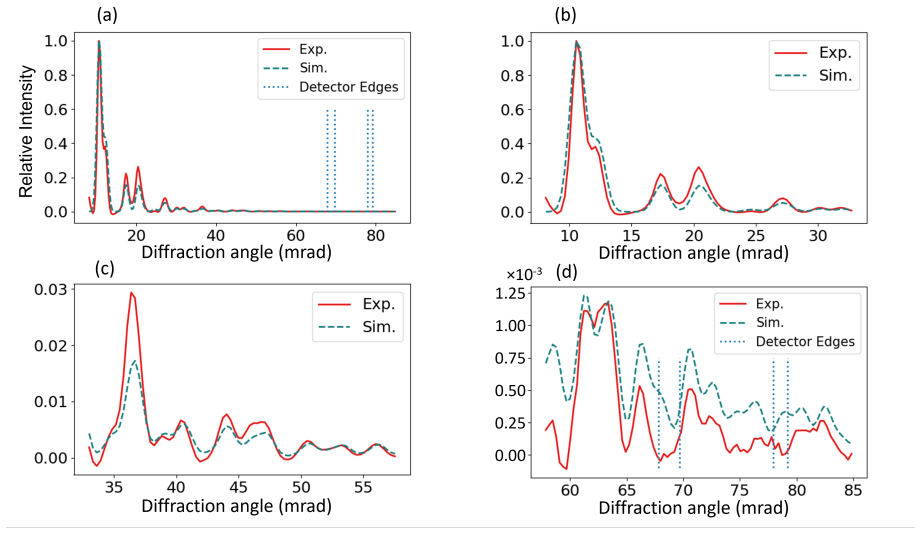

Figure 6
Figure 6. Figure 6: Experimental average radial line profile (red solid line, background removed) [PITH_FULL_IMAGE:figures/full_fig_p017_6.png] view at source ↗

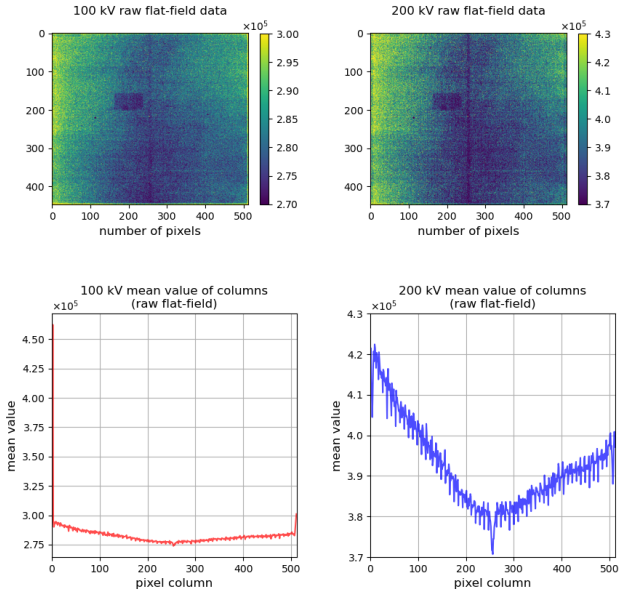

Figure 7
Figure 7. Figure 7: Raw flat-field data at 100 kV and 200 kV with the mean value of the pixel [PITH_FULL_IMAGE:figures/full_fig_p020_7.png] view at source ↗

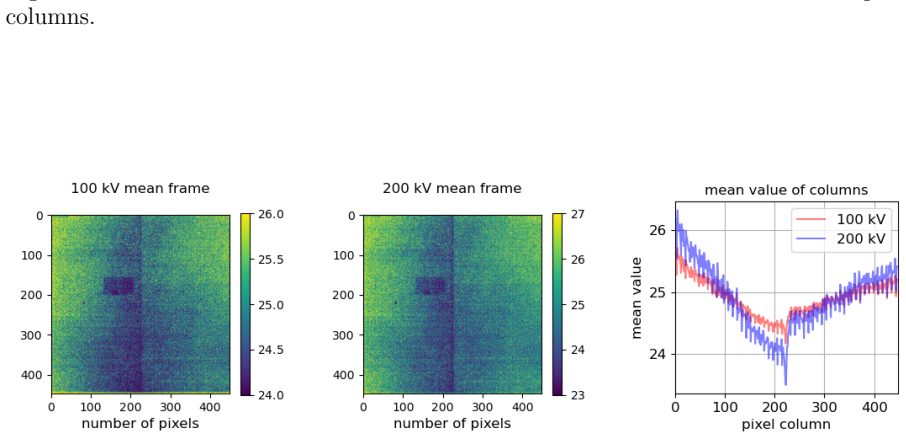

Figure 8
Figure 8. Figure 8: Mean frames recorded at 100 kV and 200 kV, with the mean value of the pixel [PITH_FULL_IMAGE:figures/full_fig_p020_8.png] view at source ↗

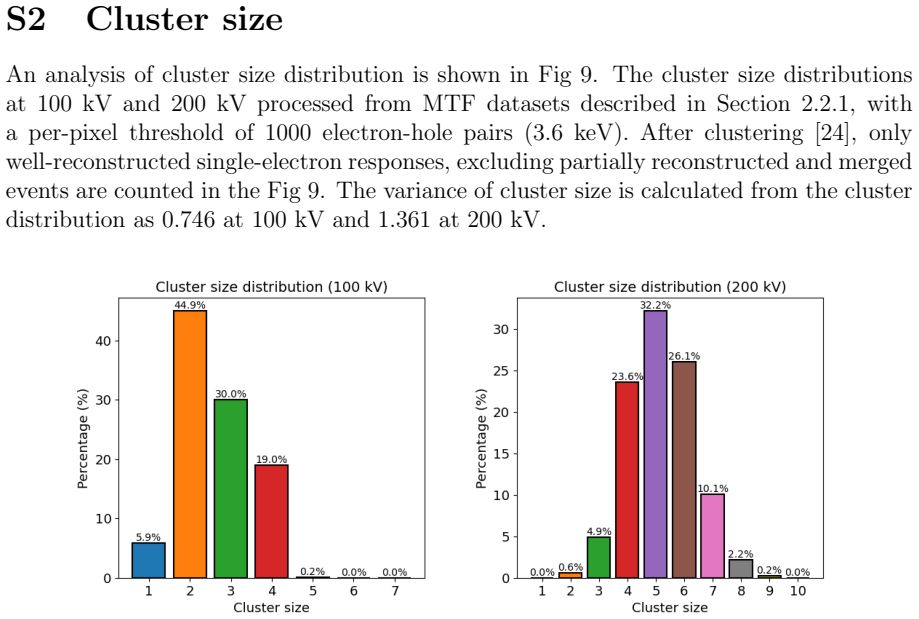

Figure 9
Figure 9. Figure 9: Cluster size distribution at 100 and 200 kV. [PITH_FULL_IMAGE:figures/full_fig_p021_9.png] view at source ↗
read the original abstract

The detective quantum efficiency (DQE) and normalised noise power spectrum (NNPS) of the Timepix4 hybrid pixel detector in event-driven mode in TEM have been measured at 100 kV and 200 kV. In a raw data readout mode, the zero-frequency DQE exceeds 0.9 at both 100 kV and 200 kV. At the Nyquist frequency, the DQE remains above 0.2 at 100 kV but drops close to zero at 200 kV. Initial parallel-beam diffraction data from a polycrystalline gold nanoparticle sample is reported which shows that at 200 kV Timepix4 can detect weak diffracted information beyond a 75 mrad half-angle.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript measures the detective quantum efficiency (DQE) and normalized noise power spectrum (NNPS) of the Timepix4 hybrid pixel detector in event-driven readout mode at 100 kV and 200 kV in a TEM. It reports zero-frequency DQE exceeding 0.9 at both voltages, Nyquist-frequency DQE above 0.2 at 100 kV but near zero at 200 kV, and demonstrates application to parallel-beam diffraction from polycrystalline gold nanoparticles, detecting weak signals beyond a 75 mrad half-angle at 200 kV.

Significance. If the DQE values are accurate, the work supplies useful characterization for Timepix4 in high-voltage TEM, especially its suitability for low-signal diffraction experiments where high zero-frequency DQE and usable high-frequency response at 100 kV are advantageous.

major comments (1)
  1. The central DQE and NNPS claims rest on experimental measurements whose protocol, fluence normalization, noise subtraction, and error propagation are not described in sufficient detail to allow independent evaluation of systematic bias or reproducibility.
minor comments (2)
  1. Clarify the exact definition of 'raw data readout mode' versus event-driven mode and state whether any clustering or charge-sharing corrections were applied.
  2. Add explicit uncertainty estimates or error bars to the reported DQE(0) and Nyquist values.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their review and for highlighting the need for greater experimental detail. We have revised the manuscript to provide a more complete description of the measurement protocol, allowing independent assessment of the DQE and NNPS results.

read point-by-point responses

  1. Referee: The central DQE and NNPS claims rest on experimental measurements whose protocol, fluence normalization, noise subtraction, and error propagation are not described in sufficient detail to allow independent evaluation of systematic bias or reproducibility.

    Authors: We agree that the original manuscript lacked sufficient detail on these aspects. In the revised version we have expanded the Methods section with a dedicated subsection on DQE/NNPS acquisition. This now includes: (i) the exact fluence normalization procedure, which used a calibrated Faraday cup to measure incident electron flux and cross-checked against the detector’s single-electron response histogram; (ii) the noise-subtraction protocol, specifying that NNPS was computed after subtracting both the dark-frame average and the measured readout-noise power spectrum obtained from zero-dose acquisitions; and (iii) the error-propagation analysis, which employs a bootstrap resampling of the 200-frame stacks to report 95 % confidence intervals on DQE(f). These additions enable direct reproduction of the reported zero-frequency DQE > 0.9 and the frequency-dependent values at 100 kV and 200 kV. revision: yes

Circularity Check

0 steps flagged

No significant circularity; direct experimental measurements

full rationale

The paper reports standard experimental measurements of DQE(0), DQE(f) and NNPS on a commercial Timepix4 detector using flat-field illumination, event-driven readout, fluence normalization and Fourier analysis. No derivations, fitted parameters renamed as predictions, self-citation chains, or ansatzes are invoked; the reported values (DQE(0)>0.9, frequency roll-off, diffraction visibility beyond 75 mrad) follow directly from the acquired data and established formulas without reduction to the paper's own inputs by construction. The work is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Experimental measurement paper; no free parameters, axioms, or invented entities are required to state the reported DQE numbers or diffraction observation.

pith-pipeline@v0.9.0 · 5460 in / 1159 out tokens · 39182 ms · 2026-05-15T14:32:28.829215+00:00 · methodology
