A Voronoi Cell Formulation for Principled Token Pruning in Late-Interaction Retrieval Models

Yash Kankanampati , Yuxuan Zong , Nadi Tomeh , Benjamin Piwowarski , Joseph Le Roux This is my paper

Pith reviewed 2026-05-15 13:05 UTC · model grok-4.3

classification 💻 cs.IR
keywords token pruninglate-interaction retrievalVoronoi cellsdense embeddingsindex compressionembedding geometryColBERT
0
0 comments X

The pith

Token pruning in late-interaction models can be framed as estimating Voronoi cell sizes in embedding space to cut index size while keeping retrieval quality.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Late-interaction retrievers store an embedding for every document token, which inflates storage. The paper replaces ad-hoc importance scores with a geometric rule: each token's pruning priority equals the size of the Voronoi cell it owns in the learned embedding space. Larger cells indicate greater influence on similarity computations, so they are retained; smaller cells are dropped. Experiments show the resulting indexes are smaller yet match the effectiveness of the full model and outperform prior statistical pruning baselines. The same cell sizes also expose regularities in how individual tokens contribute to ranking decisions.

Core claim

We cast token pruning as a Voronoi cell estimation problem in the embedding space. By interpreting each token's influence as a measure of its Voronoi region, our approach enables principled pruning that retains retrieval quality while reducing index size.

What carries the argument

Voronoi cell size in the embedding space, used as a direct geometric proxy for each token's contribution to late-interaction similarity scores.

If this is right

  • Index storage can be reduced by discarding embeddings whose Voronoi regions are small, without separate importance classifiers.
  • The same cell-size scores give an interpretable ranking of which tokens drive retrieval decisions inside any late-interaction model.
  • Pruning decisions become deterministic once the embedding space is fixed, removing the need for task-specific tuning of pruning thresholds.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The geometric framing could be applied to prune other per-token representations, such as those in late-interaction question-answering or dense passage rerankers.
  • If Voronoi volumes correlate with token frequency or semantic specificity, the method might also inform vocabulary construction or embedding regularization during training.
  • Query-dependent pruning extensions could recompute only the cells relevant to a given query embedding, further shrinking runtime memory.

Load-bearing premise

The volume of a token's Voronoi cell in the trained embedding space accurately tracks how much that token affects final retrieval rankings.

What would settle it

A controlled test in which documents are pruned by Voronoi cell size yet retrieval metrics drop below those achieved by the best statistical pruning baseline on the same collection and queries.

Figures

Figures reproduced from arXiv: 2603.09933 by Benjamin Piwowarski, Joseph Le Roux, Nadi Tomeh, Yash Kankanampati, Yuxuan Zong.

Figure 1

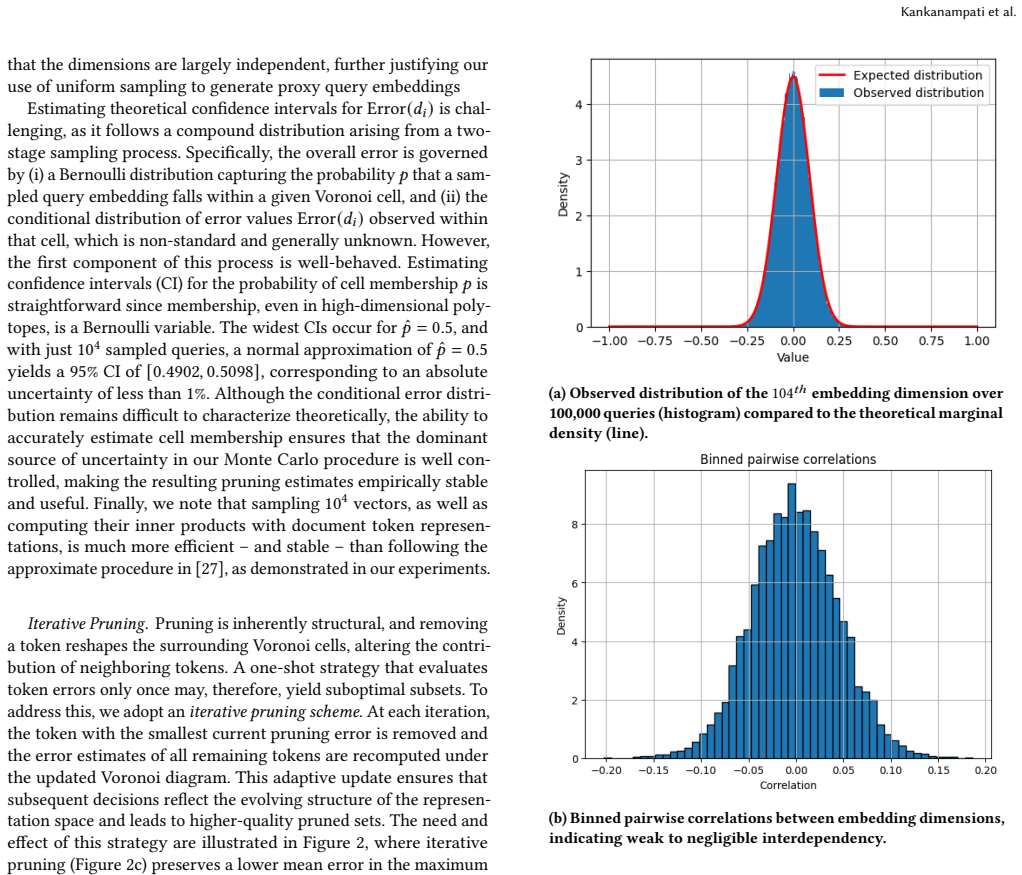

Figure 1. Figure 1: Analysis of query embeddings from MS MARCO [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: An example illustrating the difference in iterative and non-iterative Voronoi pruning of 2D document vectors. Each [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Performance of LP Pruning and Voronoi Pruning [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: Distribution showing when a token at a particular [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Relationship between Mean Error and retrieval per [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
read the original abstract

Late-interaction models such as ColBERT offer competitive performance across various retrieval tasks but require storing a dense embedding for each document token, leading to a substantial index storage overhead. Past works address this by attempting to prune low-importance token embeddings based on statistical and empirical measures, but they often either lack formal grounding or are ineffective. To address these shortcomings, we introduce a framework grounded in hyperspace geometry and cast token pruning as a Voronoi cell estimation problem in the embedding space. By interpreting each token's influence as a measure of its Voronoi region, our approach enables principled pruning that retains retrieval quality while reducing index size. Through our experiments, we demonstrate that this approach serves not only as a competitive pruning strategy but also as a valuable tool for improving and interpreting token-level behavior within dense retrieval systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes casting token pruning in late-interaction models (e.g., ColBERT) as a Voronoi cell estimation problem in the learned embedding space. Token influence is defined as the volume of each token's Voronoi region, providing a geometric basis for pruning low-influence embeddings to reduce index size while preserving retrieval quality. Experiments position the method as competitive with prior statistical pruning techniques and as an interpretive tool for token-level behavior.

Significance. If the geometric measure aligns with actual retrieval contributions, the approach supplies a parameter-free, formally grounded alternative to heuristic pruning, with potential benefits for index compression and model interpretability in dense retrieval. The absence of free parameters and the direct construction from embedding geometry are notable strengths.

major comments (2)
  1. [§3] §3 (Voronoi formulation): the central claim that Voronoi cell volume equals token influence for late-interaction scoring is not justified. Late-interaction scores use max_{d_token} sim(q, d_token) per query token; cell volume is a measure under the uniform embedding measure, but query embeddings may concentrate in small cells that are nevertheless the unique maximizer for important queries. This mismatch is load-bearing for the pruning guarantee.
  2. [§4.3] §4.3 (experimental validation): the reported nDCG@10 and recall curves at varying pruning ratios do not include controls that vary query embedding distribution independently of the document embedding measure. Without such controls, it is unclear whether observed retention of quality stems from the Voronoi sizes or from incidental correlation with frequency-based importance.
minor comments (2)
  1. [§3.1] Notation for the embedding space metric and the precise definition of cell volume (e.g., whether Lebesgue measure or a learned density) is introduced without an explicit equation reference in the main text; add a numbered equation.
  2. [Figure 2] Figure 2 (Voronoi diagram example) lacks axis labels and scale; the visual does not indicate whether the plotted space is the full embedding dimension or a PCA projection.

Simulated Author's Rebuttal

2 responses · 0 unresolved

Thank you for the opportunity to respond to the referee's comments. We address each major comment below, providing clarifications and indicating where revisions will be made to the manuscript.

read point-by-point responses

  1. Referee: [§3] §3 (Voronoi formulation): the central claim that Voronoi cell volume equals token influence for late-interaction scoring is not justified. Late-interaction scores use max_{d_token} sim(q, d_token) per query token; cell volume is a measure under the uniform embedding measure, but query embeddings may concentrate in small cells that are nevertheless the unique maximizer for important queries. This mismatch is load-bearing for the pruning guarantee.

    Authors: We agree that the Voronoi cell volume is computed under the uniform measure and does not directly equate to the probability of being the maximizer under arbitrary query distributions. The manuscript presents the Voronoi volume as a geometric interpretation of token influence rather than a strict equality. To address this concern, we will revise Section 3 to explicitly discuss the relationship between cell volume and the max-similarity scoring, including the assumptions under which the volume serves as a proxy for influence. This will include noting potential limitations when query embeddings are highly concentrated. revision: yes

  2. Referee: [§4.3] §4.3 (experimental validation): the reported nDCG@10 and recall curves at varying pruning ratios do not include controls that vary query embedding distribution independently of the document embedding measure. Without such controls, it is unclear whether observed retention of quality stems from the Voronoi sizes or from incidental correlation with frequency-based importance.

    Authors: The experiments in §4.3 compare our method against frequency-based pruning baselines on standard retrieval benchmarks with real query sets. The competitive performance relative to frequency-based methods indicates that the Voronoi measure captures geometric properties beyond mere token frequency in the document collection. However, we acknowledge the value of additional controls. We will add a discussion in the revised manuscript explaining why the current experimental setup provides evidence against pure incidental correlation, and if space permits, include a small-scale synthetic experiment varying query distributions. revision: partial

Circularity Check

0 steps flagged

No significant circularity; geometric formulation is a modeling choice, not a reduction to inputs

full rationale

The paper proposes casting token pruning as Voronoi cell estimation in embedding space and defines each token's influence as the measure of its Voronoi region. This is presented as a direct geometric construction rather than a derivation from fitted parameters, self-citations, or prior results by the same authors. No equations, self-citations, or 'predictions' that reduce by construction to the inputs appear in the abstract or described framework. The approach is self-contained as a new principled method whose effectiveness is evaluated empirically, with no load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that Voronoi regions in embedding space correspond to token influence for retrieval; no free parameters or invented entities are mentioned in the abstract.

axioms (1)
  • domain assumption Voronoi cells in the embedding space measure each token's influence for retrieval.
    Invoked when casting token pruning as Voronoi cell estimation.
