The pith

Diffeomorphism groupoids allow modeling of discontinuous sliding motions in image registration while keeping diffeomorphisms within regions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends traditional diffeomorphism Lie groups used in LDDMM to groupoids to handle discontinuities along sliding boundaries in image registration. This framework maintains smoothness inside homogeneous regions but permits jumps across boundaries. By analyzing the associated Lie algebroids and their duals, the authors derive Euler-Arnold equations that govern the optimal flows for such discontinuous deformations. A sympathetic reader would care because many real-world images involve sliding motions that standard continuous methods cannot capture accurately.

Core claim

We extend the diffeomorphism Lie groups to a framework of discontinuous diffeomorphism Lie groupoids, allowing for discontinuities along sliding boundaries while maintaining diffeomorphism within homogeneous regions. We provide a rigorous analysis of the associated mathematical structures, including Lie algebroids and their duals, and derive specific Euler-Arnold equations to govern optimal flows for discontinuous deformations.

What carries the argument

The discontinuous diffeomorphism Lie groupoid, which structures piecewise diffeomorphic transformations with discontinuities isolated to boundaries between regions.

Load-bearing premise

Sliding discontinuities can be cleanly isolated to boundaries between homogeneous regions and the groupoid structure produces valid optimal flows without instabilities.

What would settle it

If numerical solutions of the derived Euler-Arnold equations for test cases with known sliding boundaries fail to recover accurate deformations or produce unstable flows.

Figures

Figures reproduced from arXiv: 2603.11806 by Bin Xiao, Lili Bao, Shihui Ying, Stefan Sommer.

Figure 1
Figure 1. Figure 1: Illustration of the discontinuous image registration based on Lie [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: An illustration of image registration. achieving registration between the two images. To ensure that the deformation field is as simple and smooth as possible, and close to the identity deformation, the regularization term ER(ϕ) can be defined using the distance given as follows [33, 37]: ER(ϕ) = d 2 V (Id, ϕ) = min v(t)∈V,ϕv 01=ϕ Z 1 0 ∥v(t)∥ 2 V dt. (2.3) The velocity v lies in the admissible Hilbert spa… view at source ↗
Figure 3

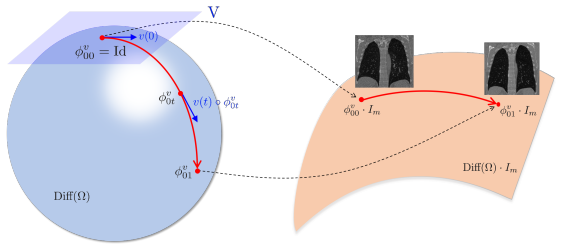

Figure 3. Figure 3: (left) Illustration of the geodesic flow on groups Diff(Ω) of diffeomor [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: The structure of a groupoid G ⇒ B. (d) Inverse: For each g ∈ G, there exists an element g −1 ∈ G such that src(g −1 ) = trg(g), trg(g −1 ) = src(g), g −1 g = idsrc(g) , and gg−1 = idtrg(g) . The structure of a groupoid, along with its inverses, identities, and multi￾plication operations, is illustrated in [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

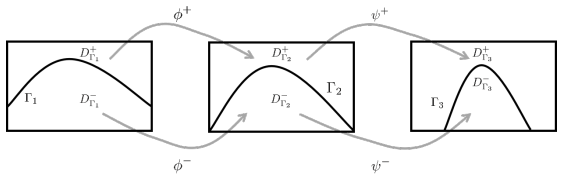

Figure 5. Figure 5: Illustration of the composition rule of two groupoid elements [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The structure of the Lie groupoid DDiff( [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Registration results on synthetic rectangle images with sliding motion. [PITH_FULL_IMAGE:figures/full_fig_p024_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Registration results on synthetic wheel images with sliding motion. [PITH_FULL_IMAGE:figures/full_fig_p025_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Registration results on real lung images with sliding motion. Rows [PITH_FULL_IMAGE:figures/full_fig_p026_9.png] view at source ↗
read the original abstract

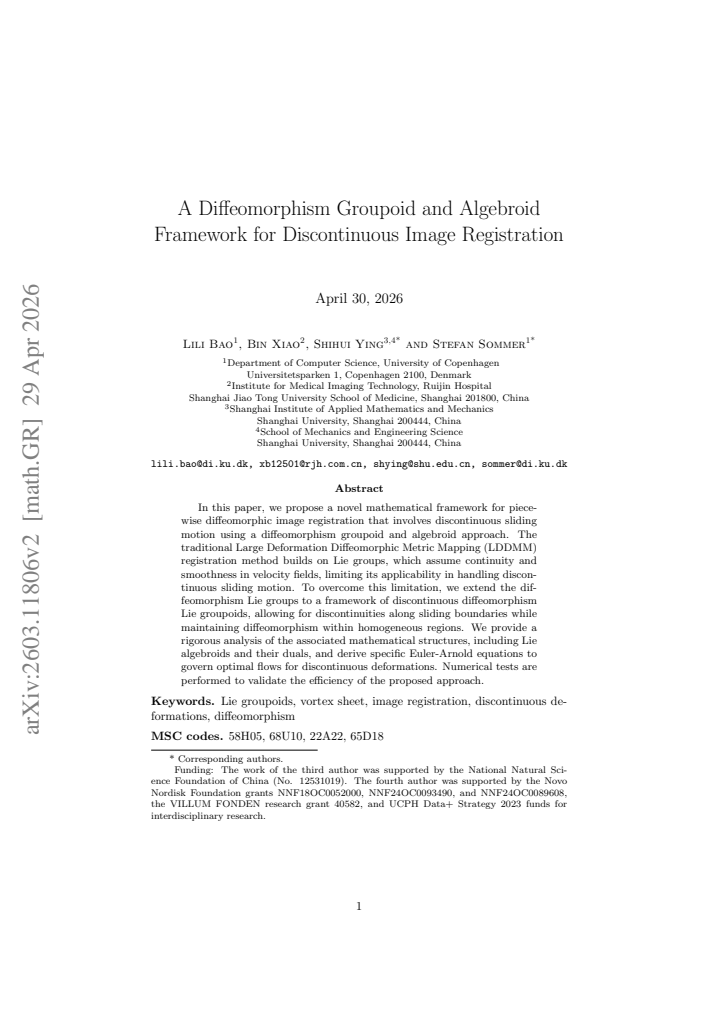

In this paper, we propose a novel mathematical framework for piecewise diffeomorphic image registration that involves discontinuous sliding motion using a diffeomorphism groupoid and algebroid approach. The traditional Large Deformation Diffeomorphic Metric Mapping (LDDMM) registration method builds on Lie groups, which assume continuity and smoothness in velocity fields, limiting its applicability in handling discontinuous sliding motion. To overcome this limitation, we extend the diffeomorphism Lie groups to a framework of discontinuous diffeomorphism Lie groupoids, allowing for discontinuities along sliding boundaries while maintaining diffeomorphism within homogeneous regions. We provide a rigorous analysis of the associated mathematical structures, including Lie algebroids and their duals, and derive specific Euler-Arnold equations to govern optimal flows for discontinuous deformations. Numerical tests are performed to validate the efficiency of the proposed approach.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a novel framework extending Large Deformation Diffeomorphic Metric Mapping (LDDMM) from Lie groups to discontinuous diffeomorphism Lie groupoids and associated algebroids. This allows piecewise diffeomorphic registrations with sliding discontinuities isolated to boundaries between homogeneous regions, while deriving modified Euler-Arnold equations on the algebroid dual to govern optimal flows and providing numerical validation of the approach.

Significance. If the central derivations hold, the work offers a structured extension of diffeomorphic registration methods to handle sliding motions without ad-hoc constraints, which could improve modeling in applications such as medical imaging of sliding organs or tissues. The groupoid/algebroid formalism provides a potential route to parameter-free optimal flows within regions, building on existing Lie-group techniques.

major comments (2)
  1. [Derivation of Euler-Arnold equations on algebroid dual] The derivation of the Euler-Arnold equations (likely in the section following the Lie algebroid dual construction) must explicitly show how the momentum map and coadjoint action are modified by the groupoid structure to accommodate discontinuities; the abstract and high-level description suggest the standard form is retained, but this requires verification that no additional instability terms arise at the sliding boundaries.
  2. [Numerical validation] The numerical tests section reports validation but lacks quantitative metrics (e.g., Dice scores, target registration error, or comparison against standard LDDMM on synthetic sliding datasets); without these, the claim that the framework produces valid optimal flows cannot be assessed for practical improvement.
minor comments (2)
  1. [Mathematical structures] Define the groupoid multiplication operation explicitly with an equation or diagram early in the mathematical framework section to clarify how it differs from standard Lie group multiplication.
  2. [Introduction] Add a short remark on the smoothness requirements within homogeneous regions to ensure the diffeomorphism property is preserved away from boundaries.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment point by point below, indicating the revisions we will incorporate.

read point-by-point responses

  1. Referee: The derivation of the Euler-Arnold equations (likely in the section following the Lie algebroid dual construction) must explicitly show how the momentum map and coadjoint action are modified by the groupoid structure to accommodate discontinuities; the abstract and high-level description suggest the standard form is retained, but this requires verification that no additional instability terms arise at the sliding boundaries.

    Authors: The derivation in the manuscript already incorporates the groupoid structure by replacing the standard Lie group coadjoint action with the algebroid dual version that respects the piecewise diffeomorphisms and boundary discontinuities. This yields modified Euler-Arnold equations without additional instability terms, as the velocity fields remain smooth within each homogeneous region and the boundary conditions enforce continuity of the momentum across sliding interfaces. To address the request for explicit verification, we will expand the derivation section with a step-by-step breakdown of the modified momentum map and coadjoint action, including a short lemma confirming the absence of instability terms at the boundaries. revision: partial

  2. Referee: The numerical tests section reports validation but lacks quantitative metrics (e.g., Dice scores, target registration error, or comparison against standard LDDMM on synthetic sliding datasets); without these, the claim that the framework produces valid optimal flows cannot be assessed for practical improvement.

    Authors: We agree that quantitative metrics are needed to strengthen the validation claims. The current numerical examples illustrate the qualitative behavior of the discontinuous flows, but we will revise the numerical tests section to include Dice scores, target registration errors, and direct comparisons against standard LDDMM on synthetic datasets with known sliding motions, thereby providing measurable evidence of improvement. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper constructs a direct extension of the LDDMM Lie-group framework to diffeomorphism groupoids and algebroids, deriving Euler-Arnold equations on the dual algebroid from the new groupoid structure. No step reduces a claimed prediction to a fitted parameter by construction, nor does any load-bearing premise collapse to a self-citation whose content is itself unverified. The derivation introduces new algebraic objects (groupoid multiplication, algebroid bracket) whose properties are analyzed independently of the target registration outputs, and numerical validation is presented as separate empirical support rather than an input to the equations. The central claim therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The central claim rests on standard differential geometry structures adapted to discontinuities, with the groupoid itself as the key new entity.

axioms (2)
  • standard math Lie group properties for diffeomorphisms can be extended to groupoids while preserving local diffeomorphism within regions
    Invoked in the extension from Lie groups to groupoids for piecewise registration.
  • domain assumption Discontinuities occur only along sliding boundaries separating homogeneous regions
    Core modeling choice for allowing discontinuities without breaking overall diffeomorphism.
invented entities (1)
  • discontinuous diffeomorphism Lie groupoid no independent evidence
    purpose: To model piecewise diffeomorphic deformations allowing sliding discontinuities at boundaries
    New structure introduced to overcome limitations of standard Lie groups in LDDMM.
