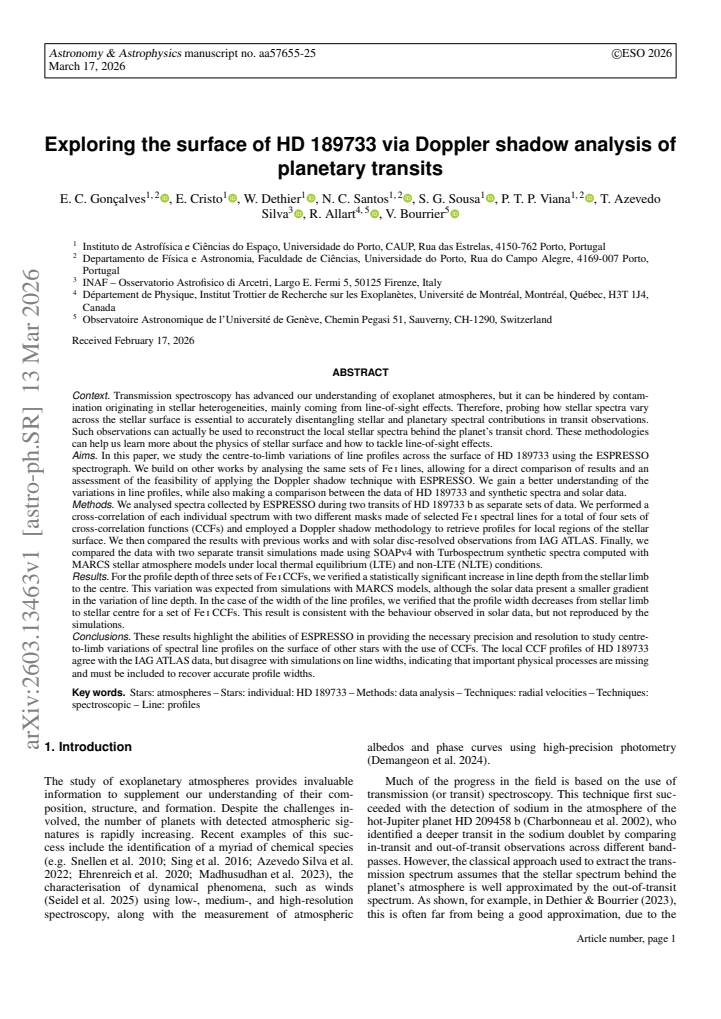

Exploring the surface of HD 189733 via Doppler shadow analysis of planetary transits

E. C. Gon\c{c}alves; E. Cristo; N. C. Santos; P. T. P. Viana; R. Allart; S. G. Sousa; T. Azevedo Silva; V. Bourrier; W. Dethier

arxiv: 2603.13463 · v1 · submitted 2026-03-13 · 🌌 astro-ph.SR · astro-ph.EP

Exploring the surface of HD 189733 via Doppler shadow analysis of planetary transits

E. C. Gon\c{c}alves , E. Cristo , W. Dethier , N. C. Santos , S. G. Sousa , P. T. P. Viana , T. Azevedo Silva , R. Allart

show 1 more author

V. Bourrier

This is my paper

Pith reviewed 2026-05-15 11:24 UTC · model grok-4.3

classification 🌌 astro-ph.SR astro-ph.EP

keywords HD 189733Doppler shadowcentre-to-limb variationESPRESSOstellar spectratransit spectroscopyFe I linestransmission spectroscopy

0 comments

The pith

Transiting planets let ESPRESSO map how spectral lines change from a star's limb to its center.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that Doppler shadow analysis of exoplanet transits with ESPRESSO can extract local stellar spectra along the transit path on HD 189733. By cross-correlating observed spectra with two Fe I line masks during two transits, the authors retrieve centre-to-limb variations in line depth and width. Three of the four resulting CCF sets show deeper lines toward the stellar center, matching predictions from Turbospectrum models based on MARCS atmospheres, while solar data display a milder trend. One CCF set also reveals narrowing lines from limb to center, consistent with solar observations but absent from the simulations. This demonstrates ESPRESSO's ability to measure such variations on stars other than the Sun and highlights the need for refined models to capture all observed behaviors.

Core claim

Doppler shadow analysis of ESPRESSO spectra during HD 189733 b transits yields local CCF profiles that exhibit a statistically significant increase in line depth from stellar limb to center in three Fe I mask sets, in line with Turbospectrum LTE/NLTE predictions, while one set shows a decrease in line width matching solar data but not reproduced by SOAPv4 or Turbospectrum simulations.

What carries the argument

Doppler shadow methodology applied to cross-correlation functions from two Fe I line masks, isolating local stellar line profiles along the planet's transit chord.

If this is right

Local CCF profiles of HD 189733 agree overall with disc-resolved solar spectra from IAG ATLAS.
Discrepancies in line widths imply that additional physical processes beyond current LTE/NLTE models are needed.
The method confirms ESPRESSO can measure centre-to-limb variations on other stars.
These measurements help disentangle stellar surface effects from planetary signals in transmission spectroscopy.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

This approach could map surface features such as spots or plages on more active stars using repeated transits.
Combining these profiles with full-disc observations might improve corrections for stellar contamination in atmosphere studies.
Testing the same masks on additional stars would check whether the line width mismatch is specific to HD 189733 or a broader modeling gap.

Load-bearing premise

The cross-correlation functions from the two Fe I masks isolate local stellar line profiles without residual planetary or instrumental contamination along the transit chord.

What would settle it

No statistically significant increase in line depth from limb to center across the CCF sets, or line widths that fail to match both solar observations and the simulations in any set.

read the original abstract

Transmission spectroscopy has greatly advanced the study of exoplanet atmospheres, but stellar surface heterogeneities can contaminate transit spectra. Characterising how stellar spectra vary across the stellar disc is therefore essential to disentangle stellar and planetary contributions. Transit observations can probe the local stellar spectra along the planet's transit chord. We study centre-to-limb variations of line profiles across the surface of HD 189733 using the ESPRESSO spectrograph. Building on previous work, we assess the feasibility of applying the Doppler shadow technique with ESPRESSO and compare the results with solar observations and numerical simulations. We analyse spectra obtained during two transits of HD 189733 b. Each spectrum was cross-correlated with two masks of selected Fe I lines, producing four sets of cross-correlation functions (CCFs). Using a Doppler shadow methodology, we retrieved local stellar profiles along the transit chord. These were compared with previous studies, with disc-resolved solar spectra from IAG ATLAS and with transit simulations generated using SOAPv4 and synthetic spectra from Turbospectrum based on MARCS stellar atmosphere models under LTE and NLTE conditions. For three Fe I CCF sets we detect a statistically significant increase in line depth from stellar limb to centre, consistent with Turbospectrum predictions, although solar data show a weaker gradient. For one CCF set we also find that line widths decrease from limb to centre, consistent with solar observations but not reproduced by the simulations. These results demonstrate the capability of ESPRESSO to measure centre-to-limb variations of spectral line profiles on other stars. While the local CCF profiles of HD 189733 agree with solar data, discrepancies in line widths suggest that additional physical processes are required to reproduce the observed profiles.
