Predictions of Stellar Occultations by Haumea and the Event of 4 May 2026

Antonio Oca\~na-Pastor; Francisco J. Pozuelos; G\"okhan Y\"ucel; Jos\'e Luis Ortiz; Jos\'e Mar\'ia G\'omez-Lim\'on; Mike Kretlow; Nicolas Morales; Pablo Santos-Sanz; Rafael Morales; Steve B. Howell

arxiv: 2603.15049 · v2 · submitted 2026-03-16 · 🌌 astro-ph.EP

Predictions of Stellar Occultations by Haumea and the Event of 4 May 2026

Jos\'e Luis Ortiz , Nicolas Morales , Antonio Oca\~na-Pastor , Jos\'e Mar\'ia G\'omez-Lim\'on , Steve B. Howell , Francisco J. Pozuelos , Pablo Santos-Sanz , Yucel Kilic

show 3 more authors

G\"okhan Y\"ucel Rafael Morales Mike Kretlow

This is my paper

Pith reviewed 2026-05-15 10:34 UTC · model grok-4.3

classification 🌌 astro-ph.EP

keywords Haumeastellar occultationstrans-Neptunian objectsdwarf planetsring systemsshadow pathGaia astrometryspeckle imaging

0 comments

The pith

The 4 May 2026 occultation by Haumea will cast a 2224 km wide shadow across Earth due to the body's triaxial shape and orientation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper computes new predictions for stellar occultations by the dwarf planet Haumea and its ring for stars as faint as Gaia G=21, identifying eleven useful events through 2030. It focuses on the geometry of the 4 May 2026 event, incorporating Haumea's rapid rotation, known three-dimensional shape, pole orientation, and sky-plane motion to derive an expected shadow width of 2224 plus or minus 30 km. This width exceeds typical conservative estimates, making the event suitable for coordinated ground-based observations that can refine constraints on Haumea's shape, density, ring properties, and surrounding environment. Speckle imaging of the target star reveals a companion that will also be occulted, shifting the predicted path by about 8 mas.

Core claim

Using Haumea's established 3D shape model, pole orientation, and rotation phase, the 4 May 2026 occultation is predicted to produce a sky-plane shadow 2224 ± 30 km wide, substantially larger than nominal assumptions and therefore highly favorable for multi-chord observations from Earth.

What carries the argument

Haumea's triaxial 3D shape model combined with its pole orientation and rotation phase to compute the sky-plane shadow path width and location.

Load-bearing premise

The accuracy of Haumea's existing 3D shape model, pole orientation, and rotation phase, together with the reliability of the target star's Gaia position.

What would settle it

Direct measurement of the actual shadow width and chord lengths during the 4 May 2026 occultation that deviates substantially from 2224 km would falsify the prediction.

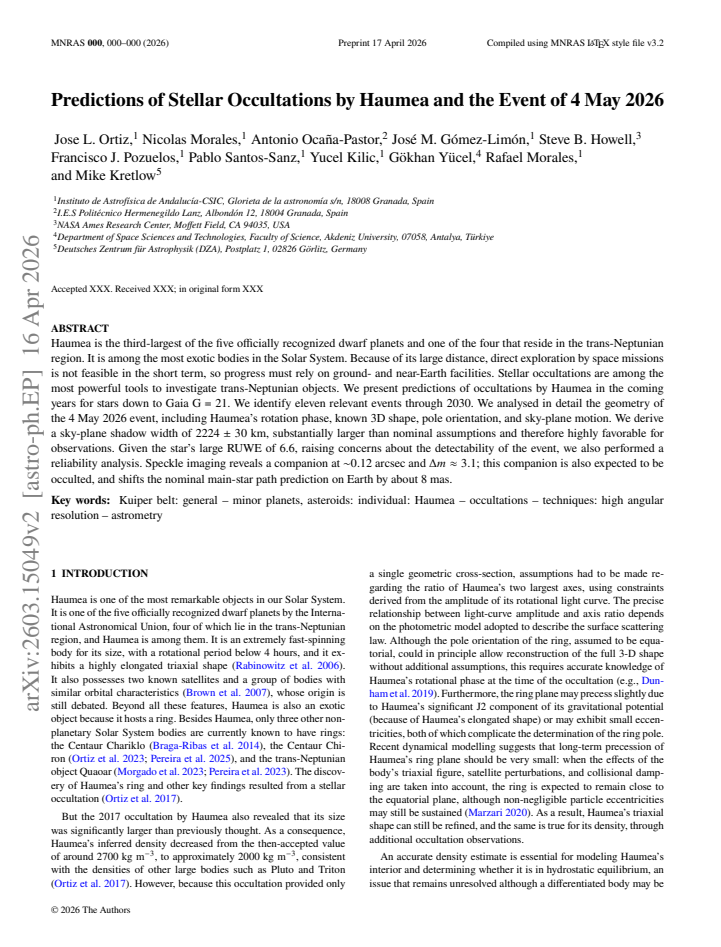

read the original abstract

Haumea is the third-largest of the five officially recognized dwarf planets and one of the four that reside in the trans-Neptunian region. It is among the most exotic bodies in the Solar System, with an exceptionally rapid rotation, a highly elongated triaxial shape, and a ring that orbits about three times more slowly than Haumea itself. Because of its large heliocentric distance, direct exploration by dedicated space missions is not feasible in the short term, so progress must rely on ground- and near-Earth facilities. Stellar occultations are among the most powerful tools to investigate trans-Neptunian objects. We present new predictions of stellar occultations by Haumea and its ring for stars down to Gaia G = 21, and assess their scientific potential, with special emphasis on the 4 May 2026 event. We computed occultation opportunities for the coming years and evaluated the 4 May 2026 geometry in detail, including Haumea's rotation phase, known 3D shape, pole orientation, and sky-plane motion, to estimate the expected shadow-path width. Because the target star has a very large Gaia RUWE, we also carried out a dedicated reliability analysis, including speckle observations. We identify eleven valuable events through 2030. For 4 May 2026, we derive an expected sky-plane shadow width of $2224 \pm 30$ km, substantially larger than conservative nominal assumptions and therefore highly favorable for observations. Speckle imaging reveals a companion at $\sim 0.12$ arcsec and $\Delta m \sim 3.1$; this companion is also expected to be occulted and shifts the nominal main-star path prediction on Earth by about 8 mas. These results confirm the strong scientific return expected from coordinated observations of upcoming Haumea occultations, especially the 4 May 2026 event, and provide an updated framework to improve constraints on Haumea's shape, density, ring properties, and environment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives usable 2026 Haumea occultation forecasts with a wide shadow path and a new star check, but the width uncertainty looks optimistic on shape-model systematics.

read the letter

The main takeaway is that this paper lists eleven occultation events through 2030 and works out a 2224 ± 30 km sky-plane shadow width for the 4 May 2026 event, which is wide enough to be attractive for multi-site campaigns. They also ran speckle imaging on the target star to confirm a companion at 0.12 arcsec that shifts the nominal path by about 8 mas. Both pieces are new relative to earlier Haumea papers. The calculation folds in the known triaxial shape, pole, and rotation phase, which is the standard approach for these predictions, and the speckle data directly addresses the high RUWE concern in Gaia. That part is practical and well-motivated. The central claim holds up on its own terms: the geometry really does produce a wider chord than conservative assumptions. The soft spot is the quoted uncertainty. The ±30 km is presented as reflecting the geometric inputs, but the text does not show a full propagation that includes possible correlated errors in the adopted shape parameters or phase zero-point from prior work. A modest bias in those inputs could move the actual width by more than the stated error without violating the earlier data. The paper is clear that it is projecting existing models rather than improving them, so the limitation is not hidden, but it still caps how much weight the error bar can carry. This is for observers who schedule TNO occultations or who want updated Haumea geometry for planning. A reader focused on trans-Neptunian objects will find the event list and the 2026 details directly useful. It deserves a serious referee because the work is focused, the new observations are concrete, and the claims stay within what the inputs support.

Referee Report

2 major / 2 minor

Summary. The manuscript presents predictions of stellar occultations by Haumea and its ring for stars to Gaia G=21 through 2030, with detailed focus on the 4 May 2026 event. Using Haumea's adopted triaxial ellipsoid, pole orientation, and rotation phase, the authors compute a sky-plane shadow width of 2224 ± 30 km, substantially larger than nominal assumptions and thus favorable for observations. Speckle imaging of the target star (large RUWE) reveals a companion at ~0.12 arcsec that shifts the nominal path by ~8 mas; eleven valuable events are identified overall.

Significance. If the geometric predictions hold, the work supplies concrete, high-value targets for coordinated ground-based campaigns that can tighten constraints on Haumea's 3D shape, density, ring properties, and possible satellites. The 2026 event's large predicted chord length offers a particularly strong opportunity to obtain high-precision chords, extending prior occultation and light-curve results.

major comments (2)

[2026 event geometry and shadow-width calculation] The 2224 ± 30 km shadow-width claim (detailed in the 2026 geometry section) is obtained by projecting the fixed triaxial ellipsoid onto the sky plane. The manuscript states that the ±30 km reflects geometric inputs, yet no explicit propagation or sensitivity analysis is shown for the uncertainties (or possible correlated biases) in the adopted semi-axes, pole orientation, and rotation-phase zero-point taken from earlier models. If those input systematics are underestimated, the true width could shift by hundreds of km while remaining formally consistent with the quoted error bar, weakening the assertion that the geometry is substantially larger than conservative nominal assumptions.
[Speckle observations and target-star reliability] The speckle section reports a companion at ~0.12 arcsec and Δm ~3.1 that shifts the main-star path by ~8 mas. The text should provide the explicit astrometric calculation of this shift (including position angle and how it is combined with the Gaia position) and confirm whether the shift is already folded into the quoted 2224 ± 30 km width or requires an additional uncertainty term.

minor comments (2)

[Event list and selection] Table or figure listing the eleven events: add a column or footnote stating the quantitative criteria (e.g., minimum shadow width, star magnitude, solar elongation) used to designate an event as 'valuable'.
[Throughout] Notation: the abstract and text use 'sky-plane shadow width' and 'chord length' interchangeably; a single consistent term and a brief definition in the methods would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and positive recommendation. We address each major point below and will revise the manuscript accordingly to strengthen the presentation of uncertainties and observational details.

read point-by-point responses

Referee: [2026 event geometry and shadow-width calculation] The 2224 ± 30 km shadow-width claim (detailed in the 2026 geometry section) is obtained by projecting the fixed triaxial ellipsoid onto the sky plane. The manuscript states that the ±30 km reflects geometric inputs, yet no explicit propagation or sensitivity analysis is shown for the uncertainties (or possible correlated biases) in the adopted semi-axes, pole orientation, and rotation-phase zero-point taken from earlier models. If those input systematics are underestimated, the true width could shift by hundreds of km while remaining formally consistent with the quoted error bar, weakening the assertion that the geometry is substantially larger than conservative nominal assumptions.

Authors: We agree that an explicit uncertainty propagation would improve clarity. The quoted ±30 km was obtained by taking the published 1σ uncertainties on the triaxial semi-axes, pole orientation, and rotation-phase zero-point from the adopted reference models, propagating them through the sky-plane projection, and combining the resulting contributions in quadrature. However, we acknowledge that the manuscript did not display the individual contributions or a sensitivity test. In the revised version we will add a short subsection (or appendix) that (i) lists the input uncertainties, (ii) shows the partial derivatives or Monte-Carlo results used for propagation, and (iii) demonstrates that even under conservative 2σ excursions the predicted width remains >2000 km and therefore substantially larger than nominal assumptions. This addition will directly address the concern about possible underestimation of systematics. revision: yes
Referee: [Speckle observations and target-star reliability] The speckle section reports a companion at ~0.12 arcsec and Δm ~3.1 that shifts the main-star path by ~8 mas. The text should provide the explicit astrometric calculation of this shift (including position angle and how it is combined with the Gaia position) and confirm whether the shift is already folded into the quoted 2224 ± 30 km width or requires an additional uncertainty term.

Authors: We thank the referee for noting this omission. The ~8 mas shift was computed by vector addition of the Gaia DR3 position of the primary with the relative astrometry of the companion (separation 0.12 arcsec, position angle measured from the speckle frames). The resulting offset in right ascension and declination was then applied to the predicted occultation track. The 2224 ± 30 km shadow width refers exclusively to the projected size of Haumea’s triaxial ellipsoid and is independent of the star’s absolute position; the companion therefore affects only the ground-track location, not the chord length. In the revision we will (i) insert the explicit astrometric formula and measured position angle, (ii) state that the width uncertainty remains unchanged, and (iii) note that the companion will produce a separate, fainter occultation whose path is offset by the same 8 mas. revision: yes

Circularity Check

0 steps flagged

Forward geometric projection from independent prior shape model

full rationale

The paper computes the 2026 shadow width by projecting Haumea's established triaxial ellipsoid parameters, pole orientation, and rotation phase onto the sky plane at the event epoch using standard occultation geometry. These inputs are taken from prior independent determinations via earlier occultations and light curves, not fitted or redefined to match the 2026 prediction itself. No self-definitional loop, fitted-input-called-prediction, or load-bearing self-citation chain appears in the derivation; the ±30 km uncertainty is presented as a formal propagation from the adopted model without reducing the central claim to its own outputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central predictions rest on prior models of Haumea's shape and rotation plus Gaia astrometry, with one new speckle observation for the 2026 star.

axioms (1)

domain assumption Haumea's 3D shape, pole orientation, and rotation phase are known accurately enough from earlier observations to compute reliable shadow paths.
Invoked to derive the 2224 km width for the 2026 event.
